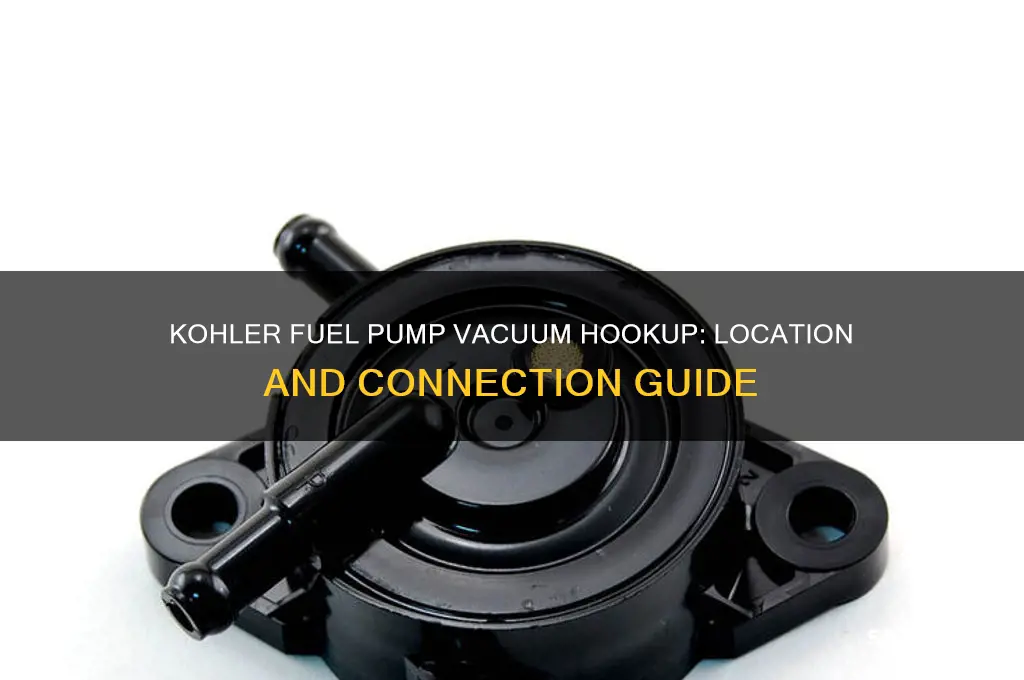

When troubleshooting or installing a Kohler fuel pump, understanding where the vacuum line connects is crucial for proper functionality. The vacuum hookup on a Kohler fuel pump typically attaches to the engine’s intake manifold or a designated vacuum port, ensuring the pump operates efficiently by drawing fuel from the tank. This connection is essential for maintaining consistent fuel delivery, especially in small engines like those found in lawn mowers, generators, or other outdoor equipment. Incorrectly attaching the vacuum line can lead to fuel starvation, engine stalling, or poor performance, making it important to consult the specific model’s manual or diagram for precise instructions.
| Characteristics | Values |
|---|---|
| Vacuum Source | Typically connects to the engine's intake manifold or a dedicated vacuum port on the carburetor. |
| Vacuum Hose Size | Usually requires a 5/32" or 1/4" ID (inner diameter) hose, depending on the specific Kohler fuel pump model. |
| Connection Point on Fuel Pump | The vacuum port is often located on the side or top of the fuel pump, marked with a small nipple or fitting. |
| Purpose | The vacuum connection helps regulate fuel flow by controlling the diaphragm inside the fuel pump, ensuring proper fuel delivery to the carburetor. |
| Compatibility | Specific to Kohler fuel pumps designed for small engines, such as those used in lawn mowers, generators, or other outdoor power equipment. |
| Common Models | Applies to Kohler fuel pumps like the CV10, CV12.5, CV15, and similar models used in single-cylinder engines. |
| Maintenance Tip | Ensure the vacuum hose is securely connected, free from cracks, and not clogged to maintain proper fuel pump operation. |
Explore related products
What You'll Learn
Fuel Pump Inlet Connection
The Kohler fuel pump's vacuum connection is a critical component in ensuring proper fuel delivery, particularly in carbureted engines. This connection typically links the fuel pump to the engine's intake manifold, utilizing engine vacuum to assist in drawing fuel from the tank. Understanding the specific location and function of this connection is essential for troubleshooting and maintenance.
Analyzing the fuel pump inlet connection reveals its dual role: it not only facilitates fuel flow but also regulates pressure within the system. For Kohler pumps, the vacuum hose usually attaches to a port on the pump body, often marked or positioned near the inlet side. This design ensures that the pump operates efficiently, even under varying engine loads. For instance, during idle, the higher vacuum assists in maintaining consistent fuel delivery, while at higher RPMs, the pump relies more on mechanical action.
When installing or replacing the vacuum hose, ensure it is securely connected and free from cracks or leaks. A compromised hose can lead to inadequate fuel supply, causing engine stalling or poor performance. Use a hose rated for fuel and vacuum applications, and verify the correct diameter to match the pump’s inlet port. Typically, a 5/16-inch or 3/8-inch hose is standard, but always refer to the Kohler manual for your specific model.
Comparing Kohler’s design to other fuel pump systems highlights its reliance on vacuum assistance, which is less common in modern fuel-injected engines. This makes proper maintenance of the vacuum connection even more crucial for carbureted setups. For example, if the vacuum source is obstructed or disconnected, the pump may fail to draw fuel, leading to a no-start condition. Regularly inspect the hose for signs of wear, especially near the connection points, and replace it as part of routine engine maintenance.
In practical terms, troubleshooting a fuel pump issue often starts with checking the vacuum connection. If the engine runs poorly or fails to start, inspect the hose for disconnection or damage. A simple test involves starting the engine and listening for leaks near the pump. If the hose is intact but the problem persists, verify that the vacuum port on the intake manifold is clear and functioning. This systematic approach ensures that the fuel pump operates as intended, keeping your Kohler-powered equipment running smoothly.
Step-by-Step Guide to Installing an Aftermarket Polaris Fuel Pump
You may want to see also
Explore related products
Vacuum Hose Routing Diagram
Understanding the vacuum hose routing for a Kohler fuel pump is crucial for ensuring optimal engine performance. The vacuum hose typically connects to the fuel pump’s diaphragm, which relies on engine vacuum to draw fuel from the tank. Incorrect routing can lead to poor fuel delivery, stalling, or even engine failure. Always refer to the specific model’s manual, as Kohler engines vary in design and requirements. For instance, on a Kohler Command series engine, the vacuum hose often attaches to a port near the carburetor or intake manifold, creating a direct vacuum source for the fuel pump.
Analyzing a vacuum hose routing diagram reveals the interplay between engine vacuum, fuel pump operation, and carburetor function. The diagram typically highlights the hose’s path from the vacuum source (e.g., intake manifold) to the fuel pump, sometimes including additional components like a check valve or pulse dampener. For example, a diagram for a Kohler CV series engine might show the hose connecting to a ported vacuum source, ensuring fuel delivery only during engine operation. This prevents fuel from flooding the carburetor when the engine is off, a common issue with improperly routed hoses.
When routing the vacuum hose, follow these steps: first, locate the vacuum port on the fuel pump, usually marked with a barb fitting. Next, trace the hose to its source, often a vacuum port on the carburetor or intake manifold. Ensure the hose is free of cracks and securely clamped at both ends. If the hose passes near hot components, use heat-resistant tubing to prevent melting. For Kohler engines with dual vacuum sources (ported and manifold), verify the correct port is used—ported vacuum is standard for most fuel pump applications.
Practical tips include using a vacuum gauge to test the source port’s strength, ensuring it provides adequate vacuum for fuel pump operation. If the engine idles roughly or struggles to start, inspect the hose for leaks or disconnections. In cold climates, consider adding a fuel line antifreeze to prevent freezing, which can disrupt fuel flow. For older Kohler engines, upgrading to a modern fuel pump with a built-in vacuum regulator can simplify routing and improve reliability. Always double-check the diagram against your engine’s configuration, as aftermarket modifications may alter the standard setup.
Comparing Kohler’s vacuum hose routing to other brands highlights its simplicity and reliability. Unlike some engines that use electric fuel pumps, Kohler’s vacuum-driven system is straightforward but requires precise routing. For example, Briggs & Stratton engines often integrate the fuel pump directly into the carburetor, eliminating the need for a separate vacuum hose. However, Kohler’s design allows for easier troubleshooting and replacement of individual components. By mastering the vacuum hose routing diagram, you ensure your Kohler engine runs efficiently, avoiding common pitfalls like fuel starvation or overflow.
Locate the Fuel Pump Relay in Your 2007 Ford F150
You may want to see also
Explore related products
Kohler Pump Vacuum Port Location
The Kohler fuel pump's vacuum port is a critical component for proper engine operation, yet its location can be elusive, especially for those unfamiliar with the pump's design. Typically, the vacuum port on a Kohler fuel pump is situated on the side or top of the pump housing, often marked with a small hose barb or fitting. This port connects to the engine's intake manifold or carburetor, allowing the pump to draw fuel from the tank under vacuum pressure. Identifying this port is the first step in ensuring a secure and functional connection, which is essential for maintaining optimal fuel delivery and engine performance.
For those working on Kohler engines, understanding the vacuum port’s location is not just about finding a hole—it’s about ensuring compatibility and efficiency. Different Kohler pump models may vary slightly in design, but the vacuum port is generally standardized for ease of use. For example, on the Kohler Command series, the vacuum port is often located near the fuel inlet, distinguished by its smaller diameter compared to other openings. Always consult the specific model’s manual or diagram to confirm the exact location, as misidentifying the port can lead to improper installation and potential engine issues.
Connecting the vacuum line to the Kohler pump’s port requires attention to detail. Use a hose that fits snugly onto the barb or fitting to prevent air leaks, which can disrupt fuel flow. Secure the connection with a clamp to ensure it remains tight during operation. If the port is not immediately visible, inspect the pump housing carefully, as it may be obscured by other components or covered by a protective cap. A flashlight and a clean cloth can aid in locating the port in tight or dirty engine compartments.
One common mistake is confusing the vacuum port with other openings on the pump, such as the fuel outlet or vent. To avoid this, familiarize yourself with the pump’s layout before beginning work. If unsure, trace the existing vacuum line (if present) to its source, or refer to online resources or forums where Kohler enthusiasts share insights and diagrams. Proper identification and connection of the vacuum port not only ensures reliable fuel delivery but also extends the life of the pump and engine by preventing unnecessary strain or damage.
In summary, locating the vacuum port on a Kohler fuel pump is a straightforward task when approached methodically. By understanding its typical placement, verifying compatibility with your model, and ensuring a secure connection, you can maintain efficient fuel system operation. Whether you’re performing routine maintenance or troubleshooting, mastering this aspect of Kohler pump mechanics is a valuable skill for any engine owner or technician.
Mastering Facet 40108 Fuel Pump Connections: A Step-by-Step Guide
You may want to see also
Explore related products
Vacuum Line Attachment Points
The Kohler fuel pump relies on vacuum pressure to regulate fuel flow, making proper vacuum line attachment critical for engine performance. The primary connection point is the vacuum port on the fuel pump itself, typically a small nipple or barb fitting located near the diaphragm housing. This port interfaces with the engine’s intake manifold or carburetor via a vacuum hose, ensuring consistent pressure differentials during operation.
When identifying the correct attachment point, consider the engine’s configuration. For Kohler engines with carburetors, the vacuum source is often the carburetor’s vacuum fitting, usually marked by a port labeled "VAC" or similar. On fuel-injected models, the intake manifold’s vacuum tap serves as the connection point. Always verify compatibility by consulting the engine’s manual or schematic, as misalignment can lead to fuel starvation or overflow.
Attaching the vacuum line requires precision. Use a hose with an inner diameter matching the pump’s port (typically 1/8" or 5/32") to ensure a secure fit. Secure the connection with a clamp to prevent leaks, especially in high-vibration environments. Inspect the hose for cracks or brittleness, replacing it if necessary, as degraded lines compromise vacuum integrity.
A common mistake is connecting the vacuum line to a non-vacuum source, such as a pressure port, which can damage the pump’s diaphragm. To avoid this, test the source port with a hand pump or gauge to confirm it generates vacuum during engine operation. If unsure, trace the original routing or seek guidance from Kohler’s technical support.
Proper vacuum line attachment not only ensures efficient fuel delivery but also extends the pump’s lifespan. Regularly inspect connections for leaks or dislodgement, particularly after maintenance or rough use. By understanding these attachment points and following best practices, you can maintain optimal engine performance and reliability.
Easy Guide to Hooking Up a 12V DC Fuel Pump
You may want to see also
Explore related products
Fuel Pump Vacuum Source Setup
The Kohler fuel pump relies on a consistent vacuum source to operate efficiently, drawing fuel from the tank to the carburetor. Identifying the correct vacuum connection point is crucial for optimal performance and preventing issues like fuel starvation or engine stalling. Typically, the vacuum port on a Kohler fuel pump connects to the engine’s intake manifold or a dedicated vacuum source, such as a vacuum tee or a ported vacuum outlet. This setup ensures the pump receives the necessary suction to function effectively during engine operation.
When setting up the vacuum source for a Kohler fuel pump, it’s essential to differentiate between ported and manifold vacuum. Ported vacuum, available only when the throttle is open, is ideal for fuel pumps as it aligns with the engine’s fuel demand during acceleration. Manifold vacuum, present at idle and low throttle, can also work but may lead to over-pumping or fuel flooding if not regulated. To avoid these issues, connect the fuel pump’s vacuum line to a ported vacuum source, often found on the carburetor or intake manifold near the throttle plates. If your setup lacks a ported vacuum port, install a vacuum tee or use a check valve to ensure one-way flow and prevent fuel siphoning when the engine is off.
For practical installation, start by locating the vacuum port on the Kohler fuel pump, typically a small nipple or fitting on the pump body. Use a vacuum hose of appropriate diameter (usually 1/4-inch) and secure it with clamps to prevent leaks. Route the hose to the chosen vacuum source, ensuring it’s free from kinks or obstructions. If connecting to the intake manifold, verify the port is clear of debris and positioned to provide consistent vacuum during operation. For carbureted engines, the vacuum port is often located on the carburetor’s base or throttle body, while fuel-injected engines may require a dedicated vacuum tee or adapter.
A common mistake in vacuum source setup is using a hose that’s too long or flexible, which can collapse under vacuum pressure or detach during engine vibration. To mitigate this, keep the hose as short and direct as possible, using rigid tubing or reinforced hose where necessary. Additionally, inspect the vacuum source for cracks or damage, as even minor leaks can reduce pump efficiency. For troubleshooting, check for fuel flow by disconnecting the fuel line and cranking the engine; if no fuel is drawn, the vacuum connection is likely faulty. Correcting these issues ensures the fuel pump operates reliably, maintaining consistent engine performance across all operating conditions.
Can a Fuel Pump Operate Without Gasoline? Exploring the Mechanics
You may want to see also
Frequently asked questions
The vacuum line typically connects to the vacuum port on the side or top of the Kohler fuel pump, depending on the model.
The vacuum port is usually a small, nipple-like fitting labeled or marked with a vacuum symbol. Refer to your Kohler fuel pump manual for exact location.
No, the vacuum source must be from the engine’s intake manifold or a reliable vacuum supply to ensure proper fuel pump operation.
If the vacuum line is not connected, the fuel pump may not function correctly, leading to fuel delivery issues and potential engine performance problems.
Yes, some Kohler fuel pumps can be converted to electric operation using a conversion kit, but this requires specific parts and professional installation.
