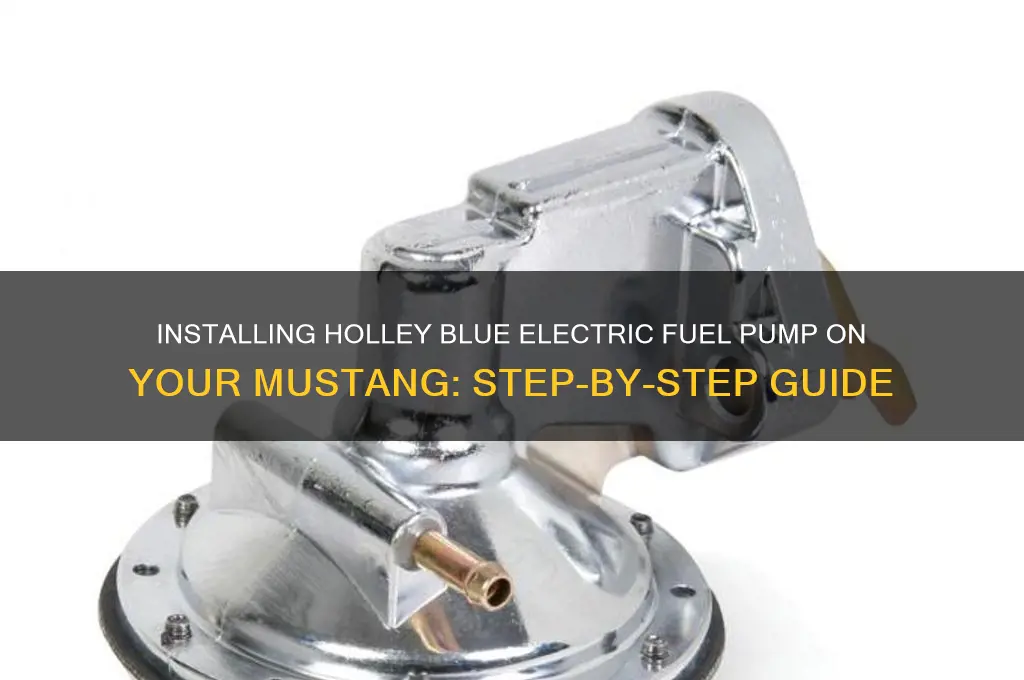

Installing a Holley Blue Electric Fuel Pump on a Mustang is a popular upgrade for enthusiasts looking to improve fuel delivery and performance. This process involves removing the stock fuel pump, preparing the fuel tank for the new pump, and ensuring proper wiring and grounding for the electric pump. The Holley Blue Electric Fuel Pump is known for its reliability and high flow rate, making it ideal for high-performance applications. Before starting, gather all necessary tools and materials, including the fuel pump, wiring harness, and mounting hardware. Always refer to the Holley installation manual and your Mustang’s service guide for specific instructions tailored to your vehicle’s year and model. Proper installation ensures optimal fuel system functionality and enhances your Mustang’s overall performance.
Explore related products
What You'll Learn
- Gather Tools & Parts: Assemble wrenches, fuel line, pump, relay, wiring, and mounting hardware before starting
- Locate Mounting Spot: Choose a secure, flat area near the fuel tank for pump installation
- Connect Fuel Lines: Attach inlet/outlet lines, ensuring proper flow direction and secure fittings
- Wire the Pump: Connect power, ground, and relay, following Holley’s wiring diagram for safety
- Test & Adjust: Prime the pump, check for leaks, and verify proper fuel pressure
Gather Tools & Parts: Assemble wrenches, fuel line, pump, relay, wiring, and mounting hardware before starting
Before diving into the installation of a Holley Blue electric fuel pump on your Mustang, it's crucial to ensure you have all the necessary tools and parts at hand. This preparatory step is often overlooked but can save you significant time and frustration. Start by assembling a variety of wrenches, including open-end and box wrenches in metric and standard sizes, as fuel system components often require precise torque settings. For instance, a 10mm and 12mm wrench will be essential for loosening and tightening fuel line fittings, while a torque wrench ensures you don’t overtighten and damage the connections.
Next, gather the fuel line components, which typically include high-pressure fuel hose rated for ethanol-blended fuels, hose clamps, and AN fittings. The Holley Blue pump often requires -6 AN or -8 AN lines, depending on your Mustang’s fuel system demands. Ensure the fuel line is long enough to reach from the pump to the fuel rail with some slack for movement but not so long that it risks damage from heat or abrasion. A practical tip is to measure the distance before purchasing the hose to avoid wastage or shortages.
The Holley Blue electric fuel pump itself is the centerpiece of this installation. Verify that the pump’s flow rate matches your Mustang’s engine requirements—typically, a pump rated for 120-150 GPH (gallons per hour) is sufficient for naturally aspirated engines, while supercharged or turbocharged setups may require 255+ GPH. Alongside the pump, you’ll need a relay and wiring harness to integrate it into your vehicle’s electrical system. The relay should be rated for the pump’s amperage, usually 20-30 amps, and the wiring should be 12-gauge or thicker to handle the current without overheating.
Mounting hardware is another critical component often overlooked. This includes rubber isolators to dampen pump vibrations, which can lead to premature failure if left unchecked. Stainless steel mounting brackets and bolts are recommended to resist corrosion, especially in areas exposed to road salt or moisture. Double-check that the mounting location allows for adequate airflow around the pump to prevent overheating, and ensure it’s securely fastened to avoid movement during driving.
Finally, before starting the installation, lay out all your tools and parts in an organized manner. This not only streamlines the process but also helps you identify any missing items early on. A missing hose clamp or relay can halt your progress, so a quick inventory check now can prevent a trip to the auto parts store later. By meticulously gathering and organizing these components, you set the stage for a smooth and efficient installation of your Holley Blue electric fuel pump.
