When working on a Fiat 124 fuel pump wiring, it’s essential to locate the correct area to pull the wires, ensuring a smooth and damage-free installation or repair. The fuel pump wiring typically runs from the fuel tank, located at the rear of the vehicle, to the engine bay or fuse box, depending on the model year and configuration. To access the wires, start by safely raising the vehicle and removing the fuel tank access panel or rear seat to expose the fuel pump assembly. Carefully trace the wiring harness from the pump, following it along the chassis or underbody, where it may be secured with clips or routed through protective sleeves. Always consult the Fiat 124 service manual for specific guidance on your model to avoid damaging wires or components during the process.
| Characteristics | Values |
|---|---|
| Vehicle Model | Fiat 124 |
| Component | Fuel Pump |
| Wire Location | Typically accessed from the top of the fuel tank, near the fuel pump assembly |
| Access Point | Fuel tank area, often requiring removal of the rear seat or trunk lining |
| Tools Required | Basic hand tools (e.g., wrenches, screwdrivers), possibly a fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Wire Color Codes | Varies by model year; consult specific Fiat 124 wiring diagram for accurate colors |
| Common Issues | Corroded connectors, damaged wires, faulty fuel pump relay |
| Replacement | May require fuel pump module replacement if wires are integrated |
| Diagnostic Tips | Check for voltage at the pump connector, inspect for loose or damaged wires |
Explore related products
What You'll Learn

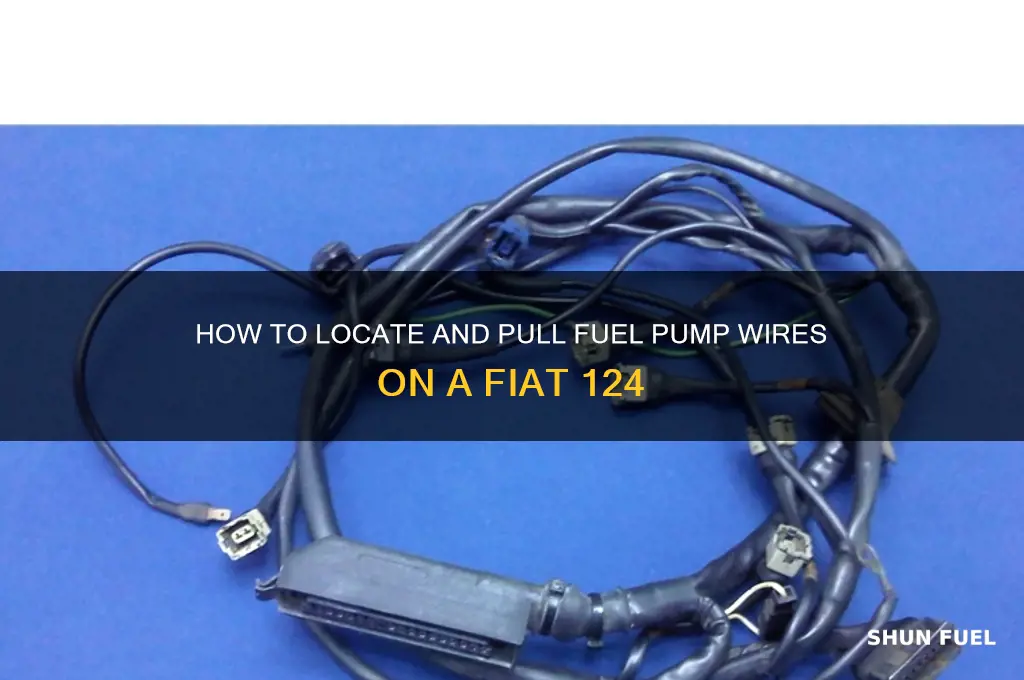

Locating Fuel Pump Wiring Harness
The Fiat 124's fuel pump wiring harness is typically located near the fuel tank, but its exact position can vary depending on the model year and specific configuration. For most Fiat 124 models, the wiring harness is routed along the chassis, often secured with clips or ties to prevent damage from road debris or movement. Identifying the correct harness is crucial, as it ensures you’re working on the fuel pump circuit rather than other systems. Look for a bundle of wires leading directly to the fuel pump, usually encased in a protective sheath to resist fuel vapors and heat.
To locate the harness efficiently, start by consulting the vehicle’s service manual, which provides diagrams and descriptions specific to your Fiat 124 variant. If the manual isn’t available, trace the fuel lines from the tank to the engine bay, as the wiring harness often parallels this path. Use a flashlight and a mirror to inspect hard-to-reach areas, such as beneath the rear seat or along the floor pan. Be cautious not to confuse the fuel pump harness with other wiring bundles, such as those for the taillights or sensors, which may be nearby.
Once you’ve identified the harness, inspect it for signs of wear, corrosion, or damage. Common issues include frayed wires, cracked insulation, or loose connections, which can cause fuel pump malfunctions. If the harness is damaged, replacement is often the best course of action, as repairs can be unreliable. When working on the harness, disconnect the battery to prevent accidental short circuits, and avoid using sharp tools that could puncture the fuel tank or surrounding components.
For those tackling this task without prior experience, consider testing the harness with a multimeter to verify continuity and voltage before proceeding. This step ensures the issue lies with the wiring rather than the fuel pump itself. If you’re unsure about any part of the process, consult a professional mechanic to avoid costly mistakes or safety hazards. Properly locating and handling the fuel pump wiring harness is essential for maintaining the Fiat 124’s performance and safety.
Finally, after locating and inspecting the harness, document its condition and routing for future reference. Taking photos or notes can save time during subsequent repairs or maintenance. Remember, working on fuel system components requires precision and care, as mistakes can lead to fuel leaks, electrical failures, or even fires. By approaching this task methodically and with the right tools, you can ensure a successful outcome and keep your Fiat 124 running smoothly.
Locate the Fuel Pump Relay in Your 2004 F150 Heritage
You may want to see also
Explore related products
Accessing Fuel Pump Connector
The fuel pump connector on a Fiat 124 is typically located near the fuel tank, often tucked away in a hard-to-reach spot. This placement is intentional, designed to protect the electrical components from moisture and debris. However, this also means that accessing the connector requires some patience and the right tools. Before you begin, ensure the vehicle is on a level surface, and the ignition is off to prevent any accidental starts.
To access the fuel pump connector, start by locating the fuel tank. On most Fiat 124 models, the tank is situated beneath the rear seat or trunk area. Remove the rear seat or trunk lining carefully, using a trim removal tool to avoid damaging the interior. Once exposed, you’ll find the fuel pump module, which houses the connector. It’s often secured with a locking tab or clip, so inspect it closely to identify the release mechanism.
When disconnecting the fuel pump connector, be gentle but firm. Pulling too hard can damage the wires or connector, leading to costly repairs. Instead, press the release tab (if present) or squeeze the sides of the connector to disengage it. If the connector is stubborn, use a small pry tool to carefully separate it, ensuring you don’t stress the wires. Always work methodically to avoid snapping fragile components.
After accessing the connector, take a moment to inspect it for signs of wear, corrosion, or damage. Clean the contacts with electrical contact cleaner if necessary, as poor connections can cause fuel delivery issues. Reassembling the area requires reversing the steps, ensuring all components are securely reattached. This process, though straightforward, demands attention to detail to maintain the integrity of the fuel system.
In summary, accessing the fuel pump connector on a Fiat 124 involves locating the fuel tank, removing interior panels, and carefully disconnecting the connector. Patience and the right tools are key to avoiding damage. Regular inspection and maintenance of this component can prevent fuel system problems, ensuring your vehicle runs smoothly. Treat this task as a preventative measure, not just a repair step.
Fixing Your John Deere Fuel Pump: A Step-by-Step Repair Guide
You may want to see also
Explore related products
Removing Fuel Tank for Access
Accessing the fuel pump on a Fiat 124 often requires removing the fuel tank, a task that demands precision and safety precautions. The fuel tank is typically located beneath the rear seat, secured by straps and connected to the fuel lines and wiring harness. Before beginning, ensure the vehicle is on a level surface, the ignition is off, and the battery is disconnected to prevent accidental sparks. Relieve the fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using the appropriate tool.
To remove the fuel tank, start by accessing it from the rear seat area. Lift the rear seat cushion and unscrew the retaining bolts that hold the seat frame in place. Carefully remove the seat to expose the fuel tank. Next, disconnect the fuel lines using a fuel line disconnect tool, ensuring you have a drain pan ready to catch any residual fuel. Label the lines if necessary to avoid confusion during reassembly. The wiring harness connected to the fuel pump will also need to be detached, typically by releasing a clip or unsnapping the connector.
Once all connections are disconnected, loosen the straps securing the fuel tank to the vehicle. These straps are usually bolted to the chassis and can be removed with a socket wrench. With the straps detached, carefully lower the fuel tank from its mounting position, taking care not to damage surrounding components. If the tank is heavy or awkward to handle, consider using a jack or an assistant to support its weight during removal.
Safety is paramount throughout this process. Work in a well-ventilated area to avoid inhaling fuel vapors, and keep flammable materials away from the work zone. If you encounter resistance while removing the tank, reassess the connections to ensure nothing is still attached. After the tank is removed, inspect the fuel pump and surrounding components for wear or damage before proceeding with repairs or replacements.
Reinstalling the fuel tank follows the reverse process, but with added attention to securing all connections and straps properly. Ensure the fuel lines are tightly reconnected and the wiring harness is securely snapped back into place. Test the system for leaks by pressurizing it and checking for any signs of fuel escape. Once confirmed safe, reattach the rear seat and reconnect the battery to restore full functionality. This methodical approach ensures safe and effective access to the fuel pump for maintenance or replacement.
Step-by-Step Guide to Installing a 12V Fuel Pump Easily
You may want to see also
Explore related products
Identifying Correct Wire Colors
Wire colors for the Fiat 124 fuel pump vary by model year and market. European models often use a brown wire for the pump’s power feed and a black wire for ground, while North American versions may differ due to emissions regulations. Always cross-reference your specific model’s wiring diagram, typically found in the vehicle’s service manual or online forums dedicated to Fiat 124 restoration. Misidentifying wires can lead to electrical faults or pump failure, so accuracy is critical.
To identify the correct wires, start by locating the fuel pump itself, usually mounted in the fuel tank or along the fuel line. Trace the wiring harness from the pump to the connector, noting colors and their positions. Use a multimeter to test for continuity between the pump and the wiring harness, ensuring the correct wires are identified. For instance, the power wire should show 12V when the ignition is on, while the ground wire should connect directly to the chassis.
A common mistake is assuming wire colors are universal. For example, some Fiat 124 models use a red wire for power, while others may incorporate a blue or green wire for additional circuits like the fuel pump relay. If working with an aftermarket pump or modified wiring, consult the installation guide for color-coding specifics. When in doubt, label each wire with its function (e.g., "Power," "Ground," "Relay") to avoid confusion during reassembly.
Practical tips include using a wiring diagram overlay, which maps colors to their functions, and testing wires with the ignition off to prevent short circuits. If the original harness is damaged, consider replacing it with a reproduction harness, ensuring compatibility with your model year. Finally, document your findings with photos or notes, as Fiat 124 wiring configurations can be complex and easy to misremember. Precision in wire identification ensures a reliable fuel system and avoids costly troubleshooting later.
Dodge Caravan 2005 Fuel Pump: Original Design and Functionality Explained
You may want to see also
Explore related products
Tools Needed for Wire Pulling
Pulling wires for a fuel pump replacement on a Fiat 124 requires precision and the right tools to avoid damaging the vehicle’s electrical system or surrounding components. The process involves accessing tight spaces and handling delicate wires, making tool selection critical. A wire puller or fish tape is essential for guiding new wires through the chassis, while a trim removal tool ensures panels are safely detached without scratching the interior. Additionally, a multimeter is indispensable for testing continuity and ensuring the new wires are correctly connected before reassembly.
Analyzing the Fiat 124’s wiring layout reveals that the fuel pump wires typically run along the underbody, near the fuel tank. This route demands tools that can navigate sharp bends and narrow channels. A flexible magnet or telescoping grabber can retrieve wires that slip out of reach, while a wire loom tool helps secure the new wires in place, preventing chafing or exposure to heat. Skipping these tools risks incomplete installation or future electrical failures, emphasizing their role in a successful repair.
For those new to this task, a step-by-step approach ensures efficiency. Begin by disconnecting the battery to prevent short circuits. Use a trim removal tool to access the interior panels where the wiring harness enters the cabin. Next, employ a wire puller to feed the new wires through the firewall and along the underbody. Caution is advised when pulling wires near the fuel tank; excessive force can damage the tank or surrounding lines. Finally, use zip ties or electrical tape to secure the wires, maintaining a tidy and safe installation.
Comparing DIY tools to professional-grade options highlights the importance of quality. While a basic wire puller suffices for most home mechanics, a professional-grade fish tape with a lubricated coating reduces friction, making wire pulling smoother. Similarly, a multimeter with advanced features, such as auto-ranging, simplifies diagnostics but may be overkill for occasional use. Balancing cost and functionality ensures you have the right tools without overspending.
Descriptively, the workspace for this task should be well-lit and organized. Lay out tools within arm’s reach to avoid interruptions. A creeper or low-profile stool allows comfortable access to the underbody, while a parts tray keeps screws and clips sorted. Wearing gloves protects hands from sharp edges and grease, while safety goggles shield eyes from debris. These practical considerations transform a daunting task into a manageable project, ensuring a professional-quality result.
Bad Fuel Pump: The Culprit Behind Lawn Mower Backfiring?
You may want to see also
Frequently asked questions
The fuel pump in a Fiat 124 is typically located inside the fuel tank, making it an in-tank fuel pump.
To access the fuel pump, you need to remove the fuel tank. This involves draining the fuel, lowering the tank, and disconnecting the pump wiring and fuel lines.
The wires for the fuel pump are usually routed through a rubber grommet or connector on the top of the fuel tank or near the tank mounting area.
No, the fuel pump in a Fiat 124 is integrated into the fuel tank, so the tank must be removed to replace the pump.
You’ll need basic tools like wrenches, screwdrivers, a fuel line disconnect tool, and possibly a jack or jack stands to safely remove the fuel tank.
