The stock fuel line size of a Honda Civic EK is a topic that has been discussed on many forums. The feed line, which delivers fuel to the engine, and the return line, which takes excess fuel back to the fuel tank, are both important components of the fuel system. Some sources suggest that the size of the fuel line is 5/16, while others mention that it is 3/8. It is always recommended to verify the tube sizes to ensure the correct parts are ordered for replacement.
| Characteristics | Values |
|---|---|
| Fuel line size | 5/16" |
| Fittings | 3/8" |
| Feed line | -6 female |
| Wrench size | 12mm |
| Return line | 1/4" |
| Hose | 1/4" rubber hose |
| Fittings | Brass |
Explore related products
What You'll Learn
Fuel line size: 5/16 or 1/4
The fuel line size for a Honda Civic EK varies depending on the specific model year and the particular fuel line being referenced. For example, the feed line (also known as the supply line) delivers fuel to the engine, while the return line carries excess fuel back to the fuel tank.
For a 1995 Honda Civic, the inlet (feed/supply line) is 5/16 inches, and the return line is 1/4 inches, both with flared ends. This is also the case for the 1997 Civic EK, where the supply line is 5/16 inches and the return line is 1/4 inches.
However, some sources suggest that all hard metal lines on a Civic EK are 5/16 inches, which may refer specifically to the feed line. It's important to verify the tube sizes, especially when working on any car.
Additionally, the EVAP line, which is part of the fuel system, is thicker and may require a different approach when replacing it. For the 1999 and 2000 Civic EK models, some have used a 1/4" rubber hose with brass fittings to adapt to the larger 5/8" fittings on the car.
The Best Plastics for GM Fuel Lines
You may want to see also
Explore related products
Fuel line fittings: 3/8 NPT or 12mm
The fuel line fittings for a Honda Civic EK model are available in different sizes, depending on the specific application and year of the car. Some common fuel line fitting sizes for the Civic EK include 3/8 NPT and 12mm.
The 3/8 NPT (National Pipe Taper) fuel line fittings are often used in fuel systems and are known for their leak-proof design. These fittings have a tapered thread that creates a tight seal when connected to compatible fuel lines. The 3/8 NPT fittings are commonly used in fuel rails, fuel filters, and fuel pressure regulators. They are available in various designs, including straight and 90-degree configurations, to accommodate different routing requirements in the engine bay.
On the other hand, 12mm fuel line fittings are also used in some applications of the Civic EK. These fittings are typically measured using the metric system and are designed to work with specific fuel line sizes. The 12mm fitting size is often associated with the feed line that delivers fuel from the fuel pump to the engine. It is important to note that the feed line may also be referred to as the \"hard line\" in some discussions.
When considering fuel line fittings, it is essential to ensure compatibility with the specific Honda Civic EK model year and engine configuration. The fuel system components, such as the fuel pump, fuel filter, and fuel rail, play a crucial role in determining the appropriate fitting size. Additionally, the use of aftermarket fuel system components may require different fitting sizes or adapters to ensure proper installation and function.
To further complicate matters, the fuel line fittings can be differentiated by their attachment methods, such as push-on or screw-on connections. The choice between 3/8 NPT and 12mm fittings may depend on the specific requirements of the fuel system and the preferences of the installer. It is always recommended to consult a professional or refer to manufacturer specifications before making any modifications or replacements to the fuel system.
Fuel Rail Maintenance: Securing Line Placement
You may want to see also
Explore related products
$18.98
Fuel line replacement options: OEM or aftermarket
Fuel lines are an essential component of a car's fuel system, transferring fuel from the tank to the engine. The most common issues with fuel lines are clogs and leaks, which can be caused by debris in the fuel tank or rust. Replacing a fuel line can be a challenging and messy task, and it is recommended that only those with automotive experience undertake it. When replacing a fuel line, it is crucial to ensure that the new line is the same length or longer than the old one to prevent kinks and chafing, which can lead to further issues.
When it comes to choosing a replacement fuel line, there are two main options: OEM (Original Equipment Manufacturer) or aftermarket. OEM fuel lines are produced directly by the vehicle's manufacturer and are designed to fit your specific car model. They are known for their reliability and guaranteed quality, matching the original fuel lines. However, OEM parts can be more challenging to find for older vehicles, and they tend to be more expensive than aftermarket options.
Aftermarket fuel lines, on the other hand, offer a wider range of choices and can be more readily available. Companies like Chase Bays offer aftermarket fuel line kits for specific car models, allowing enthusiasts to upgrade and adapt their fuel lines with high-end components and improved aesthetics. Aftermarket options also provide flexibility in integrating aftermarket fuel pressure regulators (FPR) for enhanced performance.
Another critical aspect to consider when choosing a replacement fuel line is the material. Traditional fuel lines were made of rubber, which is prone to cracking and leaking over time due to age and abrasion. Modern replacement fuel lines offer more durable options, such as braided stainless steel and nylon. Braided stainless steel fuel lines are highly heat-resistant, making them ideal for withstanding high-pressure liquid fuel. They are also more flexible than standard stainless steel lines due to their braided design. However, they are not as pliable as nylon options. Nylon fuel lines are corrosion-resistant, lightweight, and flexible, but they are sensitive to tears and abrasions and have poor heat resistance.
Emergency Fuel Line: MacGyvering a Temporary Solution
You may want to see also
Explore related products
Fuel line materials: Steel, rubber, or nylon
When it comes to choosing the right material for your fuel line, there are a few options to consider: steel, rubber, or nylon. Each material has its own unique characteristics and advantages. Let's explore each of these options in more detail.
Steel fuel lines are known for their durability and corrosion resistance. They are designed to withstand the elements and provide a long-lasting solution for your vehicle. Steel fuel lines, such as the NOE 7305049 steel fuel line assortment, come in various sizes like 5/16 and 3/8 inches in diameter. This particular product offers a seamless repair experience, allowing you to replace only the damaged section of the line while ensuring a perfect match in terms of material, dimensions, shape, and performance. Steel fuel lines are often chosen for their strength and ability to resist damage, making them a reliable choice for many vehicle owners.
Rubber fuel lines, on the other hand, offer flexibility and ease of installation. They are commonly available in various sizes, such as 3/8, 1/4, and 5/16 inches in diameter, making them compatible with a wide range of vehicles. Rubber fuel lines are known for their ability to withstand vibrations and absorb minor impacts, which can be beneficial in certain engine configurations. Additionally, rubber is generally easier to work with and can be cut to specific lengths, making it a versatile option for custom installations.
Nylon fuel lines, while less commonly discussed, offer their own set of advantages. Nylon is known for its lightweight yet durable properties, making it a suitable choice for fuel lines. It is resistant to corrosion and chemical damage, ensuring a long service life. Nylon fuel lines are often used in high-performance applications due to their ability to withstand high temperatures and pressures. They are also less permeable than some other materials, reducing the risk of fuel leakage.
It's important to note that the size and material of the fuel line are crucial factors in ensuring the proper functioning of your vehicle's fuel system. The stock fuel lines on the Civic EK are typically 1/4 inches in diameter, and you can choose between steel, rubber, or nylon fuel lines that match this size. Each material has its own benefits, and it's essential to consider factors such as durability, ease of installation, and resistance to corrosion when making your decision.
In conclusion, when choosing between steel, rubber, or nylon fuel lines, consider the specific needs and characteristics of your vehicle. Each material offers unique advantages, and selecting the right option will ensure a reliable and efficient fuel system for your Civic EK. Remember to refer to your vehicle's manual or consult with a professional if you have any questions or concerns about fuel line replacement or maintenance.
Oxy-Fuel Cutting: Color-Coded Oxygen Lines Explained
You may want to see also
Explore related products

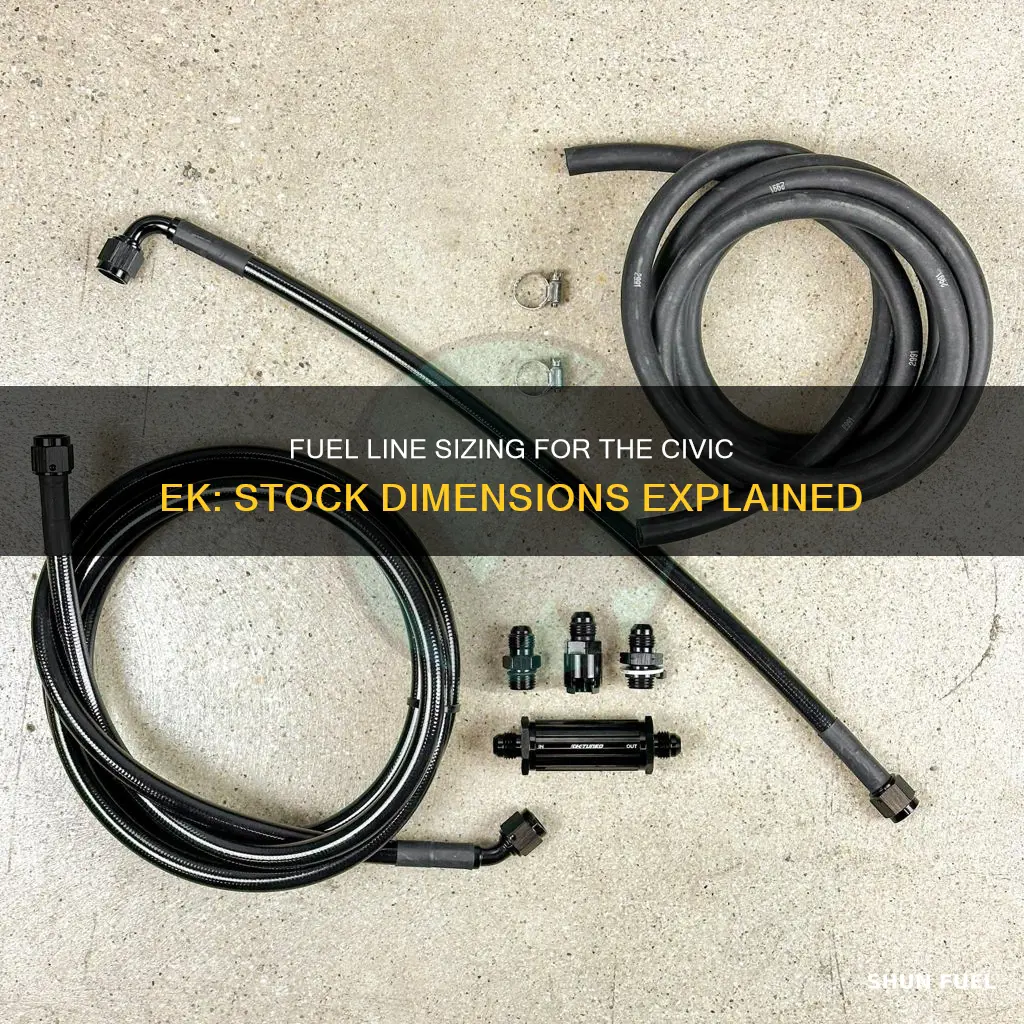

Fuel line kits: Chase Bays offers kits for upgrading fuel lines
Chase Bays offers fuel line kits for the Honda Civic EK, allowing enthusiasts to upgrade and adapt their fuel lines with high-end components and a stealthy design. The kits are designed for both the B/D/H series and the K-series engines found in the 1992-2000 Civic models.
The B/D/H series kit is assembled with all-black aluminum A.N. fittings and -6AN stainless steel reinforced hose with high-heat nylon sheathing. It guarantees a leak-free startup if installed correctly and allows for the seamless adaptation of an aftermarket fuel rail or fuel pressure regulator (FPR). This kit also includes the option to add a Fuel Pressure Regulator, either as a stock FPR kit with 2 hoses or an aftermarket FPR kit with an additional fuel line and adapters.
The K-series kit offers similar features, with black aluminum A.N. fittings and -6AN stainless steel reinforced hose with high-heat nylon sheathing. This kit is designed for K20 or K24 swapped Civics and, like the B/D/H series kit, guarantees a leak-free startup if installed correctly.
Both kits delete a portion of the engine bay feed hard line, which is described as ugly, bulky, and inefficient in its factory form. The kits also retain the OEM fuel line bracket that attaches to the frame rail.
Chase Bays specializes in fixing clutter, and their kits offer a ""dead head" setup, meaning the FPR is pre-fuel rail, reducing the number of fuel lines and resulting in a cleaner engine bay.
Understanding 1/2-Inch Fuel Line Tubing: Sizes and Applications
You may want to see also
Frequently asked questions
The stock aluminum fuel line size for a 1995 Honda Civic is 5/16 inches.
The OEM EK fuel line size is 3/8 inches.
The feed line for the EK fuel setup is -6 female.
The EK Civic fuel line requires 1/4-inch domestic hard line flare fittings.
