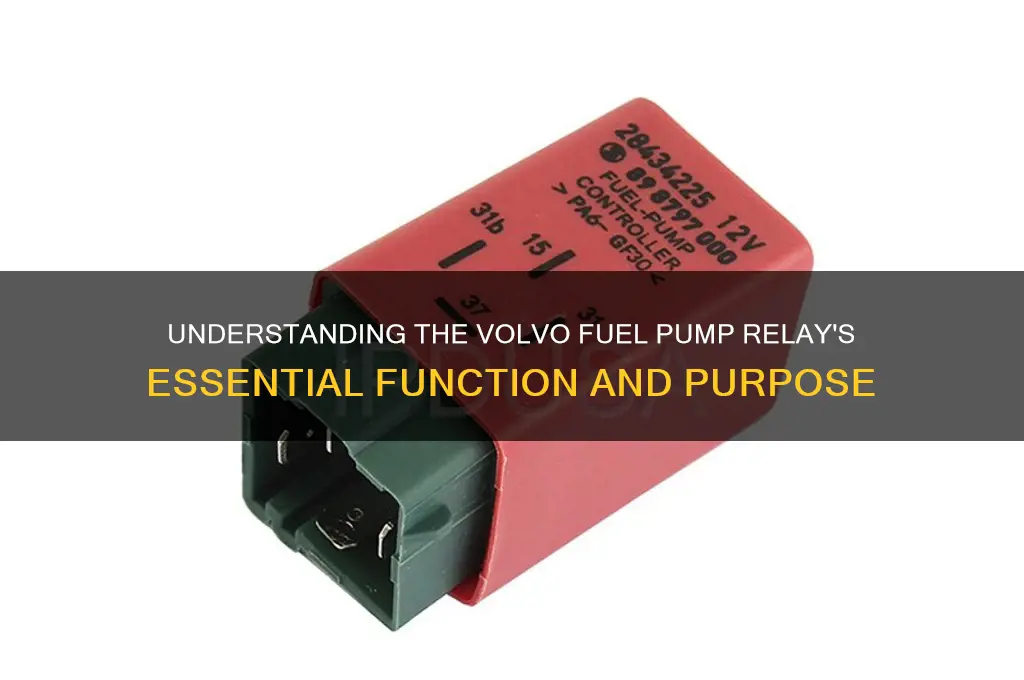

The Volvo fuel pump relay is a critical component in the vehicle's fuel system, serving the primary purpose of controlling the operation of the electric fuel pump. Its main function is to manage the power supply to the fuel pump, ensuring it only activates when the engine is running or being started, thereby conserving energy and reducing unnecessary wear on the pump. By acting as an intermediary between the vehicle's electrical system and the fuel pump, the relay helps maintain optimal fuel pressure, which is essential for efficient engine performance. Additionally, it enhances safety by preventing the fuel pump from running continuously, reducing the risk of fuel leaks or fires in the event of an accident or system malfunction. Understanding the purpose of the Volvo fuel pump relay is key to diagnosing and resolving fuel system issues, ensuring the vehicle operates reliably and efficiently.
| Characteristics | Values |
|---|---|
| Purpose | Controls the power supply to the fuel pump in Volvo vehicles. |
| Function | Ensures the fuel pump operates only when the engine is running or cranking. |
| Safety Feature | Prevents fuel delivery in case of accidents or engine shutdown. |
| Location | Typically found in the fuse box or relay panel under the hood. |
| Power Management | Reduces power consumption by turning off the fuel pump when not needed. |
| Compatibility | Specific to Volvo models; varies by year, make, and engine type. |
| Failure Symptoms | Engine stalling, difficulty starting, or no fuel pressure. |
| Diagnostic Method | Tested using a multimeter or by swapping with a known working relay. |
| Replacement Cost | Typically ranges from $20 to $50, depending on the model and brand. |
| Part Number | Varies by Volvo model (e.g., 1363217, 9118294). |
| Material | Usually made of durable plastic and metal components. |
| Operating Voltage | Typically 12V, compatible with standard automotive electrical systems. |
| Lifespan | Generally lasts the lifetime of the vehicle if not subjected to damage. |
Explore related products
What You'll Learn
- Relay Functionality: Controls power supply to the fuel pump, ensuring efficient and safe operation
- Symptoms of Failure: Engine stalling, difficulty starting, or no fuel pump noise
- Location and Replacement: Typically found in the fuse box; replace if faulty for optimal performance
- Role in Fuel System: Activates the pump to deliver fuel from tank to engine
- Diagnostic Testing: Use a multimeter to check for continuity and proper voltage supply
Relay Functionality: Controls power supply to the fuel pump, ensuring efficient and safe operation
The Volvo fuel pump relay is a critical component in the vehicle's fuel system, acting as a switch that manages the electrical power supplied to the fuel pump. Its primary function is to ensure that the fuel pump operates only when necessary, such as during engine startup or when the ignition is turned on. This relay prevents the fuel pump from running continuously, which could lead to overheating, excessive wear, or unnecessary fuel consumption. By controlling the power supply, the relay optimizes the fuel pump's efficiency and extends its lifespan, contributing to the overall reliability of the vehicle.
From a safety perspective, the fuel pump relay plays a vital role in minimizing risks associated with fuel delivery. In the event of an accident or engine shutdown, the relay immediately cuts power to the fuel pump, reducing the likelihood of fuel leaks or fires. This safety feature is particularly important in modern vehicles, where fuel system integrity is paramount. For Volvo owners, understanding this functionality underscores the importance of maintaining the relay in good condition, as a faulty relay could compromise both performance and safety.
Analyzing the relay's operation reveals its strategic placement within the vehicle's electrical system. It acts as an intermediary between the battery and the fuel pump, ensuring that high-amperage current does not directly pass through the ignition switch. This design protects the ignition system from damage and reduces the risk of electrical shorts. For instance, if the fuel pump were to draw power directly from the ignition, the switch could overheat or fail prematurely. The relay, therefore, serves as a protective barrier, safeguarding other components while enabling seamless fuel pump operation.
Practical maintenance tips for Volvo owners include regularly checking the relay for signs of wear or corrosion, especially in older vehicles. A common symptom of a failing relay is difficulty starting the engine or a fuel pump that runs continuously. If these issues arise, replacing the relay is a straightforward and cost-effective solution. It’s also advisable to consult the vehicle’s manual for the exact location of the relay, as this can vary by model. By staying proactive, drivers can ensure the relay continues to perform its essential role in controlling the fuel pump’s power supply efficiently and safely.
In comparison to other automotive relays, the Volvo fuel pump relay stands out for its integration with the vehicle’s safety systems. While many relays simply manage power distribution, Volvo’s design emphasizes both efficiency and safety, reflecting the brand’s commitment to engineering excellence. This dual focus makes the relay a standout component in Volvo’s fuel system architecture. For enthusiasts and mechanics alike, understanding this unique functionality highlights the sophistication of Volvo’s design and the importance of precision in automotive engineering.
Finding the Fuel Pump in Your 1998 Explorer 4x4: Location Guide
You may want to see also
Explore related products
Symptoms of Failure: Engine stalling, difficulty starting, or no fuel pump noise
The Volvo fuel pump relay is a critical component in the vehicle's fuel system, acting as a switch that controls power to the fuel pump. When functioning correctly, it ensures that the fuel pump operates only when the engine is running or being started, conserving energy and preventing unnecessary fuel flow. However, when the fuel pump relay fails, it can lead to a cascade of issues that directly impact the vehicle's performance. Among the most noticeable symptoms are engine stalling, difficulty starting, and the absence of fuel pump noise, each signaling a disruption in the fuel delivery process.
Engine stalling is often the most immediate and alarming symptom of a failing fuel pump relay. This occurs when the relay fails to maintain a consistent power supply to the fuel pump, causing intermittent fuel delivery. As a result, the engine may stall unexpectedly, especially during acceleration or when under load. For Volvo owners, this symptom is particularly concerning as it can compromise safety and drivability. If you notice your engine stalling, particularly after the vehicle has warmed up, it’s crucial to inspect the fuel pump relay as a potential culprit.
Difficulty starting the engine is another telltale sign of a failing fuel pump relay. When the relay malfunctions, it may not engage the fuel pump during the ignition process, leading to a lack of fuel pressure in the system. This can manifest as prolonged cranking, sputtering, or complete failure to start. In some cases, the engine may start but quickly die, indicating that the relay is intermittently functioning. If you experience these issues, especially in conjunction with other symptoms, testing the fuel pump relay should be a priority.
The absence of fuel pump noise is a diagnostic clue that can help pinpoint a failing relay. Normally, when you turn the ignition key to the "on" position (but before starting the engine), you should hear a faint humming sound from the fuel pump, indicating it’s priming the system. If this noise is absent, it suggests the fuel pump isn’t receiving power, often due to a faulty relay. This symptom, combined with starting difficulties or stalling, strongly indicates a relay issue. To confirm, you can use a multimeter to test the relay’s continuity or swap it with a known working relay for a quick diagnosis.
Addressing these symptoms promptly is essential to prevent further damage to the fuel system or engine. If you suspect a failing fuel pump relay, start by checking the relay’s condition and connections for corrosion or damage. Volvo owners can refer to their vehicle’s manual for the relay’s location, typically found in the fuse box under the hood or near the battery. Replacing a faulty relay is a straightforward and cost-effective repair, often requiring only basic tools and minimal technical knowledge. Ignoring these symptoms, however, can lead to more severe issues, such as fuel pump failure or engine damage, which are far more expensive to resolve.
Fuel Pump Relay Fuse: Identifying the Correct Fuse for Your Vehicle
You may want to see also
Explore related products
Location and Replacement: Typically found in the fuse box; replace if faulty for optimal performance
The Volvo fuel pump relay is a critical component nestled within the fuse box, often located under the hood or near the driver’s side dashboard. Its primary purpose is to control the electrical current to the fuel pump, ensuring it operates only when the engine is running or being started. Without this relay, the fuel pump would either run continuously, wasting energy, or fail to activate, preventing the engine from starting. Identifying its location is the first step in diagnosing or replacing a faulty unit, as it directly impacts the vehicle’s performance and fuel efficiency.
Replacing a faulty fuel pump relay is a straightforward task that can restore optimal engine function. Begin by locating the fuse box, typically marked with a diagram indicating the relay’s position. Use a fuse puller or pliers to carefully remove the relay, ensuring not to damage surrounding components. Compare the old relay with the new one to confirm compatibility, as Volvo models may vary. Insert the replacement firmly into the slot, ensuring it clicks into place. This simple fix can resolve symptoms like hard starting, stalling, or a non-responsive engine, saving time and potential diagnostic costs.
While the process is simple, caution is essential. Always disconnect the battery before working on the fuse box to prevent electrical shorts. If unsure about the relay’s condition, test it using a multimeter to check for continuity. A faulty relay often shows no resistance or inconsistent readings. Additionally, consult the vehicle’s manual for model-specific details, as some Volvo variants may have unique fuse box layouts. Proper replacement not only ensures performance but also prevents further strain on the fuel system, prolonging the life of related components.
The fuel pump relay’s role in managing power delivery highlights its importance in Volvo’s engineering. By acting as a switch, it conserves energy and protects the fuel pump from overheating due to continuous operation. When faulty, it can mimic symptoms of a failing fuel pump, leading to misdiagnosis and unnecessary repairs. Understanding its location and replacement process empowers owners to address issues promptly, maintaining the vehicle’s reliability. This small component is a testament to how precision in design translates to efficiency and longevity in automotive systems.
Testing Your 1995 Ford Ranger Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Role in Fuel System: Activates the pump to deliver fuel from tank to engine
The Volvo fuel pump relay is a critical component in the vehicle's fuel system, serving as the intermediary between the ignition and the fuel pump. When the ignition is turned on, the relay receives a signal from the engine control module (ECM), which activates the fuel pump. This activation is essential because the fuel pump is responsible for delivering fuel from the tank to the engine, ensuring the vehicle can start and run efficiently. Without the relay, the fuel pump would either not receive power or remain constantly active, leading to inefficiencies or potential safety hazards.
Consider the sequence of events when you start your Volvo: the key turns, the ECM sends a signal, and the fuel pump relay closes the circuit, allowing electricity to flow to the pump. This process is not instantaneous but occurs within milliseconds, showcasing the relay’s role as a precise timing mechanism. For instance, in Volvo models like the S60 or XC90, the relay ensures the pump operates only when necessary, conserving energy and reducing wear on the pump. This timed activation is particularly crucial in modern fuel-injected engines, where precise fuel delivery is essential for optimal combustion.
From a maintenance perspective, understanding the fuel pump relay’s function can help diagnose common issues. If your Volvo struggles to start or stalls unexpectedly, a faulty relay could be the culprit. Symptoms include a lack of fuel pressure or an inoperative pump, even if the pump itself is functional. Testing the relay involves checking for continuity with a multimeter or swapping it with a known working unit. Volvo owners should note that relays are often located in the fuse box under the hood, making them accessible for inspection or replacement.
Comparatively, older carbureted engines relied on mechanical fuel pumps, which were directly driven by the engine. The introduction of electric fuel pumps and relays in modern vehicles like Volvos has improved efficiency and reliability. However, this shift also means that electrical issues, such as a failing relay, can disrupt the entire fuel system. For example, a relay that sticks in the "on" position can cause the pump to run continuously, draining the battery and overheating the pump. This highlights the relay’s dual role: enabling functionality while safeguarding the system.
In practical terms, Volvo drivers can extend the life of their fuel pump relay by addressing related issues promptly. For instance, ensuring the fuel tank is never completely empty reduces strain on the pump and relay, as running dry can cause the pump to overheat. Additionally, regular electrical system checks can catch relay degradation early. While the relay is a small component, its failure can lead to significant inconvenience or repair costs, underscoring its importance in the fuel delivery process.
Locating the Fuel Pump Relay in a 1995 Firebird
You may want to see also
Explore related products
$7.99 $8.49
Diagnostic Testing: Use a multimeter to check for continuity and proper voltage supply
The Volvo fuel pump relay is a critical component in the vehicle's fuel system, acting as a switch that controls power to the fuel pump. When the ignition is turned on, the relay energizes, allowing the fuel pump to deliver fuel to the engine. However, if the relay fails, the fuel pump may not receive power, leading to engine stalling or failure to start. Diagnostic testing using a multimeter is an essential step in identifying relay issues, ensuring the vehicle’s fuel system operates reliably.
To begin diagnostic testing, set your multimeter to the continuity or resistance setting. Locate the fuel pump relay in the fuse box, typically under the hood or near the driver’s side dashboard. With the ignition off, remove the relay and identify its terminals—usually labeled as 30 (power in), 87 (power out), 85 (ground), and 86 (control signal). Place the multimeter probes on terminals 30 and 87 to check for continuity. A functional relay should show low resistance (typically less than 100 ohms), indicating a complete circuit. If there is no continuity, the relay’s internal switch is faulty, and replacement is necessary.
Next, verify the voltage supply to the relay. Switch the multimeter to the DC voltage setting and turn the ignition to the "on" position. Test for voltage at terminal 30, which should read battery voltage (around 12–14 volts). If voltage is absent, the issue lies upstream, possibly with the fuse, ignition switch, or wiring. Then, check terminal 87 with the multimeter; it should also show battery voltage when the relay is energized. If voltage is missing at terminal 87, the relay is not functioning correctly, preventing power from reaching the fuel pump.
A practical tip is to listen for the fuel pump’s priming sound when turning the ignition on. If the pump doesn’t activate, use the multimeter to test the relay’s control circuit (terminals 85 and 86). With the ignition on, terminal 86 should receive voltage from the engine control module (ECM). If voltage is present at 86 but not at 87, the relay is likely defective. Always ensure the vehicle is off when handling electrical components to avoid short circuits or injury.
In conclusion, using a multimeter to check continuity and voltage supply is a precise and effective method for diagnosing Volvo fuel pump relay issues. This approach not only identifies relay failure but also helps isolate problems in the surrounding circuitry. By systematically testing each terminal, you can pinpoint the root cause of fuel pump malfunctions, ensuring a targeted and cost-effective repair.
Mastering Fuel Pump Diagnostics: Measuring Waveforms for Optimal Performance
You may want to see also
Frequently asked questions
The Volvo fuel pump relay is designed to control the electrical current to the fuel pump, ensuring it operates only when the engine is running or being started. This prevents the fuel pump from running continuously, which could lead to overheating or unnecessary fuel consumption.
The fuel pump relay acts as a switch, activated by the ignition system or engine control module (ECM). When the ignition is turned on, the relay closes the circuit, allowing power to flow to the fuel pump. Once the engine is off, the relay opens the circuit, cutting power to the pump.
Common symptoms include difficulty starting the engine, stalling, or a complete failure to start. You may also notice the fuel pump running continuously or not running at all. Diagnostic trouble codes (DTCs) related to the fuel pump circuit may appear if the relay is faulty.
