Testing the fuel pump on a 1995 Ford Ranger is a crucial step in diagnosing potential fuel system issues, such as hard starting, stalling, or poor performance. To begin, ensure the fuel pump relay is functioning properly, as a faulty relay can mimic pump failure. Next, check the fuel pump fuse and wiring for any signs of damage or corrosion. With the ignition on but the engine off, listen for the fuel pump’s priming hum near the fuel tank; if it’s inaudible, the pump may be faulty. For a more precise test, measure the fuel pressure using a gauge connected to the fuel rail; it should match the specifications outlined in the vehicle’s manual. If pressure is insufficient, the pump may need to be replaced. Always exercise caution when working with fuel systems to avoid hazards.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump). |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, wrench, safety goggles. |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in a well-ventilated area. |
| Testing Method 1: Listen for Operation | Turn the ignition to the "ON" position and listen for the fuel pump hum (should last 2-3 seconds). |
| Testing Method 2: Check for Power | Measure voltage at the fuel pump connector (should read 12V with ignition on). |
| Testing Method 3: Fuel Pressure Test | Connect a fuel pressure gauge to the Schrader valve on the fuel rail; pressure should match specifications (typically 30-60 PSI). |
| Testing Method 4: Resistance Check | Measure resistance across the fuel pump terminals (refer to Ford Ranger manual for correct range). |
| Common Symptoms of Failure | Engine cranks but won’t start, sputtering, loss of power, no humming sound. |
| Replacement Considerations | If the pump fails, replace the entire fuel pump module (includes pump, sender, and float). |
| Fuel Pump Relay Location | Under the hood in the fuse/relay box (check manual for exact location). |
| Fuel Filter Maintenance | Ensure the fuel filter is not clogged, as it can mimic fuel pump issues. |
| Diagnostic Trouble Codes (DTCs) | Use an OBD-I scanner to check for fuel pump-related codes (e.g., low fuel pressure). |
| Year-Specific Notes | 1995 Ford Ranger uses a mechanical fuel pump on some models; confirm type before testing. |
Explore related products
What You'll Learn
- Pre-Test Checks: Battery voltage, fuel pump relay, and inertia switch inspection
- Listening for Operation: Access fuel tank, listen for pump hum at key-on
- Pressure Testing: Connect gauge to fuel rail, check pressure at idle and load
- Electrical Testing: Measure voltage at pump connector, check for ground and power
- Fuel Flow Verification: Disconnect fuel line, crank engine, observe fuel spray
Pre-Test Checks: Battery voltage, fuel pump relay, and inertia switch inspection
Before diving into fuel pump diagnostics, it’s critical to verify the electrical foundation of your 1995 Ford Ranger’s fuel system. Start with the battery voltage, as a weak or failing battery can mimic fuel pump issues. Use a multimeter to check the battery’s resting voltage; it should read 12.6 volts or higher. If the voltage drops below 12.2 volts, charge or replace the battery before proceeding. A low voltage reading can prevent the fuel pump from operating correctly, leading to misdiagnosis.
Next, inspect the fuel pump relay, a common culprit for intermittent fuel delivery problems. Locate the relay in the under-hood fuse box (consult your manual for the exact position). With the ignition off, swap the fuel pump relay with a similar relay in the same fuse box, such as the horn relay. Then, attempt to start the engine. If it starts, the original relay is faulty. If not, retest the relay using a multimeter to check for continuity across the terminals. A failed relay will show no continuity or erratic readings, indicating a replacement is necessary.
The inertia switch is another critical component often overlooked. Designed to shut off the fuel pump during a collision, this switch can trip accidentally due to rough driving or vibrations. Locate the inertia switch, typically found in the passenger-side kick panel or near the firewall. Press the reset button firmly until it clicks into place. If the button feels loose or fails to reset, the switch may be damaged and require replacement. Always verify the switch’s position before assuming the fuel pump is at fault.
These pre-test checks—battery voltage, fuel pump relay, and inertia switch inspection—are essential for isolating the root cause of fuel pump issues. By addressing these components first, you eliminate common electrical faults that could save time and prevent unnecessary part replacements. Remember, a systematic approach ensures accurate diagnostics and avoids costly mistakes.
Does a Fuel Pump Actually Deliver Fuel to Your Engine?
You may want to see also
Explore related products
Listening for Operation: Access fuel tank, listen for pump hum at key-on
One of the simplest yet most effective ways to diagnose a fuel pump issue in a 1995 Ford Ranger is by listening for its operation. This method requires no specialized tools, just your ears and a basic understanding of the vehicle’s fuel system. When you turn the ignition key to the "on" position (but don’t start the engine), the fuel pump should activate briefly, creating a distinct humming sound. This sound originates from the fuel tank and is a clear indicator that the pump is receiving power and attempting to function. If you hear nothing, it’s a strong sign the pump may be faulty or disconnected.
To perform this test, start by ensuring the vehicle is on a level surface and the fuel tank is at least partially full. A near-empty tank can make the pump harder to hear. Open the fuel door and locate the access panel for the fuel pump, typically found on the top of the tank. You may need to remove a small panel or insulation to expose the area. With the key in the "on" position, place your ear close to the access point or use a mechanic’s stethoscope for better clarity. The pump should hum for 2–3 seconds as it primes the fuel system. If the sound is weak, inconsistent, or absent, it suggests a potential issue with the pump, relay, or wiring.
While this method is straightforward, it’s important to exercise caution. Fuel systems operate under pressure and can be hazardous if mishandled. Avoid smoking or using open flames near the tank, and ensure the vehicle is turned off before accessing the pump area. Additionally, if you’re unsure about the process, consult a repair manual or seek assistance to avoid accidental damage. This test is a preliminary step and should be followed by further diagnostics if the pump doesn’t operate as expected.
Comparing this method to others, such as measuring fuel pressure or checking for voltage at the pump, listening for operation is the least invasive and most accessible. It provides immediate feedback without requiring gauges or multimeters. However, it’s not foolproof—a pump may hum but still fail to deliver adequate pressure. For this reason, it’s often the first step in a series of tests to pinpoint the exact cause of fuel delivery problems in a 1995 Ford Ranger.
Understanding Two-Wire Fuel Gauge and Pump Functionality: A Comprehensive Guide
You may want to see also
Explore related products
Pressure Testing: Connect gauge to fuel rail, check pressure at idle and load

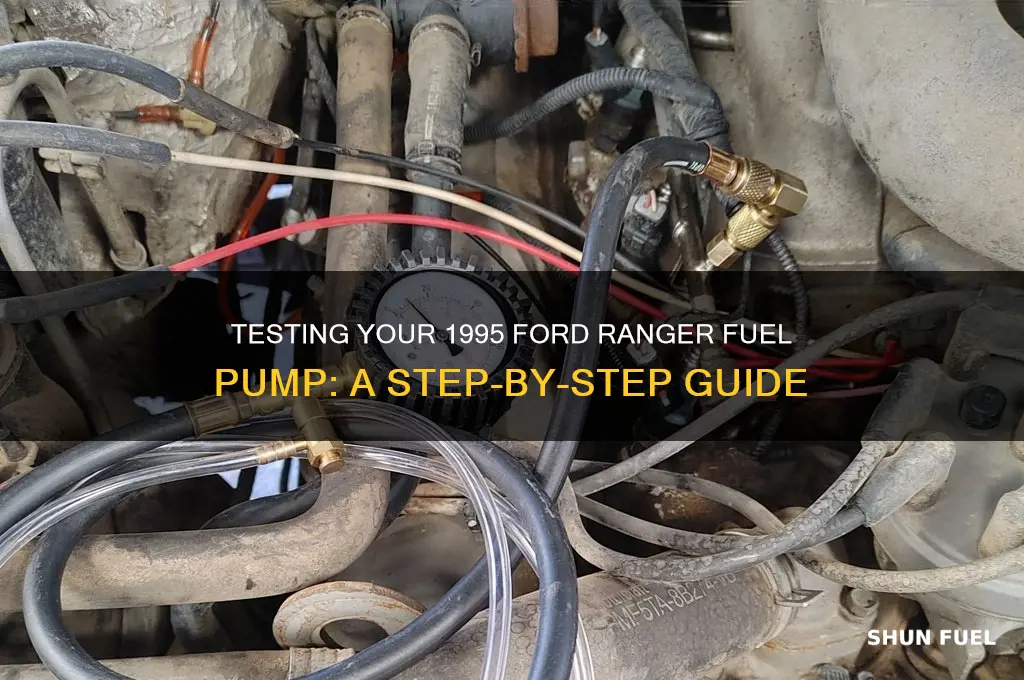

Pressure testing a 1995 Ford Ranger’s fuel pump is a critical diagnostic step to ensure the system delivers the correct fuel volume under varying engine conditions. Begin by connecting a fuel pressure gauge to the fuel rail, typically located near the engine’s intake manifold. Use a Schrader valve adapter if necessary, ensuring a secure, leak-free connection. With the gauge attached, start the engine and observe the pressure at idle. A healthy 1995 Ranger with the 2.3L or 3.0L engine should maintain fuel pressure between 30 and 42 psi at idle. If the reading falls outside this range, suspect a weak pump, clogged filter, or faulty regulator.
Next, simulate load conditions by revving the engine to 2,000 RPM or driving the vehicle while monitoring the gauge. Pressure should remain stable or increase slightly, reflecting the pump’s ability to meet higher fuel demands. A significant drop in pressure under load indicates insufficient fuel delivery, often caused by a failing pump or restricted fuel lines. Compare readings to the manufacturer’s specifications for your specific engine model, as tolerances may vary. For instance, the 4.0L V6 may have slightly different pressure requirements than the inline-four variants.
Caution: Always relieve fuel system pressure before disconnecting the gauge to prevent fuel spray or injury. Use safety goggles and work in a well-ventilated area to minimize fire risks. If testing reveals inconsistent pressure, inspect the fuel filter and regulator before condemning the pump. A clogged filter or leaking regulator can mimic pump failure, saving you from an unnecessary replacement.
In conclusion, pressure testing at idle and under load provides a clear picture of the fuel pump’s performance. Accurate readings ensure you diagnose the issue correctly, avoiding costly missteps. Pair this test with a fuel pump relay check and voltage verification for a comprehensive diagnosis. With precise measurements and attention to detail, you’ll pinpoint the problem efficiently, keeping your 1995 Ranger running smoothly.
Fuel Pump Installation: Gasket Sealer Necessity Explained
You may want to see also
Explore related products
Electrical Testing: Measure voltage at pump connector, check for ground and power
A faulty fuel pump can leave you stranded, but before replacing it, electrical testing can pinpoint the issue. Start by locating the fuel pump connector, typically found near the fuel tank. With the key in the "on" position, use a multimeter to measure voltage at the connector. You should see 12 volts on one terminal, indicating power is reaching the pump.
Lack of voltage here points to a problem upstream, like a blown fuse, faulty relay, or wiring issue.
Ground is equally crucial for the fuel pump's operation. Check for continuity between the pump connector's ground terminal and the vehicle chassis using your multimeter. A reading close to zero ohms confirms a good ground. If the reading is high or infinite, a broken wire or corroded connection is likely the culprit. Remember, a weak or absent ground will prevent the pump from functioning, even with power present.
Understanding these electrical fundamentals allows you to diagnose fuel pump issues with confidence.
This methodical approach, focusing on voltage and ground verification, is a cornerstone of automotive electrical troubleshooting. By systematically checking these parameters, you can isolate the problem area and avoid unnecessary parts replacement. It's a testament to the power of understanding basic electrical principles in tackling complex automotive problems.
Testing B&S Fuel Pump 808492: Step-by-Step Guide for Accurate Results
You may want to see also
Explore related products
Fuel Flow Verification: Disconnect fuel line, crank engine, observe fuel spray
A simple yet effective method to test the fuel pump on a 1995 Ford Ranger involves verifying fuel flow directly from the line. This hands-on approach bypasses diagnostic tools, offering a clear, visual confirmation of the pump's functionality. By disconnecting the fuel line and cranking the engine, you can observe the fuel spray, which provides immediate insight into the pump's ability to deliver fuel under pressure.
Steps to Perform Fuel Flow Verification
Begin by locating the fuel line near the engine bay, typically connected to the fuel rail. Use a wrench or pliers to carefully disconnect the line, ensuring you have a container ready to catch any fuel that escapes. With the line safely disconnected, position it so the opening is directed into the container. Have an assistant crank the engine while you observe the fuel spray. A healthy fuel pump will produce a steady, forceful stream of fuel, indicating proper pressure and flow.
Cautions and Practical Tips
Safety is paramount when working with fuel systems. Always relieve fuel system pressure before disconnecting any lines to minimize the risk of spraying fuel under high pressure. Work in a well-ventilated area, away from open flames or sparks, and wear safety goggles to protect your eyes. If the fuel spray is weak or nonexistent, this could indicate a failing fuel pump, clogged fuel filter, or issues with the fuel pressure regulator.
Analyzing the Results
The quality of the fuel spray is a telling indicator. A strong, consistent spray confirms the pump is functioning correctly, while a weak or intermittent spray suggests potential problems. Compare the observed spray to known benchmarks: a healthy 1995 Ford Ranger fuel pump should deliver fuel at approximately 30–60 psi, depending on the engine configuration. If the spray falls short, further diagnostics, such as checking fuel pressure with a gauge, may be necessary.
Fuel flow verification through direct observation is a straightforward, cost-effective method to assess the condition of a 1995 Ford Ranger’s fuel pump. By focusing on the spray pattern and pressure, you can quickly identify issues and determine whether the pump requires replacement or if other components are at fault. This approach combines simplicity with practicality, making it an essential technique for DIY mechanics and professionals alike.
Easy Steps to Hook Up a Fuel Pump for Optimal Performance
You may want to see also
Frequently asked questions
To test if the fuel pump is working, turn the ignition to the "On" position (but don’t start the engine) and listen for a humming sound near the fuel tank for 2-3 seconds. This indicates the pump is priming the system. If no sound is heard, the pump may be faulty.
You’ll need a fuel pressure gauge, a multimeter to check voltage at the pump connector, and a wrench or socket set to access the fuel pump relay and test port. Safety gear, such as gloves and safety goggles, is also recommended.
Yes, you can test the fuel pump without removing the tank by using a fuel pressure gauge connected to the test port on the fuel rail. Additionally, you can check for power and ground at the fuel pump connector using a multimeter to diagnose electrical issues.
