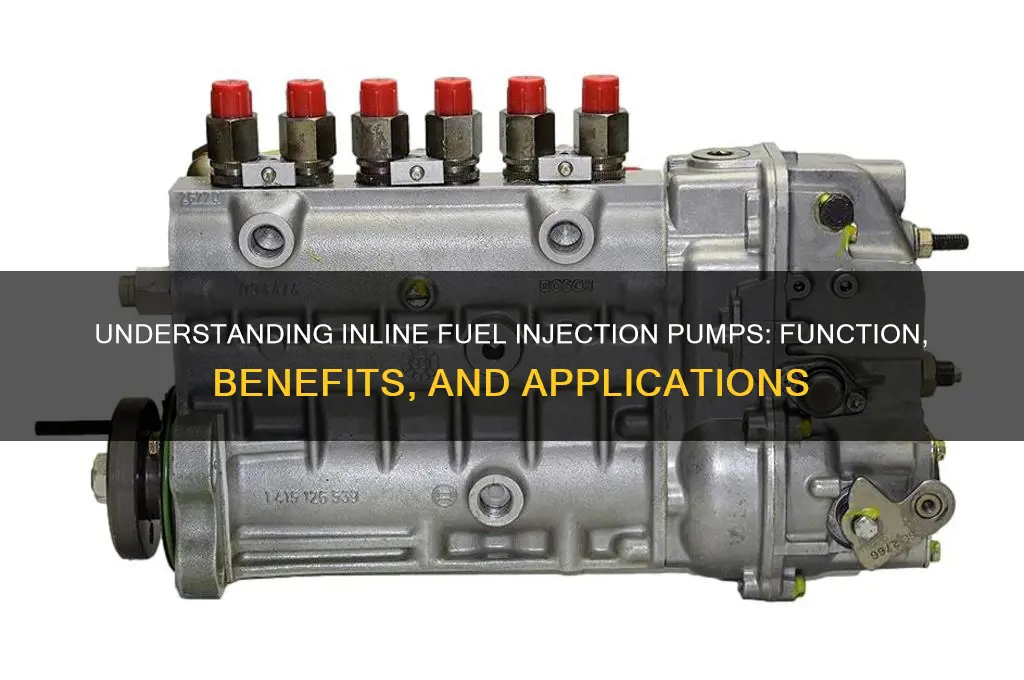

An inline fuel injection pump is a critical component in diesel engines, designed to deliver fuel to the engine cylinders under high pressure and with precise timing. Unlike traditional carbureted systems, this pump ensures efficient combustion by directly injecting fuel into the combustion chamber, optimizing performance and fuel economy. Typically mounted on the engine block, it operates in sync with the engine's camshaft, drawing fuel from the tank, pressurizing it, and metering the exact amount required for each cylinder. This system enhances power output, reduces emissions, and improves overall engine reliability, making it a cornerstone of modern diesel technology.
| Characteristics | Values |
|---|---|
| Definition | A type of fuel injection system where the pump is mounted inline with the engine, delivering fuel directly to the cylinders under high pressure. |
| Function | Supplies metered fuel to the engine at precise timing and pressure for efficient combustion. |
| Type of Fuel Delivery | Direct injection into the combustion chamber or intake manifold. |
| Pressure Range | Typically operates between 1,500 to 2,500 psi (pounds per square inch). |
| Components | Pump, fuel lines, injectors, pressure regulator, and electronic control unit (ECU). |
| Fuel Type | Primarily used for diesel engines, but can also be adapted for gasoline. |
| Efficiency | High fuel efficiency due to precise fuel metering and timing. |
| Emissions | Reduces emissions by optimizing fuel combustion. |
| Maintenance | Requires regular servicing to ensure proper operation and longevity. |
| Applications | Commonly used in diesel vehicles, marine engines, and industrial machinery. |
| Advantages | Improved engine performance, better fuel economy, and reduced emissions. |
| Disadvantages | Higher initial cost and complexity compared to carbureted systems. |
| Technology | Often uses electronic control for precise fuel delivery and timing. |
| Compatibility | Works best with high-compression engines like diesel. |
| Environmental Impact | More eco-friendly due to reduced fuel wastage and lower emissions. |
| Lifespan | Durable, with a lifespan dependent on maintenance and usage conditions. |
Explore related products
$22.99
What You'll Learn
- Working Principle: Inline fuel injection pump operates via camshaft-driven plungers for precise fuel delivery
- Components: Includes plunger, barrel, delivery valve, and governor for controlled fuel injection
- Advantages: Enhances engine efficiency, reduces emissions, and improves fuel atomization compared to carburetors
- Applications: Commonly used in diesel engines for trucks, tractors, and heavy machinery
- Maintenance: Requires regular inspection of seals, timing, and fuel pressure for optimal performance
Working Principle: Inline fuel injection pump operates via camshaft-driven plungers for precise fuel delivery
The inline fuel injection pump is a marvel of engineering, designed to deliver fuel to an engine with precision and efficiency. At its core, this system relies on camshaft-driven plungers, which are the unsung heroes of the fuel delivery process. These plungers, activated by the camshaft's rotation, create a high-pressure environment that forces fuel into the engine's combustion chamber at exactly the right moment. This mechanism ensures optimal fuel-air mixture, critical for combustion efficiency and engine performance. Understanding how these plungers operate provides insight into why inline fuel injection pumps are favored in diesel engines and high-performance applications.
To visualize the process, imagine a camshaft rotating in sync with the engine's timing. As it turns, lobes on the camshaft press against the plungers, forcing them downward within their cylinders. This downward movement creates a vacuum that draws fuel into the pump. When the plunger rises, it pressurizes the fuel, pushing it through the injection nozzle into the combustion chamber. The timing and pressure are meticulously controlled, ensuring fuel is delivered in precise quantities and at the exact moment required for efficient combustion. This camshaft-driven mechanism is both simple and ingenious, combining mechanical reliability with the need for accuracy.
One of the key advantages of this system is its ability to handle high pressures, often exceeding 20,000 psi in modern diesel engines. This is essential for atomizing fuel into a fine mist, which improves combustion efficiency and reduces emissions. For instance, in heavy-duty trucks, the inline fuel injection pump’s plungers are calibrated to deliver fuel at specific intervals, ensuring the engine operates smoothly under varying loads. Maintenance of these pumps is critical; worn plungers or timing issues can lead to poor fuel economy, reduced power, or even engine damage. Regular inspection and replacement of components like seals and plungers are practical steps to ensure longevity.
Comparing inline fuel injection pumps to other systems, such as distributor-type pumps, highlights their superiority in precision and durability. Distributor pumps rely on a single plunger and a rotating distributor to allocate fuel to each cylinder, which can introduce timing inconsistencies. In contrast, inline pumps dedicate a plunger to each cylinder, ensuring direct and accurate fuel delivery. This design minimizes lag and maximizes control, making it ideal for high-performance and heavy-duty applications. For enthusiasts or mechanics, understanding this distinction is crucial when diagnosing issues or upgrading systems.
In practice, tuning an inline fuel injection pump involves adjusting the plunger’s stroke or timing to optimize performance. For example, in racing applications, mechanics might modify the camshaft profile to alter fuel delivery timing, enhancing power output at higher RPMs. However, such modifications require careful calibration to avoid over-fueling or engine knock. For everyday users, ensuring the pump is free from contaminants and operates within manufacturer specifications is sufficient to maintain efficiency. The inline fuel injection pump’s reliance on camshaft-driven plungers underscores its role as a cornerstone of modern fuel delivery systems, blending mechanical simplicity with precision engineering.
Diagnosing a Faulty Honda Accord Fuel Pump Relay: Signs and Solutions
You may want to see also
Explore related products
Components: Includes plunger, barrel, delivery valve, and governor for controlled fuel injection
The inline fuel injection pump is a marvel of engineering, but its complexity can be distilled into key components that work in harmony to deliver precise fuel metering. At its core are the plunger and barrel, a dynamic duo responsible for pressurizing fuel. The plunger, driven by the camshaft, reciprocates within the barrel, creating a high-pressure environment that forces fuel through the system. This mechanism is akin to a syringe, where the plunger’s movement determines the volume and pressure of the liquid dispensed. Without this precision, fuel delivery would be erratic, compromising engine performance.
Next in line is the delivery valve, a critical gatekeeper that ensures fuel is injected into the combustion chamber at the exact moment required. This valve operates under extreme pressure, opening and closing with millisecond accuracy to match the engine’s firing sequence. Its design must balance durability and responsiveness, as even minor delays or leaks can lead to inefficient combustion. For instance, in diesel engines, the delivery valve must handle pressures exceeding 20,000 psi, a testament to its robustness.
The governor, often overlooked, is the brain behind controlled fuel injection. Its role is to regulate the fuel supply based on engine speed and load, ensuring optimal performance across varying conditions. Mechanical governors use centrifugal force to adjust the plunger’s stroke, while electronic variants employ sensors and actuators for finer control. This component is particularly crucial in heavy-duty applications, where sudden changes in load demand immediate adjustments to fuel delivery.
Understanding these components is not just academic—it’s practical. For instance, diagnosing a rough idle might point to a worn plunger or a sticking delivery valve. Regular maintenance, such as cleaning the barrel and inspecting the governor’s linkages, can prevent costly repairs. Additionally, upgrading to a more advanced governor can improve fuel efficiency by up to 10%, a significant benefit for fleet operators. By grasping the interplay of these parts, one can better appreciate the inline fuel injection pump’s role in modern engines and take informed steps to maintain its reliability.
Bypassing a Mechanical Fuel Pump: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Explore related products
Advantages: Enhances engine efficiency, reduces emissions, and improves fuel atomization compared to carburetors
Inline fuel injection pumps revolutionize engine performance by precisely delivering fuel directly into the combustion chamber, a stark contrast to the imprecise mixing of carburetors. This precision is the cornerstone of their efficiency advantage. By metering fuel with exacting accuracy, these pumps ensure that the air-fuel mixture is optimized for each combustion cycle, maximizing energy extraction from every drop of fuel. This translates to more power output for a given fuel input, a critical factor in both high-performance and fuel-efficient engines.
Imagine a carburetor as a chef haphazardly tossing ingredients into a pot, hoping for a decent meal. An inline fuel injection pump, on the other hand, is a meticulous chef measuring each ingredient precisely, guaranteeing a perfectly balanced dish every time.
The environmental benefits of inline fuel injection pumps are equally compelling. Their ability to finely control fuel delivery minimizes unburned fuel, a major contributor to harmful emissions. This cleaner burn results in significantly lower levels of pollutants like carbon monoxide, hydrocarbons, and nitrogen oxides, making them a key component in meeting increasingly stringent emissions regulations. Think of it as the difference between a smoky campfire and a clean-burning gas stove – both provide heat, but one leaves a far smaller environmental footprint.
For instance, studies have shown that engines equipped with inline fuel injection pumps can reduce hydrocarbon emissions by up to 50% compared to carbureted engines.
The secret weapon of inline fuel injection pumps lies in their superior fuel atomization. Unlike carburetors, which rely on venturi effects to mix air and fuel, injection pumps forcefully spray a fine mist of fuel directly into the combustion chamber. This finer atomization allows for more complete and rapid combustion, further enhancing efficiency and power output. Picture the difference between pouring syrup onto a pancake versus spraying it – the latter coats the surface more evenly and thoroughly. This improved atomization also contributes to smoother engine operation, reducing knocking and hesitation, and ultimately extending engine life.
Locating Your Vehicle's Fuel Pump Driver Module: A Comprehensive Guide
You may want to see also
Explore related products
Applications: Commonly used in diesel engines for trucks, tractors, and heavy machinery
Inline fuel injection pumps are the backbone of diesel engines in heavy-duty applications, delivering precise fuel metering under extreme pressures. Trucks, tractors, and heavy machinery rely on these pumps to achieve the power and efficiency required for demanding tasks. Unlike distributor-type pumps, inline pumps feature a single plunger per cylinder, ensuring consistent fuel delivery even under varying loads. This design is particularly suited for large engines where reliability and durability are non-negotiable. For instance, a typical inline pump in a semi-truck operates at pressures exceeding 20,000 psi, enabling the engine to generate the torque needed to haul heavy loads over long distances.
Consider the agricultural sector, where tractors equipped with inline fuel injection pumps work tirelessly in fields. These pumps are engineered to withstand the rigors of continuous operation, often in dusty and dirty environments. A key advantage is their ability to maintain fuel efficiency across a wide range of RPMs, crucial for tasks like plowing or harvesting. Maintenance is straightforward, with regular checks on fuel filters and injection timing ensuring optimal performance. Farmers often prefer inline pumps for their robustness, as they can handle the high-sulfur diesel fuels still common in some regions without significant wear.
In the construction industry, heavy machinery like excavators and bulldozers depend on inline fuel injection pumps to deliver the raw power needed for earthmoving and demolition. These pumps are designed to operate seamlessly in high-vibration environments, a common challenge in such applications. For example, a Caterpillar excavator’s inline pump is calibrated to adjust fuel delivery based on load, ensuring maximum efficiency whether the machine is idling or operating at full capacity. Operators benefit from reduced fuel consumption and lower emissions, aligning with increasingly stringent environmental regulations.
Trucks, especially long-haul semis, exemplify the inline pump’s ability to balance performance and economy. Modern inline pumps incorporate electronic controls, allowing for precise adjustments to fuel injection timing and quantity. This technology not only enhances power output but also reduces wear on engine components, extending the vehicle’s lifespan. Fleet managers often prioritize inline pumps for their reliability, as downtime due to pump failure can be costly. Regular servicing, including checking for leaks and ensuring proper lubrication, is essential to maintain peak performance.
In summary, inline fuel injection pumps are indispensable in diesel engines powering trucks, tractors, and heavy machinery. Their design ensures reliability under extreme conditions, while advancements in technology have improved efficiency and reduced emissions. Whether in agriculture, construction, or transportation, these pumps deliver the performance required for heavy-duty applications, making them a cornerstone of modern diesel engineering.
Why Riding Mechanics Pumped Fuel: Uncovering the Historical Necessity
You may want to see also
Explore related products
Maintenance: Requires regular inspection of seals, timing, and fuel pressure for optimal performance
Inline fuel injection pumps are precision instruments, and their performance hinges on meticulous maintenance. At the heart of this upkeep is the regular inspection of seals, timing, and fuel pressure—three critical components that ensure the pump operates efficiently and reliably. Seals, for instance, degrade over time due to exposure to heat, fuel additives, and mechanical stress. A compromised seal can lead to fuel leaks, which not only reduce efficiency but also pose safety risks. Inspect seals every 10,000 miles or annually, whichever comes first, and replace them if signs of cracking, hardening, or swelling are detected. Silicone-based sealants are often recommended for their durability in high-temperature environments.
Timing is another cornerstone of inline fuel injection pump maintenance. Proper timing ensures that fuel is delivered to the engine at the precise moment required for combustion. Even a slight deviation can result in poor performance, increased emissions, or engine misfires. Use a timing light to verify the pump’s synchronization with the engine’s crankshaft. Adjustments should be made incrementally, typically in 1-degree increments, while monitoring the engine’s idle quality. For diesel engines, timing errors as small as 2 degrees can lead to a 5% drop in fuel efficiency, underscoring the need for accuracy.
Fuel pressure is the third pillar of maintenance, directly influencing the pump’s ability to deliver fuel at the correct rate and volume. Low pressure can cause inadequate fuel delivery, while high pressure may lead to excessive wear on injectors and other components. Use a fuel pressure gauge to check the system’s pressure against the manufacturer’s specifications, typically ranging from 30 to 60 psi for gasoline engines and 15,000 to 25,000 psi for diesel engines. Fluctuations in pressure often indicate issues with the pump’s internal components, such as worn plungers or a failing pressure regulator, which require immediate attention.
Practical tips can streamline the maintenance process. Keep a log of inspection dates and findings to track wear patterns and anticipate future issues. Invest in high-quality fuel filters to reduce contaminants that accelerate seal and component degradation. For diesel systems, consider using a fuel additive that lubricates the pump’s internals, extending its lifespan. Finally, familiarize yourself with the pump’s design—some models feature modular components that simplify repairs, while others require specialized tools for disassembly.
Neglecting these maintenance tasks can lead to costly repairs or premature pump failure. For example, a seized plunger due to inadequate lubrication can cost upwards of $500 to replace, not including labor. Conversely, proactive maintenance not only preserves performance but also ensures the pump operates within its design parameters, maximizing fuel efficiency and engine longevity. By treating seals, timing, and fuel pressure as interdependent elements, you can maintain an inline fuel injection pump that performs optimally for years to come.
Is Your Fuel Pump Functioning? Quick Diagnostic Tips to Check
You may want to see also
Frequently asked questions
An inline fuel injection pump is a type of fuel pump used in diesel engines to deliver high-pressure fuel directly to the injectors. It is typically mounted in line with the fuel system and operates mechanically, driven by the engine's camshaft or a separate drive shaft.
The inline fuel injection pump works by drawing fuel from the tank, pressurizing it, and delivering it to the fuel injectors at the precise timing required for combustion. It uses a series of plungers and barrels to meter and pressurize the fuel, ensuring the correct amount is delivered for each engine cycle.
Inline fuel injection pumps offer improved fuel efficiency, better engine performance, and more precise fuel delivery compared to older carbureted systems. They also allow for easier cold starting and better control over emissions, making them a popular choice in modern diesel engines.
While inline fuel injection pumps are primarily designed for diesel engines, similar principles are used in gasoline direct injection (GDI) systems. However, gasoline engines typically use high-pressure fuel pumps and injectors that are integrated into the fuel rail, rather than a traditional inline mechanical pump.
