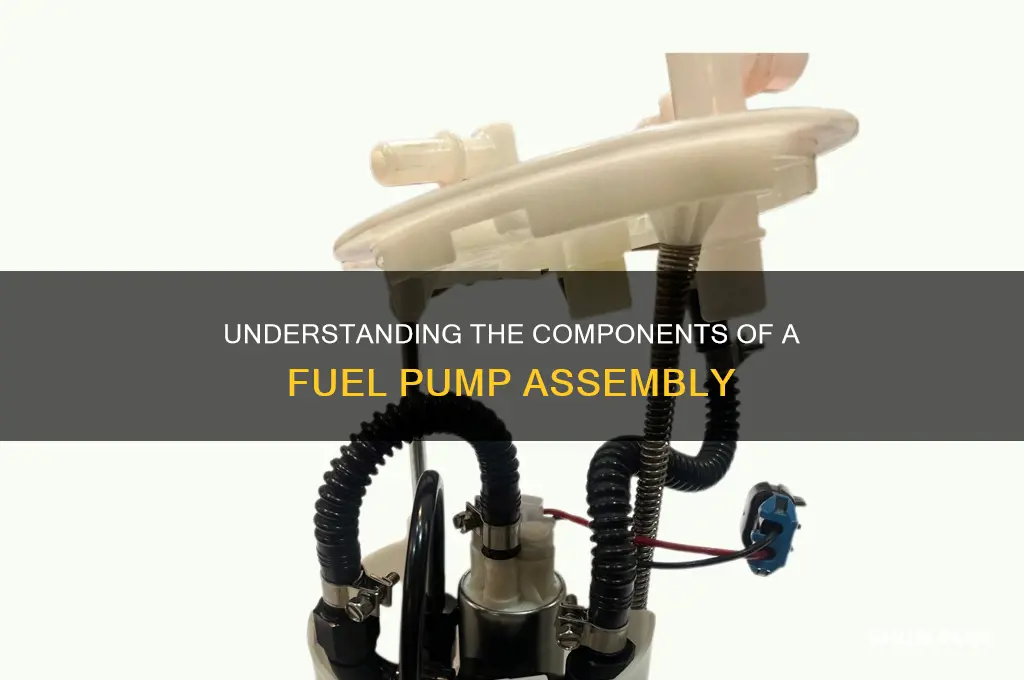

A fuel pump assembly is a critical component in a vehicle's fuel system, responsible for delivering fuel from the tank to the engine. It typically includes the electric fuel pump, which draws fuel from the tank, a sending unit that monitors fuel levels, and a filter to remove contaminants. Additionally, the assembly often features a pressure regulator to maintain optimal fuel pressure, electrical connectors for power supply, and a housing or module that integrates these components into a single unit. Some designs may also include a check valve to prevent fuel backflow, ensuring consistent fuel delivery and efficient engine performance.
| Characteristics | Values |
|---|---|
| Fuel Pump | Electric or mechanical pump that draws fuel from the tank and delivers it to the engine. |
| Fuel Strainer/Filter | Mesh or filter element that removes debris and contaminants from the fuel before it enters the pump. |
| Fuel Level Sender | Float mechanism or sensor that measures the amount of fuel in the tank and sends the information to the fuel gauge. |
| Fuel Pressure Regulator | Device that maintains consistent fuel pressure in the fuel rail, ensuring optimal engine performance. |
| Fuel Pump Module | Integrated assembly that houses the fuel pump, strainer, sender, and sometimes the regulator in a single unit. |
| Wiring Harness/Connector | Electrical connections that supply power to the fuel pump and transmit signals from the sender. |
| Fuel Tank Seal/Gasket | Sealant or gasket that prevents fuel leaks at the pump assembly's connection to the fuel tank. |
| Check Valve (optional) | One-way valve that prevents fuel from flowing back into the tank when the pump is off, maintaining pressure in the system. |
| Fuel Pump Mounting Bracket | Bracket or support structure that secures the pump assembly inside the fuel tank. |
| Fuel Hose/Lines (optional) | Tubing or hoses that connect the pump assembly to the fuel rail or engine, depending on the vehicle design. |
Explore related products
What You'll Learn
- Electric Fuel Pump: Delivers fuel from tank to engine under pressure, ensuring consistent flow
- Strainer/Filter: Prevents debris from entering the pump, protecting it from damage
- Pressure Regulator: Maintains optimal fuel pressure for efficient engine performance
- Sending Unit: Monitors fuel level, sending data to the fuel gauge
- Housing/Mounting: Encloses components, secures assembly in the fuel tank
Electric Fuel Pump: Delivers fuel from tank to engine under pressure, ensuring consistent flow
The electric fuel pump is a critical component in modern vehicles, tasked with delivering fuel from the tank to the engine under precise pressure to ensure consistent flow. Unlike mechanical pumps, which rely on engine motion, electric pumps operate independently, drawing power directly from the vehicle’s electrical system. This autonomy allows for more accurate fuel delivery, especially during cold starts or high-demand conditions, such as acceleration or towing. The pump’s ability to maintain pressure is vital for optimal combustion, as insufficient fuel flow can lead to engine misfires, reduced power, or stalling.
To achieve this, the electric fuel pump is typically mounted inside the fuel tank, submerged in fuel to prevent overheating and ensure a constant supply. It consists of a motor-driven turbine or impeller that generates pressure, forcing fuel through the lines to the engine. Most assemblies include a check valve to maintain residual pressure in the system when the pump is off, reducing startup lag. Additionally, an integrated strainer or filter prevents debris from entering the pump, safeguarding its longevity and performance. Proper installation and maintenance, such as regular filter replacements, are essential to avoid clogs or pump failure.
One of the standout advantages of electric fuel pumps is their adaptability to advanced engine management systems. Modern vehicles use sensors and computers to monitor fuel demand in real time, adjusting pump speed and pressure accordingly. For instance, during highway cruising, the pump may operate at a lower speed to conserve energy, while rapid acceleration triggers maximum output. This dynamic control not only enhances fuel efficiency but also reduces wear on the pump. However, this sophistication requires precise calibration, making diagnostics and repairs more complex than traditional systems.
When troubleshooting an electric fuel pump, start by checking the fuse and relay, as electrical issues are common culprits. A failing pump often produces a whining noise or fails to prime the system, indicated by difficulty starting the engine. If the pump is inaccessible without removing the fuel tank, consider using a pressure gauge to test output directly at the fuel rail. Replacement should involve selecting a pump with the correct flow rate and pressure specifications for your vehicle, typically ranging from 30 to 80 psi, depending on the engine’s requirements. Always consult the manufacturer’s guidelines to ensure compatibility and safety.
In summary, the electric fuel pump is a cornerstone of efficient fuel delivery, combining mechanical precision with electronic intelligence. Its role in maintaining consistent pressure and flow underscores its importance in vehicle performance and reliability. By understanding its components, operation, and maintenance needs, drivers can better diagnose issues and ensure their vehicle runs smoothly. Whether upgrading or repairing, prioritizing quality and compatibility will maximize the pump’s lifespan and the engine’s efficiency.
Step-by-Step Guide: Removing Fuel Pump from 2001 Mazda Millenia
You may want to see also
Explore related products
Strainer/Filter: Prevents debris from entering the pump, protecting it from damage
A fuel pump assembly is a critical component in any vehicle's fuel system, ensuring the efficient delivery of fuel from the tank to the engine. Among its various parts, the strainer/filter stands out as a silent guardian, playing a pivotal role in maintaining the pump's longevity and performance. This unassuming component is the first line of defense against contaminants, a common yet often overlooked threat to fuel system integrity.
The Unseen Threat of Debris
In the world of automotive engineering, the strainer/filter is a crucial barrier against the microscopic invaders that can wreak havoc on a fuel pump. As fuel is drawn from the tank, it often carries with it small particles of dirt, rust, or debris that have accumulated over time. These particles, though minuscule, can cause significant damage when introduced into the pump's intricate mechanism. The strainer/filter's primary function is to capture and trap these contaminants, ensuring that only clean fuel reaches the pump.
A Preventative Measure
Imagine a scenario where a vehicle's fuel tank contains a small amount of sediment, a common occurrence in older vehicles or those exposed to harsh environmental conditions. Without a strainer/filter, this sediment could easily be sucked into the fuel pump, leading to abrasion and wear on the pump's internal components. Over time, this can result in reduced pump efficiency, increased fuel consumption, and even complete pump failure. By installing a strainer/filter, vehicle owners can proactively safeguard their fuel pumps, preventing costly repairs and ensuring optimal performance.
Design and Maintenance Considerations
Strainer/filters are typically designed with a fine mesh or porous material that allows fuel to pass through while trapping particles. This design requires regular maintenance to ensure its effectiveness. Vehicle owners should consult their manufacturer's guidelines for recommended replacement intervals, which may vary based on driving conditions and fuel quality. For instance, vehicles frequently driven on dusty roads or those using lower-quality fuel may require more frequent filter changes. A simple yet effective maintenance tip is to inspect the strainer/filter during routine oil changes, ensuring it remains clean and free of debris buildup.
The Long-Term Benefits
Investing in a high-quality strainer/filter and adhering to a diligent maintenance schedule can yield significant long-term advantages. By preventing debris-related damage, vehicle owners can extend the lifespan of their fuel pumps, avoiding the substantial costs associated with pump replacement. Moreover, a well-maintained strainer/filter contributes to overall engine health, ensuring consistent fuel delivery and optimal combustion. This, in turn, can lead to improved fuel efficiency, reduced emissions, and a more responsive driving experience. In the realm of automotive care, the strainer/filter is a small yet powerful component that embodies the adage, "prevention is better than cure."
Locating the Fuel Pump in Your 2000 Kia Rio: A Guide
You may want to see also
Explore related products
Pressure Regulator: Maintains optimal fuel pressure for efficient engine performance
The pressure regulator is a critical component within the fuel pump assembly, tasked with maintaining precise fuel pressure levels to ensure optimal engine performance. Without it, fluctuations in fuel pressure could lead to inefficient combustion, reduced power, or even engine damage. This small yet vital part acts as the gatekeeper, adjusting fuel flow to meet the engine’s demands under varying conditions, from idle to full throttle.
Consider the engine as a finely tuned athlete: just as a runner requires the right amount of oxygen to perform, the engine needs a consistent fuel supply. The pressure regulator ensures this balance by monitoring system pressure and redirecting excess fuel back to the tank when necessary. For instance, during acceleration, the regulator allows higher pressure to meet increased fuel demands, while at idle, it reduces pressure to conserve fuel and prevent wastage. This dynamic adjustment is key to maintaining efficiency across all driving scenarios.
One practical example of the regulator’s importance is in modern fuel-injected engines, where precise fuel-to-air ratios are essential for performance and emissions control. A malfunctioning regulator can cause symptoms like hard starting, stalling, or poor acceleration. Diagnosing such issues often involves checking fuel pressure with a gauge; optimal readings typically range between 30 and 60 psi, depending on the vehicle. If pressure deviates, the regulator may need replacement, a task that requires disconnecting the fuel line and swapping the old unit with a new one, ensuring compatibility with the vehicle’s make and model.
When replacing a pressure regulator, it’s crucial to follow manufacturer guidelines to avoid complications. For instance, some regulators are integrated into the fuel pump module and require replacing the entire assembly, while others are standalone units accessible without disassembling the pump. Always relieve fuel system pressure before beginning work to prevent accidents. Additionally, using high-quality parts and ensuring proper installation can extend the regulator’s lifespan and maintain engine efficiency.
In summary, the pressure regulator is not just a component but a guardian of engine performance, ensuring fuel delivery remains consistent and efficient. Understanding its role and recognizing signs of failure can save time, money, and prevent potential engine damage. Whether you’re a DIY enthusiast or a professional mechanic, appreciating the regulator’s function underscores its importance in the broader fuel pump assembly.
Understanding Fuel Pump Pressure Regulator Functionality and Operation
You may want to see also
Explore related products
Sending Unit: Monitors fuel level, sending data to the fuel gauge
The sending unit is a critical component within the fuel pump assembly, serving as the eyes and ears of your vehicle's fuel system. Its primary function is to monitor the fuel level in the tank, ensuring that the driver is always aware of how much fuel remains. This small yet powerful device operates by using a float mechanism that moves up and down with the fuel level, translating this physical movement into an electrical signal. This signal is then sent to the fuel gauge on the dashboard, providing real-time information to the driver. Without the sending unit, drivers would be left guessing their fuel levels, leading to potential breakdowns and inconvenience.
Understanding how the sending unit works can help vehicle owners diagnose issues before they escalate. For instance, if the fuel gauge reads inaccurately or fluctuates wildly, the sending unit might be at fault. Common problems include a worn-out float, a broken electrical connection, or corrosion on the unit’s contacts. Regular maintenance, such as cleaning the contacts and inspecting the float for damage, can extend the life of the sending unit. Additionally, modern vehicles often include diagnostic tools that can pinpoint sending unit malfunctions, making it easier for mechanics to identify and resolve issues promptly.
From a comparative standpoint, the sending unit in older vehicles differs significantly from those in newer models. Traditional sending units rely on a simple resistive circuit, where the float’s position changes the resistance, altering the current sent to the gauge. In contrast, modern sending units often incorporate digital technology, providing more precise readings and integrating with advanced vehicle systems like onboard computers. This evolution highlights the importance of staying updated with vehicle technology, as newer sending units not only offer better accuracy but also contribute to overall fuel efficiency and vehicle performance.
For those looking to replace a faulty sending unit, it’s essential to choose a compatible part. Sending units are not universal; they vary by make, model, and year of the vehicle. Always refer to the manufacturer’s specifications or consult a professional mechanic to ensure the correct fit. Installation typically involves draining the fuel tank, removing the old unit, and carefully inserting the new one to avoid damage. While DIY replacement is possible, it requires caution due to the flammable nature of fuel. If in doubt, entrust the task to a certified technician to ensure safety and proper functionality.
In conclusion, the sending unit is a vital yet often overlooked part of the fuel pump assembly. Its role in monitoring fuel levels and communicating this data to the driver is indispensable for safe and efficient driving. By understanding its function, recognizing signs of failure, and knowing how to address issues, vehicle owners can maintain their fuel systems effectively. Whether you’re driving an older model or a modern vehicle, the sending unit remains a key player in keeping you informed and on the road.
Are GPI Fuel Pumps American-Made? Uncovering Their Manufacturing Origin
You may want to see also
Explore related products
Housing/Mounting: Encloses components, secures assembly in the fuel tank
The housing or mounting of a fuel pump assembly is its unsung hero, a critical yet often overlooked component. This structure, typically made from durable materials like nylon, plastic composites, or metals such as aluminum or steel, serves as the backbone of the entire system. Its primary role is to enclose and protect the delicate internal components—the electric motor, impeller, and fuel filter—from the harsh environment of the fuel tank. Without this protective casing, these parts would be exposed to fuel vapors, debris, and temperature fluctuations, leading to premature wear or failure.
Consider the mounting mechanism as the assembly’s anchor. It secures the fuel pump firmly within the tank, ensuring it doesn’t shift during vehicle operation. This is achieved through a combination of brackets, clips, or flanges designed to fit specific tank configurations. For instance, in-tank fuel pumps often use a locking ring or snap-in mechanism, while external pumps rely on bolted mounts. Proper mounting is non-negotiable; a loose assembly can cause fuel starvation, erratic engine performance, or even damage to the pump itself.
Material selection for the housing is a balancing act. It must be resistant to corrosion from ethanol-blended fuels and capable of withstanding temperature extremes, yet lightweight to avoid adding unnecessary mass to the vehicle. Modern designs often incorporate multi-layer composites or coated metals to meet these demands. For example, nylon housings are popular for their chemical resistance and cost-effectiveness, while aluminum offers superior heat dissipation in high-performance applications.
When replacing or inspecting a fuel pump assembly, pay close attention to the housing and mounting points. Look for cracks, warping, or signs of corrosion, as these can compromise the assembly’s integrity. Ensure the mounting hardware is tightened to manufacturer specifications—overtightening can deform the housing, while undertightening risks detachment. For DIY enthusiasts, using a torque wrench and applying threadlocker on bolts can prevent future issues.
In essence, the housing and mounting are the silent guardians of the fuel pump assembly, ensuring its longevity and reliability. By understanding their design, materials, and installation nuances, vehicle owners and mechanics can better diagnose issues and maintain optimal fuel system performance. Treat this component with the attention it deserves, and it will repay you with years of trouble-free operation.
Testing Fuel Lift Pump DT466: Step-by-Step Guide for Optimal Performance
You may want to see also
Frequently asked questions
A fuel pump assembly usually includes the electric fuel pump, a fuel sender unit (which measures the fuel level), a fuel filter, and a pressure regulator. Some assemblies also come with a fuel tank seal and mounting hardware.
No, a fuel pump assembly does not include the fuel tank. It is designed to fit inside the fuel tank and is a modular unit that can be replaced independently of the tank itself.
No, fuel lines are not included in the fuel pump assembly. The assembly connects to the fuel lines, but the lines themselves are separate components that route fuel from the tank to the engine.
