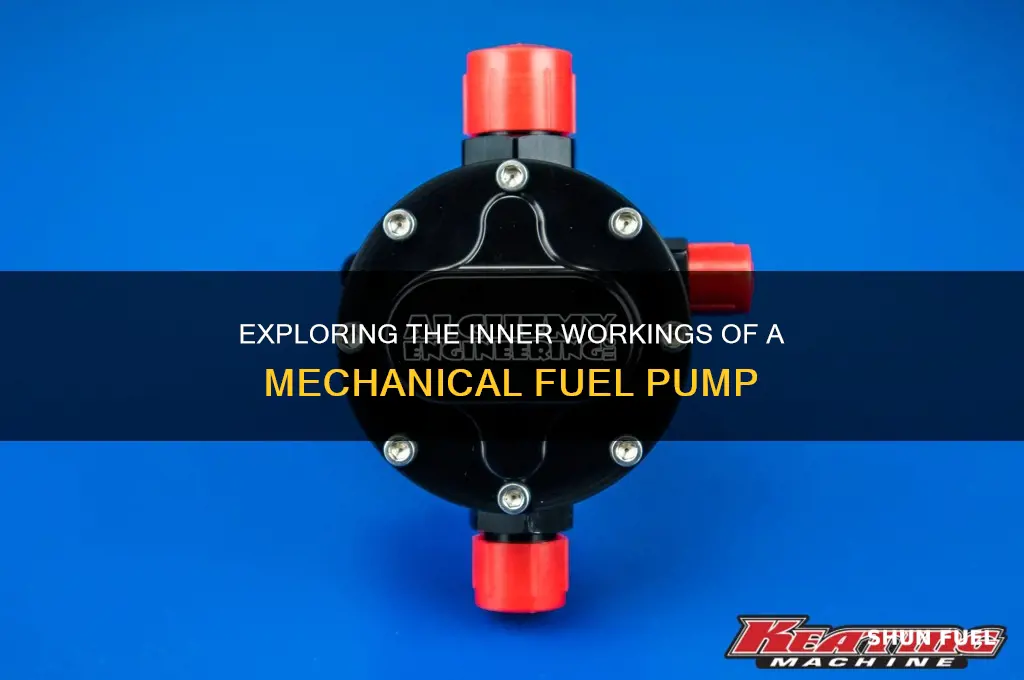

A mechanical fuel pump is a crucial component in internal combustion engines, responsible for delivering fuel from the tank to the carburetor or fuel injection system. Inside, it typically consists of a diaphragm or plunger mechanism housed within a compact casing. The diaphragm, often made of flexible material, is actuated by an eccentric cam or lever driven by the engine’s motion, creating a pumping action. As the diaphragm moves, it alternately creates a vacuum to draw fuel into the pump and pressure to push it through the outlet. Additionally, the pump includes a check valve to ensure one-way fuel flow and prevent backflow. This simple yet effective design ensures a consistent and reliable fuel supply, making it a vital part of older carbureted engines and some modern systems.
| Characteristics | Values |
|---|---|
| Components | Diaphragm, Inlet Valve, Outlet Valve, Cam-Driven Plunger, Housing, Check Valve, Spring, Lever Arm |
| Operation Principle | Uses a diaphragm or plunger driven by a camshaft to create suction and pressure for fuel delivery |
| Fuel Flow Direction | One-way flow from inlet to outlet, controlled by valves |
| Material | Typically aluminum, steel, or plastic for housing; rubber or synthetic for diaphragm |
| Pressure Range | Typically 3-7 psi (pounds per square inch), depending on engine requirements |
| Power Source | Mechanical (driven by engine camshaft or eccentric lobe) |
| Maintenance | Requires periodic inspection for leaks, diaphragm wear, or valve failure |
| Fuel Compatibility | Compatible with gasoline, diesel, and ethanol-blended fuels |
| Size | Compact, designed to fit within engine bay constraints |
| Noise Level | Relatively quiet compared to electric fuel pumps |
| Lifespan | Typically 100,000-150,000 miles, depending on usage and maintenance |
| Failure Symptoms | Engine stalling, hard starting, reduced fuel pressure, or fuel leaks |
| Application | Commonly used in carbureted engines and older vehicle models |
Explore related products
What You'll Learn
- Diaphragm Mechanism: Flexible membrane creating pressure to move fuel through the pump system
- Inlet and Outlet Valves: One-way valves controlling fuel flow into and out of the pump
- Camshaft Drive: Mechanical linkage connecting the pump to the engine’s camshaft
- Fuel Pressure Regulator: Maintains consistent fuel pressure for optimal engine performance
- Housing and Seals: Encloses components, ensuring fuel containment and preventing leaks
Diaphragm Mechanism: Flexible membrane creating pressure to move fuel through the pump system
A mechanical fuel pump's diaphragm mechanism is a marvel of simplicity and efficiency, relying on a flexible membrane to generate the pressure needed to move fuel through the system. This membrane, typically made of durable materials like nitrile rubber or neoprene, is the heart of the pump’s operation. When the diaphragm is actuated—often by a camshaft-driven lever or rocker arm—it flexes inward, creating a low-pressure zone that draws fuel into the pump chamber. As the diaphragm returns to its original position, it forces the fuel out, pushing it toward the carburetor or fuel injection system. This cyclical motion ensures a steady and reliable fuel supply, critical for engine performance.
Consider the diaphragm’s role in maintaining consistent fuel pressure, a task it accomplishes without the complexity of electric pumps. Unlike electric systems, which rely on external power sources, the diaphragm mechanism is driven directly by the engine’s motion, making it self-sustaining and less prone to electrical failures. For example, in classic carbureted engines, the diaphragm pump’s rhythmic flexing synchronizes with the engine’s RPM, ensuring fuel delivery scales with demand. This mechanical harmony is particularly advantageous in off-road vehicles or older models where electrical reliability may be a concern.
However, the diaphragm’s flexibility is both its strength and potential weakness. Over time, exposure to fuel additives, ethanol, or extreme temperatures can cause the membrane to degrade, leading to cracks or reduced elasticity. Regular inspection and replacement—typically every 50,000 to 100,000 miles, depending on usage—are essential to prevent fuel delivery issues. For DIY enthusiasts, replacing a diaphragm is a straightforward task: disconnect the fuel lines, remove the pump housing, and swap the old diaphragm for a new one, ensuring proper alignment of the actuating arm.
Comparing the diaphragm mechanism to other fuel pump designs highlights its unique advantages. Electric pumps, while efficient, can fail abruptly due to wiring issues or motor burnout. In contrast, the diaphragm pump’s mechanical nature provides a gradual warning—such as reduced fuel pressure or sputtering—allowing drivers time to address the issue before complete failure. Additionally, its compact design and ease of maintenance make it a preferred choice for restoration projects or vehicles operating in remote areas where access to advanced tools is limited.
In practice, understanding the diaphragm mechanism empowers vehicle owners to diagnose and resolve fuel system issues proactively. For instance, if an engine struggles to start or stalls under load, checking the diaphragm for wear or debris in the pump chamber can often pinpoint the problem. Keeping a spare diaphragm kit in the toolset is a practical tip for long trips or off-road adventures. By appreciating the diaphragm’s role and maintaining it diligently, drivers can ensure their mechanical fuel pump remains a reliable component of their vehicle’s powertrain.
Locating the Fuel Pump in a 2004 Ford Escape: A Guide
You may want to see also
Explore related products
$21.22 $23.58
Inlet and Outlet Valves: One-way valves controlling fuel flow into and out of the pump
Mechanical fuel pumps rely heavily on inlet and outlet valves to maintain a consistent and controlled fuel flow. These one-way valves, typically made of durable materials like rubber or synthetic compounds, act as gatekeepers, ensuring fuel moves in a single direction. The inlet valve opens to allow fuel from the tank to enter the pump, while the outlet valve permits fuel to exit under pressure, destined for the carburetor or fuel injection system. This unidirectional flow is critical for preventing backflow, which could lead to airlocks, reduced pressure, or inefficient fuel delivery.
Consider the analogy of a water pump in a garden hose. Without a one-way valve, water could flow backward, causing the pump to lose prime and reducing its effectiveness. Similarly, in a mechanical fuel pump, the inlet and outlet valves ensure that fuel moves forward, maintaining the necessary pressure for combustion. For instance, in a diaphragm-type fuel pump, the inlet valve opens as the diaphragm expands, drawing fuel into the pump chamber. When the diaphragm contracts, the outlet valve opens, pushing fuel toward the engine.
Proper maintenance of these valves is essential for optimal pump performance. Over time, debris, varnish, or wear can cause valves to stick, leak, or fail. Regular inspection and cleaning can prevent such issues. For example, using a fuel additive designed to dissolve varnish can help keep valves operating smoothly. If a valve fails, it’s crucial to replace it promptly, as even a small leak can lead to a significant drop in fuel pressure, affecting engine performance.
Comparing mechanical fuel pumps to electric ones highlights the simplicity and reliability of these valves. While electric pumps often use more complex check valves or electronic controls, mechanical pumps rely on the straightforward mechanics of spring-loaded or pressure-activated valves. This simplicity makes them easier to diagnose and repair, a key advantage for DIY enthusiasts or in situations where advanced tools are unavailable.
In practice, understanding the role of inlet and outlet valves can save time and frustration. For instance, if an engine is hard to start or runs poorly, checking these valves should be part of the diagnostic process. A stuck inlet valve might prevent fuel from entering the pump, while a faulty outlet valve could allow fuel to leak back into the tank. By focusing on these components, you can often resolve fuel delivery issues without replacing the entire pump. This knowledge is particularly valuable for older vehicles or equipment where mechanical fuel pumps are still common.
Connecting the Fuel Pump in a 1988 Dodge Ramcharger 318
You may want to see also
Explore related products
Camshaft Drive: Mechanical linkage connecting the pump to the engine’s camshaft
The camshaft drive is a critical component in a mechanical fuel pump, serving as the bridge between the engine's rhythmic motion and the pump's operation. This mechanical linkage ensures that the fuel pump's diaphragm or plunger moves in sync with the engine's camshaft, creating a precise and reliable fuel delivery system. Unlike electric fuel pumps, which rely on external power sources, the camshaft drive harnesses the engine's own motion, making it a robust and self-sustaining mechanism. This design is particularly common in older carbureted engines and small engines like those found in motorcycles, lawnmowers, and marine applications.
To understand the camshaft drive’s role, consider its function as a translator of motion. The camshaft, driven by the engine’s timing system, rotates with precise timing. A lobe on the camshaft engages a pushrod or lever connected to the fuel pump. As the lobe rotates, it pushes the rod, which in turn actuates the pump’s internal components. This direct mechanical connection eliminates the need for external power, ensuring the pump operates only when the engine is running. For example, in a motorcycle engine, the camshaft drive typically uses a short pushrod and a rocker arm to transfer motion to the pump, allowing for compact installation in tight engine spaces.
One of the key advantages of the camshaft drive is its simplicity and reliability. With fewer moving parts compared to electric systems, there’s less to fail. However, this design requires careful maintenance. The linkage must be properly lubricated to prevent wear, and the pushrod or lever should be inspected for bending or misalignment. A common issue is wear on the camshaft lobe, which can lead to reduced pump efficiency. To mitigate this, regular inspection intervals—such as every 10,000 miles for motorcycles or 50 hours for small engines—are recommended. Additionally, using high-quality engine oil can extend the life of these components.
Comparatively, the camshaft drive offers a trade-off between simplicity and adaptability. While it excels in reliability, it lacks the flexibility of electric pumps, which can adjust fuel delivery based on engine load. For instance, a carbureted engine with a camshaft-driven pump delivers a fixed amount of fuel per stroke, whereas an electric pump can modulate flow using sensors and a control module. This makes the camshaft drive ideal for applications where consistent, low-maintenance operation is prioritized over precision fuel management.
In practical terms, troubleshooting a camshaft-driven fuel pump involves checking the linkage for play or damage. If the engine is running rough or failing to start, inspect the pushrod for bending and the pump diaphragm for leaks. A common fix is replacing the pushrod or adjusting the rocker arm to restore proper engagement. For DIY enthusiasts, this repair is straightforward, requiring basic tools like wrenches and a feeler gauge. Always refer to the engine’s manual for specific torque values and adjustment procedures, as these can vary significantly between models. By understanding the camshaft drive’s mechanics, owners can ensure their mechanical fuel pump operates efficiently for years to come.
Choosing the Right Fuel Pump for Your Pontoon Boat
You may want to see also
Explore related products
Fuel Pressure Regulator: Maintains consistent fuel pressure for optimal engine performance
A mechanical fuel pump is a critical component in an engine's fuel delivery system, ensuring that fuel is supplied to the carburetor or fuel injection system at the correct pressure. Inside this pump, you'll find a diaphragm, valves, and a linkage mechanism that work together to create a vacuum and draw fuel from the tank. However, maintaining consistent fuel pressure is just as crucial as delivering the fuel itself. This is where the Fuel Pressure Regulator steps in, acting as the unsung hero of engine performance.
The fuel pressure regulator is a small but mighty device, typically located near the fuel rail or carburetor. Its primary function is to maintain a steady fuel pressure, regardless of engine load or RPM. Here’s how it works: the regulator monitors the fuel pressure in the system and adjusts it by diverting excess fuel back to the tank when pressure exceeds the desired level. For example, in a typical carbureted engine, the regulator might maintain a pressure of 5–7 PSI, while in a fuel-injected system, this could range from 30–60 PSI, depending on the engine’s design. Without this regulation, the engine could run too rich or too lean, leading to poor performance, reduced fuel efficiency, or even damage.
Consider the analogy of a water pump supplying a garden hose. If the pressure isn’t regulated, the hose might burst under high pressure or deliver a weak stream under low pressure. Similarly, the fuel pressure regulator ensures the engine receives just the right amount of fuel under all operating conditions. For instance, during acceleration, when the engine demands more fuel, the regulator prevents pressure from dropping too low, ensuring a consistent fuel supply. Conversely, at idle, it prevents pressure from rising too high, which could cause flooding or vapor lock.
Installing or replacing a fuel pressure regulator requires careful attention to detail. First, ensure the regulator is compatible with your engine’s fuel system—carbureted or fuel-injected. Next, follow the manufacturer’s instructions for mounting and connecting the regulator to the fuel line and return line. A common mistake is neglecting to install a pre-filter before the regulator, which can lead to contamination and premature failure. Regularly inspect the regulator for leaks or signs of wear, especially in high-performance or racing applications where fuel pressures are higher.
In conclusion, the fuel pressure regulator is a vital yet often overlooked component in a mechanical fuel pump system. By maintaining consistent fuel pressure, it ensures optimal engine performance, fuel efficiency, and longevity. Whether you’re a DIY mechanic or a professional, understanding its function and proper maintenance can save you from costly repairs and keep your engine running smoothly. Treat it with the care it deserves, and it will reward you with reliable performance mile after mile.
Step-by-Step Guide to Rebuilding Your Scout Fuel Pump Efficiently
You may want to see also
Explore related products
Housing and Seals: Encloses components, ensuring fuel containment and preventing leaks
The housing of a mechanical fuel pump is the unsung hero of its design, a robust enclosure typically crafted from aluminum or cast iron to withstand the corrosive nature of fuel and the rigors of engine operation. This outer shell serves as the first line of defense, safeguarding internal components like the diaphragm, valves, and linkage from external contaminants such as dirt, moisture, and debris. Without a sturdy housing, these delicate parts would be exposed to environmental hazards, leading to premature wear and potential failure. For instance, aluminum housings are favored in modern pumps due to their lightweight and corrosion-resistant properties, while cast iron remains a staple in heavy-duty applications for its durability.
Seals within the fuel pump are the silent guardians of fuel containment, meticulously designed to prevent leaks that could compromise engine performance or pose safety risks. These seals, often made from nitrile rubber or Viton, are positioned at critical junctions, such as the pump inlet and outlet, to create an airtight barrier. Nitrile rubber seals are cost-effective and resistant to petroleum-based fuels, making them ideal for standard applications, whereas Viton seals offer superior resistance to heat and chemical degradation, ensuring longevity in high-performance engines. Proper seal installation is paramount; even a minor misalignment can lead to fuel seepage, reducing efficiency and potentially causing fuel system contamination.
Consider the diaphragm seal, a critical component in diaphragm-type fuel pumps. This seal not only separates the fuel chamber from the actuating mechanism but also flexes with each pump cycle to draw and deliver fuel. Over time, repeated flexing can cause the seal to fatigue, leading to micro-cracks and eventual leakage. Regular inspection and replacement of the diaphragm seal, typically every 50,000 to 70,000 miles, are essential maintenance practices to ensure optimal pump performance. Neglecting this can result in erratic fuel delivery, engine misfires, or even stalling.
Instructively, when replacing housing or seals, compatibility is key. Always use manufacturer-recommended parts to ensure proper fit and material suitability. For example, installing a seal made from a material incompatible with ethanol-blended fuels can accelerate degradation, voiding the purpose of the replacement. Additionally, during installation, apply a thin layer of fuel-resistant lubricant to seals to ease assembly and prevent tearing. This simple step can significantly extend the lifespan of the seal and maintain the integrity of the fuel system.
Finally, the interplay between housing and seals underscores their collective role in maintaining fuel pump efficiency and safety. A well-designed housing provides the structural foundation, while high-quality seals ensure that fuel remains contained and pressurized. Together, they enable the pump to operate seamlessly, delivering fuel to the engine with precision. For enthusiasts and mechanics alike, understanding this relationship is crucial for troubleshooting and maintenance, ensuring that the fuel pump remains a reliable component in the vehicle’s powertrain.
Easy Steps to Remove Access Covers for Fuel Pump Replacement
You may want to see also
Frequently asked questions
The primary function of a mechanical fuel pump is to draw fuel from the tank and deliver it to the engine at the required pressure and flow rate.
Inside a mechanical fuel pump, you typically find a diaphragm, a plunger or piston, valves (inlet and outlet), a rocker arm or cam-driven mechanism, and a housing to contain these parts.
A mechanical fuel pump operates by using a diaphragm or piston, driven by a camshaft or rocker arm, to create suction and pressure. This action draws fuel into the pump through the inlet valve and pushes it out through the outlet valve to the engine.
The internal components of a mechanical fuel pump are often made from durable materials such as steel, aluminum, or engineered plastics, with diaphragms typically made from rubber or synthetic materials resistant to fuel.
Many mechanical fuel pumps can be repaired by replacing worn components like the diaphragm, valves, or seals. However, if the damage is extensive or the pump is severely worn, it may need to be replaced entirely.
