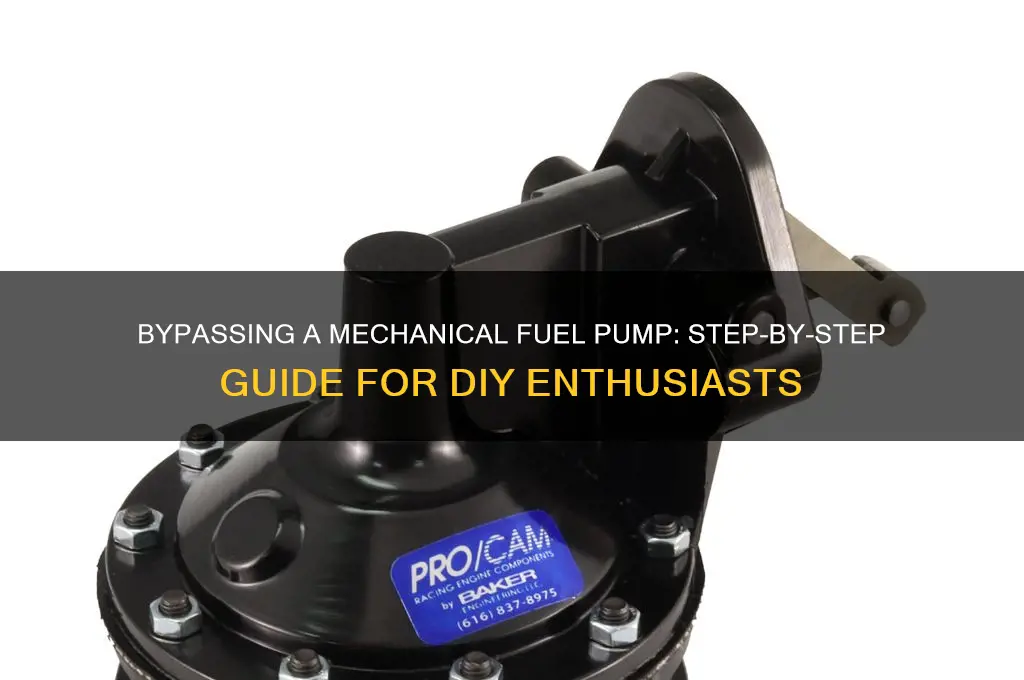

Bypassing a mechanical fuel pump is a procedure often considered in automotive repair or modification scenarios, typically when upgrading to an electric fuel pump or troubleshooting issues with the existing system. This process involves disconnecting the mechanical pump from the fuel line and rerouting the fuel flow directly to the engine, either by using a bypass hose or by integrating an alternative pumping mechanism. It requires careful planning and execution to ensure fuel delivery remains consistent and safe, as improper bypassing can lead to fuel starvation, leaks, or engine damage. Understanding the specific make and model of the vehicle, as well as the fuel system’s design, is crucial for a successful bypass. Always prioritize safety by working in a well-ventilated area, relieving fuel system pressure, and following proper procedures to avoid accidents or system malfunctions.
Explore related products
What You'll Learn
- Understanding Pump Mechanics: Learn the basic operation and components of a mechanical fuel pump
- Safety Precautions: Essential steps to ensure safety while bypassing the fuel pump
- Tools Required: List of necessary tools for bypassing a mechanical fuel pump
- Step-by-Step Guide: Detailed instructions to bypass the fuel pump effectively
- Testing and Verification: Methods to confirm the bypass is functioning correctly
Understanding Pump Mechanics: Learn the basic operation and components of a mechanical fuel pump
A mechanical fuel pump operates through a simple yet ingenious mechanism, driven by the engine's camshaft or a dedicated shaft. Its primary function is to draw fuel from the tank and deliver it to the carburetor or fuel injection system at the required pressure. The pump consists of a diaphragm, a rocker arm, an inlet and outlet valve, and a spring-loaded mechanism. As the engine runs, the rocker arm actuates the diaphragm, creating a vacuum that draws fuel into the pump chamber. The spring then pushes the diaphragm back, forcing fuel out through the outlet valve. Understanding this process is crucial for diagnosing issues and considering bypass methods.
Consider the diaphragm as the heart of the pump—it must remain flexible and intact to ensure efficient fuel transfer. Over time, diaphragms can crack or harden, leading to reduced fuel pressure or complete failure. Inspecting the diaphragm for wear and tear is a practical first step when troubleshooting. If bypassing the pump, one must account for the loss of this regulated pressure, which typically ranges between 3 to 7 psi in most carbureted systems. Electric fuel pumps, often used in bypass setups, require precise pressure regulators to match these specifications.
The rocker arm and its linkage to the camshaft are equally critical. Misalignment or excessive wear in these components can cause the pump to operate inconsistently or not at all. For instance, a worn rocker arm may fail to fully actuate the diaphragm, resulting in insufficient fuel delivery. When bypassing, disconnecting the rocker arm is a common step, but it’s essential to secure it safely to prevent interference with the camshaft or other moving parts. Always use a wrench or pliers to loosen the linkage, and ensure the arm is tied back or removed entirely.
Inlet and outlet valves play a silent but vital role in maintaining one-way fuel flow. The inlet valve allows fuel into the pump chamber, while the outlet valve ensures it exits toward the engine. If either valve leaks or becomes clogged, fuel delivery suffers. When bypassing, these valves become irrelevant, but their condition can still impact the system if not properly isolated. For example, a leaking inlet valve could allow air into the line, causing airlocks in the bypass setup. To prevent this, cap or plug the inlet and outlet ports after disconnecting the pump.
Finally, the spring-loaded mechanism ensures consistent diaphragm movement, maintaining steady fuel pressure. Springs weaken over time, reducing pump efficiency. If bypassing, this natural pressure regulation is lost, necessitating an external solution like an electric pump with a pressure regulator. For temporary bypasses, such as during troubleshooting, a manual primer bulb can be used to simulate fuel flow, but this method is impractical for long-term use. Always prioritize safety by relieving fuel system pressure before attempting any modifications, and work in a well-ventilated area to avoid fuel vapors.
Accessing the Fuel Pump in a 1994 Pontiac Grand Am
You may want to see also
Explore related products
Safety Precautions: Essential steps to ensure safety while bypassing the fuel pump
Bypassing a mechanical fuel pump is a task that demands meticulous attention to safety, as it involves handling flammable materials and altering critical vehicle systems. Before initiating any work, ensure the vehicle is parked on a flat, stable surface, and the engine is completely cooled to minimize fire risks. Disconnect the battery to eliminate electrical sparks, which can ignite fuel vapors. Always wear protective gear, including gloves and safety goggles, to shield against accidental spills or splashes. These initial steps are non-negotiable and form the foundation of a safe working environment.
Once preparatory measures are in place, focus on the fuel system itself. Relieve fuel pressure by locating the Schrader valve on the fuel rail and carefully releasing the pressure using a suitable tool. This step is crucial to prevent fuel from spraying unexpectedly during the bypass process. Next, identify the fuel lines connected to the mechanical pump and use appropriate wrenches or pliers to disconnect them, ensuring no debris enters the lines. Clean the area thoroughly to avoid contamination, as even small particles can cause engine damage. Always work methodically, double-checking each connection to avoid leaks.
When installing a temporary bypass, such as a rubber hose or adapter, ensure all components are rated for fuel compatibility to prevent degradation or failure. Secure connections tightly but avoid over-tightening, which can damage fittings or cause leaks. Test the system by slowly turning the ignition to the "on" position (without starting the engine) to check for leaks. If fuel drips or sprays are detected, immediately shut off the ignition, disconnect the battery, and rectify the issue before proceeding. Never attempt to start the engine until you are confident all connections are secure and leak-free.
Finally, consider the long-term implications of bypassing a mechanical fuel pump. This is not a permanent solution and should only be used as a temporary fix to diagnose issues or transport the vehicle to a repair facility. Prolonged operation without a functioning fuel pump can lead to engine damage or failure. Always consult a professional mechanic to address the root cause of the pump failure and restore the system to its original configuration. Safety is paramount, and cutting corners in this process can have severe consequences.
Building Hot Rods: Electric Fuel Pump Installation Guide
You may want to see also
Explore related products
Tools Required: List of necessary tools for bypassing a mechanical fuel pump
Bypassing a mechanical fuel pump is a task that demands precision and the right tools. Without them, you risk inefficiency, damage, or even safety hazards. The first tool you’ll need is a wrench set, specifically one that includes both open-end and box-end wrenches in metric and SAE sizes. Mechanical fuel pumps often have fittings and bolts that require exact torque, and having a variety of sizes ensures you can access tight spaces and secure connections properly.
Next, invest in a fuel line disconnect tool. This specialized tool is essential for safely releasing the fuel lines connected to the pump without causing leaks or damage. Attempting to disconnect lines by hand or with improvised tools can lead to spills, which are not only messy but also dangerous due to fuel’s flammability. A disconnect tool is designed to grip and release the lines securely, minimizing risk.
A hose clamp pliers is another critical tool in your arsenal. When bypassing the mechanical pump, you’ll likely need to reroute or secure fuel lines using hose clamps. Standard pliers can slip or damage the clamps, but hose clamp pliers provide the right grip and leverage to tighten or loosen them effectively. This ensures a secure, leak-free connection, which is vital for maintaining fuel system integrity.
For electrical connections, a multimeter is indispensable. Bypassing a mechanical fuel pump often involves integrating an electric fuel pump, which requires verifying voltage and continuity in the wiring. A multimeter allows you to test for power at the pump’s terminals, ensuring the electrical system is functioning correctly before proceeding. Skipping this step could result in a non-operational system or even electrical shorts.
Finally, don’t overlook the importance of safety equipment. Fuel is highly flammable, so safety goggles and nitrile gloves are non-negotiable. Additionally, keep a fire extinguisher nearby as a precautionary measure. These tools aren’t directly involved in the bypass process, but they protect you from potential hazards, making them just as essential as any other item on this list.
With these tools in hand, you’re equipped to tackle the task of bypassing a mechanical fuel pump efficiently and safely. Each tool serves a specific purpose, ensuring that every step of the process is executed with precision and care.
Step-by-Step Guide to Removing a Fuel Pump from a Suburban
You may want to see also
Explore related products
Step-by-Step Guide: Detailed instructions to bypass the fuel pump effectively
Bypassing a mechanical fuel pump is a task that requires precision and a clear understanding of your vehicle's fuel system. This process is often considered when the pump fails or when modifying an engine for specific performance needs. Here's a comprehensive guide to achieving this effectively.
Step 1: Understand the Fuel System
Before attempting any modifications, familiarize yourself with your vehicle's fuel delivery system. Mechanical fuel pumps are typically driven by the engine's camshaft and are responsible for drawing fuel from the tank and delivering it to the carburetor or fuel injection system. Identify the pump's location, usually on the engine block, and trace the fuel lines to understand the flow. This knowledge is crucial to ensure you don't disrupt other critical components.
The Bypassing Process:
- Disconnect the Fuel Lines: Start by relieving the fuel system pressure and safely disconnecting the fuel lines from the pump. Use appropriate tools to avoid damage.
- Install a Bypass Line: Connect a new fuel line directly from the fuel tank to the carburetor or fuel injection system, effectively bypassing the mechanical pump. Ensure the line is secure and free from leaks.
- Electric Pump Installation: Consider installing an electric fuel pump in-line with the new bypass. This provides a more reliable and consistent fuel supply, especially for high-performance engines. Mount the pump securely and connect it to the vehicle's electrical system, ensuring it activates when the ignition is turned on.
Cautions and Considerations:
- Safety First: Working with fuel systems can be hazardous. Always relieve pressure, use appropriate safety gear, and ensure good ventilation.
- Legal and Warranty Implications: Modifying your vehicle's fuel system may void warranties and could be subject to local regulations. Check your vehicle's warranty terms and local laws before proceeding.
- Performance Impact: Bypassing the mechanical pump can affect engine performance. Fine-tuning the carburetor or fuel injection system may be necessary to optimize fuel delivery.
Bypassing a mechanical fuel pump is a specialized task, often undertaken for performance enhancements or as a temporary solution to pump failure. It requires a good understanding of automotive mechanics and should be approached with caution. By following these steps and considering the specific needs of your vehicle, you can effectively bypass the fuel pump, ensuring a reliable and efficient fuel delivery system. This guide provides a foundation, but each vehicle may present unique challenges, making research and adaptation key to success.
New Fuel Pump Cost: What to Expect for Your Vehicle
You may want to see also
Explore related products
Testing and Verification: Methods to confirm the bypass is functioning correctly
Bypassing a mechanical fuel pump requires precision, but confirming its functionality demands equal rigor. Start with a pressure gauge test to verify the system’s integrity. Attach the gauge to the fuel line post-bypass and crank the engine. Ideal pressure for most carbureted engines ranges between 4–6 PSI, while fuel-injected systems require 30–60 PSI. Discrepancies indicate leaks, clogs, or improper installation. Always compare readings to manufacturer specifications for accuracy.
Next, conduct a flow rate test to ensure fuel delivery meets demand. Disconnect the fuel line at the carburetor or injector rail and measure the volume of fuel expelled over 30 seconds. A healthy system should deliver 0.5–1.0 gallons per minute, depending on engine size. Insufficient flow suggests restrictions in the bypass, while excessive flow may indicate a faulty regulator. Repeat the test under load (e.g., idling or revving) to simulate real-world conditions.
For a visual inspection, examine the bypass setup for leaks or loose connections. Use a spray bottle with soapy water to detect bubbles around fittings, hoses, and junctions. Even minor leaks can compromise performance and safety. Pay special attention to areas where the bypass interfaces with the original system, as these are common failure points. Address issues immediately with proper sealing techniques, such as torqueing fittings to spec or replacing damaged components.
Finally, perform a road test to evaluate the bypass under dynamic conditions. Monitor fuel pressure, engine response, and overall drivability. Hesitation, stalling, or erratic RPMs signal unresolved issues. Gradually increase throttle input to assess performance across varying loads. If the engine operates smoothly and maintains consistent power, the bypass is likely functioning correctly. However, persistent problems warrant a reevaluation of the installation or consultation with a professional.
Understanding the Fuel Pump System in a 2005 Cadillac CTS
You may want to see also
Frequently asked questions
Yes, you can bypass a mechanical fuel pump by installing an electric fuel pump, which eliminates the need for the mechanical pump entirely.
You’ll need basic tools like wrenches, pliers, a fuel line disconnect tool, and possibly a drill or saw to modify the fuel system for the bypass.
Bypassing a mechanical fuel pump with an electric one can be safe if done correctly, but ensure the new system provides adequate fuel pressure and flow for your engine.
Depending on your setup, you may need to install an in-tank or external electric fuel pump, which could require modifications to the fuel tank or lines.
Temporarily bypassing a mechanical fuel pump is not recommended, as it may lead to inconsistent fuel delivery and potential engine damage. A permanent solution is safer.
