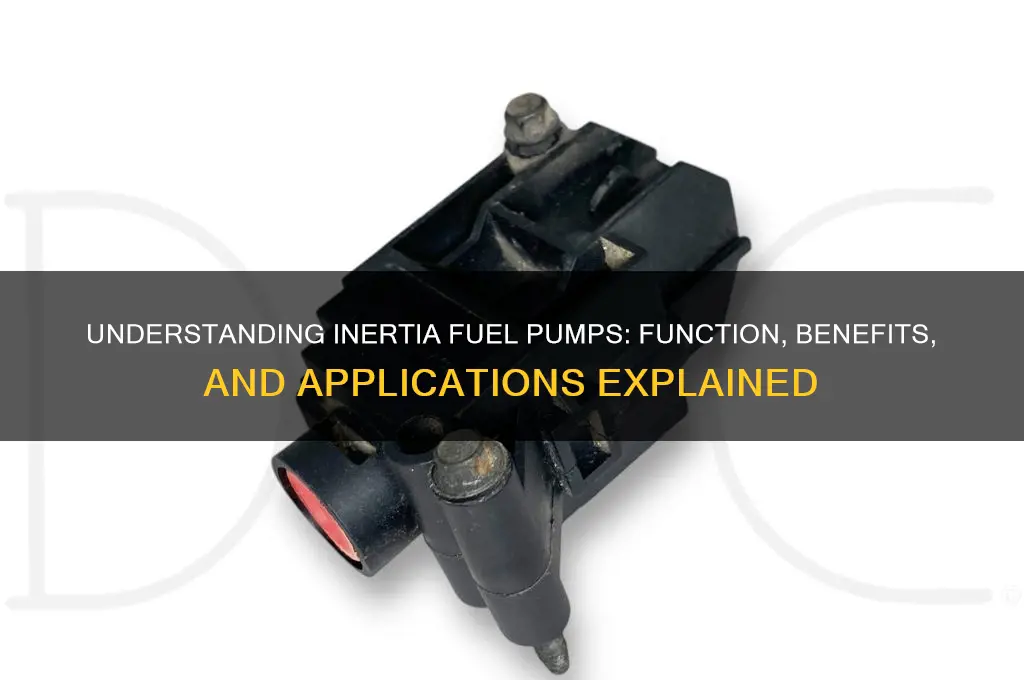

An inertia fuel pump, also known as a mechanical fuel pump, is a simple yet effective device used in internal combustion engines to deliver fuel from the tank to the carburetor or fuel injection system. Unlike electric fuel pumps, it operates without the need for external power, relying instead on the engine's motion and the principle of inertia. Typically driven by a camshaft or eccentric lobe, the pump creates a vacuum that draws fuel through a series of valves and chambers, ensuring a steady supply under varying engine speeds. Its durability and reliability make it a popular choice in older vehicles and carbureted engines, though it has largely been replaced by electric pumps in modern fuel injection systems. Understanding its mechanics provides valuable insight into the evolution of automotive fuel delivery systems.
| Characteristics | Values |
|---|---|
| Definition | A mechanical fuel pump that uses inertia to move fuel from the tank to the engine. |
| Operating Principle | Relies on the acceleration of a plunger to create pressure and move fuel. |
| Power Source | Typically driven by the engine's camshaft or a dedicated mechanical linkage. |
| Fuel Delivery | Provides a consistent flow of fuel under low pressure. |
| Common Applications | Older carbureted engines, motorcycles, and small engines. |
| Advantages | Simple design, low cost, reliable in low-pressure systems. |
| Disadvantages | Limited fuel pressure, not suitable for high-performance or fuel-injected engines. |
| Maintenance | Requires periodic inspection and replacement of diaphragms or seals. |
| Alternatives | Electric fuel pumps, high-pressure mechanical pumps. |
| Environmental Impact | Less efficient than modern electric pumps, may contribute to fuel vapor emissions. |
| Modern Relevance | Largely replaced in modern vehicles but still used in classic or specialty applications. |
Explore related products
What You'll Learn
- Inertia Fuel Pump Basics: Definition, purpose, and core function in fuel delivery systems
- Working Principle: Utilizes inertia force to move fuel through mechanical motion
- Components Overview: Diaphragm, spring, inlet/outlet valves, and actuating lever
- Applications: Commonly used in motorcycles, small engines, and older vehicles
- Advantages & Limitations: Reliable, simple design; limited efficiency at high speeds
Inertia Fuel Pump Basics: Definition, purpose, and core function in fuel delivery systems
An inertia fuel pump, often found in older carbureted vehicles and small engines, operates without electricity, relying instead on the motion of the vehicle or engine to create pressure and move fuel. This mechanical simplicity makes it a durable and reliable component in fuel delivery systems, particularly in applications where electrical systems are absent or unreliable.
Definition and Mechanism
At its core, an inertia fuel pump is a low-pressure, mechanical device that uses momentum and a spring-loaded diaphragm to draw fuel from the tank and deliver it to the carburetor. When the vehicle or engine is in motion, the pump’s internal weights shift, compressing the diaphragm and forcing fuel through the system. A one-way valve ensures fuel flows in a single direction, preventing backflow. This process repeats with every movement, maintaining a steady fuel supply.
Purpose in Fuel Delivery Systems
The primary purpose of an inertia fuel pump is to provide a consistent fuel flow in systems that lack electric fuel pumps. It bridges the gap between the fuel tank and the carburetor, ensuring the engine receives the necessary fuel for combustion. Unlike electric pumps, which require a power source, inertia pumps are self-sustaining, making them ideal for vintage cars, motorcycles, and small engines like lawnmowers or generators.
Core Function and Practical Considerations
The pump’s effectiveness depends on its placement and the vehicle’s motion. For optimal performance, it should be mounted in a location where it experiences consistent vibration or movement, such as near the engine or chassis. Regular maintenance, including checking for leaks and ensuring the diaphragm is intact, is crucial to prevent fuel starvation. While not suitable for high-pressure fuel injection systems, inertia pumps excel in their intended applications, offering a cost-effective and low-maintenance solution for carbureted engines.
Comparative Advantage and Limitations
Compared to electric fuel pumps, inertia pumps are less versatile but more resilient in harsh conditions. They are immune to electrical failures, making them a preferred choice for off-road vehicles or equipment operating in remote areas. However, their reliance on motion means they may struggle in stop-and-go driving or when the engine is idling. Understanding these limitations ensures proper application and prevents issues like fuel delivery interruptions during low-speed operation.
Installation and Troubleshooting Tips
When installing an inertia fuel pump, ensure the arrow on the pump body points toward the carburetor to maintain correct fuel flow direction. Use fuel line clamps to secure connections and prevent leaks. If the engine stalls or runs poorly, inspect the pump for clogs or a worn diaphragm. Replacement diaphragms are inexpensive and easy to install, often restoring the pump to full functionality. For vehicles with inconsistent motion, consider adding a manual primer bulb to assist fuel delivery during startup.
Understanding Rotary Fuel Pumps: Function, Mechanism, and Operation Explained
You may want to see also
Explore related products
Working Principle: Utilizes inertia force to move fuel through mechanical motion
Inertia fuel pumps operate on a deceptively simple principle: harnessing the force of inertia to move fuel without electricity. Imagine a piston moving rapidly within a cylinder. As it accelerates, the fuel in front of it is pushed forward due to inertia, creating a pressure wave. This wave travels through the pump, forcing fuel out the discharge port. When the piston reverses direction, a check valve prevents backflow, ensuring a continuous, one-way flow of fuel. This mechanical motion, often driven by a diaphragm or rocker arm, eliminates the need for complex electrical systems, making inertia pumps lightweight, reliable, and ideal for applications like carbureted engines and aviation.
Consider the internal combustion engine, where an inertia fuel pump is often mounted directly on the engine block. The pump's diaphragm is connected to a lever arm, which is actuated by the engine's camshaft or a dedicated eccentric lobe. As the engine runs, the lever arm oscillates, causing the diaphragm to flex rapidly. This flexing creates alternating high and low-pressure zones within the pump chamber. Fuel is drawn in during the low-pressure phase and expelled during the high-pressure phase, propelled by the inertia of the moving diaphragm. This direct mechanical linkage ensures that fuel delivery is synchronized with engine speed, providing a consistent flow without the need for external power sources.
One of the key advantages of inertia fuel pumps is their ability to operate in harsh environments. Unlike electric pumps, they are immune to electromagnetic interference and can function reliably in high-temperature or high-vibration settings. For instance, in aviation, inertia pumps are often used in small aircraft where electrical systems may be limited or unreliable. The pump's simplicity also makes it highly durable, with fewer components to fail. However, this design does have limitations: it relies on engine motion to function, so it cannot be used in systems requiring fuel delivery when the engine is off. Additionally, the flow rate is directly tied to engine speed, which may not be ideal for applications requiring precise fuel metering.
To optimize the performance of an inertia fuel pump, consider these practical tips: ensure the pump is mounted securely to minimize vibration-induced wear, and use fuel lines with minimal bends to reduce flow resistance. Regularly inspect the diaphragm and check valves for signs of wear, as these components are critical to maintaining efficiency. For carbureted engines, align the pump's output with the carburetor's fuel inlet to prevent air pockets, which can disrupt fuel flow. While inertia pumps are not suitable for all applications, their unique working principle makes them a valuable solution in scenarios where simplicity, reliability, and mechanical integration are paramount.
Checking the Fuel Pump Relay on a 2003 Toyota Matrix
You may want to see also
Explore related products
Components Overview: Diaphragm, spring, inlet/outlet valves, and actuating lever
The diaphragm in an inertia fuel pump is the heart of its operation, a flexible membrane that alternates between creating vacuum and pressure within the pump chamber. Typically made of durable materials like nitrile rubber or neoprene, it withstands fuel exposure and temperature fluctuations. When the actuating lever is engaged, the diaphragm deforms, drawing fuel through the inlet valve and expelling it through the outlet valve. Over time, diaphragms can crack or lose elasticity, reducing pump efficiency—inspect annually and replace if signs of wear appear, especially in high-mileage vehicles or those using ethanol-blended fuels.
Springs in inertia fuel pumps serve a dual purpose: they return the diaphragm to its resting position and maintain tension on the valves. A common coil spring, often made of stainless steel to resist corrosion, is calibrated to provide consistent force. If the spring weakens or breaks, fuel flow becomes erratic or stops entirely. To test spring integrity, compress it manually—it should rebound fully without distortion. Replacement springs are inexpensive and readily available, making this a straightforward DIY repair for those comfortable with basic tools.
Inlet and outlet valves are critical for unidirectional fuel flow, ensuring the pump builds pressure effectively. These one-way valves, often umbrella-shaped and made of fuel-resistant plastic or rubber, open and close with diaphragm movement. Contamination or debris can cause valves to stick, leading to airlocks or reduced fuel delivery. During maintenance, clean valves with carburetor cleaner and inspect for tears or warping. For preventative care, use fuel filters to minimize particulate entry and replace valves every 50,000 miles or sooner if performance issues arise.
The actuating lever translates external motion into mechanical energy, driving the diaphragm’s movement. Connected to the vehicle’s motion or a manual pump arm, it must operate smoothly to ensure consistent fuel delivery. Wear in the lever’s pivot points or linkage can introduce play, reducing efficiency. Lubricate pivot points annually with silicone-based grease to minimize friction. In manual pumps, ensure the lever’s throw is full and unimpeded—partial strokes can lead to insufficient fuel pressure. For vehicles with engine-driven pumps, inspect the linkage for looseness or misalignment during routine tune-ups.
Together, these components form a simple yet robust system that relies on mechanical motion to deliver fuel. Understanding their interplay allows for targeted troubleshooting and maintenance, extending the pump’s lifespan. For instance, a diaphragm failure often presents as hard starting, while valve issues may cause sputtering under load. By focusing on these specifics, even novice mechanics can diagnose and address inertia fuel pump problems effectively, ensuring reliable performance in classic cars, motorcycles, or small engines where these pumps are commonly used.
Locating Your Fuel Pump Part Number: A Quick Identification Guide
You may want to see also
Explore related products
Applications: Commonly used in motorcycles, small engines, and older vehicles
Inertia fuel pumps are a staple in applications where simplicity, reliability, and low cost are prioritized over high-pressure fuel delivery. Motorcycles, for instance, often rely on these pumps due to their compact design and ability to operate without electricity, making them ideal for air-cooled engines and off-road bikes where weight and complexity must be minimized. The pump’s diaphragm-driven mechanism ensures consistent fuel flow even during hard corners or rough terrain, a critical feature for rider safety and performance. For motorcycle enthusiasts, understanding this pump’s role can guide maintenance decisions, such as checking for diaphragm wear or ensuring the fuel line is free of debris to prevent stalling.
Small engines, like those in lawnmowers, generators, and chainsaws, also benefit from inertia fuel pumps due to their passive operation and low maintenance requirements. These engines typically run on a carburetor system, where the pump’s suction is powered by engine pulses, eliminating the need for an external power source. For users, this means fewer components to fail and simpler troubleshooting—often, a clogged fuel filter or a worn diaphragm is the culprit behind poor performance. A practical tip: regularly clean the fuel tank and lines to prevent sediment buildup, which can hinder the pump’s ability to draw fuel efficiently.
Older vehicles, particularly those from the mid-20th century, frequently employed inertia fuel pumps as part of their mechanical fuel systems. These pumps were favored for their durability and ease of repair, traits that align with the era’s emphasis on long-lasting, serviceable components. However, as modern vehicles transitioned to electric fuel pumps and fuel injection, inertia pumps became less common in new designs. For classic car enthusiasts, preserving or restoring these pumps requires attention to detail, such as using compatible fuel types (lead-free gasoline can degrade older diaphragms) and sourcing authentic replacement parts to maintain authenticity and functionality.
Comparatively, while inertia fuel pumps lack the precision and high-pressure capabilities of electric pumps, their niche applications highlight their enduring value. In motorcycles, they offer rugged reliability; in small engines, they provide hassle-free operation; and in older vehicles, they serve as a link to automotive history. For those working with these systems, the key takeaway is to respect their design limitations while leveraging their strengths—regular maintenance, proper fuel selection, and understanding their mechanical principles will ensure they continue to perform as intended.
Checking Your 4BT Fuel Pump: A Step-by-Step Diagnostic Guide
You may want to see also
Explore related products
Advantages & Limitations: Reliable, simple design; limited efficiency at high speeds
Inertia fuel pumps, with their straightforward mechanical design, offer a reliability that’s hard to match in more complex systems. Built with minimal moving parts—typically a diaphragm, spring, and check valves—these pumps operate on the principle of inertia, using engine vibrations to create pressure differentials that move fuel. This simplicity translates to fewer points of failure, making them a favorite in applications where durability is paramount, such as classic cars, motorcycles, and small engines. Unlike electric pumps, they require no external power source, reducing the risk of electrical faults or battery drain. For enthusiasts restoring vintage vehicles or operating in remote areas, this reliability is a game-changer, ensuring consistent fuel delivery without the need for sophisticated diagnostics or replacements.
However, this reliability comes with a trade-off: efficiency diminishes at higher engine speeds. Inertia pumps rely on the rhythmic motion of the engine to function, and as RPMs increase, the pump’s ability to keep pace falters. For instance, in a high-performance racing engine revving above 6,000 RPM, an inertia pump may struggle to maintain adequate fuel pressure, leading to lean mixtures and potential engine damage. This limitation makes them unsuitable for modern, high-revving engines or applications demanding precise fuel metering under extreme conditions. Instead, they excel in low- to mid-range RPM scenarios, such as in tractors, generators, or marine engines, where steady, moderate operation is the norm.
To maximize the benefits of an inertia pump, consider the specific demands of your application. For engines operating below 4,000 RPM, these pumps provide a cost-effective, low-maintenance solution. Pairing them with a fuel pressure regulator can help stabilize delivery, though this adds complexity to the otherwise simple system. Regular inspection of the diaphragm and valves is crucial, as wear over time can reduce efficiency. For those upgrading from an inertia pump to a more efficient system, ensure the new pump’s flow rate matches the engine’s requirements, as over- or under-fueling can cause performance issues.
Despite their limitations, inertia fuel pumps remain a testament to the elegance of simple engineering. Their design, unchanged for decades, continues to serve niche markets effectively. For hobbyists or professionals working with older machinery, understanding these pumps’ strengths and weaknesses allows for informed decisions, balancing reliability with the need for performance. While they may not dominate modern fuel systems, their role in specific applications is undeniable, offering a reliable, no-frills solution where complexity is unnecessary.
Locating Your Vehicle's Fuel Pump Regulator: A Comprehensive Guide
You may want to see also
Frequently asked questions
An inertia fuel pump is a mechanical fuel pump commonly used in carbureted engines, particularly in older vehicles. It operates using the inertia principle, where a plunger moves fuel through the system as the diaphragm flexes due to engine vibrations and pressure changes.
An inertia fuel pump works by utilizing the motion of the vehicle and engine vibrations to create a pumping action. The diaphragm inside the pump flexes, drawing fuel into the chamber and then pushing it out to the carburetor, ensuring a steady fuel supply.
Inertia fuel pumps are typically used in older carbureted vehicles, motorcycles, lawnmowers, and small engines. They are also found in some marine applications and classic car restorations.
The main advantages of an inertia fuel pump include its simplicity, reliability, and low cost. It requires no external power source, making it ideal for basic fuel delivery systems in carbureted engines.
If an inertia fuel pump isn’t working, check for clogged fuel lines, a damaged diaphragm, or a faulty check valve. Ensure the pump is properly mounted and that there are no leaks in the system. Replacing the pump may be necessary if it’s worn out.
