The fuel pump is a critical component in a vehicle's fuel system, responsible for delivering fuel from the tank to the engine. Connected to the fuel pump are several key elements that ensure its proper functioning: the fuel tank, where the pump draws fuel; the fuel lines, which transport the fuel to the engine; the fuel filter, which removes contaminants before the fuel reaches the pump; and the fuel pressure regulator, which maintains optimal fuel pressure. Additionally, the fuel pump is often linked to the vehicle’s electrical system, powered by the battery and controlled by the engine control unit (ECU) to ensure precise fuel delivery based on engine demand. Understanding these connections is essential for diagnosing and maintaining a healthy fuel system.
| Characteristics | Values |
|---|---|
| Fuel Tank | Stores the fuel that the pump delivers to the engine. |
| Fuel Lines | Tubes or hoses that carry fuel from the tank to the pump and then to the engine. |
| Fuel Filter | Cleans the fuel before it reaches the pump to prevent contaminants from damaging the pump or engine. |
| Fuel Pressure Regulator | Maintains consistent fuel pressure in the system, ensuring optimal engine performance. |
| Fuel Injectors (in modern vehicles) | Spray fuel into the engine's combustion chamber in precise amounts and timing. |
| Carburetor (in older vehicles) | Mixes fuel with air before it enters the engine. |
| Fuel Pump Relay | Controls the electrical circuit that powers the fuel pump, often activated by the ignition system. |
| Fuel Pump Fuse | Protects the fuel pump's electrical circuit from overcurrent. |
| Fuel Level Sensor | Monitors the amount of fuel in the tank and sends this information to the fuel gauge. |
| Wiring Harness | Provides electrical connections to power the fuel pump and related components. |
| Mounting Bracket/Assembly | Secures the fuel pump in place, often inside the fuel tank or externally. |
| Check Valve (in some systems) | Prevents fuel from flowing back into the tank when the pump is off, maintaining pressure. |
Explore related products
What You'll Learn
- Fuel tank connection: The fuel pump is directly connected to the fuel tank
- Fuel lines linkage: It connects to fuel lines for delivering fuel to the engine
- Electrical wiring: The pump is connected to the vehicle's electrical system for power
- Fuel filter attachment: It often connects to a fuel filter to ensure clean fuel
- Engine fuel rail: The pump is linked to the fuel rail for precise fuel delivery
Fuel tank connection: The fuel pump is directly connected to the fuel tank
The fuel pump's direct connection to the fuel tank is a critical relationship in any internal combustion engine system. This linkage ensures a consistent supply of fuel, which is essential for the engine's operation. The fuel tank acts as the reservoir, storing the fuel until it is needed, while the fuel pump is responsible for drawing the fuel from the tank and delivering it to the engine at the required pressure and volume. This connection is typically made via a fuel line, which is a durable, high-pressure hose designed to withstand the corrosive effects of fuel and the rigors of the engine bay environment.
In most vehicles, the fuel pump is located inside the fuel tank, submerged in the fuel itself. This in-tank design has several advantages, including improved fuel cooling, reduced noise, and enhanced reliability due to the pump being lubricated and cooled by the surrounding fuel. The pump is connected to the fuel tank via a specialized inlet that filters the fuel as it is drawn into the pump, preventing contaminants from entering the system and potentially causing damage. This internal positioning also minimizes the risk of fuel line leaks and reduces the overall complexity of the fuel delivery system.
From a maintenance perspective, understanding this direct connection is crucial for diagnosing and resolving fuel system issues. For instance, if the engine is experiencing difficulty starting or is running rough, the problem could stem from a faulty fuel pump or a clogged fuel filter within the tank. In such cases, accessing the fuel pump often requires removing the fuel tank, which underscores the importance of this connection in the overall design. Regular inspection and maintenance of the fuel tank and pump assembly can prevent unexpected breakdowns and ensure the longevity of the fuel system.
A comparative analysis of different fuel pump designs highlights the efficiency of the in-tank configuration. External fuel pumps, while easier to access for maintenance, are more susceptible to heat and vibration, which can shorten their lifespan. In contrast, in-tank pumps benefit from the thermal stability and protective environment of the fuel tank, leading to greater durability and reliability. This design choice also contributes to a more streamlined engine bay, as it eliminates the need for additional fuel lines and mounting hardware outside the tank.
For DIY enthusiasts and mechanics, replacing a fuel pump in an in-tank setup requires careful planning and execution. First, ensure the vehicle is on a level surface and the fuel tank is as empty as possible to minimize spillage and weight. Disconnect the battery to prevent accidental ignition, and relieve the fuel system pressure before proceeding. After removing the fuel tank, carefully disconnect the electrical connector and fuel lines from the pump, taking note of their positions for reassembly. Install the new pump, ensuring all connections are secure, and reattach the tank to the vehicle. Finally, refill the tank and check for leaks before starting the engine. This step-by-step approach ensures a safe and effective repair, emphasizing the importance of the fuel pump's direct connection to the fuel tank in the overall fuel delivery process.
Locating the Fuel Pump on a 1994 Honda Accord: A Guide
You may want to see also
Explore related products
Fuel lines linkage: It connects to fuel lines for delivering fuel to the engine
Fuel lines are the lifelines of any internal combustion engine, and their connection to the fuel pump is a critical junction in the vehicle's fuel delivery system. This linkage ensures a steady and controlled flow of fuel from the tank to the engine, where it's combusted to generate power. The fuel pump, typically located within the fuel tank or along the fuel line, exerts pressure to propel the fuel through the lines, overcoming resistance and ensuring a consistent supply. This process is vital for maintaining optimal engine performance, as any disruption can lead to poor fuel efficiency, reduced power, or even engine failure.
In a typical setup, the fuel pump connects to the fuel lines via a series of fittings and hoses designed to withstand the pressure and corrosive nature of fuel. For instance, in a modern gasoline direct injection (GDI) system, the fuel pump might deliver fuel at pressures exceeding 2,000 psi. This high-pressure fuel is then transported through specialized lines to the injectors, which spray it directly into the combustion chamber. The materials used in these lines, such as stainless steel or high-density polyethylene, are chosen for their durability and resistance to fuel additives and ethanol blends. Regular inspection of these lines for cracks, leaks, or corrosion is essential, as even a small breach can compromise the entire system.
From a maintenance perspective, understanding the fuel lines' linkage to the fuel pump is crucial for diagnosing and resolving issues. For example, if an engine is experiencing hard starts or stalling, the problem could stem from a clogged fuel filter, a failing fuel pump, or a leak in the fuel lines. Technicians often use pressure gauges to test the fuel system, checking for adequate pressure and flow. DIY enthusiasts should exercise caution when working on fuel systems, as the high pressures involved pose a risk of injury or fire. Always relieve the fuel system pressure and work in a well-ventilated area, using appropriate safety gear.
Comparing fuel line linkages in different systems highlights their adaptability to various engine designs. In carbureted engines, the fuel pump delivers fuel at relatively low pressure, often around 3-7 psi, through simple rubber hoses to the carburetor. In contrast, diesel engines require robust fuel lines capable of handling even higher pressures, sometimes exceeding 20,000 psi in common rail systems. Electric vehicles (EVs) eliminate the need for fuel lines altogether, as they rely on battery power rather than internal combustion. This comparison underscores the importance of matching the fuel line linkage to the specific demands of the engine it serves.
Finally, advancements in fuel line technology continue to enhance efficiency and reliability. Modern systems often incorporate quick-connect fittings that simplify installation and reduce the risk of leaks. Additionally, some vehicles now use returnless fuel systems, where excess fuel is not returned to the tank, reducing complexity and potential failure points. For those upgrading their fuel systems, it’s essential to select components compatible with the vehicle’s fuel type and engine requirements. Consulting a professional or referring to the manufacturer’s specifications can prevent costly mistakes and ensure a seamless integration.
Locating the Fuel Pump in a 1999 Porsche Boxster
You may want to see also
Explore related products

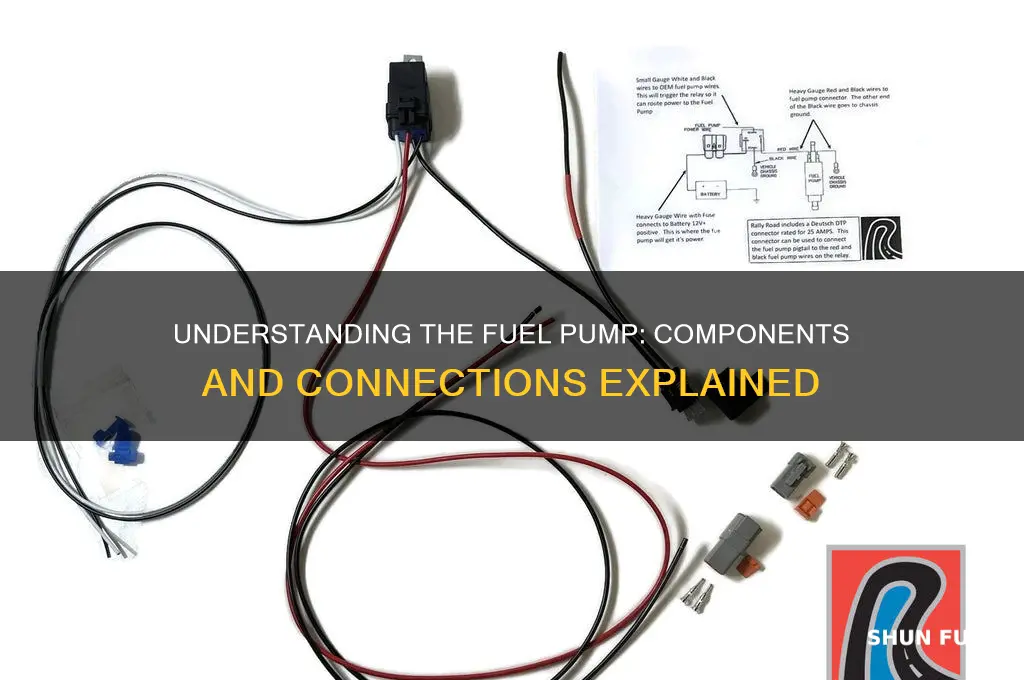

Electrical wiring: The pump is connected to the vehicle's electrical system for power
The fuel pump's lifeline is its electrical wiring, a critical yet often overlooked component in the intricate dance of a vehicle's fuel system. This network of wires serves as the pump's power source, drawing energy from the vehicle's electrical system to ensure a steady flow of fuel to the engine. Without this connection, the pump would be rendered useless, leaving the engine starved for fuel and the vehicle immobilized.
Consider the electrical wiring as the pump's nervous system, transmitting power and signals to maintain optimal performance. The wiring typically consists of a dedicated circuit, protected by a fuse, which connects the pump to the vehicle's battery and ignition system. When the ignition is turned on, the circuit is completed, allowing electricity to flow to the pump and initiate the fuel delivery process. This seamless integration highlights the importance of proper wiring installation and maintenance to prevent shorts, corrosion, or disconnections that could disrupt the pump's operation.
From a practical standpoint, diagnosing electrical wiring issues requires a systematic approach. Start by checking the fuse associated with the fuel pump circuit; a blown fuse is a common culprit for pump failure. Next, inspect the wiring harness for damage, such as frayed wires or loose connections, especially in areas prone to vibration or moisture. Using a multimeter to test for continuity and voltage can further pinpoint the issue. For instance, a reading of 12 volts at the pump connector with the ignition on confirms that power is reaching the pump, narrowing the problem to the pump itself or its ground connection.
Comparatively, modern vehicles often incorporate more sophisticated wiring systems, including relays and control modules, to manage fuel pump operation. These components add layers of complexity but also enhance efficiency and safety. For example, a relay reduces the electrical load on the ignition switch by using a low-current signal to activate a high-current circuit for the pump. Understanding these advancements underscores the need for specialized knowledge and tools when working on contemporary fuel systems.
In conclusion, the electrical wiring connected to the fuel pump is not merely a passive conduit but an active participant in the vehicle's performance. Its role demands attention to detail, from initial installation to routine maintenance and troubleshooting. By recognizing its significance and addressing potential issues proactively, drivers and mechanics alike can ensure the fuel pump operates reliably, keeping the vehicle running smoothly.
Understanding the Role of a Fuel Pump Pulse Dampener
You may want to see also
Explore related products
Fuel filter attachment: It often connects to a fuel filter to ensure clean fuel
The fuel pump is a critical component in any vehicle's fuel system, responsible for delivering fuel from the tank to the engine. One essential element often connected to the fuel pump is the fuel filter, a small yet vital device that plays a significant role in maintaining engine health. This filter is typically attached in-line between the pump and the engine, ensuring that only clean fuel reaches the combustion chamber.
The Importance of Filtration:
Fuel filters are designed to trap contaminants such as dirt, rust, and debris that may be present in the fuel. Over time, these particles can accumulate in the fuel tank due to various factors like moisture, oxidation, or even impurities in the fuel itself. When the fuel pump draws fuel from the tank, these contaminants can be carried along, potentially causing severe damage to the engine's delicate components. By connecting a fuel filter to the pump, these harmful particles are captured, preventing them from reaching the engine's fuel injectors or carburetor.
Installation and Maintenance:
Installing a fuel filter is a straightforward process, but it requires careful attention to ensure proper functionality. The filter is typically connected using fuel lines or hoses, with the flow direction indicated by an arrow on the filter housing. It is crucial to install the filter in the correct orientation to allow for efficient fuel flow and effective filtration. Regular maintenance is also key; fuel filters should be replaced at recommended intervals, usually every 10,000 to 15,000 miles, depending on the vehicle and fuel quality. Neglecting this maintenance can lead to a clogged filter, resulting in reduced engine performance and potential damage.
Performance and Longevity:
The primary benefit of a fuel filter attachment is the assurance of clean fuel, which directly contributes to optimal engine performance. Clean fuel ensures complete combustion, maximizing power output and fuel efficiency. Moreover, by preventing contaminants from reaching the engine, the filter helps reduce wear and tear on vital components, such as fuel injectors and valves. This, in turn, extends the engine's lifespan and reduces the likelihood of costly repairs. For instance, a clogged fuel injector due to dirty fuel can lead to rough idling, misfires, and decreased acceleration, all of which can be avoided with proper filtration.
In summary, the fuel filter's connection to the fuel pump is a critical aspect of vehicle maintenance, ensuring that the engine receives clean fuel for efficient and reliable operation. This simple yet effective component plays a significant role in preserving engine health and performance, making it an essential consideration for any vehicle owner. Regular inspection and replacement of the fuel filter are easy yet powerful ways to maintain a vehicle's overall well-being.
Does the Fuel Pump Impact Your Car's Performance and Efficiency?
You may want to see also
Explore related products
Engine fuel rail: The pump is linked to the fuel rail for precise fuel delivery
The engine fuel rail is a critical component in modern fuel injection systems, serving as the central hub for delivering fuel to the engine's cylinders. Connected directly to the fuel pump, the fuel rail ensures that fuel is distributed evenly and at the correct pressure to each injector. This linkage is essential for maintaining optimal engine performance, as it allows for precise fuel delivery tailored to the engine’s demands under varying load and speed conditions. Without this connection, fuel distribution would be inconsistent, leading to poor combustion, reduced efficiency, and increased emissions.
Consider the process: fuel from the tank is pressurized by the pump and delivered to the rail, which acts as a reservoir and pressure regulator. The rail’s design includes ports that connect to each fuel injector, ensuring that fuel is available on demand. For example, in a typical 4-cylinder engine, the rail supplies fuel to four injectors simultaneously, with each injector spraying a precise amount of fuel into its respective cylinder. This precision is achieved through the pump’s ability to maintain a consistent pressure within the rail, typically between 30 and 70 psi, depending on the engine’s requirements.
From a maintenance perspective, understanding this connection is crucial for diagnosing fuel system issues. A clogged fuel filter, failing pump, or leaking rail can disrupt the system’s balance, causing symptoms like hard starting, rough idling, or reduced power. For instance, if the pump fails to maintain adequate pressure, the injectors may not receive enough fuel, leading to a lean fuel-air mixture. Conversely, a cracked rail can cause fuel leaks, posing a safety hazard and starving the engine of fuel. Regular inspection of these components, especially in high-mileage vehicles, can prevent costly repairs and ensure reliable performance.
Comparatively, carbureted engines lack this precise fuel delivery mechanism, relying instead on a float bowl and venturi system to mix air and fuel. The fuel rail and pump connection in modern engines represent a significant advancement, enabling finer control over fuel delivery and combustion. This is particularly evident in turbocharged or high-performance engines, where fuel demands fluctuate rapidly. For DIY enthusiasts, upgrading to a higher-capacity fuel pump and rail can support engine modifications, but it’s essential to match components to the engine’s specifications to avoid over- or under-fueling.
In practical terms, if you’re working on a fuel system, start by relieving pressure in the rail before disconnecting any lines to avoid injury or fuel spillage. Use a pressure gauge to test the pump’s output and ensure it meets the manufacturer’s specifications. For vehicles with returnless fuel systems, inspect the rail for signs of corrosion or damage, as these can compromise its integrity. Finally, when replacing a fuel pump or rail, always use OEM or high-quality aftermarket parts to maintain the system’s precision and reliability. This attention to detail ensures that the pump-to-rail connection continues to deliver fuel efficiently, keeping your engine running smoothly.
Step-by-Step Guide to Assembling a 2007 Mustang Fuel Pump
You may want to see also
Frequently asked questions
The fuel pump is typically connected to the fuel tank, fuel lines, fuel filter, and the vehicle's electrical system (via a relay or fuse).
The fuel pump is often connected to the fuel pressure sensor, which monitors fuel pressure, and the engine control unit (ECU), which regulates its operation.
The fuel injectors, carburetor (in older vehicles), and the engine itself rely on the fuel pump to deliver fuel for combustion.
