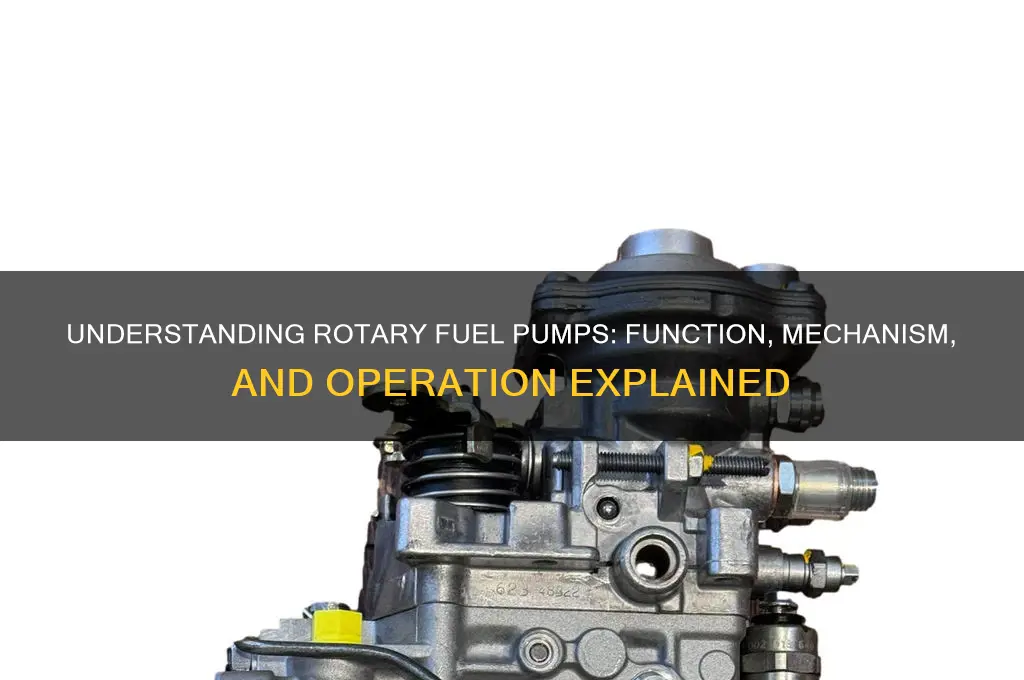

A rotary fuel pump is a critical component in modern internal combustion engines, responsible for delivering fuel from the tank to the engine at the required pressure and flow rate. Unlike traditional reciprocating pumps, a rotary fuel pump operates using a rotating mechanism, typically driven by an electric motor or the engine itself. Inside the pump, a rotor with vanes or gears rotates within a housing, creating chambers that draw in fuel as they expand and then compress it as they decrease in volume, forcing the fuel through the outlet. This continuous, smooth operation ensures a consistent fuel supply, reducing pulsations and improving engine performance. Rotary fuel pumps are known for their reliability, compact design, and ability to handle high-pressure systems, making them a preferred choice in both gasoline and diesel engines. Understanding their working principle is essential for optimizing fuel delivery and maintaining efficient engine operation.
| Characteristics | Values |
|---|---|
| Pump Type | Positive Displacement |
| Operation Principle | Utilizes rotating elements (gears, vanes, lobes, screws) to create expanding and contracting chambers, drawing in and pushing fuel through the pump. |
| Fuel Flow Direction | Unidirectional (from inlet to outlet) |
| Pressure Generation | Creates pressure by reducing volume of fuel chambers during rotation |
| Efficiency | High efficiency due to continuous flow and minimal leakage |
| Noise Level | Generally quieter than reciprocating pumps |
| Fuel Compatibility | Compatible with gasoline, diesel, and other liquid fuels |
| Maintenance | Requires periodic inspection and replacement of wear parts (seals, bearings) |
| Common Applications | Automotive fuel systems, industrial fuel transfer, aviation fuel systems |
| Advantages | Smooth and pulsation-free flow, self-priming capability, compact size |
| Disadvantages | Can be sensitive to contamination, may require precise tolerances for optimal performance |
Explore related products
What You'll Learn
- Rotary Pump Mechanism: Explains the internal rotor and housing interaction for fluid displacement
- Fuel Intake Process: Describes how fuel enters the pump through the inlet port
- Pressure Generation: Details how rotation creates pressure to move fuel through the system
- Outlet Delivery: Shows how pressurized fuel exits via the outlet port to the engine
- Sealing and Efficiency: Discusses seals and design features to minimize leaks and ensure performance
Rotary Pump Mechanism: Explains the internal rotor and housing interaction for fluid displacement
The rotary fuel pump operates through a precise interplay between its internal rotor and housing, a mechanism that exemplifies efficient fluid displacement. At the heart of this process is the rotor, typically designed with lobes or vanes, which rotates within a specially shaped housing. As the rotor turns, it creates expanding and contracting chambers between its lobes and the housing walls. This cyclical action draws fuel into the pump during the expansion phase and forces it out during contraction, ensuring a continuous flow. The key to this efficiency lies in the tight tolerances between the rotor and housing, minimizing leakage and maximizing displacement.
Consider the analogy of a camshaft and its lobes: just as a camshaft’s lobes push valves open, the rotor’s lobes interact with the housing to create a sealed, moving cavity. However, unlike a camshaft, the rotary pump’s rotor operates in a closed system, where the housing’s shape is tailored to match the rotor’s profile. This design ensures that as the rotor spins, the chambers formed between the lobes and housing walls move fluid in a single direction, from the inlet to the outlet. For instance, in a three-lobe rotor, each rotation creates three distinct displacement cycles, providing a smooth and consistent fuel flow.
To visualize this interaction, imagine a circular housing with a slightly off-center rotor. As the rotor turns, the spaces between its lobes and the housing expand on one side, creating a vacuum that draws fuel into the pump. Simultaneously, on the opposite side, the spaces contract, compressing the fuel and forcing it out through the outlet. This dual-action mechanism is why rotary pumps are favored in fuel systems—they deliver a steady, pulsation-free flow essential for modern engines. Practical tip: Regularly inspect the rotor and housing for wear, as even minor damage can disrupt the tight tolerances and reduce efficiency.
One critical aspect of this mechanism is the material and design of the rotor and housing. Rotors are often made from hardened steel or ceramic to withstand high pressures and resist wear, while housings are typically cast from aluminum or iron for durability. The surface finish of both components is equally important; a smooth, polished surface reduces friction and ensures a tight seal. For example, in high-performance fuel systems, diamond-like carbon (DLC) coatings are applied to the rotor to minimize wear and extend pump life. Caution: Avoid using incompatible fuels or lubricants, as they can degrade these materials and compromise performance.
In conclusion, the rotary pump’s mechanism hinges on the seamless interaction between its rotor and housing, a design that transforms rotational motion into efficient fluid displacement. By understanding this internal dynamics, one can appreciate why rotary pumps are indispensable in fuel systems, offering reliability and precision. Whether in automotive, aviation, or industrial applications, this mechanism’s ability to deliver consistent flow under varying pressures makes it a cornerstone of modern fluid handling technology.
Electric Fuel Pump Vacuum: Function, Myths, and Real-World Performance Explained
You may want to see also
Explore related products
Fuel Intake Process: Describes how fuel enters the pump through the inlet port
The fuel intake process in a rotary fuel pump begins with the strategic positioning of the inlet port, typically located at the lowest point of the fuel tank to ensure a consistent supply of fuel. This design minimizes the risk of air pockets forming, which could disrupt the pump’s efficiency. As the rotor inside the pump spins, it creates a vacuum effect, drawing fuel from the tank through the inlet port. This vacuum is a result of the expanding volume between the rotor lobes and the pump housing, creating a low-pressure zone that pulls fuel in. The process is continuous, ensuring a steady flow of fuel into the pump without relying on external pressure.
Consider the analogy of a rotating fan pulling air toward it; similarly, the rotary pump’s rotor acts as a mechanical force drawing fuel into the system. The inlet port’s diameter and shape are engineered to match the pump’s flow rate requirements, typically ranging from 20 to 100 liters per hour for automotive applications. For optimal performance, the fuel line leading to the inlet port should be free of kinks or obstructions, as even minor restrictions can reduce intake efficiency by up to 30%. Regular inspection of the inlet filter is also crucial, as debris or sediment can accumulate and hinder fuel entry.
From a practical standpoint, the fuel intake process is highly dependent on the pump’s rotational speed and the viscosity of the fuel. In colder climates, diesel fuel, for instance, becomes thicker, requiring the pump to work harder to maintain flow. To counteract this, some systems incorporate a fuel warmer or use low-viscosity additives to ensure smooth intake. Conversely, in high-temperature environments, fuel volatility can lead to vapor lock, where bubbles form in the fuel line, disrupting intake. Proper insulation and venting of the fuel lines can mitigate this issue.
A key takeaway is that the fuel intake process is not just about the pump’s mechanics but also about the surrounding system’s design and maintenance. For DIY enthusiasts or mechanics, ensuring the inlet port and fuel lines are clean and properly aligned can significantly extend the pump’s lifespan. Additionally, using a fuel filter with a micron rating appropriate for the pump (typically 10–20 microns) can prevent contaminants from entering the system. By understanding these nuances, one can optimize the fuel intake process, ensuring reliable performance in various operating conditions.
How to Check Fuel Pump Voltage: A Step-by-Step Guide
You may want to see also
Explore related products
Pressure Generation: Details how rotation creates pressure to move fuel through the system
Rotary fuel pumps harness the principle of positive displacement to generate pressure, ensuring a consistent flow of fuel through the system. As the pump’s rotor spins, it creates sealed chambers within the housing. These chambers trap a fixed volume of fuel, which is then compressed as the rotor continues its rotation. This compression is the foundation of pressure generation, as it forces the fuel to move from an area of higher pressure (inside the pump) to an area of lower pressure (the fuel line). The key lies in the precision of the rotor’s design, which ensures minimal leakage and maximizes efficiency, even at high RPMs.
Consider the analogy of squeezing a tube of toothpaste. As you apply force, the paste moves outward due to the pressure created by your hand. Similarly, in a rotary fuel pump, the rotor acts as the squeezing mechanism, while the fuel is the paste. The difference is that the rotor’s motion is continuous and controlled, allowing for a steady, predictable flow. For instance, in a typical automotive application, a rotary pump might generate pressures between 30 and 60 PSI, depending on engine demand. This range ensures that fuel reaches the injectors or carburetor with sufficient force, regardless of engine load or speed.
To understand the mechanics further, visualize the rotor as a series of lobes or vanes that mesh with the pump housing. As the rotor turns, these lobes create expanding and contracting spaces. Fuel enters the pump through an inlet port when a chamber expands, then becomes trapped as the chamber contracts. This trapped fuel is pushed toward the outlet port, where it exits under pressure. The process is cyclical, ensuring a continuous flow. For optimal performance, ensure the pump’s inlet is free of debris and that the fuel filter is regularly replaced to prevent clogs, which can reduce pressure and flow efficiency.
A critical factor in pressure generation is the pump’s rotational speed, typically driven by the engine’s camshaft or an electric motor. Higher RPMs increase the frequency of chamber compression, boosting pressure output. However, excessive speed can lead to overheating or wear, so manufacturers calibrate pumps to operate within safe limits. For example, a pump designed for a small engine might rotate at 2,000 RPM, while a high-performance automotive pump could reach 6,000 RPM. Always refer to the manufacturer’s specifications to ensure compatibility and avoid damage.
Finally, the efficiency of pressure generation depends on the pump’s internal tolerances and material quality. Precision-machined components minimize gaps between the rotor and housing, reducing fuel slippage and maximizing pressure. Modern rotary pumps often use materials like hardened steel or ceramic coatings to withstand the stresses of high-pressure operation. For DIY enthusiasts or mechanics, inspecting the pump for wear or damage during routine maintenance can prevent sudden failures. By understanding how rotation translates into pressure, you can better diagnose issues and ensure your fuel system operates reliably.
Finding the Right Fuel Pump: A Comprehensive Guide for Vehicle Owners
You may want to see also
Explore related products
Outlet Delivery: Shows how pressurized fuel exits via the outlet port to the engine
The outlet port of a rotary fuel pump is the final gateway for pressurized fuel on its journey to the engine. Here, the pump's internal mechanism, typically a rotor and vanes or gears, has already drawn in fuel from the tank, compressed it, and raised its pressure to the required level. The outlet port, strategically positioned to align with the pump's discharge cycle, allows this pressurized fuel to exit the pump housing. This exit is not merely a passive release; it’s a controlled, high-pressure delivery designed to meet the engine’s demands under varying operating conditions.
Consider the analogy of a water gun: the trigger mechanism (pump rotor) builds pressure, and the nozzle (outlet port) directs the water with force. Similarly, the outlet port in a rotary fuel pump acts as a precision nozzle, ensuring fuel exits at the correct pressure and flow rate. This is critical because the engine’s fuel injectors or carburetor require a consistent, pressurized supply to atomize fuel effectively for combustion. Without this precise delivery, the engine could run lean, rich, or misfire, compromising performance and efficiency.
One practical aspect of outlet delivery is the check valve often integrated near the outlet port. This valve prevents fuel from flowing backward into the pump when it’s not operating, maintaining residual pressure in the system. For example, in a diesel engine with a rotary distribution pump, the check valve ensures fuel remains pressurized in the lines, enabling quick starts without cranking the engine excessively. This feature is particularly useful in cold starts or high-load conditions where immediate fuel delivery is essential.
To optimize outlet delivery, mechanics and engineers must consider the pump’s discharge pressure and flow rate relative to the engine’s requirements. For instance, a high-performance engine may demand a rotary pump with a larger outlet port diameter to handle increased fuel flow, while a smaller engine might prioritize a more compact design with a narrower port. Regular maintenance, such as cleaning the outlet port and replacing worn seals, is also crucial to prevent leaks or restrictions that could disrupt fuel delivery.
In summary, the outlet delivery phase of a rotary fuel pump is a critical, often overlooked component of its operation. It’s where the pump’s hard work pays off, delivering pressurized fuel to the engine with precision and reliability. Understanding its role—from the check valve’s function to the port’s design—empowers users to troubleshoot issues and ensure optimal engine performance. Whether you’re a mechanic, engineer, or enthusiast, appreciating this final stage of the pump’s process is key to mastering fuel system dynamics.
Bypassing a Fuel Pump Relay Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Sealing and Efficiency: Discusses seals and design features to minimize leaks and ensure performance
Rotary fuel pumps rely on precise sealing to maintain efficiency and prevent leaks, as even minor fuel loss can compromise engine performance and safety. The primary challenge lies in managing the high-pressure environment within the pump while ensuring that seals withstand the corrosive and volatile nature of fuel. To achieve this, engineers employ a combination of material science and innovative design features. For instance, seals are often made from fluorocarbon rubber (FKM) or ethylene propylene diene monomer (EPDM), materials chosen for their resistance to fuel degradation and ability to maintain elasticity under extreme temperatures, ranging from -40°C to 150°C.
One critical design feature is the use of lip seals, which act as a barrier between the pump’s rotating and stationary components. These seals are engineered with a precise interference fit, creating a dynamic seal that adapts to the pump’s movement while minimizing friction. To further enhance sealing, some pumps incorporate labyrinth seals, a series of grooves that create a tortuous path for fuel, reducing the likelihood of leakage. Additionally, mechanical face seals are used in high-pressure applications, where a rotating face slides against a stationary face, maintaining a tight seal under significant stress.
Efficiency is also tied to the pump’s internal clearances, which must be tightly controlled to minimize fuel slippage. Manufacturers achieve this through precision machining, ensuring tolerances as low as 0.01 mm between the rotor and the pump housing. This reduces internal leakage, improving volumetric efficiency—a critical factor in maintaining consistent fuel delivery. For example, a well-designed rotary pump can achieve efficiencies of up to 95%, compared to 85% in less optimized models.
Practical maintenance tips can extend the life of these seals and maintain pump efficiency. Regularly inspect seals for signs of wear, such as cracking or hardening, and replace them every 50,000 to 100,000 miles, depending on usage conditions. Avoid using fuel additives that contain solvents, as these can accelerate seal degradation. Lastly, ensure the fuel system is free of contaminants, as particulate matter can abrade seals and reduce their effectiveness.
In summary, sealing and efficiency in rotary fuel pumps are achieved through a combination of advanced materials, precision engineering, and thoughtful design. By understanding these principles and following maintenance best practices, users can ensure reliable performance and longevity from their fuel delivery systems.
Understanding the Functionality of a Munike Fuel Pump: A Comprehensive Guide
You may want to see also
Frequently asked questions
A rotary fuel pump is a type of mechanical fuel pump that uses a rotating mechanism to move fuel from the tank to the engine. Unlike diaphragm or electric fuel pumps, it relies on a spinning rotor or gear system to create suction and pressure, ensuring a consistent fuel flow.
A rotary fuel pump creates suction by using the rotation of its internal gears or vanes. As the rotor spins, it creates a low-pressure area at the inlet, which draws fuel into the pump. The fuel is then trapped between the rotor and housing, forcing it toward the outlet under pressure.
The main components of a rotary fuel pump include the rotor (or gears), housing, inlet and outlet ports, and a drive mechanism (such as a pulley or gear). The rotor is the key moving part, while the housing provides a sealed chamber for fuel movement.
Rotary fuel pumps are known for their reliability, simplicity, and ability to handle high-pressure applications. They provide a consistent fuel flow, are less prone to vapor lock, and are often used in high-performance or carbureted engines due to their mechanical efficiency.
