Regan Brown

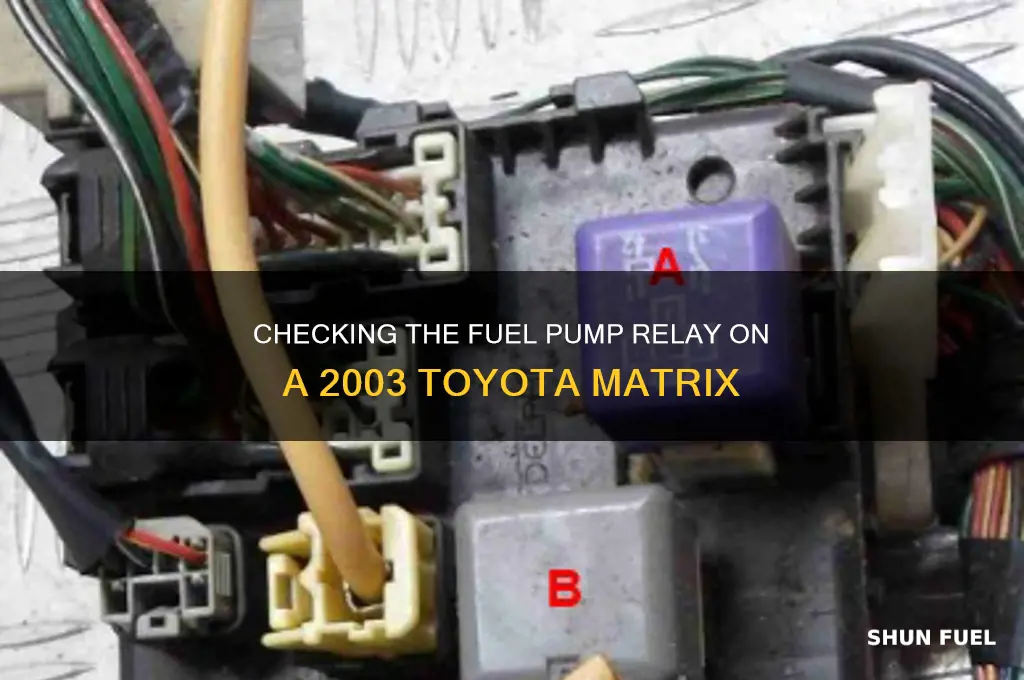

Checking the fuel pump relay on a 2003 Toyota Matrix is a straightforward process that can help diagnose issues related to fuel delivery or engine starting problems. The fuel pump relay is typically located in the engine bay fuse box, often labeled as EFI MAIN or FUEL PUMP. To inspect it, start by locating the fuse box cover and removing it to access the relay. Use a relay puller or pliers to carefully extract the fuel pump relay from its slot. Next, test the relay using a multimeter or swap it with a known good relay of the same type to determine if it’s functioning properly. If the relay is faulty, replacing it with a new one can often resolve fuel pump-related issues. Always consult the vehicle’s manual for specific relay location and testing procedures.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2003 Toyota Matrix |
| Fuel Pump Relay Location | Typically found in the engine bay fuse box or under the dashboard fuse box |
| Tools Required | Multimeter, screwdriver, relay puller (optional) |
| Relay Identification | Usually labeled as "EFI MAIN" or "FUEL PUMP" in the fuse box diagram |
| Relay Pin Configuration | 4 or 5 pins depending on the relay type |
| Testing Method | Use a multimeter to check continuity and voltage across relay pins |
| Power Supply Pin | Pin 30 (Battery power) |
| Ground Pin | Pin 87 (Chassis ground) |
| Control Pin | Pin 85 (ECU control signal) |
| Output Pin | Pin 86 (Fuel pump power output) |
| Expected Voltage | 12V at Pin 30 when ignition is on |
| Continuity Check | Check continuity between Pin 87 and ground |
| Relay Swap Test | Swap with a known good relay of the same type to verify functionality |
| Common Symptoms of Failure | No fuel pressure, engine cranks but won’t start, intermittent starting |
| Safety Precautions | Disconnect battery before testing, avoid short circuits |
| Additional Tips | Refer to the vehicle’s manual or fuse box diagram for accurate relay location |
Explore related products
What You'll Learn
- Locate the Relay: Find the fuel pump relay in the fuse box under the hood
- Test for Power: Use a multimeter to check for voltage at the relay terminals
- Swap Relays: Temporarily replace with a similar relay to test functionality
- Listen for Pump: Have an assistant crank the engine to hear the fuel pump
- Inspect Wiring: Check for damaged or loose wires connected to the relay
Locate the Relay: Find the fuel pump relay in the fuse box under the hood
The fuel pump relay in a 2003 Toyota Matrix is a critical component, ensuring your vehicle’s engine receives the necessary fuel for operation. Locating this relay is the first step in diagnosing potential issues, such as a no-start condition or erratic engine performance. The relay is housed within the fuse box under the hood, a centralized hub for many of your vehicle’s electrical components. This fuse box is typically located near the battery, though its exact position can vary slightly depending on the model and trim of your Matrix. Familiarizing yourself with the layout of this area will save you time and frustration when troubleshooting.
To begin, open the hood and secure it in place using the hood prop rod. The fuse box is usually a rectangular, black plastic container with a removable lid. On the underside of the lid, you’ll often find a diagram labeling the relays and fuses. Look for the designation "FUEL PUMP" or "FP" to identify the correct relay. If the diagram is missing or unclear, consult your vehicle’s owner’s manual or an online resource specific to the 2003 Toyota Matrix. Once identified, the relay can be pulled straight out of its slot for inspection or testing.
A practical tip for locating the fuel pump relay quickly is to use a flashlight, as the fuse box area can be shadowed. Additionally, wearing gloves can protect your hands from sharp edges or hot components under the hood. If you’re unsure about the relay’s position, compare it with a known good relay in the same fuse box to ensure you’re testing the correct component. This step-by-step approach ensures accuracy and minimizes the risk of misdiagnosis.
Comparatively, locating the fuel pump relay in a 2003 Toyota Matrix is simpler than in some other vehicles, where the fuse box may be less accessible or the relay may be buried deeper within the engine bay. The Matrix’s design places the fuse box in a straightforward, easy-to-reach location, making this task accessible even for those with limited mechanical experience. However, it’s important to approach this task methodically, as rushing can lead to mistakes or damage to surrounding components.
In conclusion, locating the fuel pump relay in the fuse box under the hood of a 2003 Toyota Matrix is a straightforward process when approached with the right knowledge and tools. By identifying the correct relay using the diagram on the fuse box lid or consulting your owner’s manual, you can efficiently move on to testing or replacing the component as needed. This step is foundational for diagnosing fuel system issues and ensuring your vehicle runs smoothly.
Understanding Outboard Fuel Pump Functionality: A Comprehensive Guide
You may want to see also
Explore related products
Test for Power: Use a multimeter to check for voltage at the relay terminals
A multimeter is your detective tool for diagnosing fuel pump relay issues in a 2003 Toyota Matrix. By measuring voltage at the relay terminals, you can determine if the relay is receiving power and functioning correctly. This test isolates the relay from other potential problems, such as a faulty fuel pump or wiring issues, allowing you to pinpoint the source of the problem efficiently.
To begin, locate the fuel pump relay in the fuse box under the hood. Consult your vehicle’s manual for the exact location, as it varies by model. Once identified, use a multimeter set to the DC voltage range (typically 20V) to test the terminals. With the ignition in the "ON" position, touch the multimeter probes to the relay’s power input terminal (usually pin 85) and a ground point. A reading of 12V indicates the relay is receiving power. If no voltage is detected, the issue lies in the power supply circuit, such as a blown fuse or faulty wiring.
Next, test the relay’s output terminal (usually pin 86) to the ground while activating the fuel pump. This can be done by turning the ignition to the "START" position or using a fuel pump test button if available. If voltage is present, the relay is functioning correctly, and the problem may lie downstream, such as with the fuel pump itself. If no voltage appears, the relay is likely faulty and needs replacement.
A critical caution: always ensure the multimeter is properly set to DC voltage and that the probes are not reversed, as this can damage the device. Additionally, avoid testing with the engine running, as this introduces safety risks and can skew readings. By systematically checking voltage at the relay terminals, you can confidently diagnose whether the relay is the culprit or if further investigation is needed. This methodical approach saves time and eliminates guesswork in troubleshooting your Toyota Matrix’s fuel system.
Efficiently Removing a Hose from Your Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Swap Relays: Temporarily replace with a similar relay to test functionality
A faulty fuel pump relay can leave you stranded, but diagnosing the issue doesn't always require specialized tools. One effective method is to swap relays, a technique that leverages the similarity of many relays within a vehicle. This approach allows you to isolate the relay as the problem or rule it out entirely. By temporarily replacing the fuel pump relay with a similar one from another circuit, you can quickly determine if the relay itself is malfunctioning.
To perform a relay swap, start by locating the fuel pump relay in your 2003 Toyota Matrix. Consult the owner’s manual or a repair guide to identify its position in the fuse box. Next, identify a relay with the same part number or pin configuration—common candidates include the A/C compressor relay or the cooling fan relay. Ensure the replacement relay is not critical to immediate vehicle operation to avoid unintended consequences. With the ignition off, carefully remove both relays and swap their positions.
After the swap, attempt to start the vehicle. If the fuel pump engages and the engine starts, the original fuel pump relay is likely faulty. If the issue persists, the problem may lie elsewhere, such as the fuel pump itself or wiring. This method is particularly useful because it provides immediate feedback without requiring a multimeter or other diagnostic tools. However, exercise caution to avoid damaging relay terminals or misplacing relays, as this can complicate reassembly.
While relay swapping is a straightforward test, it’s not foolproof. Relays may appear identical but have different internal specifications, so always verify compatibility. Additionally, this method only tests the relay’s ability to function in another circuit, not its performance under the specific load of the fuel pump. For a definitive diagnosis, further testing with a multimeter or professional scan tool may be necessary. Nonetheless, relay swapping remains a practical, cost-effective first step in troubleshooting fuel pump relay issues on a 2003 Toyota Matrix.
Identifying the Relay That Controls Your Vehicle's Fuel Pump
You may want to see also
Explore related products
Listen for Pump: Have an assistant crank the engine to hear the fuel pump
One of the simplest yet most effective ways to diagnose a fuel pump relay issue in a 2003 Toyota Matrix is to listen for the fuel pump during engine cranking. This method leverages your auditory senses to determine if the fuel pump is receiving power and functioning correctly. When the ignition is turned on, the fuel pump should prime the system by running for a few seconds, producing a distinct humming or whirring sound from the fuel tank area. If this sound is absent, it could indicate a problem with the fuel pump relay or the pump itself.
To perform this test, start by ensuring the vehicle is in a safe, well-ventilated area. Have an assistant sit in the driver’s seat and turn the ignition key to the "on" position but do not start the engine. Listen carefully near the rear of the vehicle, close to the fuel tank, for the fuel pump’s priming noise. If the pump is operational, you’ll hear a brief humming sound lasting 2-3 seconds. If no sound is heard, proceed to the next step: have the assistant crank the engine while you listen again. During cranking, the fuel pump should engage continuously, producing a steady hum. If the pump remains silent, it’s a strong indicator that the relay or pump is faulty.
This method is particularly useful because it doesn’t require specialized tools or technical expertise. However, it’s important to note that the absence of sound doesn’t always confirm a relay issue—it could also point to a failed fuel pump or a wiring problem. To isolate the relay as the culprit, combine this test with a visual inspection of the relay and a multimeter check to verify power and ground signals. Always exercise caution when working around fuel systems, and avoid smoking or open flames during the test.
A practical tip for enhancing this diagnostic process is to use a mechanic’s stethoscope or a length of rubber hose to amplify the sound coming from the fuel tank area. This can make it easier to detect faint or intermittent noises. Additionally, if the vehicle has been sitting for a while, ensure the fuel tank is at least partially full, as an empty tank can make the pump’s operation harder to hear. By combining this listening test with other diagnostic steps, you can systematically narrow down the root cause of fuel delivery issues in your 2003 Toyota Matrix.
Testing Your 2003 VW Beetle Convertible's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Inspect Wiring: Check for damaged or loose wires connected to the relay
Wiring integrity is critical when diagnosing fuel pump relay issues in a 2003 Toyota Matrix. Damaged or loose wires can disrupt the electrical circuit, preventing the relay from functioning properly. Even minor corrosion, fraying, or disconnections can lead to intermittent fuel pump operation or complete failure. Before replacing the relay, inspect the wiring harness connected to it to rule out this common culprit.
Begin by locating the fuel pump relay, typically found in the engine bay fuse box. Consult your vehicle’s manual or online diagrams for the exact location. Once identified, carefully remove the relay to access the wiring terminals. Use a flashlight to examine the wires for visible damage, such as cracks, burns, or exposed copper. Pay close attention to areas where wires bend or are subject to vibration, as these are prone to wear.
Next, check for loose connections. Gently tug on each wire to ensure it’s securely seated in the relay terminal. Loose wires can cause intermittent contact, leading to erratic fuel pump behavior. If a wire feels loose, reinsert it firmly, ensuring proper alignment. For corroded terminals, use an electrical contact cleaner and a small wire brush to remove buildup, then apply dielectric grease to protect against future corrosion.
For a more thorough inspection, use a multimeter to test continuity in the wiring harness. Disconnect the relay and set your multimeter to the continuity setting. Place one probe on the wire’s terminal and the other on the opposite end of the wire. A continuous circuit will produce a tone or low resistance reading. If no continuity is detected, the wire is damaged and requires repair or replacement.
Addressing wiring issues is often simpler and more cost-effective than replacing the relay itself. By systematically inspecting for damage and ensuring secure connections, you can restore proper fuel pump operation and avoid unnecessary parts replacements. This step is essential in the diagnostic process, ensuring that the relay itself is the problem before proceeding further.
Step-by-Step Guide to Removing the SV650 Fuel Pump Easily
You may want to see also
Frequently asked questions
The fuel pump relay is located in the engine bay fuse box. Open the hood, find the fuse box near the battery, and refer to the diagram on the fuse box cover to identify the exact relay.
Symptoms include the engine not starting, stalling, or difficulty starting, especially if the fuel pump is not receiving power. You may also hear no humming noise from the fuel tank when the ignition is turned on.
Use a multimeter to check for continuity in the relay’s terminals. Swap the fuel pump relay with another relay of the same type (e.g., AC compressor relay) and see if the issue persists. If the problem moves, the relay is likely faulty.
Yes, you can temporarily bypass the relay by connecting the fuel pump directly to the battery (with a fused wire) to see if the pump operates. However, this is a temporary diagnostic step and not a long-term solution.
Replacement relays are available at auto parts stores, Toyota dealerships, or online retailers. Ensure the new relay matches the specifications of the original part.
