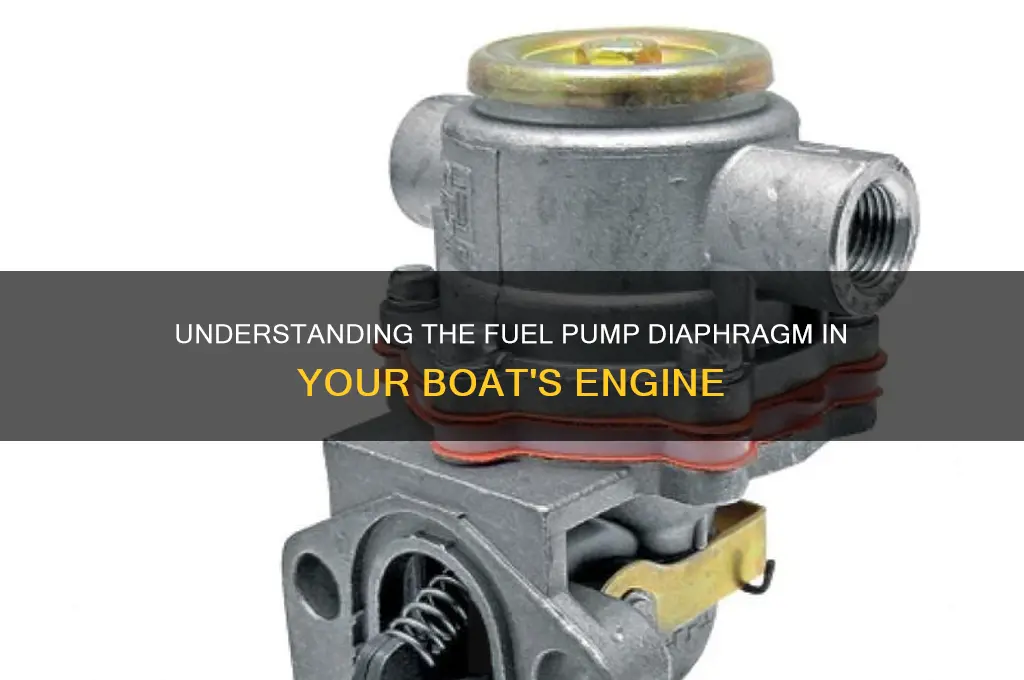

A fuel pump diaphragm is a critical component in a boat's fuel system, responsible for drawing fuel from the tank and delivering it to the engine. Typically found in mechanical fuel pumps, the diaphragm is a flexible, resilient membrane that moves back and forth, creating a vacuum to pull fuel through the system. This mechanism ensures a consistent and reliable fuel supply, which is essential for the engine's performance and efficiency. In marine applications, the fuel pump diaphragm must withstand harsh conditions, including exposure to water, salt, and vibrations, making its durability and proper maintenance vital for safe and uninterrupted boating operations. Understanding its function and importance can help boat owners diagnose issues and ensure their vessel runs smoothly.
| Characteristics | Values |
|---|---|
| Function | A fuel pump diaphragm in a boat is a component of the fuel system that helps draw fuel from the tank and deliver it to the engine. It operates using a flexible diaphragm that moves back and forth, creating a vacuum to pull fuel through the lines. |
| Type | Typically found in mechanical fuel pumps, especially in older outboard motors and inboard engines. |
| Material | Usually made of durable, fuel-resistant materials such as nitrile rubber, neoprene, or other synthetic elastomers to withstand exposure to gasoline, diesel, or other fuels. |
| Operation | Works via a cam-driven mechanism or engine-driven linkage that causes the diaphragm to flex, creating suction and pressure to move fuel. |
| Maintenance | Requires periodic inspection for cracks, leaks, or wear. Replacement is necessary if the diaphragm fails, as it can lead to fuel delivery issues or engine stalling. |
| Common Issues | Cracking, hardening, or perforation due to age, fuel contamination, or exposure to ethanol-blended fuels. Can also fail due to improper installation or lack of maintenance. |
| Compatibility | Specific to the make and model of the boat engine. Always use the manufacturer-recommended diaphragm for optimal performance. |
| Replacement Frequency | Depends on usage and fuel quality, but typically lasts several years. More frequent replacement may be needed in harsh conditions or with poor fuel quality. |
| Cost | Varies by brand and engine type, but generally ranges from $20 to $100 for the diaphragm component alone. |
| Installation | Requires disassembly of the fuel pump, careful removal of the old diaphragm, and precise installation of the new one to ensure proper sealing and function. |
Explore related products
What You'll Learn
- Diaphragm Function: Separates fuel from air, creating vacuum to draw fuel into engine
- Material Composition: Typically made of durable rubber or synthetic compounds for longevity
- Maintenance Tips: Regular inspection for cracks, leaks, and proper lubrication to ensure efficiency
- Failure Symptoms: Engine sputtering, hard starting, or fuel leaks indicate diaphragm issues
- Replacement Process: Involves removing pump, replacing diaphragm, and reassembling for optimal performance
Diaphragm Function: Separates fuel from air, creating vacuum to draw fuel into engine
The diaphragm in a boat's fuel pump is a critical component that ensures the engine receives a consistent and clean fuel supply. Its primary function is to separate fuel from air, a process essential for efficient combustion. This separation is achieved through a vacuum created by the diaphragm's movement, which draws fuel from the tank and delivers it to the engine. Without this mechanism, air bubbles could enter the fuel system, leading to engine sputtering or failure, especially in marine environments where fuel quality and consistency can vary.
Consider the diaphragm as the heart of the fuel pump, pumping life into the engine. As the diaphragm flexes, it alternates between creating a low-pressure zone and a high-pressure zone. During the low-pressure phase, fuel is drawn into the pump from the tank. In the high-pressure phase, the fuel is forced through the lines and into the engine. This rhythmic action ensures a steady flow, even when the boat is rocking on waves or the fuel tank is nearly empty. For optimal performance, inspect the diaphragm annually for cracks or wear, especially in older boats or those used in saltwater conditions, as corrosion can accelerate degradation.
One practical tip for boat owners is to use a fuel stabilizer during periods of inactivity, such as winter storage. This prevents ethanol in modern fuels from degrading the diaphragm material, which is often made of nitrile rubber or neoprene. Additionally, if you notice a drop in engine performance or difficulty starting, the diaphragm may be failing. Replacement kits are available for most fuel pumps, and the process typically involves removing the pump, disassembling it, and installing the new diaphragm. Always consult the manufacturer’s instructions for your specific model, as designs can vary.
Comparing the diaphragm to other fuel delivery systems, such as electric pumps, highlights its reliability in marine applications. Electric pumps, while efficient, are more susceptible to electrical issues and corrosion in wet environments. The mechanical simplicity of a diaphragm pump makes it a preferred choice for many boat manufacturers, especially in smaller vessels. However, it’s crucial to maintain proper fuel filter usage to prevent debris from damaging the diaphragm, as even small particles can cause leaks or tears over time.
In summary, the diaphragm’s role in separating fuel from air and creating a vacuum is fundamental to a boat’s fuel system. Its design ensures reliability in challenging marine conditions, but regular maintenance is key to longevity. By understanding its function and taking proactive steps, boat owners can avoid common issues and keep their engines running smoothly. Whether you’re a seasoned sailor or a weekend boater, recognizing the importance of this small but mighty component can save time, money, and headaches on the water.
Best Fuel Pump Options for FiTech Turbo Forums Performance Upgrades
You may want to see also
Explore related products
Material Composition: Typically made of durable rubber or synthetic compounds for longevity
The material composition of a fuel pump diaphragm in a boat is a critical factor in its performance and durability. Typically made of durable rubber or synthetic compounds, these materials are chosen for their ability to withstand the harsh marine environment, including exposure to fuel, water, and varying temperatures. Rubber diaphragms, often made from nitrile or neoprene, offer excellent flexibility and resistance to fuel additives, ensuring a tight seal and efficient fuel transfer. Synthetic compounds, such as polyurethane or TPE (thermoplastic elastomer), provide enhanced durability and resistance to wear, making them ideal for high-demand marine applications.
When selecting a fuel pump diaphragm, consider the specific fuel type your boat uses, as different materials may perform better with gasoline, diesel, or ethanol blends. For instance, nitrile rubber is highly resistant to gasoline and diesel, while polyurethane excels in ethanol-blended fuels. Manufacturers often specify the compatibility of their diaphragms with various fuels, ensuring optimal performance and longevity. Regular inspection and replacement of the diaphragm, typically every 2-3 years or as recommended by the manufacturer, can prevent fuel system issues and maintain engine efficiency.
From a practical standpoint, installing a fuel pump diaphragm made of high-quality materials can save boat owners time and money in the long run. Inferior materials may degrade quickly, leading to fuel leaks, engine misfires, or complete pump failure. For example, a diaphragm made of low-grade rubber may swell or crack when exposed to ethanol-blended fuels, causing fuel to bypass the pump and starve the engine. Investing in a diaphragm made of premium synthetic compounds ensures reliability, even in demanding conditions like saltwater environments or high-performance boating.
Comparatively, while rubber diaphragms are cost-effective and widely used, synthetic compounds offer superior resistance to abrasion and chemical degradation. This makes synthetic diaphragms particularly suitable for boats operating in extreme conditions, such as offshore racing or extended voyages. However, synthetic diaphragms may come at a higher initial cost, which should be weighed against their extended lifespan and reduced maintenance needs. Boat owners should also consider the ease of replacement, as some synthetic diaphragms are designed for quick installation, minimizing downtime during maintenance.
In conclusion, the material composition of a fuel pump diaphragm plays a pivotal role in its functionality and longevity. By choosing a diaphragm made of durable rubber or synthetic compounds, boat owners can ensure reliable fuel delivery and avoid costly repairs. Whether prioritizing cost-effectiveness or maximum durability, understanding the properties of these materials allows for an informed decision tailored to specific boating needs. Regular maintenance and material-specific care will further extend the life of the diaphragm, keeping your boat’s fuel system in optimal condition.
Bintelli Breeze Scooter: Does It Feature a Fuel Pump?
You may want to see also
Explore related products
Maintenance Tips: Regular inspection for cracks, leaks, and proper lubrication to ensure efficiency
A fuel pump diaphragm in a boat is a critical component that ensures fuel is efficiently delivered from the tank to the engine. Unlike electric fuel pumps, diaphragm pumps are often mechanical, relying on a flexible membrane to create suction and pressure. This simplicity makes them reliable, but they require regular maintenance to perform optimally. Neglecting this can lead to engine sputtering, reduced power, or even complete failure, leaving you stranded on the water.
Inspection for Cracks and Leaks: Begin by visually inspecting the diaphragm for any signs of wear, such as cracks, tears, or brittleness. Over time, exposure to fuel and environmental conditions can degrade the material. Use a bright light and magnifying glass if necessary. Even small cracks can compromise the pump’s ability to maintain pressure, leading to inefficient fuel delivery. If you notice any damage, replace the diaphragm immediately. Most marine fuel pump diaphragms are designed to last 3–5 years, but frequent use or harsh conditions may shorten this lifespan.
Checking for Leaks: Leaks in the fuel pump system are not only wasteful but also dangerous, as fuel vapors can ignite. Inspect all connections, hoses, and the pump body for signs of leakage. A simple way to test for leaks is to pressurize the system with air (not fuel) and listen for hissing or apply soapy water to connections to look for bubbles. If leaks are detected, tighten fittings or replace damaged components. Always ensure the engine is off and the fuel system is depressurized before performing this inspection.
Proper Lubrication: Diaphragm pumps often require lubrication to reduce friction and wear on moving parts. Check the manufacturer’s guidelines for the recommended lubricant type and application method. Typically, a few drops of lightweight oil, such as 3-in-1 oil or a marine-specific lubricant, are applied to the pump’s moving parts during routine maintenance. Over-lubrication can attract dirt and debris, so use sparingly. Lubricate the pump at least once a year or after every 100 hours of operation, whichever comes first.
Efficiency Through Regular Maintenance: Regular inspections and maintenance not only extend the life of the fuel pump diaphragm but also ensure your boat’s engine runs smoothly. A well-maintained pump improves fuel efficiency, reduces emissions, and minimizes the risk of breakdowns. Incorporate these checks into your pre-season or post-trip maintenance routine. Keep a log of inspections and replacements to track the pump’s condition over time. By staying proactive, you’ll enjoy reliable performance and peace of mind on the water.
Easy Steps to Remove a Fuel Pump Retaining Ring Safely
You may want to see also
Explore related products
Failure Symptoms: Engine sputtering, hard starting, or fuel leaks indicate diaphragm issues
A boat's fuel pump diaphragm is a critical component in its fuel system, responsible for drawing fuel from the tank and delivering it to the engine. When this diaphragm fails, the engine’s performance suffers, often in ways that are both noticeable and frustrating. Engine sputtering, hard starting, and fuel leaks are telltale signs that the diaphragm may be compromised. These symptoms arise because a failing diaphragm disrupts the consistent fuel flow required for smooth combustion, leading to inefficiencies that affect the entire vessel.
Engine sputtering is one of the earliest and most common indicators of diaphragm issues. This occurs when the diaphragm fails to maintain a steady fuel pressure, causing the engine to receive an inconsistent supply of fuel. As a result, the combustion process becomes erratic, leading to misfires and a rough-running engine. Boaters often notice this during acceleration or under load, when the demand for fuel is highest. If left unaddressed, sputtering can escalate to more severe problems, such as engine stalling or damage to other components.
Hard starting is another symptom closely tied to diaphragm failure. A weakened or damaged diaphragm struggles to build the necessary pressure to deliver fuel to the engine during startup. This can manifest as prolonged cranking, multiple attempts to start the engine, or even complete failure to start. In colder conditions or after the boat has been idle for extended periods, this issue becomes more pronounced. Boaters should pay attention to whether the engine starts more easily after priming the fuel system, as this can confirm a diaphragm-related problem.
Fuel leaks are a more immediate and visible sign of diaphragm failure. Over time, the diaphragm can develop cracks, tears, or become brittle, allowing fuel to escape from the pump. Leaks not only pose a safety hazard due to the risk of fire but also lead to fuel wastage and potential environmental contamination. Inspecting the fuel pump and surrounding areas for wet spots or the smell of gasoline can help identify leaks early. Addressing this issue promptly is crucial to prevent further damage and ensure safe operation.
To mitigate these symptoms, regular inspection and maintenance of the fuel pump diaphragm are essential. Boaters should include a visual and functional check of the fuel system as part of their routine maintenance schedule. Replacing a failing diaphragm is a relatively straightforward task, often requiring only basic tools and a replacement kit specific to the boat’s make and model. By staying vigilant and addressing symptoms like sputtering, hard starting, and fuel leaks early, boaters can avoid costly repairs and ensure their vessel remains reliable on the water.
Mastering Ford F150 Fuel Pump Replacement: A Step-by-Step Guide
You may want to see also
Explore related products
Replacement Process: Involves removing pump, replacing diaphragm, and reassembling for optimal performance
A fuel pump diaphragm in a boat is a critical component that ensures the engine receives a consistent and reliable fuel supply. Over time, this diaphragm can wear out, leading to reduced engine performance or even failure. Recognizing the signs of a failing diaphragm—such as sputtering, hard starting, or fuel leaks—is the first step in addressing the issue. The replacement process is straightforward but requires precision to ensure optimal performance.
Step-by-Step Replacement Process:
- Remove the Fuel Pump: Begin by disconnecting the fuel lines and electrical connections attached to the pump. Use appropriate tools to avoid damaging the fittings. Loosen the mounting bolts and carefully lift the pump from its housing. Take note of the pump’s orientation for reassembly.
- Replace the Diaphragm: Disassemble the pump to access the diaphragm. Clean the internal components thoroughly to remove debris. Install the new diaphragm, ensuring it seats correctly and aligns with the pump’s mechanism. Use manufacturer-recommended lubricants sparingly to aid installation.
- Reassemble and Test: Reattach the pump to its housing, tightening the bolts evenly to avoid warping. Reconnect the fuel lines and electrical connections, ensuring all fittings are secure. Before starting the engine, prime the fuel system to eliminate air pockets. Run the engine at idle to verify smooth operation and check for leaks.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Use a catch pan to prevent spills during disassembly. If the pump has a pressure regulator, inspect it for wear and replace if necessary. For older boats, consider upgrading to a more durable diaphragm material, such as reinforced rubber, to extend service life.
Replacing a fuel pump diaphragm is a task that combines mechanical skill with attention to detail. By following these steps and precautions, boat owners can restore their fuel system’s reliability and ensure their vessel operates at peak efficiency. Regular maintenance and timely replacements are key to avoiding costly repairs and downtime on the water.
Running Fuel Pump via DC Generator Connection: A Practical Guide
You may want to see also
Frequently asked questions
A fuel pump diaphragm is a flexible membrane inside a mechanical fuel pump that moves up and down to create suction and pressure, drawing fuel from the tank and delivering it to the engine.
The diaphragm is actuated by a mechanical linkage connected to the engine. As the engine runs, the linkage causes the diaphragm to flex, creating a vacuum that pulls fuel into the pump and then pushes it through the fuel lines to the carburetor or injectors.
Common signs include difficulty starting the engine, sputtering or stalling during operation, reduced engine performance, and fuel leaks around the pump.
In most cases, a damaged or worn fuel pump diaphragm requires replacement rather than repair. Replacement kits are often available, but it’s important to ensure compatibility with your boat’s fuel pump model.
Regular inspection is recommended as part of routine maintenance, especially before the boating season. Replacement is typically needed every 5–10 years, depending on usage, fuel quality, and operating conditions. Always refer to the manufacturer’s guidelines.
