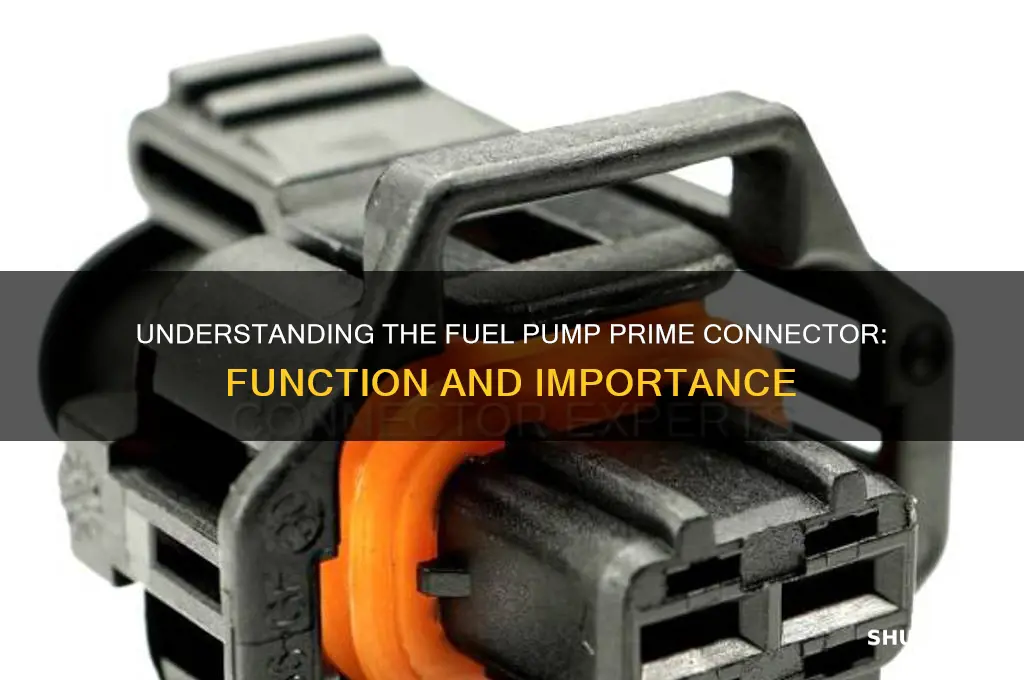

A fuel pump prime connector is a critical component in modern fuel injection systems, designed to facilitate the initial priming of the fuel pump when starting a vehicle. This connector ensures that the fuel system is pressurized before the engine ignites, allowing for a smoother and more efficient startup. Typically found in vehicles with electric fuel pumps, the prime connector is often integrated into the fuel pump relay circuit or controlled by the engine control unit (ECU). When activated, it momentarily increases the fuel pump’s speed or runtime to build pressure in the fuel lines, ensuring fuel reaches the injectors promptly. This feature is particularly important in vehicles that have been sitting for extended periods or after fuel system maintenance, as it prevents hard starts and reduces wear on the engine components. Understanding the function and location of the fuel pump prime connector is essential for diagnosing fuel system issues and ensuring optimal vehicle performance.
Explore related products
What You'll Learn
- Connector Function: Enables initial fuel pump activation to build pressure before engine start
- Location: Typically found near the fuel pump or relay assembly
- Types: Manual or automatic, depending on vehicle make and model
- Troubleshooting: Check for corrosion, loose connections, or damaged wires if priming fails
- Replacement: Requires proper tools and safety precautions to avoid fuel system damage
Connector Function: Enables initial fuel pump activation to build pressure before engine start
Modern vehicles rely on precise fuel delivery systems to ensure optimal engine performance. One critical yet often overlooked component is the fuel pump prime connector, a small but mighty device that plays a pivotal role in the engine startup process. Its primary function is to enable the initial activation of the fuel pump, building the necessary pressure in the fuel lines before the engine starts. This preemptive action ensures that fuel is readily available for combustion, reducing startup lag and preventing potential engine damage.
Consider the sequence of events during a cold start: without the prime connector, the fuel pump would activate only after the ignition is turned on, leading to a delay in fuel delivery. This delay can cause excessive cranking, increased wear on starter components, and even misfires in fuel-injected engines. The prime connector circumvents these issues by momentarily energizing the fuel pump when the ignition is first turned to the "on" position, typically for 2-3 seconds. This brief activation primes the fuel system, ensuring that the engine receives fuel instantly upon cranking.
From a practical standpoint, diagnosing a faulty prime connector is straightforward. If your vehicle struggles to start, especially after sitting for extended periods, or if you hear the fuel pump run continuously when the ignition is on, the prime connector may be malfunctioning. Testing involves checking for voltage at the connector during the ignition "on" phase; if voltage is absent, the connector or its circuit is likely at fault. Replacement is usually simple, requiring basic tools and a compatible part, but always consult the vehicle’s manual for specific instructions.
Comparatively, older carbureted engines relied on mechanical fuel pumps, which were naturally primed by the engine’s motion. Modern electronic fuel injection systems, however, demand a more sophisticated approach. The prime connector bridges this gap, combining electrical precision with mechanical necessity. Its design varies across manufacturers, but the core function remains consistent: to ensure fuel is available at the exact moment the engine demands it.
In conclusion, the fuel pump prime connector is a small component with a significant impact on engine reliability and performance. By understanding its function and recognizing signs of failure, vehicle owners can address issues proactively, ensuring smoother starts and prolonging the life of their fuel delivery system. Whether you’re a DIY enthusiast or a professional mechanic, appreciating this connector’s role underscores the importance of every part in a modern vehicle’s intricate ecosystem.
