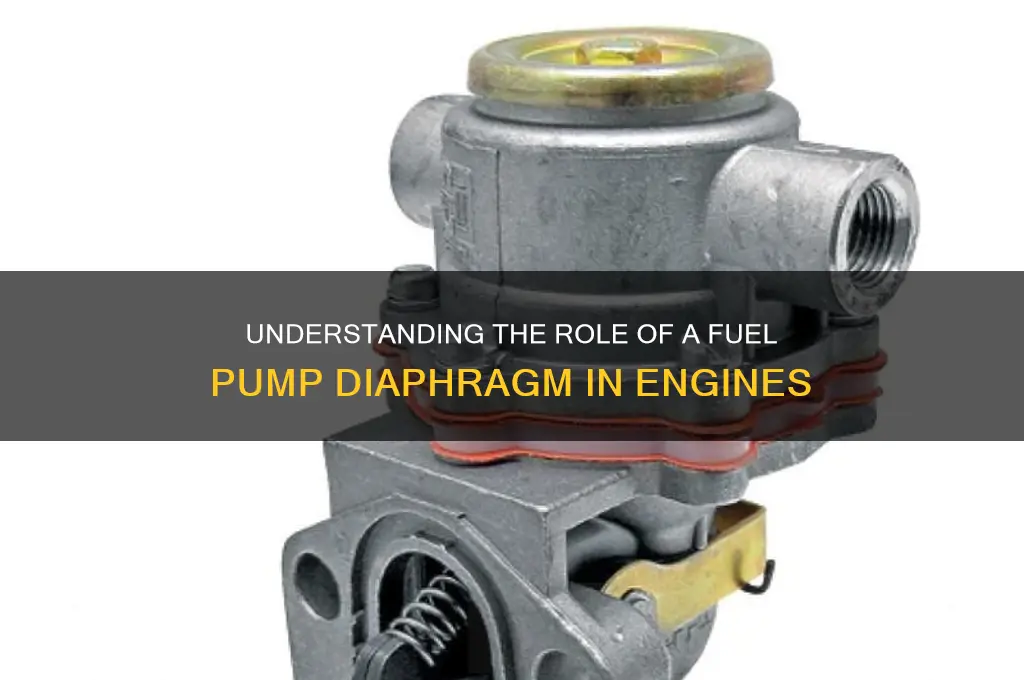

A fuel pump diaphragm is a critical component in many carbureted engines, particularly in older vehicles and small engines like those found in lawnmowers, motorcycles, and marine applications. It operates within a mechanical fuel pump to create a vacuum that draws fuel from the tank and delivers it to the carburetor. Typically made of durable, flexible materials such as rubber or synthetic compounds, the diaphragm expands and contracts in response to the pump's actuation, driven by the engine's camshaft or other mechanical linkage. This movement generates the necessary suction to ensure a consistent fuel supply, maintaining proper engine performance. Over time, diaphragms can wear out due to fuel contamination, age, or fatigue, leading to fuel delivery issues, engine stalling, or poor performance, making regular inspection and replacement essential for reliable operation.
| Characteristics | Values |
|---|---|
| Definition | A flexible membrane in a mechanical fuel pump that moves up and down to draw fuel from the tank and deliver it to the engine. |
| Material | Typically made of neoprene, rubber, or other durable, fuel-resistant materials. |
| Function | Creates a vacuum to draw fuel and pressurizes it for delivery to the carburetor or fuel injection system. |
| Location | Found inside mechanical fuel pumps, commonly used in older carbureted engines. |
| Operation | Actuated by a cam or lever mechanism, causing it to flex and pump fuel. |
| Maintenance | Requires periodic inspection for cracks, leaks, or wear; replacement is necessary if damaged. |
| Failure Symptoms | Engine stalling, difficulty starting, or inconsistent fuel delivery. |
| Compatibility | Specific to certain engine types and fuel systems; not used in modern EFI systems. |
| Advantages | Simple design, reliable in older vehicles, cost-effective to replace. |
| Disadvantages | Prone to wear and tear, less efficient than electric fuel pumps. |
Explore related products
What You'll Learn
- Diaphragm Function: Separates fuel pump chambers, creating vacuum/pressure for fuel flow
- Material Composition: Typically nitrile rubber or Viton for durability and chemical resistance
- Wear and Tear: Prone to cracking, swelling, or fatigue over time, affecting pump efficiency
- Types of Diaphragms: Single or double designs, depending on pump mechanism and application
- Replacement Signs: Engine sputtering, hard starting, or fuel leaks indicate diaphragm failure
Diaphragm Function: Separates fuel pump chambers, creating vacuum/pressure for fuel flow
The fuel pump diaphragm is a critical component in mechanical fuel systems, serving as the linchpin for efficient fuel delivery. Its primary function is to separate the pump’s chambers, a design that enables the creation of alternating vacuum and pressure cycles. When the diaphragm flexes inward, it generates a vacuum, drawing fuel into the pump chamber. As it reverses and pushes outward, it pressurizes the fuel, forcing it through the system to the carburetor or fuel injectors. This rhythmic motion ensures a consistent and reliable fuel supply, essential for engine performance. Without this separation and the resulting pressure differential, fuel flow would be erratic, leading to poor combustion and engine failure.
Consider the diaphragm’s role in a mechanical fuel pump, often found in older carbureted vehicles or small engines like lawnmowers. As the engine’s camshaft or eccentric wheel actuates the diaphragm, it undergoes a precise up-and-down movement. This action mimics the lungs of the fuel system, inhaling fuel during the vacuum phase and exhaling it under pressure. For optimal performance, the diaphragm must remain flexible and free from cracks or tears. A compromised diaphragm can lead to air infiltration, reducing pump efficiency and causing symptoms like hard starting or stalling. Regular inspection and replacement every 50,000 miles or at the first sign of wear are practical maintenance tips to ensure longevity.
Comparing the diaphragm to other fuel pump mechanisms highlights its simplicity and reliability. Unlike electric fuel pumps, which rely on motors and complex electronics, the diaphragm-based system operates purely mechanically, making it less prone to electrical failures. However, this simplicity comes with a trade-off: the diaphragm’s performance is directly tied to engine speed, limiting its effectiveness in high-performance applications. For instance, a racing engine’s rapid RPM fluctuations can outpace the diaphragm’s ability to maintain consistent pressure, necessitating an electric pump. Yet, for everyday vehicles or small engines, the diaphragm remains a cost-effective and durable solution.
To illustrate the diaphragm’s function, imagine a bellows expanding and contracting. Each inward stroke creates a vacuum, pulling fuel from the tank, while each outward stroke pushes fuel forward. This process is akin to squeezing a bulb primer on a carburetor, but automated and continuous. In practice, a worn diaphragm can reduce fuel pressure by as much as 20%, leading to a lean fuel mixture and potential engine damage. Mechanics often diagnose diaphragm issues by checking for fuel pulsations at the pump outlet; a weak or absent pulse indicates a failing diaphragm. Replacing the diaphragm is a straightforward task, typically requiring only basic tools and costing under $50 in parts, making it an accessible DIY repair.
In conclusion, the fuel pump diaphragm’s role in separating chambers to create vacuum and pressure is fundamental to its operation. Its design ensures a steady fuel flow, critical for engine functionality. While it may not suit high-performance engines, its reliability and simplicity make it ideal for everyday applications. Regular maintenance and timely replacement are key to avoiding fuel delivery issues. Understanding this mechanism empowers vehicle owners to diagnose problems early and maintain their engines efficiently.
Choosing the Right Fuel Pump for Your 2001 Cougar
You may want to see also
Explore related products
Material Composition: Typically nitrile rubber or Viton for durability and chemical resistance
Nitrile rubber and Viton are the unsung heroes of fuel pump diaphragms, chosen for their ability to withstand the harsh conditions within fuel systems. These materials are not selected by chance; their chemical resistance ensures they remain unaffected by gasoline, diesel, and ethanol blends, which can degrade lesser materials over time. Nitrile rubber, a synthetic polymer, offers excellent flexibility and resilience, making it ideal for the repetitive flexing required in mechanical fuel pumps. Viton, on the other hand, is a fluorocarbon-based synthetic rubber known for its superior resistance to heat and chemicals, often used in high-performance or racing applications where fuel systems operate under extreme conditions.
Selecting the right material for a fuel pump diaphragm is critical to its longevity and performance. For everyday vehicles, nitrile rubber is often the go-to choice due to its cost-effectiveness and reliability. It can handle fuel temperatures up to 120°C (248°F) and maintains its integrity even after prolonged exposure to hydrocarbons. However, in applications where fuel systems are subjected to higher temperatures or aggressive fuel additives, Viton becomes the preferred option. Its ability to resist swelling, hardening, or cracking under extreme conditions ensures consistent fuel delivery, even in demanding environments like off-road vehicles or high-performance engines.
When replacing a fuel pump diaphragm, understanding the material composition is key to making an informed decision. For instance, if you’re working on a classic car with a carbureted engine, nitrile rubber diaphragms are typically sufficient and widely available. However, for modern vehicles with direct fuel injection systems or those using E85 fuel, Viton diaphragms are recommended to handle the increased chemical and thermal stress. Always consult the manufacturer’s specifications or a trusted mechanic to ensure compatibility, as using the wrong material can lead to premature failure or fuel system damage.
The durability of nitrile rubber and Viton diaphragms also translates to cost savings in the long run. While Viton may be more expensive upfront, its extended lifespan and resistance to degradation make it a worthwhile investment for high-stress applications. Nitrile rubber, though less expensive, still offers excellent value for standard fuel systems, reducing the frequency of replacements. Both materials are designed to minimize downtime and maintenance, ensuring your vehicle’s fuel pump operates efficiently without unexpected failures.
In practical terms, inspecting your fuel pump diaphragm periodically can help identify wear or damage early. Look for signs of swelling, cracks, or brittleness, which indicate the material is breaking down. If you notice fuel leaks or inconsistent engine performance, the diaphragm may be compromised. Replacing it with the correct material—nitrile rubber for standard use or Viton for extreme conditions—will restore optimal function. Remember, the right material choice not only ensures reliability but also contributes to the overall safety and efficiency of your vehicle’s fuel system.
Locating the Fuel Pump on a 1950 Chevy Truck: A Guide
You may want to see also
Explore related products
Wear and Tear: Prone to cracking, swelling, or fatigue over time, affecting pump efficiency
The fuel pump diaphragm, a critical component in many carbureted engines, is inherently susceptible to wear and tear due to its constant exposure to fuel and mechanical stress. Over time, this thin, flexible membrane can develop cracks, swell, or exhibit fatigue, leading to a cascade of efficiency issues. Cracks, often microscopic at first, allow fuel to leak past the diaphragm, reducing pump pressure and causing erratic engine performance. Swelling, typically caused by chemical reactions with certain fuels or additives, can stiffen the diaphragm, impairing its ability to flex properly and draw fuel effectively. Fatigue, a result of repeated flexing cycles, weakens the material, making it more prone to failure under normal operating conditions.
Consider the lifecycle of a typical fuel pump diaphragm in a small engine, such as a lawnmower or chainsaw. After approximately 500–1,000 hours of operation, depending on fuel quality and usage frequency, the diaphragm may begin to show signs of degradation. For example, ethanol-blended fuels, now common in many regions, can accelerate material breakdown due to their solvent properties. Operators may notice symptoms like hard starting, stalling, or a loss of power, all of which stem from reduced fuel delivery. To mitigate this, regular inspection and replacement of the diaphragm every 2–3 years, or sooner if issues arise, is recommended. Always use diaphragms compatible with the fuel type in your engine, as some materials are more resistant to ethanol or other additives.
From a comparative perspective, mechanical fuel pumps with diaphragms are less complex and more cost-effective than electric pumps, but their longevity hinges on proactive maintenance. Unlike electric pumps, which often fail suddenly, diaphragm pumps provide warning signs of wear, such as a gradual decline in engine performance. This makes them more forgiving for DIY mechanics, provided they act promptly. For instance, a cracked diaphragm in a carbureted motorcycle engine might first manifest as difficulty starting when hot, a symptom that worsens over weeks rather than days. Addressing this early by replacing the diaphragm can prevent more extensive damage, such as carburetor flooding or engine misfires.
Persuasively, ignoring the signs of a failing fuel pump diaphragm is akin to neglecting a small leak in a roof—it will only worsen over time. The cost of a replacement diaphragm, typically under $20, pales in comparison to the potential expenses of repairing a damaged carburetor or engine. For older vehicles or equipment, where parts availability may be limited, keeping a spare diaphragm on hand is a prudent measure. Additionally, when replacing the diaphragm, inspect the pump housing and gaskets for wear, as these components often degrade in tandem. A comprehensive approach ensures the pump operates at peak efficiency, preserving both performance and fuel economy.
Descriptively, envision the fuel pump diaphragm as the heart of the fuel delivery system, tirelessly flexing with each engine cycle to draw fuel from the tank to the carburetor. Its resilience is remarkable, yet not infinite. Over years of service, the cumulative effects of fuel exposure, temperature fluctuations, and mechanical stress take their toll. A healthy diaphragm is smooth, pliable, and free of discoloration, while a worn one may appear brittle, discolored, or warped. By understanding these visual cues and recognizing the early symptoms of failure, operators can ensure their engines remain reliable, avoiding the frustration of unexpected breakdowns and the associated downtime.
Why Your Fuel Pump Fuse Keeps Blowing: Common Causes & Fixes
You may want to see also
Explore related products
Types of Diaphragms: Single or double designs, depending on pump mechanism and application
Fuel pump diaphragms are critical components in mechanical fuel systems, and their design directly impacts performance and reliability. The choice between single and double diaphragms isn’t arbitrary—it hinges on the pump mechanism and intended application. Single diaphragms, typically found in simpler systems, operate with one flexible membrane to create suction and pressure. Double diaphragms, on the other hand, use two membranes working in tandem, offering increased durability and efficiency, especially in high-demand environments. Understanding this distinction is key to selecting the right diaphragm for your fuel pump.
Consider the application: single diaphragms are often sufficient for low-pressure, low-volume systems like small engines or motorcycles. Their simplicity makes them cost-effective and easy to maintain. However, they may wear out faster under continuous or heavy use. Double diaphragms excel in more demanding scenarios, such as marine engines or agricultural machinery, where consistent fuel delivery is critical. The dual-membrane design reduces stress on individual components, prolonging lifespan and minimizing the risk of failure. For instance, a double diaphragm in a tractor’s fuel pump can handle the vibrations and extended operation typical of farm work.
When upgrading or replacing a fuel pump diaphragm, assess the pump’s mechanism. Diaphragm pumps operate via a reciprocating motion, and the number of diaphragms affects this process. Single diaphragms create a simpler, more direct motion, while double diaphragms provide a smoother, more balanced cycle. This balance is particularly beneficial in applications where fuel flow consistency is non-negotiable, such as in aviation or high-performance vehicles. Always consult the manufacturer’s specifications to ensure compatibility, as mismatched diaphragms can lead to inefficiency or damage.
Practical tip: inspect your fuel pump diaphragm annually, or more frequently if operating in harsh conditions. Signs of wear include cracks, thinning material, or reduced fuel pressure. For double diaphragms, check for synchronization issues between the membranes, as misalignment can compromise performance. Replacement kits are widely available, but ensure the new diaphragm matches the pump’s design and material requirements. For example, nitrile rubber diaphragms are common for their fuel resistance, while PTFE-coated options offer enhanced durability in extreme temperatures.
In summary, the choice between single and double diaphragms is a balance of application demands and pump mechanics. Single diaphragms suit simpler, less demanding systems, while double diaphragms provide robustness for high-stress environments. By aligning the diaphragm type with the specific needs of your fuel pump, you ensure optimal performance, longevity, and reliability. Always prioritize compatibility and regular maintenance to avoid costly downtime or repairs.
Signs Your Fuel Pump is Failing: Symptoms and Solutions
You may want to see also
Explore related products
Replacement Signs: Engine sputtering, hard starting, or fuel leaks indicate diaphragm failure
A fuel pump diaphragm is a critical component in many carbureted engines, responsible for drawing fuel from the tank and delivering it to the carburetor. When this diaphragm fails, the engine’s performance suffers, often in ways that are both noticeable and alarming. Engine sputtering, hard starting, or fuel leaks are telltale signs that the diaphragm may be compromised. These symptoms arise because a failing diaphragm disrupts the consistent fuel flow required for smooth combustion, leading to inefficiencies that affect the entire system.
Consider engine sputtering, for instance. This occurs when the fuel-air mixture in the engine becomes inconsistent due to inadequate fuel delivery. A weakened or torn diaphragm cannot maintain the necessary pressure, causing the engine to misfire or run unevenly. This is particularly evident during acceleration or under load, when the engine demands more fuel than the pump can supply. If you notice your vehicle hesitating or jerking while driving, it’s a strong indicator that the diaphragm may need inspection or replacement.
Hard starting is another red flag. A failing diaphragm struggles to build the initial pressure required to push fuel through the system when the engine is cold. This results in prolonged cranking or multiple attempts to start the engine. In carbureted systems, this issue is often exacerbated by fuel draining back into the tank when the engine is off, a condition known as "fuel drainback." If your vehicle takes longer than usual to start, especially after sitting for extended periods, the diaphragm’s integrity should be checked immediately.
Fuel leaks are perhaps the most urgent symptom of diaphragm failure. A cracked or deteriorated diaphragm can allow fuel to escape under pressure, creating a hazardous situation. Leaks are often visible near the fuel pump or along the fuel lines, accompanied by a strong gasoline odor. Ignoring this sign not only risks engine damage but also poses a fire hazard. If you detect a leak, stop driving the vehicle and address the issue promptly.
To diagnose diaphragm failure, start by inspecting the fuel pump for visible damage or leaks. Next, test the pump’s pressure output using a gauge; it should match the manufacturer’s specifications, typically around 3–5 psi for carbureted engines. If pressure is low or inconsistent, the diaphragm is likely at fault. Replacement kits are widely available and often include detailed instructions, making this a manageable DIY task for those with basic mechanical skills. Always use compatible parts and follow safety precautions, such as relieving fuel system pressure before beginning work.
In summary, engine sputtering, hard starting, and fuel leaks are clear indicators of fuel pump diaphragm failure. These symptoms not only degrade performance but also pose safety risks if left unaddressed. By recognizing these signs early and taking proactive steps, you can maintain your vehicle’s reliability and avoid more costly repairs down the line. Regular inspection and timely replacement of the diaphragm are essential for keeping your carbureted engine running smoothly.
Locating the Fuel Pump in Your Saab 9-5 Aero: A Guide
You may want to see also
Frequently asked questions
A fuel pump diaphragm is a flexible membrane inside a mechanical fuel pump that moves up and down to create suction and pressure, drawing fuel from the tank and delivering it to the engine.
The diaphragm works by being actuated by a lever or cam, which causes it to flex inward and outward. This movement creates a vacuum to draw fuel in and then pressurizes it to push it through the fuel lines.
Fuel pump diaphragms are typically made from durable, fuel-resistant materials such as nitrile rubber, neoprene, or other synthetic elastomers to withstand exposure to gasoline or diesel.
Symptoms of a failing diaphragm include engine sputtering, difficulty starting, inconsistent fuel delivery, or a complete loss of fuel pressure, often due to cracks, leaks, or hardening of the diaphragm.
In most cases, a damaged or worn fuel pump diaphragm requires replacement rather than repair, as it is a critical component and any compromise in its integrity can affect engine performance.
