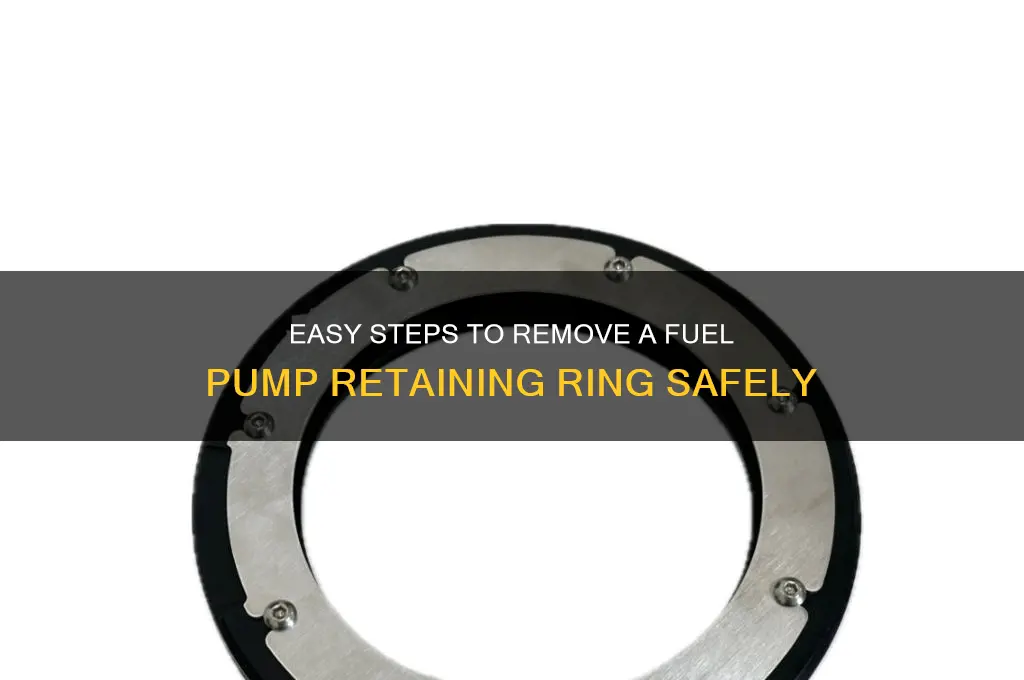

Removing a fuel pump retaining ring is a critical step in accessing and replacing a fuel pump, typically found in vehicles with in-tank fuel pump assemblies. The retaining ring secures the fuel pump module to the fuel tank, and its removal requires specific tools and careful technique to avoid damage. To begin, ensure the vehicle is safely lifted and the fuel system is depressurized to prevent accidents. Locate the retaining ring, which is often a metal or plastic clip, and use a specialized fuel pump lock ring tool or a flathead screwdriver to carefully pry or twist the ring counterclockwise. Patience is key, as forcing the ring can lead to breakage or tank damage. Once the ring is loosened, it can be lifted off, allowing the fuel pump module to be extracted for inspection or replacement. Always refer to the vehicle’s service manual for model-specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Tool Required | Fuel pump retaining ring tool, flathead screwdriver, pliers, or pry bar. |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area. |
| Location of Retaining Ring | Top of the fuel pump module, inside the fuel tank. |
| Removal Method | Use a specialized tool or pry carefully with a flathead screwdriver/pry bar. |
| Direction of Removal | Typically counterclockwise (varies by vehicle; consult manual). |
| Common Challenges | Rust, corrosion, or tight fit requiring gentle force. |
| Post-Removal Steps | Inspect the ring and fuel pump for damage before reinstallation or replacement. |
| Vehicle Specificity | Procedure varies by make/model; always refer to vehicle-specific guides. |
| Alternative Tools | DIY tools like modified screwdrivers or homemade pry tools (not recommended). |
| Professional Assistance | Recommended if unsure or if specialized tools are unavailable. |
Explore related products
What You'll Learn
- Tools Needed: Gather flathead screwdriver, pliers, and safety gear for the removal process
- Locate the Ring: Identify the fuel pump retaining ring position in the fuel tank
- Release Tabs: Use a screwdriver to carefully disengage the retaining ring tabs
- Remove the Ring: Gently lift the ring out of the fuel pump assembly
- Inspect & Clean: Check the ring for damage and clean it before reinstallation
Tools Needed: Gather flathead screwdriver, pliers, and safety gear for the removal process
Removing a fuel pump retaining ring is a task that demands precision and the right tools. Among the essentials are a flathead screwdriver, pliers, and safety gear. The flathead screwdriver serves as your primary lever, designed to pry the retaining ring with controlled force. Pliers, on the other hand, offer grip and leverage, especially useful for stubborn rings or securing components nearby. Safety gear, including gloves and safety goggles, is non-negotiable—fuel systems pose risks of spills and splashes, and protective equipment mitigates potential hazards. These tools form the foundation of a successful removal process, ensuring efficiency and safety from start to finish.
Consider the flathead screwdriver’s role in this operation. Its flat edge must be thin enough to fit under the retaining ring but sturdy enough to withstand the force applied. Opt for a medium-sized screwdriver with a comfortable handle for better control. When inserting it beneath the ring, angle it slightly to maximize leverage without damaging surrounding components. This tool is not just about strength; it’s about precision. A misaligned or forceful approach can bend the ring or scratch the fuel pump module, complicating reassembly or causing leaks. Mastery of this tool’s use is critical for a seamless removal.
Pliers complement the screwdriver by providing additional grip and force where needed. Needle-nose pliers are ideal for accessing tight spaces, while slip-joint pliers offer adjustable tension for varied ring sizes. Use them to grip the ring firmly once the screwdriver has created an opening. Apply steady, even pressure to avoid slipping, which could damage the ring or surrounding components. Pliers also come in handy for removing any clips or connectors near the fuel pump, ensuring a clear workspace. Their versatility makes them indispensable in this process.
Safety gear is often overlooked but is as vital as the tools themselves. Nitrile gloves protect your skin from fuel exposure, which can cause irritation or absorption of harmful chemicals. Safety goggles shield your eyes from accidental splashes, a common risk when working with pressurized fuel systems. Additionally, ensure proper ventilation in your workspace and keep a fire extinguisher nearby as a precaution. These measures may seem excessive, but they are essential for preventing injuries and accidents. Fuel systems are inherently dangerous, and preparedness is key.
In summary, the flathead screwdriver, pliers, and safety gear are not just tools—they are your allies in removing a fuel pump retaining ring. Each serves a distinct purpose, from the precision of the screwdriver to the grip of the pliers and the protection of safety gear. Skimping on any of these items increases the risk of damage, injury, or failure. By gathering these tools beforehand and understanding their roles, you set the stage for a smooth, safe, and successful removal process. Approach this task with the right equipment, and you’ll find it far less daunting than it appears.
Accessing Your Crosstour's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Locate the Ring: Identify the fuel pump retaining ring position in the fuel tank
The fuel pump retaining ring is a critical component nestled within the fuel tank, securing the fuel pump module in place. Locating it precisely is the first step in any removal process, and it requires a blend of visual inspection and mechanical intuition. Begin by safely accessing the fuel tank, which typically involves relieving fuel system pressure, disconnecting the battery, and removing the tank from the vehicle. Once the tank is exposed, carefully inspect the top surface where the fuel pump module is housed. The retaining ring is usually a circular metal or plastic component surrounding the pump assembly, often hidden beneath a layer of protective material or debris.
Analyzing the tank’s design can provide clues to the ring’s position. Most fuel tanks have a dedicated access panel or opening directly above the fuel pump module. If the tank lacks visible markings, consult the vehicle’s service manual for diagrams or descriptions of the pump’s location. In some cases, the ring may be partially obscured by a rubber gasket or sealant, requiring gentle probing with a non-conductive tool to avoid damage. Understanding the tank’s layout ensures you target the correct area, minimizing the risk of unnecessary disassembly or damage to surrounding components.
A persuasive argument for thoroughness in this step is clear: misidentifying the retaining ring’s position can lead to costly mistakes. For instance, applying force to the wrong area may crack the tank or damage internal components. Take the time to cross-reference visual cues with technical resources, such as online forums or repair videos, which often highlight common locations for specific vehicle models. For example, in many Ford vehicles, the retaining ring is positioned directly beneath a circular plastic cover, while in some Honda models, it’s secured under a metal plate. This comparative approach can save time and frustration.
Descriptively, the retaining ring often appears as a grooved or toothed component designed to lock into place. Its diameter typically matches the fuel pump module’s housing, and it may feature tabs or notches for tool engagement. In older vehicles, the ring might be corroded or fused due to prolonged exposure to fuel vapors, requiring careful prying or cleaning before removal. A practical tip is to use a bright LED light and a mirror to illuminate hard-to-see areas, ensuring no detail is overlooked. Patience and precision at this stage set the foundation for a successful removal process.
Understanding Fuel Pump Amperage: How Many Amps Does It Draw?
You may want to see also
Explore related products
Release Tabs: Use a screwdriver to carefully disengage the retaining ring tabs
The retaining ring on a fuel pump often features release tabs designed to secure it firmly in place. These tabs are typically spring-loaded or pressure-fitted, requiring deliberate action to disengage. A flat-head screwdriver is the ideal tool for this task, as its thin, flat edge can precisely target the tabs without causing damage to surrounding components. Before applying force, ensure the screwdriver aligns perfectly with the tab’s edge to avoid slipping, which could scratch the fuel pump housing or compromise the tab’s integrity.
When disengaging the tabs, apply gentle but firm pressure outward, away from the retaining ring. The goal is to release the tension holding the ring in place, not to pry aggressively. Each tab may require a slightly different angle or force, depending on its design and the tightness of the fit. Work methodically, addressing one tab at a time, and listen for a soft click or feel for a release, indicating the tab has disengaged. If resistance is met, reassess the screwdriver’s position rather than increasing force, as excessive pressure can deform the tab or damage the fuel pump module.
Comparing this method to others, such as using pliers or specialized tools, the screwdriver approach stands out for its simplicity and accessibility. Pliers, for instance, can grip the ring directly but risk slipping and causing collateral damage. Specialized tools, while precise, are often unnecessary for this task and may not be readily available. The screwdriver method balances precision and practicality, making it a go-to technique for both professionals and DIY enthusiasts.
A practical tip to enhance success is to inspect the retaining ring before beginning. Some designs include arrows or markings indicating the tab locations, simplifying the process. Additionally, if the fuel pump assembly is old or corroded, applying a small amount of penetrating oil around the tabs 10–15 minutes prior can ease disengagement. Always work in a well-ventilated area and ensure the fuel system is depressurized to minimize safety risks. With patience and the right technique, releasing the tabs becomes a straightforward step in removing the fuel pump retaining ring.
Can Fuel Pump Sending Units Rust? Causes, Prevention, and Solutions
You may want to see also
Explore related products
![Hilitchi 300-Pcs [15-SIZE] Alloy Steel Internal Circlip Snap Retaining Clip Ring Assortment Set](https://m.media-amazon.com/images/I/71CGjR1+UuL._AC_UY218_.jpg)
Remove the Ring: Gently lift the ring out of the fuel pump assembly
The retaining ring is often the final barrier between you and accessing the fuel pump, but its removal requires precision to avoid damaging surrounding components. Unlike larger, more robust automotive parts, this ring is typically secured by a delicate balance of tension and fit, making brute force a recipe for disaster. Understanding its design is crucial: most retaining rings are either snap rings or C-clips, held in place by a groove within the fuel pump assembly. Before attempting removal, ensure the vehicle is on a level surface, the fuel system is depressurized, and the battery is disconnected to prevent accidental ignition.
To gently lift the ring, start by inspecting it for any visible notches or gaps, which indicate the manufacturer’s intended release points. Use a pair of needle-nose pliers or a specialized retaining ring removal tool, positioning the tips at opposite ends of the ring’s gap. Apply even, outward pressure to compress the ring slightly, then carefully lift it vertically out of the groove. Avoid twisting or tilting the ring, as this can distort its shape or scratch the assembly’s surface. If the ring resists, reassess its type—some snap rings require a slight rotation before they can be lifted, while others may need a gentle tap with a plastic mallet to loosen corrosion or debris.
Comparing this process to other automotive repairs highlights its unique blend of delicacy and practicality. While removing a spark plug or changing oil involves straightforward force or drainage, the retaining ring demands a surgeon’s touch. Think of it as disassembling a watch: each step requires awareness of the component’s fragility and its role in the larger mechanism. This approach not only preserves the ring for potential reuse but also minimizes the risk of damaging the fuel pump’s internal seals or housing.
For those new to this task, practice makes perfect. If possible, test the removal process on a spare fuel pump assembly or a similar component to familiarize yourself with the ring’s behavior. Keep a clean workspace and use a magnetic parts tray to prevent losing small components. Should the ring break or become irreparably distorted during removal, replacement kits are widely available, typically costing between $10 and $30 depending on the vehicle make and model. Always refer to the vehicle’s service manual for specific instructions, as some designs may include additional safety features or variations in ring type.
In conclusion, removing the fuel pump retaining ring is a task that bridges precision and practicality. By approaching it with the right tools, awareness of its design, and a gentle hand, you can successfully lift the ring without compromising the integrity of the fuel pump assembly. This step, though seemingly minor, is pivotal in accessing and servicing the fuel pump, making it a skill worth mastering for any DIY mechanic or professional technician.
Does the 2005 Ranger Have a Fuel Pump Driver Module?
You may want to see also
Explore related products
![Hilitchi 150-Pcs [15-SIZE] Alloy Steel Internal Circlip Snap Retaining Clip Ring Assortment Kit - Size: 8mm to 36mm](https://m.media-amazon.com/images/I/718oPM7wtiL._AC_UY218_.jpg)
Inspect & Clean: Check the ring for damage and clean it before reinstallation
Before reinstalling the fuel pump retaining ring, a thorough inspection and cleaning are crucial steps often overlooked in the haste to complete the repair. This process ensures the ring’s integrity and longevity, preventing potential fuel leaks or pump failures down the line. Start by examining the ring under bright light, rotating it to check for cracks, warping, or corrosion. Even minor damage can compromise its sealing ability, so replace the ring if any defects are found. Use a magnifying glass if necessary to spot hairline fractures or pitting.
Cleaning the retaining ring is equally vital, as debris or residue can interfere with its fit and function. Begin by wiping the ring with a clean, lint-free cloth to remove surface dirt. For stubborn contaminants, use a mild solvent like isopropyl alcohol or brake cleaner, ensuring it’s compatible with the ring’s material (typically steel or plastic). Avoid harsh chemicals or abrasive tools that could scratch or weaken the ring. After cleaning, allow the ring to air dry completely or use compressed air to remove any solvent residue.
A comparative analysis of cleaning methods reveals that ultrasonic cleaners, while effective for intricate parts, may not be necessary for a retaining ring unless heavily soiled. Instead, manual cleaning with a soft-bristled brush and solvent is both practical and cost-effective. For plastic rings, test the solvent on a small area first to avoid chemical damage. Metal rings, on the other hand, can withstand more aggressive cleaning but should still be handled with care to preserve their finish.
Finally, the takeaway is clear: inspecting and cleaning the fuel pump retaining ring is a small investment of time that pays off in reliability. A damaged or dirty ring can lead to fuel system issues, from poor performance to safety hazards. By following these steps, you ensure the ring functions as intended, maintaining a secure seal around the fuel pump. Treat this process as a preventative measure, not an optional step, to safeguard your vehicle’s fuel system for the long haul.
Understanding the 698620 Carb Pump's Fuel Delivery Mechanism
You may want to see also
Frequently asked questions
Typically, you’ll need a fuel pump module removal tool, a flathead screwdriver, and possibly a pair of pliers or a retaining ring removal tool, depending on the vehicle’s design.
First, relieve the fuel system pressure, disconnect the battery, and remove the fuel tank. Then, carefully lift the fuel pump assembly to expose the retaining ring for removal.
It’s generally not recommended to reuse the retaining ring, as it may become damaged or deformed during removal. Always replace it with a new one to ensure a secure fit.
