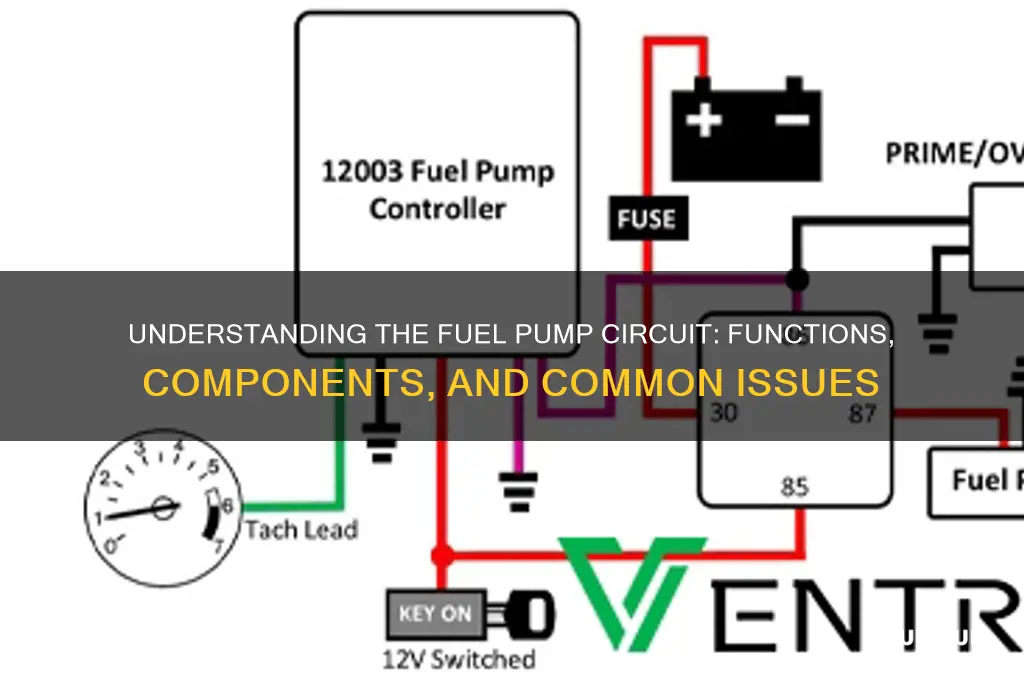

A fuel pump circuit is an essential component of a vehicle's fuel system, responsible for delivering fuel from the tank to the engine at the required pressure and flow rate. It consists of an electric fuel pump, a relay, a fuse, and associated wiring, all working together to ensure the engine receives a consistent supply of fuel. The circuit is typically controlled by the vehicle's engine control unit (ECU), which activates the fuel pump when the ignition is turned on and monitors its operation to maintain optimal engine performance. Understanding the fuel pump circuit is crucial for diagnosing and resolving issues related to fuel delivery, such as engine stalling, poor acceleration, or failure to start.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump circuit is an electrical system responsible for delivering fuel from the tank to the engine in internal combustion vehicles. |
| Components | Fuel pump, relay, fuse, wiring harness, pressure regulator, fuel filter, ECU (Engine Control Unit) |
| Function | Supplies fuel at the required pressure and flow rate to the engine for combustion. |
| Power Source | Vehicle’s battery (12V or 24V depending on the vehicle) |
| Control Mechanism | ECU controls the fuel pump relay to activate/deactivate the pump based on engine demand. |
| Operating Pressure | Typically 30–60 psi (varies by vehicle and engine type) |
| Fuel Pump Types | Mechanical (driven by camshaft), electric (most modern vehicles), in-tank, external |
| Safety Features | Inertia switch (cuts power in accidents), fuse (prevents overcurrent), pressure relief valve |
| Diagnostics | Check for power at the pump, relay functionality, fuse integrity, and wiring continuity. |
| Common Issues | Pump failure, relay malfunction, clogged filter, wiring faults, low fuel pressure |
| Maintenance | Regularly replace fuel filters, inspect wiring, and test pump performance. |
| Environmental Impact | Efficient fuel delivery reduces emissions and improves fuel economy. |
Explore related products
What You'll Learn
Fuel Pump Relay Function
The fuel pump relay is a critical component in a vehicle's fuel pump circuit, acting as the intermediary between the vehicle's electrical system and the fuel pump. Its primary function is to control the flow of electrical current to the fuel pump, ensuring it operates only when necessary. This relay is typically located in the vehicle's fuse box or relay panel, often under the hood or near the driver's side dashboard. Understanding its role is essential for diagnosing and resolving fuel system issues.
From an analytical perspective, the fuel pump relay operates on a simple yet ingenious principle. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU) or ignition switch. This signal energizes the relay’s coil, closing the contacts and allowing current to flow to the fuel pump. The relay ensures the pump doesn’t run continuously, which would waste energy and reduce its lifespan. Instead, it activates the pump only when the engine is running or during startup, optimizing efficiency and performance.
Instructively, testing a fuel pump relay is a straightforward process that can save time and money in diagnostics. First, locate the relay in the fuse box and swap it with a similar relay (e.g., the horn relay) to see if the fuel pump issue persists. If the problem moves to the other system, the relay is likely faulty. Alternatively, use a multimeter to check for continuity across the relay’s terminals when activated. A lack of continuity indicates a failed relay. Always consult the vehicle’s manual for specific relay locations and procedures.
Comparatively, the fuel pump relay differs from other relays in its timing and load management. Unlike a headlight relay, which operates continuously when activated, the fuel pump relay is designed to handle high current loads for short durations. This distinction is crucial because the fuel pump requires significant power to operate, especially during cold starts. A malfunctioning relay can lead to symptoms like engine stalling, difficulty starting, or a complete failure to run, highlighting its unique role in the fuel pump circuit.
Practically, maintaining the fuel pump relay involves regular inspection and proactive replacement if issues arise. Relays are relatively inexpensive, typically costing between $10 and $30, depending on the vehicle make and model. If your vehicle exhibits symptoms like intermittent starting or a whining noise from the fuel tank, the relay should be one of the first components to inspect. Keeping a spare relay in your emergency kit can be a lifesaver, especially during long trips or in remote areas where access to parts is limited.
In conclusion, the fuel pump relay is a small but vital part of the fuel pump circuit, ensuring efficient and safe operation of the fuel system. Its function, testing, and maintenance are key to keeping your vehicle running smoothly. By understanding its role and knowing how to diagnose issues, you can address fuel system problems effectively and avoid unnecessary repairs.
Locating the Fuel Pump in a 1993 Dodge Dakota: A Guide
You may want to see also
Explore related products
Circuit Wiring Diagram Basics
A fuel pump circuit is the electrical system responsible for delivering power to the fuel pump, ensuring it operates efficiently to supply fuel to the engine. Understanding its wiring diagram is crucial for diagnostics, repairs, or modifications. Circuit wiring diagrams are visual blueprints that map out the electrical connections, components, and pathways within a system. They use standardized symbols to represent elements like switches, relays, fuses, and wires, making it easier to interpret complex systems. For a fuel pump circuit, the diagram typically highlights the power source, relay, fuse, and ground connections, along with any sensors or switches that control the pump’s operation.
Analyzing a fuel pump circuit diagram begins with identifying key components. The power source is usually the battery, connected through a fuse to protect the circuit from overcurrent. A relay acts as a switch, allowing the high-current fuel pump to be controlled by a low-current signal from the engine control unit (ECU) or ignition switch. The ground connection completes the circuit, ensuring proper functionality. For example, in a typical automotive setup, the fuel pump relay is energized when the ignition is turned on, closing the circuit and activating the pump. Understanding these relationships is essential for troubleshooting issues like a non-starting engine or inconsistent fuel delivery.
When working with fuel pump circuit diagrams, precision is paramount. Always refer to the vehicle’s specific diagram, as designs vary across makes and models. For instance, some systems include an inertia switch that cuts power to the pump in the event of a collision, while others integrate a fuel pump driver module for more precise control. Practical tips include using a multimeter to test for continuity, voltage, and resistance at various points in the circuit. If the fuse is blown or the relay is faulty, these components are typically inexpensive and easy to replace. However, always disconnect the battery before working on any electrical system to avoid short circuits or shocks.
Comparing fuel pump circuits across different vehicles reveals both commonalities and unique features. Older vehicles often have simpler systems, with mechanical switches and fewer sensors, while modern cars incorporate advanced electronics for efficiency and emissions control. For instance, a carbureted engine’s fuel pump circuit might only involve a switch and relay, whereas a fuel-injected engine’s diagram includes pressure regulators, sensors, and ECU inputs. This comparison underscores the importance of familiarity with the specific system you’re working on. Whether you’re a DIY enthusiast or a professional mechanic, mastering circuit wiring diagram basics empowers you to diagnose and resolve fuel pump issues effectively.
In conclusion, a fuel pump circuit wiring diagram is a critical tool for understanding and maintaining the electrical system that powers the fuel pump. By identifying components, analyzing their relationships, and applying practical troubleshooting techniques, you can ensure the circuit operates reliably. Whether dealing with a simple relay-based system or a complex ECU-controlled setup, the principles remain consistent: follow the diagram, test systematically, and prioritize safety. With this knowledge, you’ll be well-equipped to tackle fuel pump circuit issues with confidence.
Understanding Motorcycle Fuel Pumps: Function, Operation, and Maintenance Tips
You may want to see also
Explore related products
Pump Power Supply Sources
A fuel pump circuit's reliability hinges on its power supply source, which must deliver consistent voltage under varying load conditions. The most common source is the vehicle’s battery, typically supplying 12 volts in passenger cars or 24 volts in heavy-duty trucks. This direct connection ensures immediate power upon ignition, but it requires a robust fuse and relay system to protect against overcurrent. For instance, a 30-amp fuse is standard for most fuel pump circuits to prevent electrical fires in case of a short circuit. However, relying solely on the battery can strain it during high-demand situations, such as cold starts or towing, necessitating additional power management strategies.
In modern vehicles, the alternator plays a critical role in sustaining the fuel pump’s power supply. Once the engine is running, the alternator takes over from the battery, providing a steady charge to the electrical system. This dual-source approach ensures the fuel pump operates efficiently without depleting the battery. For example, a 100-amp alternator can comfortably support a fuel pump drawing 15–20 amps, even under peak loads. However, in hybrid or electric vehicles, the power supply dynamics shift. These systems often use high-voltage battery packs (e.g., 400 volts) to power electric fuel pumps, requiring specialized DC-DC converters to step down voltage for compatibility with traditional 12V systems.
For off-road or racing applications, auxiliary power sources like secondary batteries or capacitors are sometimes employed to enhance reliability. A secondary battery, wired in parallel with the primary one, provides redundancy during extreme conditions. Capacitors, on the other hand, store energy briefly to stabilize voltage during sudden spikes in demand, such as hard acceleration. These solutions are particularly useful in vehicles with high-performance fuel pumps that draw upwards of 30 amps. However, they require careful installation to avoid overloading the circuit or causing voltage drops that could stall the engine.
In diesel engines, the power supply for the fuel pump often integrates with the engine control unit (ECU) for precise fuel delivery. The ECU modulates the pump’s voltage based on engine load, RPM, and temperature, ensuring optimal performance. For instance, a diesel fuel pump might operate at 10 volts during idle and ramp up to 14 volts under full throttle. This variable voltage strategy improves efficiency and reduces wear on the pump. In contrast, gasoline engines typically maintain a constant voltage, relying on mechanical pressure regulators to control fuel delivery.
When upgrading a fuel pump, selecting the appropriate power supply source is critical. High-performance pumps often require dedicated power lines to handle increased current draw. For example, a pump rated at 40 amps should be connected directly to the battery via a relay and fused at 50 amps to accommodate peak loads. Ignoring this step can lead to voltage drops, erratic pump operation, or even electrical fires. Always consult the manufacturer’s specifications and use a multimeter to verify voltage stability under load before finalizing the installation. This proactive approach ensures the fuel pump circuit operates safely and efficiently, regardless of the vehicle’s demands.
Choosing the Right Fuel Pump for Your 1970 VW Beetle
You may want to see also
Explore related products
Common Circuit Failure Modes
Fuel pump circuits are critical for delivering fuel from the tank to the engine, but their complexity makes them susceptible to specific failure modes. One common issue is electrical overload, where excessive current flows through the circuit, often due to a short circuit or a malfunctioning component. This can melt wires, damage fuses, or even cause the fuel pump relay to fail. For instance, a frayed wire near the fuel tank can ground out, triggering a sudden surge in current that overwhelms the circuit. To diagnose this, use a multimeter to check for continuity and resistance in the wiring harness, ensuring no unintended connections exist.
Another frequent failure mode is corrosion and moisture intrusion, particularly in older vehicles or those exposed to harsh environments. Moisture can seep into connectors, causing oxidation that disrupts the electrical flow. This is especially problematic in fuel pump circuits because the components are often located near the undercarriage, where they’re exposed to road salt, water, and debris. Regularly inspect and clean connectors with dielectric grease, and replace damaged wiring harnesses to prevent this issue. A proactive approach can save hundreds in repair costs and avoid sudden breakdowns.
Relay and switch failures are also prevalent in fuel pump circuits. The fuel pump relay, which controls power to the pump, can wear out over time due to heat cycling or mechanical stress. Similarly, the inertia switch—a safety device that cuts power to the pump during a collision—can malfunction, either failing to reset or triggering falsely. If the engine cranks but doesn’t start, test the relay by swapping it with a similar one in the fuse box, and check the inertia switch for proper operation. These components are inexpensive and easy to replace, making them a logical starting point for troubleshooting.
Lastly, grounding issues can cripple a fuel pump circuit, as a poor ground connection prevents the circuit from completing properly. This often manifests as an intermittent fuel pump operation or a complete loss of power. Use a test light to verify ground integrity by connecting one end to the battery negative terminal and the other to the ground point in question. If the light dims or fails to illuminate, clean the ground connection or install a secondary ground wire. Ensuring a solid ground is a simple yet effective way to maintain circuit reliability.
Understanding these failure modes empowers vehicle owners to address issues before they escalate. By combining regular inspections with targeted diagnostics, you can keep the fuel pump circuit functioning optimally, ensuring consistent fuel delivery and avoiding costly repairs.
Locate the Fuel Pump Relay in Your 2004 Ford Taurus
You may want to see also
Explore related products
Diagnostic Testing Methods
A fuel pump circuit is a critical component in modern vehicles, responsible for delivering fuel from the tank to the engine at the correct pressure and volume. When diagnosing issues within this circuit, understanding the diagnostic testing methods is essential for pinpointing faults accurately. One primary method is the voltage drop test, which assesses the electrical integrity of the circuit. By measuring voltage drops across connections, fuses, and relays, technicians can identify high-resistance points that may hinder fuel pump operation. For instance, a voltage drop exceeding 0.2 volts at the pump connector could indicate corroded terminals or damaged wiring, requiring immediate attention.
Another effective diagnostic technique is the fuel pressure test, which evaluates the pump’s ability to maintain optimal pressure. Using a gauge connected to the fuel rail, technicians measure pressure at idle and under load. A reading significantly below the manufacturer’s specifications—such as 30 psi for a typical EFI system—suggests a weak pump, clogged filter, or faulty pressure regulator. This test is particularly useful when symptoms like engine hesitation or stalling occur, as it directly correlates fuel delivery with performance issues.
For a more comprehensive analysis, the current draw test measures the amperage the fuel pump consumes during operation. A fully charged 12-volt battery should show a draw between 5 and 15 amps, depending on the vehicle. Deviations from this range, such as a draw below 5 amps, may indicate a failing pump motor, while excessive draw could signal internal shorts. This method is especially valuable when other tests yield inconclusive results, providing a deeper insight into the pump’s mechanical and electrical health.
Incorporating scan tool diagnostics complements these methods by retrieving trouble codes and live data from the vehicle’s ECM. Codes like P0087 (low fuel pressure) or P0230 (fuel pump circuit malfunction) guide technicians toward specific areas of concern. Monitoring live data, such as fuel pump duty cycle or fuel pressure sensor readings, further refines the diagnosis. For example, a duty cycle stuck at 100% without corresponding pressure suggests a failed pump or blocked fuel line.
Lastly, the visual and auditory inspection should not be overlooked. Inspecting the fuel pump relay for burnt contacts or the wiring harness for chafing can reveal obvious issues. Listening for the pump’s priming hum when the ignition is turned on confirms its initial activation. While seemingly basic, these steps often uncover problems missed by advanced tools, emphasizing the importance of a holistic diagnostic approach. Each method, when applied systematically, ensures a thorough evaluation of the fuel pump circuit, leading to accurate repairs and restored vehicle performance.
Locating the Fuel Pump in a 1994 Nissan Sentra: A Guide
You may want to see also
Frequently asked questions
A fuel pump circuit is an electrical system in a vehicle that controls the operation of the fuel pump, which is responsible for delivering fuel from the tank to the engine.
A fuel pump circuit typically consists of a fuel pump relay, a fuse, and wiring that connects the fuel pump to the vehicle's battery and engine control module (ECM). The ECM sends a signal to the fuel pump relay, which then allows power to flow to the fuel pump, enabling it to deliver fuel to the engine.
Common issues with a fuel pump circuit include blown fuses, faulty relays, corroded or damaged wiring, and a malfunctioning fuel pump. These issues can cause the fuel pump to fail, resulting in a no-start condition or poor engine performance.
