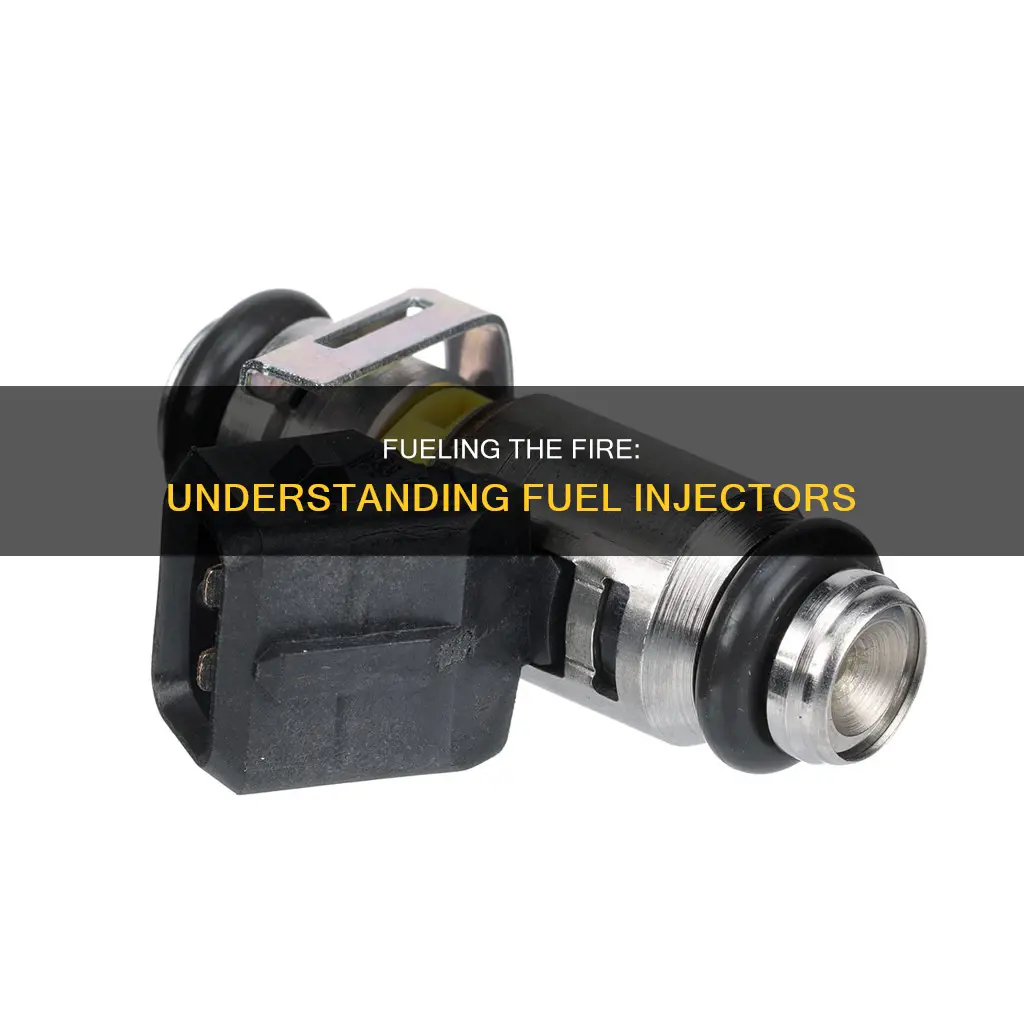

Fuel injectors are a crucial component of modern engines, delivering the right amount of fuel into the combustion chamber at the precise time. They are electronically controlled valves that receive pressurised fuel from the fuel pump in the car and open and close multiple times per second. The injector is located in the combustion chamber, inlet manifold, or throttle body. The amount of fuel supplied to the engine is determined by the length of time the injector stays open, known as the pulse width. This is controlled by the engine control unit (ECU). The latest fuel injectors enable an engine to generate maximum power while minimising fuel consumption and reducing pollution.
| Characteristics | Values |
|---|---|
| Purpose | To deliver fuel into an internal combustion engine |
| Types | Single-point injection, Multi-point injection, Throttle body injection, Direct injection, Common-rail injection |
| Components | Seals or O-rings, Nozzle, Solenoid or valve mechanism |
| Function | Regulates the injection of fuel into an engine's internal combustion chamber where it is mixed with air and ignited |
| Fuel Type | Gasoline, Diesel, Natural gas, Hydrogen |
| Advantages | More efficient combustion, better engine performance, reduced emissions |
| Disadvantages | Fire hazard due to fuel leaks, Clogging or contamination, Failure or sticking of the solenoid or valve |
Explore related products
What You'll Learn
Fuel injectors are electronically-controlled valves
The amount of fuel supplied to the engine is determined by the length of time that the fuel injector stays open, known as the pulse width. This is controlled by the engine control unit (ECU), which adjusts the pulse width based on real-time information about the engine's performance. For example, when the gas pedal is pressed, the throttle valve opens to let in more air, and the ECU increases the fuel rate to match the increased air intake.
There are several types of fuel injection systems, including single-point, multi-point, and direct injection. Single-point injection, also known as throttle-body injection, uses one injector in the throttle body, similar to a carburettor. Multi-point injection, or port injection, uses multiple fuel injectors to inject fuel directly at the intake valves of each cylinder. Direct injection, the most common system in modern cars, sprays fuel directly into the main combustion chamber of each cylinder.
Fuel injectors have become increasingly important in automotive engineering due to their role in reducing vehicle emissions and improving fuel efficiency. They allow for very careful control of the air-to-fuel ratio, which is necessary for the effective operation of catalytic converters. As a result, fuel injectors have replaced carburetors as the primary means of fuel delivery in modern automotive engines.
Testing BMW E85 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
They spray a fine mist of fuel into the engine
Fuel injectors are a critical component of modern engines, ensuring that the engine generates maximum power while minimising fuel consumption and reducing pollution. They are responsible for delivering the right amount of fuel into the combustion chamber at the precise time. The nozzle of a fuel injector is designed to atomise the fuel, turning it into a fine mist that can burn easily.
The injector is located in the combustion chamber, inlet manifold, or, less commonly, the throttle body. Fuel injectors that also control the metering are called injection valves, while those that perform all three functions are called unit injectors. Direct injection means that the fuel is injected into the main combustion chamber of each cylinder. The air and fuel are mixed only inside the combustion chamber, so only air is sucked into the engine during the intake stroke.
The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open, which is called the pulse width. This is controlled by the ECU, which uses data from various sensors to adjust the fuel delivery for optimal performance and emissions control. Sensors such as oxygen sensors, throttle position sensors, and air temperature sensors provide real-time data to the ECU, which then adjusts the air-to-fuel ratio accordingly. This closed-loop control was not feasible to achieve with carburetors, which is why fuel injectors have become the primary means of getting gasoline into the engine cylinder.
The earliest fuel injection systems were purely mechanical, but they have since evolved into the electronically controlled systems of today. Modern diesel engines are direct injection, meaning fuel is delivered directly into the combustion chamber at high pressure. An electrical signal is sent to the solenoid, causing the injector needle to lift and allowing high-pressure fuel to flow through the nozzle and into the combustion chamber to mix with air. The combination of high fuel pressure and fine injector nozzle holes ensures optimal mixing of air and fuel, meeting strict emissions standards.
When to Use Fuel Injector Cleaner?
You may want to see also
Explore related products
Fuel injectors have replaced carburettors
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly automotive engines, by the means of a fuel injector. The fuel injector is effectively a spray nozzle that performs the final stage in the delivery of fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body. The primary difference between carburettors and fuel injectors is that fuel injectors atomize the fuel through a small nozzle under high pressure, while carburettors rely on suction created by intake air.
Fuel injectors provide several benefits over carburettors. They offer more power and better fuel efficiency due to their ability to more precisely control the air-to-fuel ratio, resulting in reduced fuel consumption and lower emissions. Fuel injectors also require less maintenance as they do not need to be tuned like carburettors and are less sensitive to changes in weather conditions. Additionally, fuel injectors provide improved starting performance by calculating the optimum air-fuel mixture based on the exact conditions.
While fuel injectors offer improved performance and efficiency, carburettors have their advantages. They are generally simpler, easier to repair or replace, and less costly. Carburettors also allow users to tune them to their specific requirements and can be serviced or replaced without touching the engine.
Troubleshooting Fuel Injectors in a Honda CBR600RR
You may want to see also
Explore related products
They are crucial for engine performance and fuel economy
Fuel injectors are crucial for engine performance and fuel economy. They deliver fuel to the engine, ensuring the vehicle performs at maximum capacity and boosting fuel economy.
Fuel injectors are electronically controlled valves that perform the final stage of delivering fuel into the engine. They are supplied with pressurised fuel by the fuel pump and can open and close many times per second. When the injector is energised, an electromagnet moves a plunger that opens the valve, allowing the pressurised fuel to squirt out through a tiny nozzle. This nozzle atomises the fuel, creating a fine mist that burns easily. The amount of fuel supplied to the engine is determined by how long the fuel injector stays open, known as the pulse width, which is controlled by the engine control unit (ECU).
The precise delivery of fuel by fuel injectors enhances fuel atomisation, resulting in improved combustion efficiency and power output. This, in turn, increases engine performance and reduces emissions. Fuel injectors can also help meet stricter emissions requirements by working in conjunction with catalytic converters. Oxygen sensors monitor the oxygen levels in the exhaust, and the ECU uses this information to adjust the air-to-fuel ratio in real-time, achieving closed-loop control.
Additionally, fuel injectors can improve fuel economy. For example, adjustable fuel pressure regulators can boost fuel efficiency by ensuring the injectors run at the optimal fuel pressure. Furthermore, multi-port fuel injection systems, which have a fuel injector for each cylinder, provide more accurate fuel metering and quicker response times, contributing to improved fuel efficiency.
Overall, fuel injectors play a critical role in engine performance and fuel economy by delivering fuel efficiently, optimising combustion, and reducing emissions.
Understanding Fuel Injector Health via OBD2 Scans
You may want to see also
Explore related products
Different types of fuel injectors exist
Single-point injection, also known as throttle-body injection, is the oldest and simplest form of the fuel injection system. It features a common fuel injector for all the cylinders in the combustion chamber of the engine. This system uses one or two fuel injector nozzles in the throttle body.
Multi-point fuel injection, also known as port injection, has a fuel injector for each cylinder, usually located so that they spray directly at the intake valve. Every cylinder in the combustion chamber of the engine is given an injector at the front of their inlet valves (outside the intake port). Each cylinder gets a more precise volume of fuel, with less possibility of fuel condensation outside the intake manifold.
Sequential fuel injection is the most widely used fuel injection system today. In this system, the fuel injectors function with respect to the cylinders they are connected to. Every injector injects the fuel only when the intake valve of the cylinder opens.
Direct injection means that the fuel is injected into the main combustion chamber of each cylinder. Direct fuel injection focuses on placing the injector inside the cylinder to directly inject the fuel, bypassing the intake valve or manifold. This type of fuel injection system is usually seen in diesel engines but also has a significant space in petrol engines, where it is known as GDI (gasoline direct injection).
Understanding Fuel Injectors: The Role of Crucial CCS
You may want to see also
Frequently asked questions
A fuel injector is a crucial component of a vehicle's engine, ensuring a precise mix of air and fuel for optimal performance. It is a spray nozzle that performs the final stage in the delivery of fuel into the engine.
Fuel is delivered to the injector from the fuel tank by a pump, often operating at high pressure. An electrical solenoid within the fuel injector receives a signal from the engine control unit (ECU) that causes it to quickly open a valve for a precisely controlled amount of time. The fuel then flows through the valve and into the intake manifold, intake port, or directly into the engine cylinder.
Carburetion relies on suction created by intake air, while fuel injection atomizes the fuel through a small nozzle under high pressure. Fuel injection provides more accurate fuel metering and a quicker response.
There are several different types of fuel injectors, including single-point fuel injection (or throttle body injection), multi-point fuel injection (or port/sequential fuel injection), and direct injection. Single-point injection usually uses one fuel injector located near the throttle body to distribute fuel into the intake manifold, while multi-point injection has a fuel injector for each cylinder. Direct injection is the most common system in modern automotive engines, where fuel is injected directly into the main combustion chamber of each cylinder.
