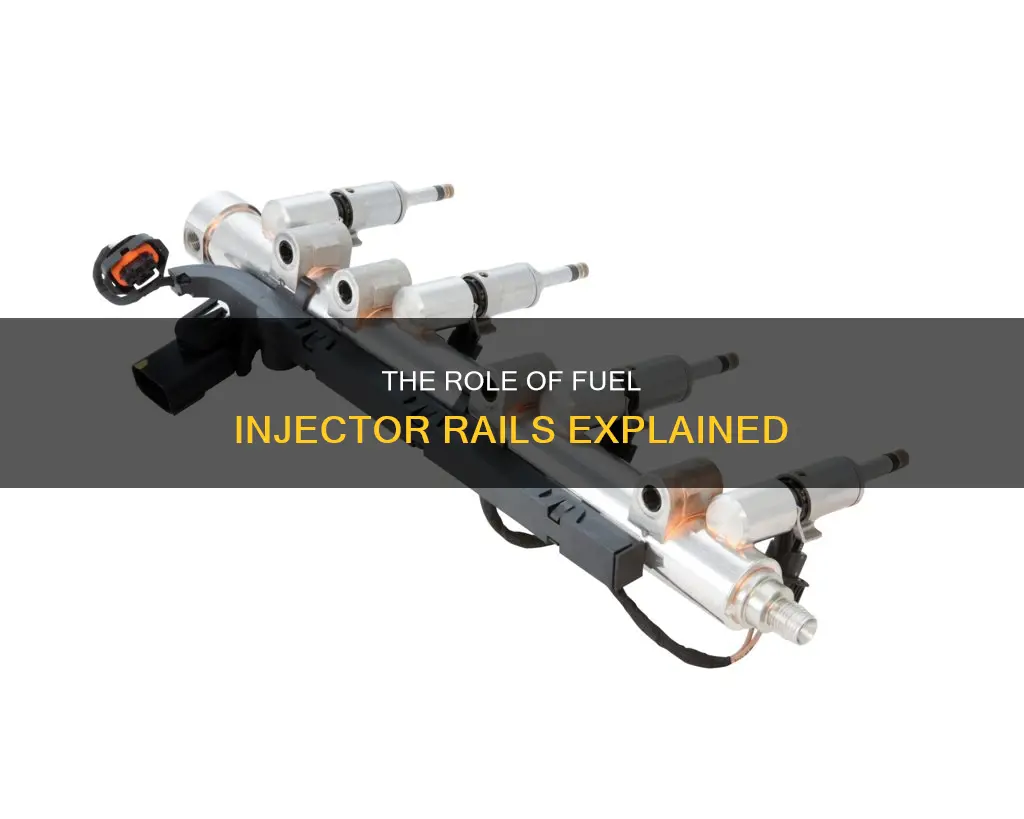

The fuel injector rail, also known as a common rail, is an integral part of an engine's fuel supply system. It supplies fuel to the injectors at the required pressure, ensuring minimal pressure fluctuations between injections. The fuel rail is connected to a high-pressure pump that maintains the necessary pressure, which is then delivered to the injectors. This high-pressure injection system provides improved fuel efficiency and power delivery by injecting fuel as smaller droplets, resulting in a higher surface area-to-volume ratio. The injector rail is controlled by the engine's electronic control unit (ECU), which ensures precise fuel injection and can adapt to different fuel qualities and cold-starting requirements.
Explore related products
What You'll Learn
The fuel rail supplies fuel to injectors
The fuel rail is an essential component of an engine's fuel supply system. Its primary function is to supply fuel to the injectors, ensuring that the fuel is available at the required injection pressure. This process is facilitated by a high-pressure pump, which applies system pressure to the fuel before it is delivered to the injectors. The fuel rail plays a crucial role in maintaining the necessary pressure at the start of the injection and minimizing pressure fluctuations between individual injections.
The fuel rail is essentially a pressure accumulator, storing fuel at high pressure. This high-pressure environment allows the fuel rail to supply multiple fuel injectors simultaneously. The injectors are typically controlled by the engine control unit (ECU), which ensures that the injection process is precisely managed. When the fuel injectors are activated by the ECU, a hydraulic valve, consisting of a nozzle and plunger, opens mechanically or hydraulically, releasing fuel into the cylinders at the desired pressure.
The design of the fuel rail varies depending on the type of engine and fuel injection system. For example, in common rail direct fuel injection systems, the fuel rail operates at extremely high pressures, exceeding 2,000 bars (200 MPa or 29,000 psi). This high-pressure fuel rail feeds solenoid valves, resulting in improved fuel atomization and more efficient combustion. The high-pressure pump plays a vital role in maintaining the target pressure within the fuel rail, either through mechanical or electronic control.
The fuel rail's ability to supply fuel at the required pressure is critical for the engine's performance and efficiency. By ensuring that the fuel is available at the necessary injection pressure, the fuel rail contributes to the formation of a homogeneous mixture of fuel and air, which is essential for complete combustion. This precise fuel injection process, facilitated by the fuel rail, optimizes the engine's performance, fuel consumption, and emissions.
Upgrading or modifying the fuel rail is a consideration for some vehicle owners, especially in the context of aftermarket modifications or performance enhancements. However, it is important to approach such upgrades with caution, as changing the fuel rail alone may not lead to significant improvements. Consulting with specialists or seeking advice from experienced communities can help ensure that any modifications are safe and effective, taking into account the engine's overall management system and other relevant factors.
Fuel Injectors: Cleaning Frequency for Optimal Performance
You may want to see also
Explore related products
Fuel pressure is stored remotely
The fuel rail is essentially a pressure accumulator, storing fuel at high pressure. This high-pressure fuel is then supplied to multiple fuel injectors. The fuel injectors are electrically activated, and when they receive a signal from the engine control unit (ECU), they mechanically or hydraulically open a hydraulic valve. This valve consists of a nozzle and plunger, which work together to spray fuel into the cylinders at the desired pressure.
The use of a common fuel rail simplifies the function of the high-pressure pump, as it only needs to maintain a target pressure, which can be controlled either mechanically or electronically. The pressure in the fuel rail is typically regulated by a pressure-regulating valve or a demand-controlled pump. This ensures that the maximum permissible pressure in the fuel rail is not exceeded, as there is a pressure limiter in place.
The remote storage of fuel pressure in the fuel rail allows for precise fuel injection, forming a homogeneous mixture with the fresh intake air. This mixture is then ignited, providing the necessary power for the vehicle's engine. The fuel rail's role in maintaining consistent fuel pressure contributes to efficient combustion and optimal engine performance.
MOC Fuel Injector Cleaner: Alcohol Content and Effects
You may want to see also
Explore related products
Injectors are electrically activated
The fuel rail supplies the injectors with fuel, and it is important that the fuel has the necessary pressure at the start of the injection and that there are minimal pressure fluctuations between individual injections. The high-pressure pump applies system pressure to the fuel, which the fuel rail then delivers to the injectors. The pressure in the fuel rail is adjusted as necessary by a high-pressure pump.
The fundamental function of a fuel injection system is to spray pressurised fuel into the engine. The system must determine the appropriate amount of fuel to be supplied and control the fuel flow to deliver this amount. The fuel injector is effectively a spray nozzle that performs the final stage in the delivery of fuel into the engine. Direct injection systems inject fuel directly into the combustion chamber of each cylinder, where it is mixed with air. This precise delivery of fuel enhances fuel atomisation, resulting in improved combustion efficiency and power output while reducing emissions.
In common rail systems, a high-pressure pump stores a reservoir of fuel at high pressure. The common rail refers to the fact that all of the fuel injectors are supplied by a common fuel rail, which is a pressure accumulator where the fuel is stored at high pressure. This accumulator supplies multiple fuel injectors with high-pressure fuel. When the fuel injectors are electrically activated, a hydraulic valve consisting of a nozzle and plunger is mechanically or hydraulically opened, and fuel is sprayed into the cylinders at the desired pressure.
Fuel Injector Cleaners: Spark Plug Fouling Culprits?
You may want to see also
Explore related products
Fuel is sprayed into cylinders at desired pressure
The fuel injector rail is a key component in the fuel injection system, which is responsible for delivering fuel to the engine at the desired pressure. The rail itself is a pressure accumulator, storing fuel at high pressure, of up to and above 2,000 bars (200 MPa; 29,000 psi). This high-pressure pump ensures that the fuel is available at the required injection pressure from the start of the injection process.
The fuel injector rail is connected to the injectors, which are mounted directly on the rail. The injectors are electrically activated, and when activated, a hydraulic valve opens, allowing fuel to be sprayed into the cylinders at the desired pressure. This process is controlled by the engine control unit (ECU), which can be mechanical or electronic. The ECU ensures that the injection pressure and rate remain consistent for each of the multiple injection events.
The fuel injector rail is an important part of the engine's fuel supply system. The fuel supply module's task is to pump the required volume of fuel out of the tank, through the fuel injector rail, and to the injectors. The pressure in the fuel rail is regulated to ensure it remains at the necessary level for injection. This regulation is achieved through a pressure-regulating valve or a demand-controlled pump.
The injectors enable the injection of fuel with precision, so it forms a homogeneous mixture with the fresh intake air. This mixture is then ignited in the combustion chamber, providing power to the engine. The high pressure provided by the common rail system allows for better fuel atomisation, improving combustion and, therefore, engine performance.
Effective Fuel Injector Cleaners: How Long Does It Take?
You may want to see also
Explore related products
High-pressure pumps maintain target pressure
One early approach was to supply more fuel than was needed to the common rail and use a pressure control valve to spill excess fuel back into the fuel tank. A more modern approach is to meter the fuel at the high-pressure pump to ensure that only the amount of fuel required by the injectors is supplied to the common rail. This can be done by metering the fuel drawn into the pump (inlet metering) with an inlet metering valve (IMV) or by allowing the pump to draw in an uncontrolled amount of fuel and metering the pump's discharge flow (outlet metering) with an outlet metering valve (OMV). Another method is to vary the effective displacement of the high-pressure pump.
The pressure in the rail will decrease as the injectors spray fuel into the cylinders to drive the engine. If the pressure in the rail is below the target value, the pulse width command to the fuel quantity valve will increase to increase the amount of fuel allowed into the rail, and the pressure will rise. Conversely, if the pressure in the rail is above the target value, the pulse width command to the fuel quantity valve will decrease to reduce the amount of fuel allowed into the rail, and the pressure will drop.
In engines with variable cam timing, the timing of the fuel quantity valve pulses must be adjusted to compensate for the cam timing changes because the cam lobe for the fuel pump is moving along with the lobes for the intake and/or exhaust valves. This can be accomplished by adding the cam advance or retard adjusting cam position to the pulse timing to ensure the pulses driving the fuel quantity valve continue to add pressurized fuel to the rail.
Fuel Injector Noises in Jukes: What You Need to Know
You may want to see also
Frequently asked questions
A fuel injector rail, or common rail, is a pressure accumulator where fuel is stored at high pressure.
The fuel injector rail supplies fuel to the fuel injectors. The fuel injector injects the fuel so that it builds a homogenous mixture with the added air.
The ideal pressure for the fuel injector rail is over 2,000 bar or 200 MPa or 29,000 psi.
The fuel-supply module pumps the fuel volume out of the tank to the fuel rail by using a certain pressure.
Upgrading your fuel injector rail will have 0 impact on the amount of fuel injected. Two different rails at the same pressure, with the same injectors, being triggered for the same amount of time will flow the same amount.
