Fuel injectors are an essential component of a car's engine, delivering gas to the cylinders. However, choosing the right fuel injectors can be a complex task, as the wrong choice can lead to engine damage. Factors to consider include the type of fuel, injector harness plug style, and engine modifications such as the addition of a turbocharger or supercharger. The size of the fuel injectors is critical, as larger injectors can lead to excess fuel and engine flooding if not properly configured. Accurate injector data is also crucial for the on-board computer to control the fuel injector effectively. Dirty or faulty fuel injectors can cause various issues, including rough idling, engine stalling, and decreased gas mileage.
| Characteristics | Values |
|---|---|
| Fuel Type | Gasoline, Ethanol, Race Gasses, Fuel Additives |
| Injector Harness Plug Style | USCAR (ev6), Jetronic (ev1), Denso (Sumitomo), Multec (Mini-Delphi) |
| Injector Flow Rate | 43 psi/3 bar (industry standard) |
| Injector Flow Conveyance | cc's per minute (cc/min) or pounds per hour (lb/hr) |
| Injector Size | 34mm, 48mm, 60mm |
| High or Low Impedance | Depends on the ECU; use an ohm meter to determine |
| Injector Data | Critical for the on-board computer to control the fuel injector properly |
| Nonlinear Fuel Delivery | Occurs when the pulse width is below a certain point |
| AFR at Idle | Ideally maintained at 14.7:1 |
| Dirty Fuel Injector Symptoms | Rough idling, engine stalling, poor gas mileage, tachometer needle moving unpredictably |
Explore related products
What You'll Learn
Fuel injector flow rate sizing
To determine the appropriate fuel injector flow rate, several factors need to be considered. Firstly, you need to establish the target horsepower of your engine. This involves considering any modifications made to the engine, such as upgrades to pistons, camshafts, or the addition of a turbocharger or supercharger. By adding the expected horsepower gains from these modifications to the stock engine horsepower, you can estimate the engine's overall power output.
Brake-Specific Fuel Consumption (BSFC) is another crucial factor in determining the fuel injector flow rate. BSFC represents the amount of fuel, in pounds, consumed per horsepower produced per hour. It helps determine the amount of fuel required for the desired horsepower output. Additionally, understanding the safe duty cycle of your engine is essential. The duty cycle refers to the maximum amount of time the injector can be open to deliver fuel, expressed as a percentage.
Once you have determined the target horsepower, BSFC, and safe duty cycle, you can use the following formula to calculate the ideal fuel injector flow rate: injector flow rate = horsepower × BSFC / # cylinders × safe duty cycle. By plugging in the values, you can determine the flow rate in lb/hr. If you require the result in cc/min, you can use a lb/hr to cc/min conversion calculator.
It is worth noting that fuel injector flow rate calculators are available online, which can assist in determining the appropriate flow rate for your specific engine setup. These calculators take into account various factors, such as base fuel pressure and maximum injector duty cycle, to provide recommendations for fuel injector sizing. It is important to select fuel injectors that match your engine's output to ensure optimal performance and avoid issues such as lean-out or fuel starvation.
Fuel Injectors: Solenoids, Not Relays
You may want to see also
Explore related products

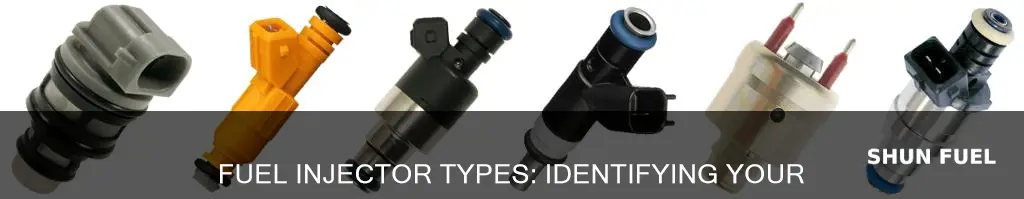

Injector harness plug style
- USCAR (EV6)
- Jetronic (EV1)
- Denso (Sumitomo)
- Multec (Mini-Delphi)
- GM Delphi
- Honda
- Nippon Denso
- Nissan
- Toyota
It's important to note that some vehicle manufacturers may use unique injector connector designs, such as Suzuki's Hayabusa. Additionally, when determining the right fuel injectors for your vehicle, it's crucial to consider factors like fuel type (gasoline, ethanol, race gases, etc.), injector flow rate, and impedance compatibility with your ECU (high or low impedance).
To identify the correct injector harness plug style for your vehicle, you may need to visually inspect your existing fuel injector connector and compare it with pictures or descriptions provided by parts suppliers. You can also refer to the make, model, and year of your vehicle to find compatible injector harness plugs.
If you're installing new fuel injectors or replacing broken connectors, you can choose between pre-assembled injector connector kits and assembling a new connector from a kit. Pre-assembled options, like the Fuel Injector Connector Kit (FIC) with a pigtail, offer a quick and simple installation process. On the other hand, assembling a new connector from a kit allows for a more customised solution and ensures proper electrical conductivity in your fuel injection circuit.
When to Use Fuel Injector Cleaner?
You may want to see also
Explore related products
Injector size vs linear fuel delivery
Injector size is a critical aspect of engine performance, as it determines the amount of fuel delivered to the engine. However, it is important to understand that bigger injectors do not always equate to more power. The key lies in finding the right balance between injector size and linear fuel delivery to ensure optimal engine performance and avoid potential issues.
Linear fuel delivery refers to the injector's ability to deliver fuel in a consistent and proportional manner. In the context of injector operation, linearity refers to the relationship between the pulse width and the amount of fuel delivered. Ideally, a linear injector should deliver fuel in direct proportion to the pulse width. For example, if an injector is expected to deliver 40 cc/min at a 1.0 ms pulse width, it should theoretically deliver 35 cc/min at a 0.8 ms pulse width.
However, in reality, injectors have a non-linear range at the lower and upper ends of their operating range. This non-linearity means that below a certain pulse width, the injector's fuel flow becomes unpredictable and may result in significantly less fuel being delivered than expected. This "cliff" point varies among injectors and can cause issues such as unstable engine performance and poor idle quality.
To address this, it is crucial to select the appropriate injector size for your engine. Various factors, such as engine modifications, horsepower expectations, and fuel type, come into play when determining the right injector size. For example, a 4-cylinder turbo car with 800-900 whp would require a larger injector (1600-2000cc/min) compared to a car with a smaller injector (1000cc/min), as the larger injector can deliver ample fuel to meet the higher horsepower demands.
Additionally, the quality of the injector internals and spray pattern also influence the linear response of the injector. By considering these factors and selecting the right injector size, you can ensure that the injector operates within its linear range for stable and efficient fuel delivery.
Unfreezing Fuel Injectors: DIY Guide to Quick Fixes
You may want to see also
Explore related products
Injector data
Fuel injectors play a critical role in delivering gas to the appropriate cylinders in your vehicle's engine. When choosing fuel injectors, it is essential to consider various factors to ensure optimal performance and avoid potential engine damage. Here is an overview of the key injector data to keep in mind:
Injector Size:
Selecting the right size of fuel injectors is crucial. Bigger injectors do not necessarily equate to more power. If your engine is not set up to handle the additional fuel, excess fuel can flood the engine, leading to operational issues or engine damage. The size of the fuel injectors should align with the engine's specifications and expected horsepower. Increasing airflow, such as through a turbocharger or supercharger, can accommodate larger fuel injectors.
Fuel Type:
The choice of fuel injectors depends on the type of fuel your vehicle uses, such as gasoline, ethanol, or race gases. Ethanol-based fuels like E85 require a 30% increase in fuel to achieve the same power as gasoline. Understanding the fuel type helps determine the appropriate injector size and flow rate.
Injector Flow Rate:
The industry standard for injector flow rate is typically 43 psi/3 bar. Flow rate is measured in cc's per minute (cc/min) or pounds per hour (lb/hr). A common rule of thumb for sizing injectors for gasoline is to have 1 cc/min flow for each horsepower. For instance, a 1000 cc injector is required to achieve 1000 crank horsepower on 93 octane gasoline with a fuel pressure of 43 psi.
Injector Harness Plug Style:
Different injector harness plug styles are available, such as USCAR (ev6), Jetronic (ev1), Denso (Sumitomo), and Multec (Mini-Delphi). Ensuring compatibility between the injector harness plug style and your vehicle's electrical system is essential.
Impedance:
Fuel injectors can be high or low impedance, depending on the compatibility with the ECU (engine control unit). Aftermarket injectors may work with both high and low impedance. Low impedance injectors have higher flow rates, while high impedance injectors are preferred due to their lower electrical requirements, resulting in a cooler electrical system and potentially higher reliability.
Accurate injector data is vital for the proper functioning of the engine. The on-board computer relies on precise injector data, including dead time and lag characteristics, to control the fuel injector effectively. Inaccurate or insufficient injector data can lead to a poor driving experience and potential engine issues.
Fuel Injector Cleaner: Misfire Culprit or Car Savior?
You may want to see also
Explore related products
Fuel injector external dimensions
When choosing a fuel injector, it is important to consider the horsepower goal, fuel type, and plug type. The fuel type will directly impact the size and flow rate of the injector. For example, ethanol-based fuels like e85 require approximately 30% more fuel to produce the same amount of heat as gasoline, necessitating a larger injector. Additionally, the physical dimensions and electrical connections of the injector must be compatible with the vehicle's wiring harness.
Low impedance injectors require a peak-and-hold injector driver, which allows for a higher opening current and lower maintenance current. These injectors are commonly used in aftermarket ECUs and facilitate operation, especially with high fuel pressures. On the other hand, high impedance injectors are typically driven by a saturated injector driver and have a resistance value of around 12 ohms, resulting in a continuous current draw of about 1 amp.
To assist in selecting the proper fuel injector size, tools such as the FuelTech Fuel Injector Calculator are available. This calculator takes into account parameters such as the number of fuel injectors, estimated horsepower, and the type of induction to recommend the appropriate fuel injector sizing. It is critical to choose the right fuel injector size for optimal performance and tuning control in a fuel-injected engine.
Cleaning Cylinder Fuel Injectors: Cost and Maintenance Tips
You may want to see also
Frequently asked questions
The fuel injectors in your vehicle can usually be found on the intake manifold, connected to one another by a fuel rail. They are located on the engine manifold, at the top of the engine.
Faulty fuel injectors can cause issues with your engine, such as rough idling, knocking, poor gas mileage, and a smoky exhaust. If your engine is not starting, this could also be a sign of fuel injector issues.
You can use a fuel system cleaner and spray it on the injector. Then, reinstall the injector and test your vehicle. If the issue persists, you should visit a professional.
The most widely used type of fuel injector today is the EFI (Electronic Fuel Injection) system, used in cars and light trucks.
Bigger fuel injectors do not always equate to more power. You must consider the engine setup and whether it can handle the extra fuel. Consult a reputable car tuner to determine the right fuel injector size for your vehicle.
