The Honda CBR600RR is a popular motorcycle model, but some owners have reported issues with the fuel injectors. Problems range from fuel injectors not functioning to fuel line restrictions and fuel starvation at high RPMs. To check the fuel injectors, owners can try turning on the ignition, setting the kill switch to run, and forcing the wires to the ground to see if the injectors spray fuel. If they don't, the issue may lie with the ECU or another circuit. Other troubleshooting steps include checking the tank breather pipes, fuel pressure regulator, and fuel pump.
| Characteristics | Values |
|---|---|
| Fuel Injector Issues | No fuel to injectors |
| Fuel Pump Issues | Fuel starvation at higher RPMs, low flow, possible filter issues |
| Fuel Line Issues | Fuel line too tight, no restrictions |
| Fuel Injector Cleaner | Recommended for high mileage or cheap gas usage |
| Fuel Injector Testing | Turn ignition on, set kill switch to run, force pink wires to ground |
| Fuel Pressure Testing | Use fuel pressure gauge to measure pressure and flow rate |
| Fuel Injector Actuation | Works with 12V battery and connectors |
| Breather Hoses | Connected and functioning |
| Fuel Pressure Regulator | May be faulty, worth checking |
| Tank Breather Pipes | Ensure connected and not constricted |
| Injector Number | 8 injectors (4 primary, 4 secondary) |
| Clutch Switch | Bypassing does not affect fuel injector function |
Explore related products
What You'll Learn
Check the tank breather pipes are connected and not constricted
Checking the tank breather pipes on your Honda CBR600RR is an important step in ensuring the proper functioning of your motorcycle's fuel system. Here's a detailed guide to help you through the process:
Locate the Breather Pipes: The first step is to locate the breather pipes on your Honda CBR600RR. According to the owner's manual, the breather and drain hoses should be coming down together from the tank, passing by the alternator cover, and then going down to the guide. Specifically, the breather hose should be located near the alternator cover on the left side of the motorcycle.
Inspect Connections: Once you've located the breather pipes, visually inspect the connections to ensure that they are properly secured and attached. Check for any signs of damage, leaks, or obstructions that may impede the flow of air. Make sure there are no kinks, pinches, or blockages in the hoses.
Check for Restrictions: Next, you'll want to verify that the breather pipes are not constricted or restricted in any way. This can be done by performing a simple airflow test. Use your mouth to gently blow air into one end of the breather pipe. If the air passes through without any resistance, the pipe is likely unobstructed. You can also try using a small, thin object like a wire to check for any physical blockages inside the hose.
Ensure Proper Ventilation: The tank breather system is crucial for allowing air to enter the tank and relieving any positive or negative pressure created by the fuel pump. Check the ventilation by observing the fuel cap when you open it. There should be a slight release of pressure, indicating that the system is functioning correctly. If there is no pressure release, it could be a sign of a blocked or restricted breather pipe.
Address Common Issues: One common issue with the CBR600RR's tank breather system is a clogged hose due to a wasp nest or rust buildup. If you suspect this, carefully inspect and clean the hoses to ensure they are clear of any obstructions. Additionally, ensure that the fuel tank is not overfilled, as this can also contribute to pressure problems.
By following these steps, you can effectively check the tank breather pipes on your Honda CBR600RR to ensure they are connected and not constricted. This maintenance procedure will help ensure the proper functioning of your motorcycle's fuel system and ventilation, providing a smoother riding experience.
Adjusting Fuel Injectors: Running Richer, the How-to Guide
You may want to see also
Explore related products
Check the fuel pressure regulator is working
To check if the fuel pressure regulator is working on your Honda CBR 600RR, you can start by measuring the temperature of your headers after a ride. If the regulator is faulty, you may experience a leaking fuel injector. You can check for this by letting the bike sit for a day and then looking down the throttle bodies for noticeable wetness. If there is fuel leakage, you will be able to smell it.
Another way to check is to observe the symptoms of a failing fuel pressure regulator. Common signs include poor MPG (15-30MPG), poor performance, fouled spark plugs, a strong fuel odour when the bike is running, stalling, MAP sensor error (2 flashes), exhaust 'popping', non-standard and erratic engine temperatures, gas in the oil, and a low/erratic idle speed.
It is important to note that the 2005 and 2006 Honda CBR 600RR models do not have an external regulator. The regulator is built into the fuel pump, which is located inside the tank. The regulator works with the fuel pump to maintain a constant pressure of 50 psi.
If you suspect that your fuel pressure regulator is faulty, it is recommended to take your bike to a dealership for replacement. Alternatively, you can attempt to replace it yourself, but this requires mechanical knowledge and the right tools.
When to Replace Fuel Injectors: Maintenance Guide
You may want to see also
Explore related products

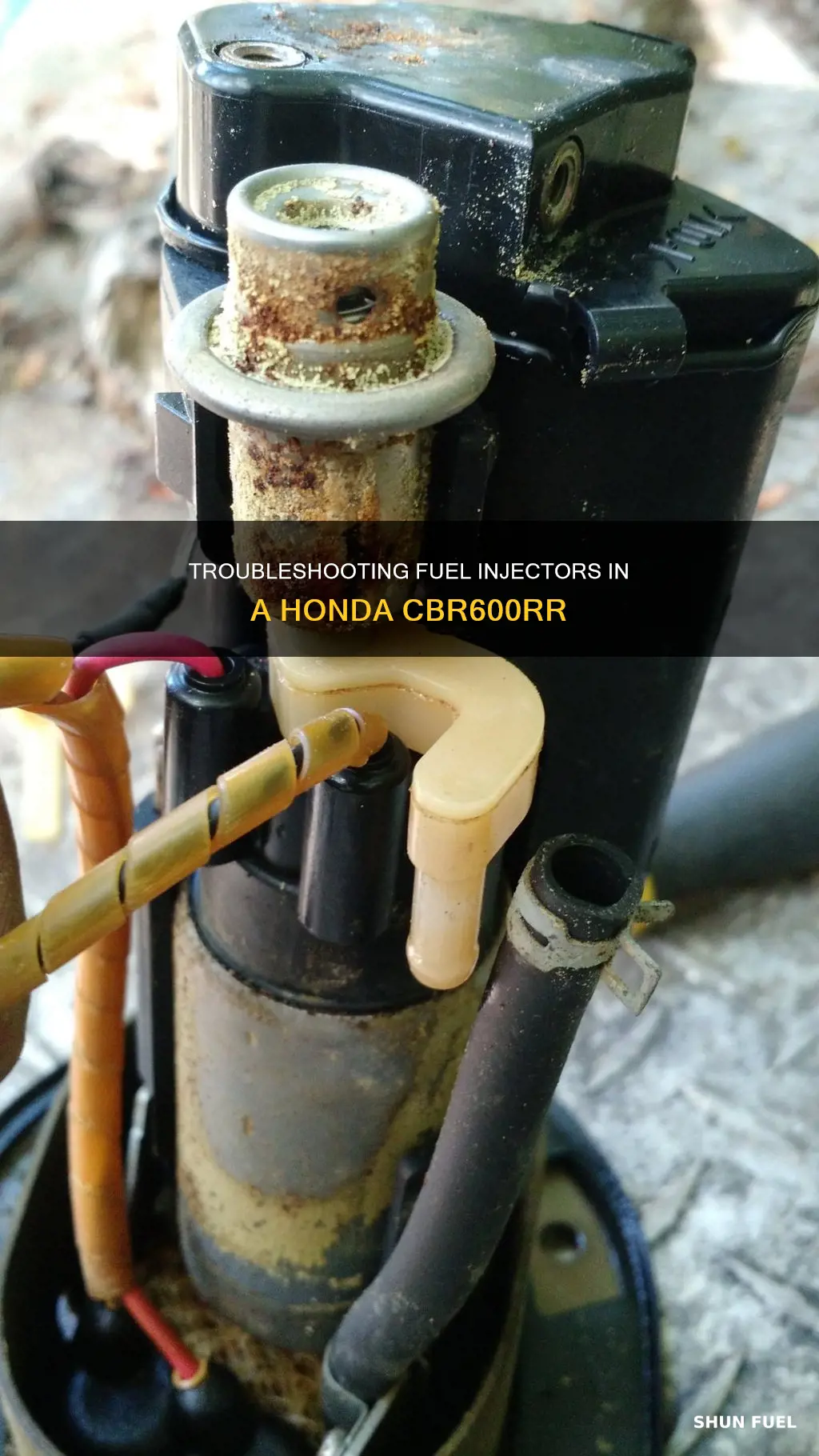

Check the fuel pump
To check the fuel pump of your Honda CBR 600RR, you can perform the following steps:
Firstly, it is important to understand the function of the fuel pump and its role in the fuel injection system. The fuel pump is responsible for delivering fuel from the tank to the engine, where it is injected into the cylinders via the fuel injectors. The pump needs to provide sufficient fuel pressure and volume to ensure the engine receives the required amount of fuel for proper combustion.
Next, you can start by inspecting the fuel pump for any visible signs of damage or wear. This includes checking for leaks, cracks, or any debris that may have accumulated. Ensure that the fuel pump is securely connected and mounted, as vibrations during operation can cause issues over time.
Then, you can proceed to test the fuel pump's performance. One common method is to measure the fuel pressure and volume using a fuel pressure gauge. The Honda CBR 600RR fuel pump should provide a pressure of around 50 psi. If the pressure is significantly lower, it may indicate a faulty fuel pump or a blockage in the fuel line.
Additionally, you can perform a simple test by connecting a 12-volt battery directly to the fuel injectors. If the fuel pump is functioning correctly, you should hear a clicking noise, indicating that the fuel injectors are receiving power and actuating.
It is also important to consider other factors that may impact fuel delivery, such as the fuel filter and fuel lines. A clogged fuel filter can restrict fuel flow, leading to insufficient fuel pressure. Similarly, ensure that the fuel lines are not kinked or restricted, as this can also affect fuel delivery to the engine.
Finally, if you suspect a faulty fuel pump, it is recommended to consult a professional mechanic or a Honda dealership for further diagnosis and repair. They will have the necessary tools and expertise to thoroughly inspect and replace the fuel pump if required.
Bleeding Diesel Fuel Injectors: Step-by-Step Guide for DIYers
You may want to see also
Explore related products
Check the injectors are clicking and shooting fuel
To check that the injectors on your Honda CBR 600RR are clicking and shooting fuel, you will need to test them. Here is a step-by-step guide:
Step 1: Prepare for Testing
Before you begin, put on protective gear, including work gloves, eye protection, and long sleeves or coveralls, to safeguard against scrapes, scratches, and fuel contact. It is also recommended to work outdoors or in a well-ventilated area, as gas fumes can be dangerous. Ensure the car is in park with the emergency brake on, and check that the hood is cool before proceeding.
Step 2: Locate the Injectors
Fuel injectors are typically found on the engine manifold, positioned on top of the engine. They spray fuel into the cylinders, where it is combined with air and compressed before ignition by the spark plug.
Step 3: Conduct the Listening Test
Start the engine and let it idle. Take a long metal screwdriver or rod and place it against one of the injectors. Lean in close and put your ear near the handle of the screwdriver to listen for a clicking sound. This sound indicates that the injector is functioning properly. Repeat this process for each injector, noting any that are not clicking.
Step 4: Check for Leaks
Leaks around the injectors may indicate faulty O-ring seals. Turn on the engine and let it idle for a few minutes. Shine a flashlight under the hood to spot any leaking fuel. If you smell gas or notice visible leaks, the injector may need to be replaced.
Step 5: Check the Fuel Spray Pattern
For Throttle Body Injection (TBI) injectors, you can visually inspect the fuel spray pattern. It is normal to observe a partially atomized fuel spray in an inverted V pattern. However, if you see a solid, single spray or an irregular pattern, it suggests a dirty injector or a broken internal component.
Step 6: Use a Diagnostic Scanner
Consider using an on-board diagnostics (OBD) reader to identify potential issues with the fuel injectors. These scanners can read data from your vehicle's computer system, helping to spot errors and problems. Refer to the manufacturer's instructions for specific connection and usage details.
Step 7: Check the Trigger Circuit
If you identify a faulty injector, further troubleshooting may be required. You can check the trigger circuit by turning the key to the "on" position without starting the engine. Ensure the electrical system is active, then force the pink wires to ground. If the injectors spray, the issue may lie with the ECU. If they don't spray, there could be a circuit problem elsewhere.
Step 8: Consult a Professional
If you continue to experience issues, consider taking your vehicle to a professional mechanic for a thorough diagnosis of the electronic control unit and fuel system. They may recommend cleaning or replacing the injectors as necessary.
Diagnosing Faulty Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Check the wiring integrity on all grounding
Checking the wiring integrity of the grounding on your Honda CBR 600RR is an important step in ensuring the safety of your motorcycle's electrical system. Here's a detailed guide on how to do it:
Step 1: Understand the Basics
Start by understanding the purpose of grounding in electrical systems. Grounding provides a risk-free path for electrical current to flow in the event of a fault or issue. This helps protect sensitive components and prevent electrical shorts.
Step 2: Gather Tools
You will need a few basic tools for testing the wiring integrity, such as a multimeter, which you can use to measure voltage and resistance, and a wiring diagram for your specific Honda CBR 600RR model. This diagram will help you locate all the grounding points and wires.
Step 3: Inspect Grounding Wires
Begin by visually inspecting all the grounding wires. Look for any signs of damage, corrosion, or loose connections. Ensure that the wires are securely connected to the chassis, battery, and other components. Refer to your motorcycle's manual or a forum to locate all the grounding wires and their connections.
Step 4: Test Voltage and Resistance
Use your multimeter to test the voltage and resistance at various points in the grounding circuit. Compare your readings with the expected values provided in your motorcycle's manual or wiring diagram. For example, you should have both headlight pins showing 12 volts. Any deviations from the expected values may indicate a faulty wire or connection.
Step 5: Check for Continuity
Check for continuity between the injectors and the ECU (Engine Control Unit). Ensure that the connections are secure and there is no disruption in the flow of current.
Step 6: Address Issues
If you find any issues, such as high resistance, low voltage, or broken wires, address them accordingly. Clean or replace corroded or damaged wires, and ensure all connections are tight and secure. If you need to solder wires, take extra care to avoid creating a messy ball of wire and solder. Consider using ring terminals for a neater connection.
Step 7: Verify Repairs
Once you've made any necessary repairs or adjustments, retest the voltage, resistance, and continuity to verify that your fixes have resolved the issues.
Remember to follow manufacturer guidelines and safety precautions when working with electrical systems. If you're unsure about any aspects of the process, consult a professional mechanic or seek advice from experienced Honda CBR 600RR enthusiasts on dedicated forums.
Diagnosing Fuel Injector Issues in Your Subaru: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You can check the fuel injectors on your Honda CBR 600RR by plugging in 12 volts via battery and connectors. If the injectors are working, you will hear a clicking noise and see fuel spouting into the manifold.
This could be due to a faulty fuel pressure regulator or a blocked fuel filter. Check that your tank breather pipes are connected and not constricted.
You should have 50 psi on the fuel pump. If you do not, replace the pump. You can also test the flow rate manually. The manual specifies a minimum flow rate of 6.4 oz/10 seconds.
Yes, you can use a fuel injector cleaner. However, this is typically only necessary if you have put on a lot of mileage or used really cheap gas.
