Whether a 3/8 fuel line is big enough depends on several factors, including the type of pump, engine, vehicle, and fuel being used. For example, a 3/8 line can support 600 HP with sufficient pump head, and a 3/8 line at 18 psi can provide enough fuel for a 496 truck-pull engine. However, some users have reported issues with fuel flow and others have suggested that a larger line, such as a 1/2 line, may be more suitable for certain applications, especially when using fuel types with higher volume requirements, such as E85.

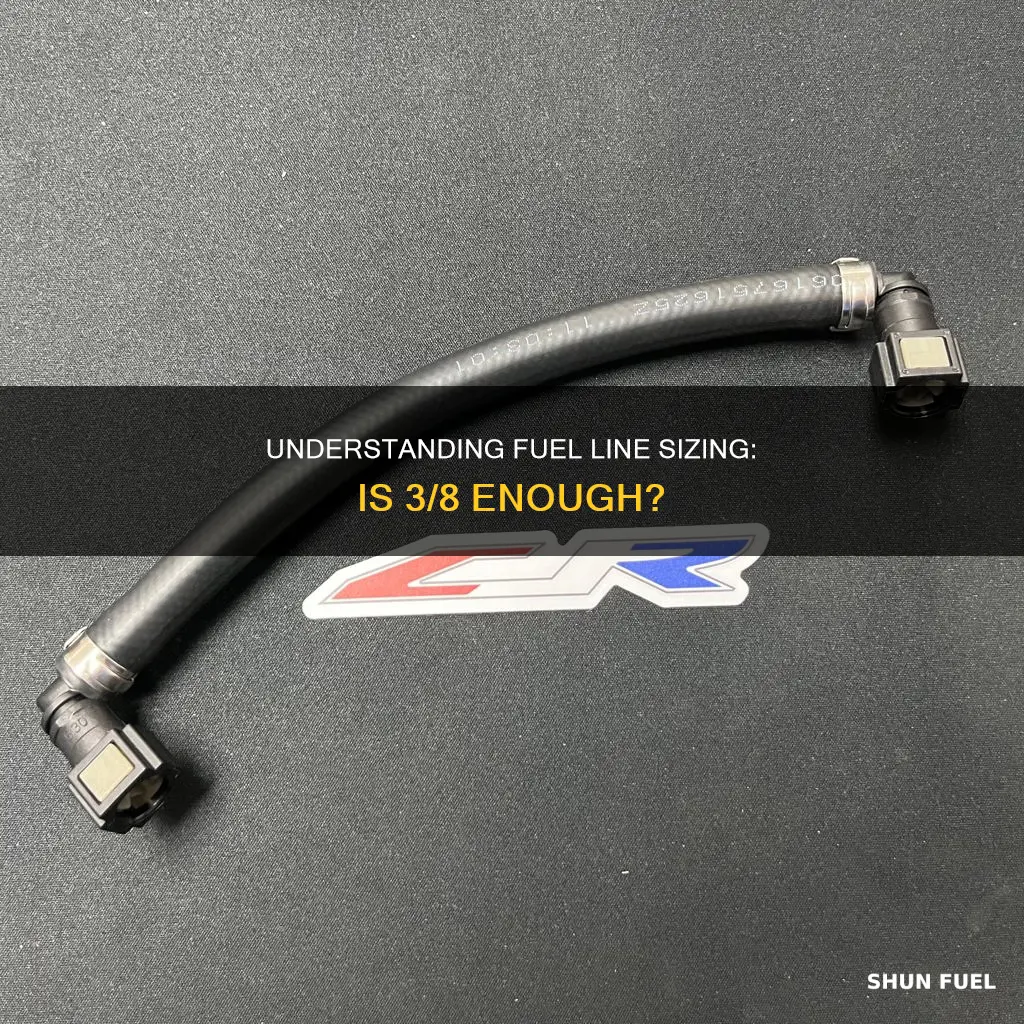

Is a 3/8 fuel line big enough?
| Characteristics | Values |
|---|---|
| Adequate flow | Yes, for most setups |
| Horsepower | Can support up to 600 HP with sufficient "pump head" |
| Pressure | 18 psi is enough for a start |
| Volume | May not be enough for E85 |
| Weight | Negligible difference when compared to 1/2" lines |
| Bends | Harder to bend without kinking than 1/2" lines |
| Kinking | More resistant than 1/2" lines |
| Fittings | Requires careful attention |
| Pump | A bigger pump is needed for higher horsepower |
| Fuel type | Gasoline flows more easily than water |
| Temperature | Can withstand temperatures from -40°F to 212°F |
Explore related products
What You'll Learn
A 3/8 line is enough for straight gas but E85 requires more volume
The suitability of a 3/8 fuel line depends on the type of fuel and engine in question. For engines that use straight gas, a 3/8 fuel line is typically sufficient. However, for engines that utilise E85 fuel, a larger line size may be necessary due to its higher volume requirements.
E85 fuel, a blend of ethanol and gasoline, has gained popularity, particularly in racing and sports car communities. It offers higher thermal efficiency, increased torque, and improved engine performance. However, one of its drawbacks is the reduced miles per gallon compared to gasoline, resulting in a higher effective cost.
When considering fuel lines for E85, it's important to factor in the engine's specifications and intended use. Some engines with higher fuel consumption or specific performance requirements may need larger line sizes, such as a 1/2" line, to ensure adequate fuel delivery. This is especially true for engines with higher horsepower, where a single 3/8" line may not be sufficient to support the fuel demand.
Additionally, the fittings, bends, and type of pump used in the fuel system play a crucial role. Mechanical pumps, for instance, may struggle with smaller line sizes, while electric pumps that push the fuel can handle a 3/8" line more effectively. Careful attention to fittings and maintaining high pressure can also help ensure a 3/8" line works without issues.
In summary, while a 3/8" line is generally adequate for straight gas, E85 fuel's higher volume requirements may necessitate larger line sizes, especially for engines with higher fuel consumption or specific performance needs. It's essential to consider the engine's specifications and intended use when making fuel line size decisions.
Softening Nylon Fuel Lines: Easy and Effective Tricks
You may want to see also
Explore related products
A 3/8 line at 18 psi can provide enough fuel
A 3/8" fuel line at 18 psi can provide enough fuel, depending on the setup and intended use of the vehicle.
For example, a 3/8" line at 18 psi can provide enough fuel for a 496 truck-pull engine using e-85 fuel. This setup would include a 18 psi pump placed by the fuel tank and a regulator at the carb. However, it is important to note that the fuel type and engine specifications may impact the fuel volume requirements.
Chevy engineers have stated that a 3/8" fuel line can feed enough gasoline to support 2200 horsepower. This is supported by calculations that show a 3/8" line at 14 psi can deliver 130 gallons per hour and at 20 psi can deliver 270 gallons per hour. Additionally, a 3/8" line can support 600 horsepower with sufficient "pump head", and with a big enough pump, it could even support 1000 horsepower.
However, some users have reported having trouble with a 3/8" line at just over 500 horsepower. This may be due to the fittings and bends in the line, as well as the type of pump being used. A big mechanical pump may not perform well with a small line, while an electric pump that pushes the fuel may handle it better.
In summary, a 3/8" fuel line at 18 psi can provide enough fuel for a variety of setups, but it is important to consider the specific requirements and limitations of the vehicle and engine.
Removing Fuel Line from '07 Pathfinder Fuel Rail
You may want to see also
Explore related products
A 3/8 line can support 600 HP with sufficient pump head
A 3/8" fuel line is a common upgrade from the stock 5/16" fuel line in many street vehicles and mild race applications. It is a good option for those who want to safely tune their vehicles without damaging them and are not looking to maximise horsepower.
A 3/8" fuel line can support 600 HP with sufficient "pump head". The "pump head" refers to the pumping power or the pressure that the pump can generate. If the pressure falls as the engine RPMs increase, you will need more pump head. This can be achieved with a bigger pump, higher pump voltage, or by increasing the line size.
The key to a sufficient fuel supply is pumping power. A 3/8" fuel line can provide enough fuel for 60 GPH at a pressure drop of less than 1 PSI, which is enough to support 720 HP. With a higher flow rate of 83.3 GPH, a 3/8" steel line can support 1000 HP at a BSFC of .5.
However, some users have reported having trouble with a 3/8" line beyond just over 500 HP. This may be due to the fittings and bends in the line, as well as the type of pump being used. A big mechanical pump may not work well with a small line, while an electric pump that pushes the fuel may handle it better.
Additionally, the fuel type should be considered. When using alcohol, the flow rate needs to be doubled, and when using E85, the flow numbers need to be increased by about 30%. Therefore, it is important to ensure that the fuel line, pump, and fittings are appropriate for the specific application and fuel type.
Brake Fluid and Fuel Lines: A Dangerous Mix?
You may want to see also
Explore related products
A 3/8 line can support 2200 horsepower
A 3/8" fuel line can support 2200 horsepower, according to Chevy engineers. This is supported by several sources, which state that a 3/8" fuel line can easily support 600 HP given sufficient "pump head". Given a big enough pump, a 3/8" steel line could support 1000 HP.
However, it is important to note that the exact setup and intended use of the car must be considered. For example, one source mentions that they started having trouble with a 3/8" line at just over 500 HP. Another source mentions that a 3/8" line would be fine for straight gas but that a larger line may be needed for E85 due to its higher volume requirements.
To ensure sufficient fuel supply, pumping power is key. A larger pump, higher pump voltage, and/or increasing the line size can help to achieve more pump head. Additionally, it is recommended to install an electronic fuel pressure gauge to monitor the pressure. If the pressure falls as the engine RPM's increase, this indicates that more pump head is needed.
In summary, while a 3/8" fuel line can support 2200 horsepower, it is important to consider the specific setup and intended use of the vehicle, as well as to monitor fuel pressure to ensure sufficient pumping power.
Understanding the Dual Fuel Line System in GoPed Engines
You may want to see also
Explore related products
A 3/8 line is harder to bend without kinking compared to a 1/2 line
When it comes to fuel lines, the size you need depends on your setup and intended use. A 3/8" fuel line is generally sufficient for most applications, but there are some considerations to keep in mind when deciding between a 3/8" and a 1/2" line.
One important factor is the bend radius. Bending a 3/8" fuel line can be more challenging than bending a 1/2" line, as it is more prone to kinking. This is especially true if you're working with a tight bend radius or making multiple bends. The larger diameter of a 1/2" line makes it easier to bend without kinking, which can be a significant advantage in certain installations.
To successfully bend a 3/8" fuel line without kinking, you may need to use a bending spring or a larger bender that can accommodate the tube's diameter. Some people have also found success by lightly greasing the tubing or using a heat gun to make the tube more pliable during the bending process. Additionally, ensuring that your fittings are properly sized and secured is crucial to avoiding leaks and restricting fuel flow.
Another factor to consider is the flow rate and volume requirements of your engine. A 1/2" line will provide a higher flow rate than a 3/8" line, which can be beneficial for high-performance engines or applications where the fuel line needs to be longer. However, a 3/8" line is typically adequate for most stock engines and can even support up to 600 HP with sufficient "pump head".
In summary, while a 3/8" fuel line is harder to bend without kinking compared to a 1/2" line, it is still a viable option for many applications. By using the appropriate tools and techniques, you can successfully bend a 3/8" fuel line and avoid kinking. Ultimately, the decision between a 3/8" and a 1/2" fuel line depends on your specific needs and the requirements of your engine setup.
Understanding Fuel Crossover Lines: Their Function and Importance
You may want to see also
Frequently asked questions
It depends on your car's setup and intended use. A 3/8" line is enough for straight gas but not for E85. Chevy engineers say that a 3/8" fuel line will feed enough gasoline to support 2200 horsepower. However, some users have experienced issues at just over 500 HP.
The key to a sufficient fuel supply is pumping power. The bigger the pump, the higher the pump voltage and/or the bigger the line size, the more fuel can be supplied. You should also consider the fittings and bends in your fuel line.
A 3/8" line is flexible and kink-resistant. It is also cheaper than a 1/2" line. However, it may not be suitable for high-performance cars or racing.
You can consider upgrading to a 1/2" line or using a high-pressure in-tank pump. Some people also use braided lines or poly lines.
