Repairing a broken fuel line into a filter can be a challenging task, especially with the risk of fuel leaks and safety hazards. The process often involves removing the fuel tank or filter, assessing the damage, and deciding whether to repair or replace the line. In some cases, a fuel line repair kit may be used, while others may require splicing lines together with compression fittings, such as brass or nylon connectors. It is important to ensure leak-free connections and consider the type of vehicle and fuel system involved. Safety precautions are crucial when working with flammable substances like gasoline.
How to repair a broken fuel line into the filter
| Characteristics | Values |
|---|---|
| Tools required | Tubing bender, tubing cutter, fuel line removal tool, drill, epoxy, masking tape |
| Materials required | Fuel line, compression fitting, rubber tubing, rubber hose, worm clamps, copper tubing, glue |
| Vehicle-specific parts | Dorman fuel line repair kit, OEM line, Ford fuel filter tool |
| Safety considerations | Avoid leaks, especially near a hot engine; avoid fuel vapour build-up; avoid using unsafe repair methods |
| Repair methods | Cut and replace the broken section; splice sections together; use a repair kit; use epoxy and copper tubing |
Explore related products
What You'll Learn
Using a tubing cutter to remove the broken fuel line
To repair a broken fuel line into the filter, you will need to use a tubing cutter to remove the broken fuel line. This is a cheap and simple tool that you can find at any hardware store, and it looks like a small C-clamp with a pizza cutter wheel. It will cut the fuel line cleanly and straight, without any jagged edges, sparks, or shavings.
First, place a drip pan under the area to catch any fuel that drips from the line once it is cut. This is an important step to prevent a mess and avoid any safety hazards. Make sure to keep all sources of ignition away from the area to prevent accidental fires.
The tubing cutter has two opposing cutting wheels that you position over the fuel line. Rotate and tighten the tool until it cuts through the line, making a perfect cut. This clean cut is necessary to guarantee a leak-free connection. Make the cut as far back as necessary, ensuring that there are at least 3 inches of a straight line to install the compression fitting.
If you are working with a nylon fuel line, you will need a nylon repair kit, which includes a nylon-tubing cutter. This kit will also provide you with the necessary connectors and blocks to hold the lines securely during the repair process.
For metal fuel lines, you can find replacement lines in all sizes, and some lines come with a flare and threaded connector already installed, simplifying the replacement process. Always add a few extra inches to the line when purchasing to account for any mistakes and to ensure a proper fit.
Finding the Fuel Inlet Line on Your Homelite 330's Zama Carb
You may want to see also
Explore related products

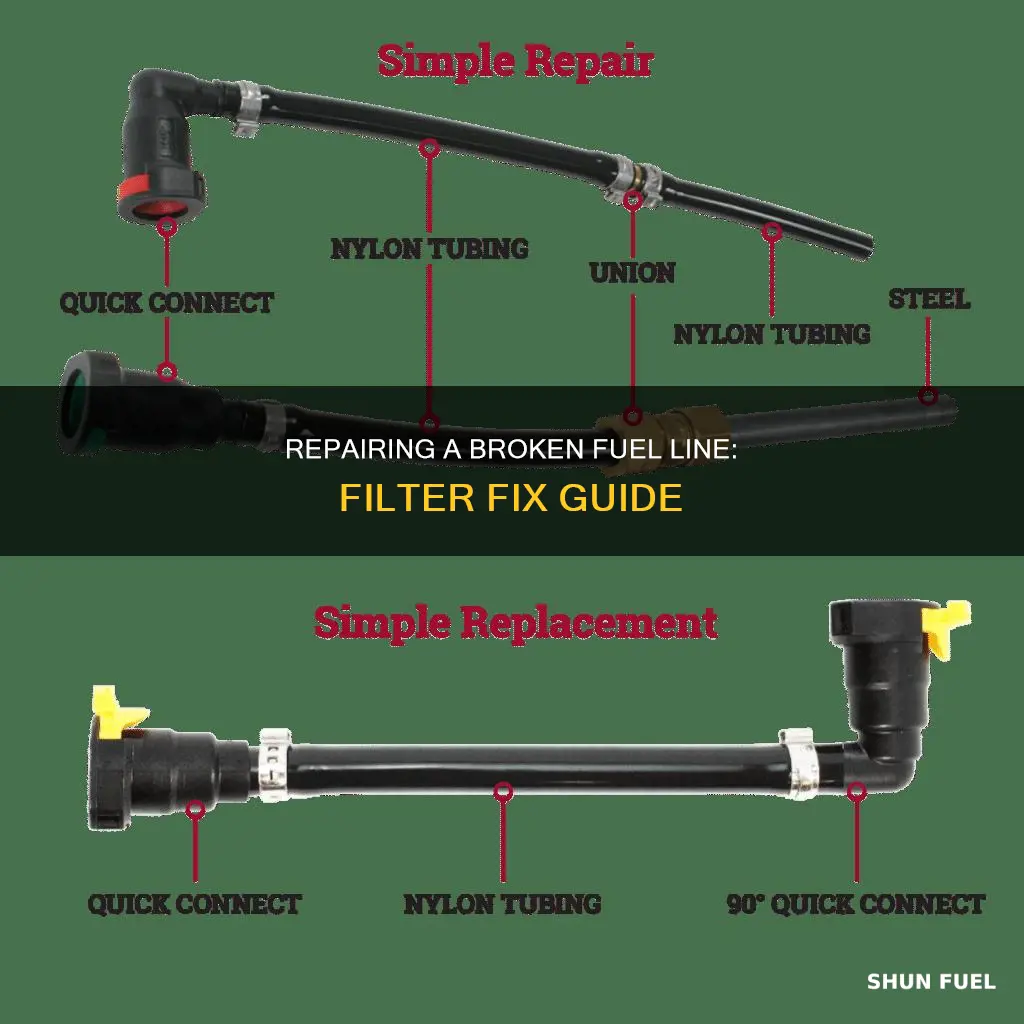

Repairing a nylon fuel line with a repair kit
First, you will need to purchase a nylon fuel line repair kit. These are available at most auto parts stores and typically include a tubing cutter, compression fittings, adapters, and a length of nylon fuel line. It is always a good idea to buy a longer length of fuel line than you think you need, to allow for mistakes.
Next, you will need to cut the damaged section of the fuel line out, ensuring that you have at least 3 inches of straight line on either side of the cut to install the new compression fitting. Place a drip pan under the work area to catch any fuel that drips from the line.
Now, separate the parts of the compression fitting and place a perforated cap on each end of the original line, with the threads facing outwards. Install the ferrules (rings) over the line in front of the caps. Push the original fuel line, with the ferrules and caps, into the centre section of the new connector. Thread the caps onto the connector and tighten, maintaining pressure on the fuel line to ensure it remains seated correctly.
Finally, bend the new section of the fuel line as necessary for a proper fit, and connect it to the compression fitting. It is important to follow the manufacturer's instructions for your specific repair kit, as there may be slight variations in the installation process.
Best Places to Buy Sierra Fuel Line
You may want to see also
Explore related products
Using compression fittings to repair a fuel line
Using compression fittings is a common method to repair a fuel line. While some people have expressed concerns about their effectiveness, they are still widely used and recommended by many.
There are a few different types of compression fittings available for fuel line repairs. Brass compression fittings, for example, can be purchased at hardware stores and are considered a better option than the "piece of hose and two clamps" repair method. However, they may not be suitable for high-pressure fuel systems as they are known to have poor resistance to vibration, which can lead to leaks over time.
Another option is to use stainless steel Swedgelock compression fittings, which are designed specifically for fuel lines. These fittings can handle higher pressures and are less likely to leak.
To repair a fuel line using compression fittings, you will need to purchase the necessary length of fuel line and the appropriate number of compression fittings. If you are replacing the line to the fuel filter, you will need one compression fitting. For a fuel line section, you will need two. It is recommended to add an extra 6 inches to the line to allow for any mistakes.
- Place a drip pan under the work area to catch any fuel that drips from the line.
- Use a tubing cutter to remove the broken fuel line. Make sure to cut the line as far back as necessary to have at least 3 inches of a straight line for installing the compression fitting.
- Hold the replacement line in place and cut an additional inch off the original line to account for the compression fitting.
- Separate the parts of the compression fitting.
- Place one perforated cap on the original line with the threads facing out.
- Install the ferrule (ring) over the line in front of the cap.
- Push the original fuel line with the ferrule and cap into the center section of the connector.
- Hold the connector and push the line until it is completely seated in the center section.
- Thread the cap onto the center section of the connector while maintaining sufficient pressure on the fuel line to keep it seated.
- Tighten the cap securely.
By following these steps, you can effectively repair a broken fuel line using compression fittings.
Best Places to Buy Fuel Lines for Your 2005 Yukon
You may want to see also
Explore related products
Drilling out a broken plastic fuel line to fit copper tubing
First, ensure you have the necessary tools, including a mini pipe cutter, a drill, drill bits of increasing sizes up to 1/4", a vice, and pliers. It is also important to wear protective gear, such as rubber gloves, to avoid contact with any chemicals.
Begin by placing the broken piece of the fuel line in the vice, being careful not to crush it. Using the drill and starting with a smaller drill bit, gradually increase the size of the drill bits until you reach 1/4". Drill straight and be cautious not to drill through the entire length of the broken piece. Aim for about an inch into the tube, and avoid cracking the tubing by creating thin walls.
Once you've drilled the hole, clean out any plastic shavings. Cut a length of copper tubing, about an inch long, and test fit it into the drilled-out plastic tubing. It should be snug but movable with your hand, with some slight resistance. If it's too tight, use the 1/4" drill bit to slightly enlarge the hole. Ensure there are no plastic filings in the drilled fitting, as they can cause issues with sealing.
Now, take some Loctite epoxy, mix it, and spread it thinly on a piece of cardboard. Roll the copper tubing in the epoxy to cover its exterior without getting glue inside. Carefully slide the copper tubing inside the broken piece, and then slide the repaired piece into the gas tank. The epoxy should seal any cracks. Make sure the tube is rotated correctly.
Additionally, when repairing a broken fuel line, it is important to address the fuel filter. Depending on the vehicle, you may need to purchase a fuel line repair kit, which typically includes a replacement line and connectors. Ensure you have sufficient length for the line, and always add a bit extra as a precaution. Make any necessary bends for a proper fit. Remember to use a drip pan to catch any fuel drips during the process.
Primer Fuel Line: Standard Outboard Maintenance 101
You may want to see also
Explore related products
Replacing the entire fuel line assembly
If you notice a fuel leak, or constantly smell gasoline, your vehicle's fuel line may be damaged and in need of repair. The fuel line is the pipe through which gasoline passes from the fuel tank to the fuel pump, which then squirts fuel into the engine's combustion chamber.
Before beginning any work, ensure you have adequate ventilation to avoid inhaling gas fumes, and keep a fire extinguisher nearby. It is also recommended to wear protective clothing and eye protection, as this can be a messy job.
There are several options for repairing a broken fuel line, but the most comprehensive solution is to replace the entire line with a pre-bent line. This option is the most expensive and labor-intensive, but it is the longest-lasting repair, returning the vehicle to like-new condition.
To replace the entire fuel line assembly, you will need to purchase the necessary length of fuel line and the correct number of compression fittings. It is recommended to add an extra 6 inches to the line to account for any mistakes. You will also need a tubing bender and a tubing cutter.
First, use the tubing cutter to cut the broken fuel line, ensuring you have at least 3 inches of a straight line to install the compression fitting. Remove the broken line, and place the new replacement line in position. Cut an additional inch off the original line to account for the compression fitting. Separate the parts of the compression fitting, and place one perforated cap on the original line, with the threads facing out. Install the ferrule (ring) over the line in front of the cap. Push the original fuel line with the ferrule and cap into the center section of the connector. Thread the cap onto the connector and keep sufficient pressure on the fuel line to ensure it remains seated while tightening the cap.
It is important to note that attempting to repair a leaking fuel line without proper knowledge and tools can be extremely dangerous. It is always recommended to consult a certified technician or professional mechanic for repairs and maintenance.
Fuel Line Size Guide for Beckett Oil Furnace
You may want to see also
Frequently asked questions
You will need a fuel line removal tool, a handheld tubing bender, and a tubing cutter.
If you are repairing a plastic fuel line, you can use copper tubing and epoxy to fix the break. If you are repairing a nylon fuel line, you can use a nylon repair kit. If you are repairing a steel fuel line, you can use compression fittings or flare the line with new fittings and unions.
First, cut the broken fuel line using a tubing cutter. Then, place a drip pan under the area to catch any fuel that drips from the line. Next, separate the parts of the compression fitting and place one perforated cap on the original line with the threads facing out. Install the ferrule (ring) over the line in front of the cap. Push the original fuel line with the ferrule and cap into the center section of the connector. Hold the connector and push the line until it is completely seated. Thread the cap onto the connector and tighten it while maintaining pressure on the fuel line.
It is important to get a perfect cut when using a tubing cutter to guarantee a leak-free connection. Avoid using too much heat when repairing a nylon fuel line, as it can cause the line to collapse. Do not use plastic compression fittings, as they may not hold up over time.
