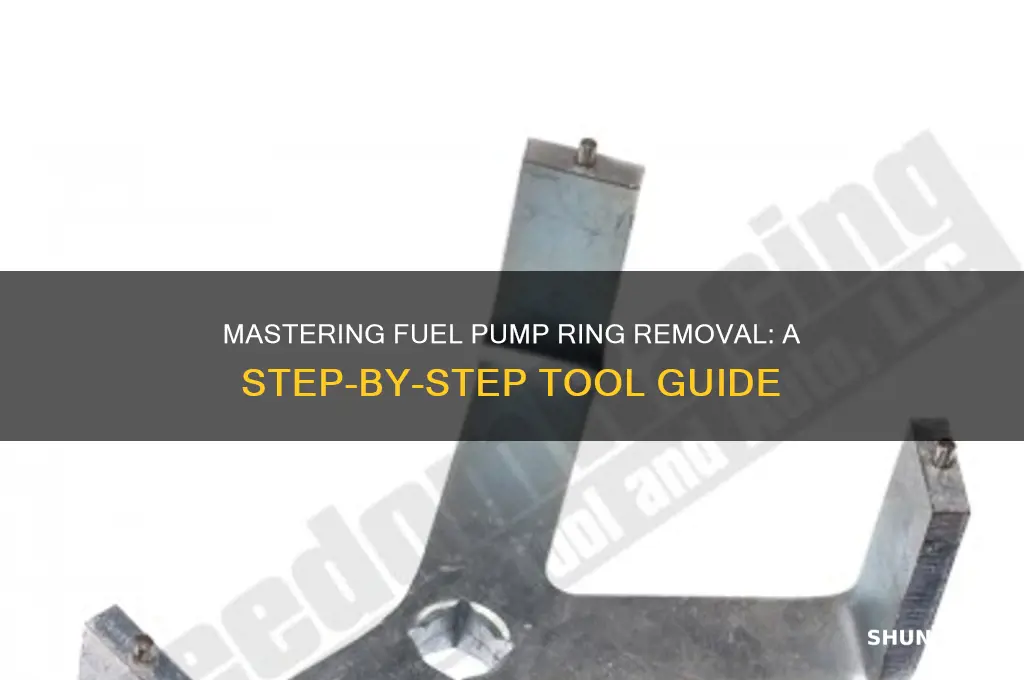

Using a fuel pump ring removal tool is essential for safely and efficiently removing the retaining ring that secures the fuel pump module in vehicles. This specialized tool is designed to engage with the ring’s notches, allowing for controlled compression and removal without damaging the fuel tank or surrounding components. To use it, first locate the retaining ring around the fuel pump assembly, then align the tool’s hooks or pins with the ring’s notches. Apply steady pressure to compress the ring inward until it disengages from the groove, enabling the fuel pump module to be lifted out. Proper technique ensures a smooth process, reducing the risk of fuel leaks or system damage during maintenance or replacement.
| Characteristics | Values |
|---|---|
| Tool Required | Fuel pump ring removal tool (specific to vehicle make/model) |
| Safety Precautions | Wear safety goggles and gloves; relieve fuel system pressure; work in a well-ventilated area |
| Vehicle Preparation | Disconnect battery; relieve fuel pressure; drain fuel tank if necessary |
| Tool Positioning | Align the tool with the fuel pump ring; ensure proper engagement with the locking tabs or retaining clips |
| Removal Technique | Apply steady, even pressure to the tool handle; avoid excessive force to prevent damage |
| Post-Removal Steps | Inspect the fuel pump ring and module for wear or damage; clean components before reassembly |
| Reinstallation | Use a new fuel pump ring if required; follow manufacturer’s torque specifications for reinstallation |
| Common Challenges | Stuck or corroded rings; misaligned tools; damaged locking tabs |
| Compatibility | Ensure the tool matches the specific fuel pump module design (e.g., in-tank or external pumps) |
| Alternative Methods | Pliers or screwdrivers (not recommended; may cause damage); specialized extraction kits |
| Professional Assistance | Consult a mechanic if the tool does not fit or if removal is difficult |
Explore related products
What You'll Learn
- Tool Selection: Choose the correct size and type of fuel pump ring removal tool
- Safety Precautions: Wear gloves, goggles, and ensure the vehicle is off and cooled
- Positioning the Tool: Align the tool properly with the fuel pump ring for secure grip
- Removal Technique: Apply steady pressure and rotate the tool to loosen and remove the ring
- Post-Removal Steps: Clean the area, inspect the ring, and reinstall or replace as needed
Tool Selection: Choose the correct size and type of fuel pump ring removal tool
Selecting the right fuel pump ring removal tool is crucial for a seamless and damage-free process. Fuel pump rings vary in size and design across different vehicle makes and models, so a one-size-fits-all approach won’t work. For instance, a tool designed for a compact car’s fuel pump module may lack the strength or grip needed for a larger SUV. Always consult your vehicle’s manual or a trusted repair guide to identify the specific ring size and type before purchasing or renting a tool. This initial step prevents wasted time, money, and potential damage to the fuel system.
Analyzing the tool’s material and construction is equally important. Fuel pump ring removal tools are typically made of steel or hardened alloys to withstand the force required to dislodge the ring. Cheaper, low-quality tools may bend or break under pressure, leaving you stranded mid-repair. Opt for a tool with a corrosion-resistant coating, especially if you plan to reuse it, as fuel residue can accelerate wear. Additionally, consider tools with ergonomic handles or grip enhancements, as these reduce the risk of slippage during use, ensuring both safety and efficiency.
The type of tool you choose depends on the fuel pump module’s design. Some tools feature a simple hook or claw mechanism, ideal for modules with accessible rings. Others incorporate a screw-driven or hydraulic system for deeper, harder-to-reach rings. For example, a screw-driven tool provides precise control, allowing you to apply gradual force without over-tightening. In contrast, hydraulic tools are best for heavy-duty applications but require more space and caution due to their power. Match the tool’s mechanism to the module’s layout to avoid unnecessary complications.
Practical tips can further streamline your tool selection. If you’re unsure about the exact size, consider a kit with adjustable or interchangeable components. These kits often include multiple hooks, claws, or adapters, ensuring compatibility with various ring sizes. Always test the tool’s fit on the ring before applying force—a proper fit should engage the ring securely without slipping. Finally, inspect the tool for defects or wear before each use, as even minor damage can compromise its effectiveness. With the right tool in hand, the removal process becomes straightforward, minimizing the risk of errors or accidents.
