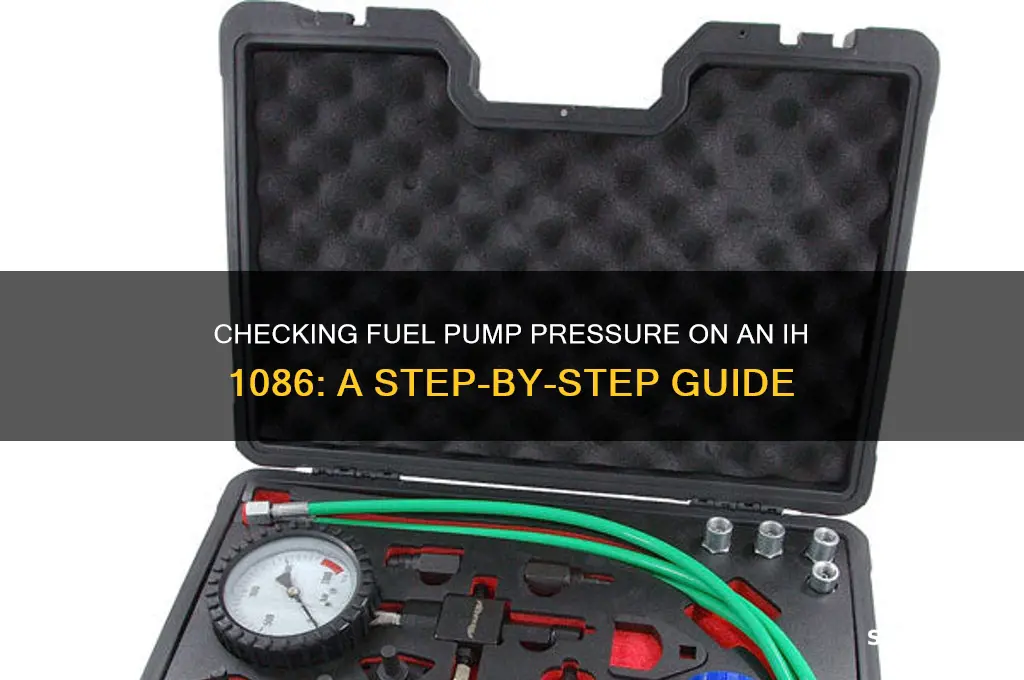

Checking the fuel pump pressure on an International Harvester 1086 tractor is a critical maintenance task to ensure optimal engine performance and fuel efficiency. The process involves using a fuel pressure gauge to measure the pressure delivered by the fuel pump, which should align with the manufacturer's specifications. To begin, locate the fuel supply line and disconnect it at the injection pump, then attach the gauge to the line and start the engine. Observe the gauge reading and compare it to the recommended pressure range for the IH 1086, typically around 10-15 psi. If the pressure is outside this range, inspect the fuel pump, filters, and lines for clogs, leaks, or wear, and replace or repair components as necessary to restore proper fuel delivery. Regularly checking fuel pump pressure helps prevent engine issues and ensures the tractor operates reliably in the field.
| Characteristics | Values |
|---|---|
| Tools Required | Pressure gauge, wrench, screwdriver, fuel pressure tester kit |
| Fuel Pump Location | Mounted on the engine block near the fuel filter |
| Pressure Specification | Typically 4-6 PSI (Pounds per Square Inch) for IH 1086 |
| Testing Procedure | Connect pressure gauge to fuel line, crank engine, and read pressure |
| Safety Precautions | Ensure engine is off, relieve fuel system pressure, wear safety goggles |
| Common Issues | Low pressure indicates clogged filter, faulty pump, or leaking lines |
| Fuel System Components | Fuel tank, fuel lines, fuel filter, fuel pump, injectors |
| Recommended Fuel Type | Diesel fuel (specific to IH 1086) |
| Testing Duration | 5-10 minutes for accurate pressure reading |
| Maintenance Tips | Regularly clean fuel filter, inspect fuel lines for leaks or damage |
| Diagnostic Codes | None specific; rely on pressure readings and visual inspection |
| Replacement Parts | Fuel pump, fuel filter, fuel lines (if damaged) |
| Difficulty Level | Moderate (requires basic mechanical skills) |
| Reference Manual | IH 1086 service manual for detailed specifications |
