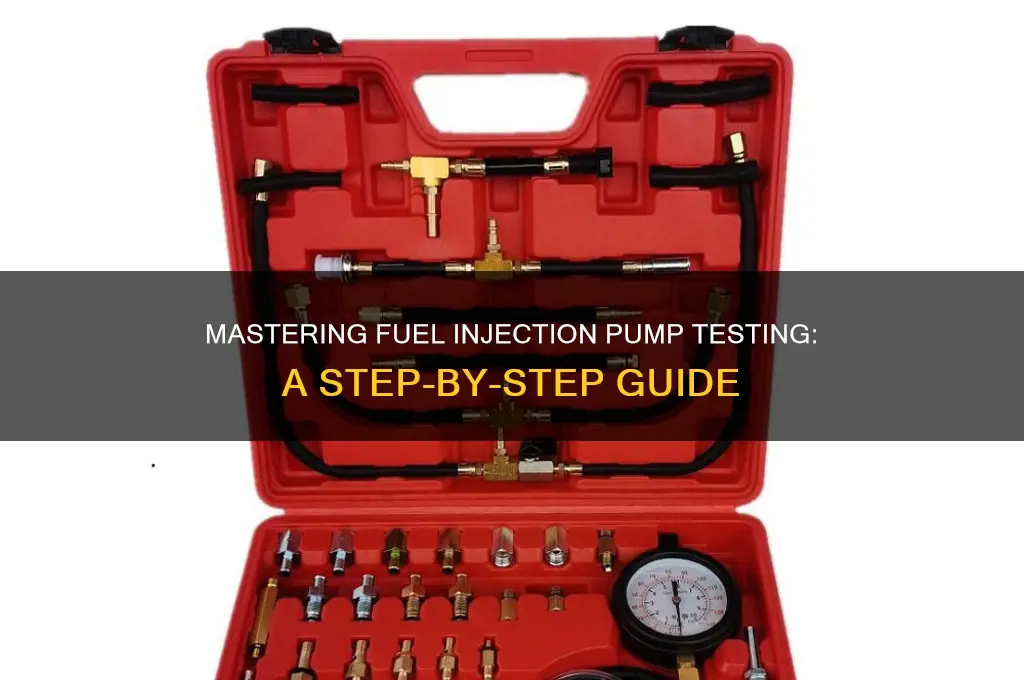

A fuel injection pump tester is an essential tool for diagnosing and maintaining diesel engines, ensuring optimal performance and efficiency. This device allows technicians to accurately test and calibrate fuel injection pumps, which are critical components responsible for delivering precise amounts of fuel to the engine. By connecting the tester to the pump, users can simulate various operating conditions, measure fuel delivery rates, and identify issues such as leaks, improper timing, or pressure irregularities. Understanding how to use a fuel injection pump tester involves familiarizing oneself with its components, such as the pressure gauge, control valves, and adapters, as well as following a systematic process to ensure accurate results. Proper usage not only extends the lifespan of the engine but also helps prevent costly repairs and downtime.
Explore related products
What You'll Learn
- Understanding Tester Components: Identify gauge, pressure ports, and control valves for accurate testing
- Connecting to Fuel System: Securely attach tester to injection pump and fuel lines
- Setting Test Parameters: Adjust pressure, timing, and delivery rates as per specifications
- Interpreting Test Results: Analyze pressure readings and delivery patterns for pump performance
- Troubleshooting Common Issues: Diagnose leaks, timing errors, or pressure inconsistencies during testing
Understanding Tester Components: Identify gauge, pressure ports, and control valves for accurate testing
A fuel injection pump tester is a precision tool, and its effectiveness hinges on understanding its core components. The gauge is your window into the system’s performance, displaying critical pressure readings with accuracy often within ±1%. Misinterpreting this gauge can lead to misdiagnosis, so ensure it’s calibrated and compatible with your pump’s pressure range, typically 0–30,000 psi for heavy-duty diesel applications. Without a reliable gauge, testing becomes guesswork, rendering the tool useless.
Next, pressure ports serve as the tester’s lifelines, connecting it to the fuel injection pump. These ports vary in size and threading (common standards include 1/4” NPT or M12), so verify compatibility before testing. Incorrect port connections can cause leaks or damage, compromising results. For instance, using a port rated for 10,000 psi on a 20,000 psi pump will lead to failure. Always inspect ports for debris or wear, as even a minor obstruction can skew pressure readings by up to 5%.
Control valves are the tester’s brain, regulating fuel flow and pressure during testing. These valves allow you to simulate real-world conditions, such as adjusting delivery pressure or timing. For example, a fine-adjustment valve enables precise tuning within ±0.5 psi, essential for diagnosing erratic fuel delivery. Overlooking valve functionality can result in inconsistent testing, particularly in high-pressure common rail systems where precision is non-negotiable.
To illustrate, consider a scenario where a technician tests a diesel pump delivering 22,000 psi. A malfunctioning gauge might display 20,000 psi, leading to an incorrect diagnosis of pump failure. Similarly, a clogged pressure port could restrict flow, causing the pump to appear underperforming. Meanwhile, a sticky control valve might prevent accurate timing adjustments, masking issues like fuel knock or misfire. Each component’s role is distinct yet interdependent, demanding meticulous attention for reliable results.
In practice, start by verifying the gauge’s calibration using a known pressure source. Clean pressure ports with compressed air and apply thread sealant if necessary. Test control valves by incrementally adjusting pressure and observing the gauge’s response. For advanced users, logging pressure data over time can reveal trends like pump wear or seal degradation. By mastering these components, you transform the tester from a tool into a diagnostic powerhouse, ensuring fuel systems operate at peak efficiency.
Testing Your 2003 Mazda3 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Connecting to Fuel System: Securely attach tester to injection pump and fuel lines
The connection between the fuel injection pump tester and the fuel system is a critical juncture where precision meets practicality. Securely attaching the tester to the injection pump and fuel lines is not just a step—it’s the foundation for accurate diagnostics. A loose connection can lead to fuel leaks, air ingress, or skewed readings, rendering the test unreliable. Begin by identifying the correct ports on the injection pump, typically marked for testing purposes. Ensure the tester’s adapters match the pump’s fittings, as mismatched connections can damage components or compromise results.
Instructively, start by cleaning the injection pump’s test ports and fuel line connections to remove debris or residue. Use a lint-free cloth and a mild solvent if necessary, but avoid harsh chemicals that could degrade seals. Next, align the tester’s adapters with the pump’s ports, applying steady pressure to ensure a snug fit. Tighten the connections by hand first, then use a wrench to secure them firmly, but avoid over-tightening, which can strip threads or crack components. For fuel lines, use appropriate clamps or quick-connect fittings to prevent leaks. Always double-check connections before proceeding to the testing phase.
From a comparative perspective, the process of attaching a fuel injection pump tester differs slightly from other diagnostic tools due to the high-pressure nature of fuel systems. Unlike vacuum testers or compression gauges, fuel injection pump testers must withstand pressures often exceeding 20,000 PSI. This requires robust, precision-engineered adapters and fittings. For instance, while a vacuum tester might use simple rubber hoses, a fuel injection tester relies on reinforced lines and metal fittings to handle the stress. Understanding these differences ensures you select the right tools and approach the task with the necessary caution.
Descriptively, imagine the injection pump as the heart of the fuel system, and the tester as the diagnostic stethoscope. The connection between them must be seamless, like a well-fitted puzzle piece, to capture the system’s true performance. Picture the adapters locking into place with a satisfying click, the fuel lines snugly clamped, and the entire setup exuding stability. This visual assurance is as important as the mechanical integrity, as it builds confidence in the process and the results to follow.
Practically, always refer to the vehicle’s service manual or the tester’s instructions for specific torque values and connection points. For example, diesel injection pumps often require different adapters than gasoline systems, and high-pressure common rail systems demand even more precise connections. Keep a set of metric and standard wrenches, as well as a torque wrench, on hand to ensure accuracy. Finally, perform a preliminary pressure test with the tester attached to verify there are no leaks before proceeding with diagnostics. This step not only ensures safety but also saves time by avoiding mid-test disruptions.
861155A3 Fuel Pump Fitting Sizes: A Comprehensive Guide
You may want to see also
Explore related products
Setting Test Parameters: Adjust pressure, timing, and delivery rates as per specifications
Precision is paramount when setting test parameters for a fuel injection pump tester. Each engine model has specific requirements for pressure, timing, and delivery rates, and deviating from these can lead to inaccurate diagnostics or even damage. Begin by consulting the engine’s service manual or manufacturer specifications to identify the exact values for your test. For instance, a diesel engine might require a fuel pressure of 200–250 bar, while timing adjustments could vary by as little as 2 degrees of crankshaft rotation. Ignoring these details can render your test results meaningless.
Adjusting pressure is the first critical step. Most fuel injection pump testers allow you to set the pressure via a regulator or digital interface. Start by connecting the tester to the pump and gradually increase the pressure to the specified value. For example, if the engine requires 220 bar, ensure the tester stabilizes at this level before proceeding. Fluctuations or inability to reach the target pressure may indicate a faulty pump or tester, necessitating further inspection. Always verify the pressure gauge’s calibration to avoid errors.
Timing adjustments are equally crucial, as they directly impact fuel delivery synchronization. Use the tester’s timing mechanism to align the pump’s operation with the engine’s firing sequence. This often involves rotating the pump’s camshaft or adjusting the tester’s timing marks to match the specified degrees before top dead center (BTDC). For a 4-cylinder diesel engine, a typical timing range might be 12–15 degrees BTDC. Misalignment here can cause poor combustion, reduced power, or excessive emissions, making precise adjustment essential.
Delivery rates, measured in cubic centimeters per stroke (cc/stroke), must also align with specifications. This parameter determines how much fuel the pump delivers per injection cycle. Use the tester’s flow meter to measure and adjust the delivery rate, ensuring it matches the manufacturer’s guidelines. For instance, a pump might need to deliver 18 cc/stroke at full load. Inconsistent delivery rates can lead to uneven fuel distribution, affecting engine performance and longevity. Always test across different speeds and loads to ensure consistency.
Finally, document all settings and observations meticulously. Note the pressure, timing, and delivery rates used, as well as any anomalies detected during testing. This data not only aids in diagnosing current issues but also serves as a baseline for future tests. For example, if a pump consistently fails to meet pressure specifications, this could indicate wear or internal damage. By systematically adjusting and verifying each parameter, you ensure the tester provides accurate, actionable insights into the fuel injection pump’s condition.
Diagnosing a Failing Fuel Pump in Your 1998 Ford Expedition
You may want to see also
Explore related products
$69.99
Interpreting Test Results: Analyze pressure readings and delivery patterns for pump performance
Pressure readings are the heartbeat of your fuel injection pump, revealing its health and efficiency. A baseline understanding begins with knowing the expected pressure range for your specific pump model, typically found in the vehicle’s service manual. For instance, a diesel engine’s injection pump might operate optimally between 2,000 and 2,500 psi during cranking, while a gasoline engine’s pump could peak at 50-60 psi under load. Deviations from these ranges signal potential issues—low pressure may indicate a worn pump or clogged filter, while excessive pressure could point to a faulty pressure regulator. Always compare readings against manufacturer specifications to avoid misdiagnosis.
Delivery patterns, the rhythmic flow of fuel, offer another layer of insight. A consistent, smooth delivery curve indicates a well-functioning pump, whereas erratic spikes or drops suggest mechanical wear or air in the system. For example, a tester might show a steady 2.5 mm³/stroke at 1,500 RPM, but if this drops to 2.0 mm³/stroke at 2,000 RPM, it could indicate a failing plunger or barrel. Analyzing these patterns requires patience—run the tester through multiple RPM ranges and observe how the pump responds. A sudden drop in delivery at higher RPMs often correlates with fuel starvation, a common issue in high-performance engines.
Interpreting results demands a systematic approach. Start by isolating variables: ensure the fuel filter is clean, the tank is at least half full, and the engine is at operating temperature. Record readings at idle, mid-range, and full throttle to identify trends. For instance, a gradual pressure drop across all RPMs might suggest a leaking injector, while a sharp decline only at high RPMs could indicate pump fatigue. Cross-reference these findings with visual inspections—check for fuel leaks, listen for unusual noises, and inspect the pump for physical damage.
Practical tips can streamline the process. Use a digital tester for precise measurements and real-time data logging. If testing a diesel pump, ensure the timing is accurate, as even a 1-degree offset can skew results. For gasoline systems, verify the fuel pressure regulator’s functionality by clamping the return line—pressure should rise to the maximum spec. Always perform tests in a well-ventilated area and wear safety goggles to protect against fuel spills or spray.
In conclusion, mastering the interpretation of pressure readings and delivery patterns transforms a fuel injection pump tester from a tool into a diagnostic powerhouse. By combining technical knowledge with methodical testing, you can pinpoint issues with confidence, ensuring your engine runs smoothly and efficiently. Remember, the devil is in the details—small discrepancies today can prevent costly repairs tomorrow.
Where Are Airtex Fuel Pumps Manufactured? A Global Production Overview
You may want to see also
Explore related products
Troubleshooting Common Issues: Diagnose leaks, timing errors, or pressure inconsistencies during testing
Fuel injection pump testers are indispensable tools for diagnosing engine performance issues, but their effectiveness hinges on identifying and resolving common problems during testing. One of the most frequent issues is leaks, which can occur at the pump, lines, or connections. Even a small leak can lead to fuel loss, reduced pressure, and inaccurate test results. To diagnose leaks, start by inspecting all visible components for wet spots or fuel residue. Use a spray bottle with soapy water to detect bubbles forming at the leak site under pressure. Address leaks immediately by tightening connections or replacing damaged seals, ensuring a secure and reliable testing environment.
Timing errors are another critical issue that can skew test results and indicate deeper engine problems. Incorrect timing affects fuel delivery, leading to poor combustion and reduced efficiency. To diagnose timing errors, compare the pump’s timing marks with the manufacturer’s specifications using a timing light or gauge. If discrepancies are found, adjust the pump’s timing screw incrementally, retesting after each adjustment. Be cautious not to overtighten or force components, as this can cause damage. Accurate timing ensures the pump delivers fuel at the precise moment required for optimal engine performance.
Pressure inconsistencies during testing often point to worn pump components or clogged filters. Low pressure may indicate a failing pump diaphragm or blocked fuel lines, while high pressure suggests a malfunctioning pressure regulator. To diagnose, connect a pressure gauge to the pump and compare readings to the manufacturer’s recommended range (typically 20–60 PSI for diesel systems). If pressure is off, inspect the pump for wear and clean or replace filters as needed. For high-pressure systems, use a specialized tester designed to handle the increased load, ensuring safety and accuracy.
A systematic approach to troubleshooting is essential for effective diagnosis. Begin by isolating the issue—is it a leak, timing error, or pressure problem? Use the tester’s diagnostic features, such as pressure gauges and timing indicators, to gather data. For example, if pressure fluctuates, test the pump at different RPMs to identify patterns. Document findings and compare them to known benchmarks, such as a 10% pressure drop indicating a potential pump failure. By methodically addressing each issue, you can pinpoint the root cause and implement the correct repair, ensuring the fuel injection system operates at peak efficiency.
Finally, preventive maintenance can minimize the likelihood of encountering these issues. Regularly inspect fuel lines for cracks, clean filters every 10,000 miles, and replace seals every 50,000 miles or as recommended by the manufacturer. Keep the pump tester calibrated and store it in a clean, dry environment to avoid contamination. By proactively maintaining both the engine and testing equipment, you reduce the risk of leaks, timing errors, and pressure inconsistencies, ensuring reliable and accurate diagnostics every time.
Troubleshooting a 1997 Chevy Truck's Non-Functioning Fuel Pump
You may want to see also
Frequently asked questions
A fuel injection pump tester is a diagnostic tool used to test and calibrate fuel injection pumps in diesel engines. It measures fuel delivery pressure, timing, and volume to ensure the pump is functioning correctly.
Connect the tester by attaching its adapter to the fuel injection pump's test port or outlet. Ensure all hoses and fittings are securely tightened to prevent leaks and follow the manufacturer's instructions for proper setup.
Key parameters to check include fuel pressure, injection timing, fuel delivery volume, and pump speed. These measurements help diagnose issues like low power, poor fuel efficiency, or engine misfires.
Most fuel injection pump testers are compatible with a wide range of diesel engines, but compatibility depends on the specific model and type of injection pump. Always verify compatibility with the tester's manual or manufacturer.
Testing frequency depends on engine usage and maintenance schedules. For heavy-duty applications, test every 6-12 months or if you notice performance issues. Regular testing helps prevent costly repairs and ensures optimal engine performance.
