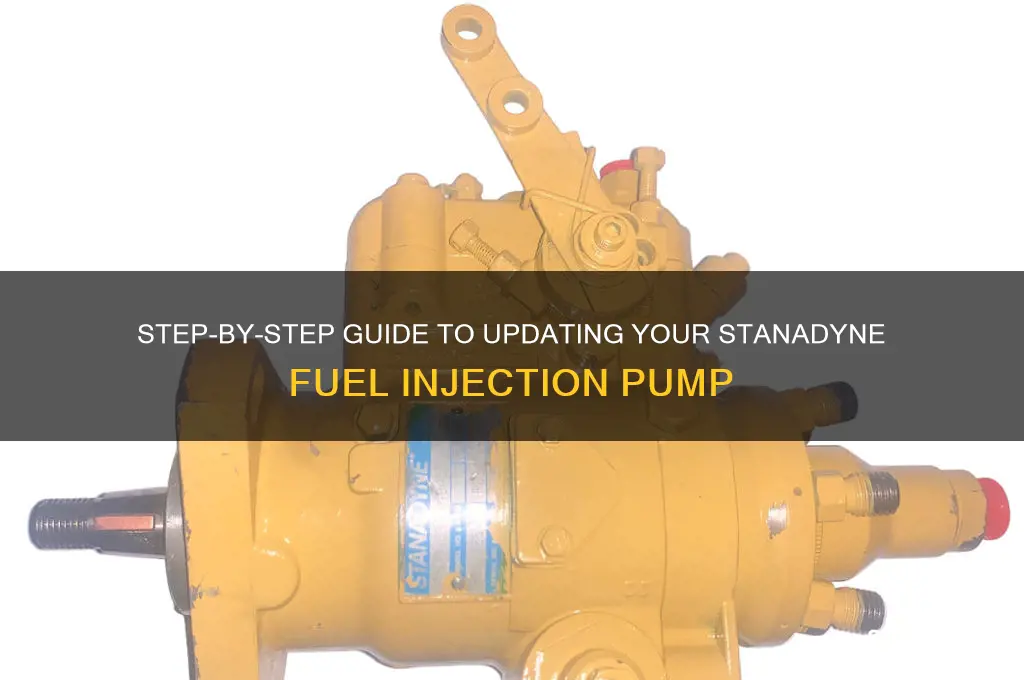

Updating a Stanadyne fuel injection pump is a critical task for maintaining optimal engine performance and fuel efficiency in diesel engines. This process involves careful disassembly, inspection, and replacement of worn components, such as plungers, barrels, and delivery valves, to ensure precise fuel delivery and timing. Before beginning, it’s essential to gather the necessary tools, consult the pump’s service manual, and ensure the engine is cool and safely secured. Proper calibration and testing post-update are crucial to verify the pump operates within manufacturer specifications, preventing issues like rough idling or poor fuel economy. Regular maintenance and timely updates not only extend the pump’s lifespan but also enhance overall engine reliability.
| Characteristics | Values |
|---|---|
| Pump Models Applicable | Stanadyne DB2, DB4, DDPE, and other rotary distributor fuel injection pumps |
| Tools Required | Screwdrivers, wrenches, pliers, feeler gauges, torque wrench, and pump timing tools |
| Parts Needed | Replacement gaskets, seals, timing pins, and calibration tools |
| Safety Precautions | Wear safety goggles, gloves, and ensure the engine is off and cooled |
| Steps to Update | 1. Disconnect battery and fuel lines 2. Remove pump cover and inspect components 3. Replace worn parts (gaskets, seals) 4. Adjust timing using timing pins and calibration tools 5. Reassemble and torque to specifications 6. Test for leaks and proper operation |
| Timing Adjustment Range | Typically ±5° from the base timing mark (varies by engine model) |
| Torque Specifications | Varies by pump model; refer to Stanadyne service manual (e.g., 15-20 ft-lbs for mounting bolts) |
| Fuel Pressure Requirement | Maintain system pressure as per manufacturer guidelines (e.g., 15-20 PSI) |
| Calibration Tools | Stanadyne timing pins, dial indicator, and pump calibration kit |
| Common Issues Addressed | Fuel leaks, improper timing, worn seals, and reduced fuel efficiency |
| Frequency of Update | Every 50,000-100,000 miles or as needed based on performance |
| Professional Assistance | Recommended for complex adjustments or if unsure about timing procedures |
| Reference Manual | Stanadyne Fuel Injection Pump Service Manual (specific to pump model) |
Explore related products
What You'll Learn
Tools Required for Pump Update
Updating a Stanadyne fuel injection pump demands precision, and the right tools are non-negotiable. At the core of this task is the pump calibration tool, specifically designed to adjust the timing and pressure settings. Without it, achieving accurate fuel delivery is impossible. This tool often comes with a set of adapters to fit various pump models, ensuring compatibility across different engines. Investing in a high-quality calibration tool not only simplifies the process but also safeguards against costly errors that can arise from improper adjustments.
Beyond calibration, a torque wrench is essential for securing pump components to factory specifications. Over-tightening or under-tightening bolts can lead to leaks, reduced efficiency, or even pump failure. A torque wrench with a range of 10 to 100 ft-lbs is ideal, as it covers the typical torque values required for Stanadyne pumps. Pair this with a set of metric and standard sockets to ensure you have the right fit for every fastener. Precision in tightening is as critical as the calibration itself, making this tool a cornerstone of the update process.
Diagnostic tools, such as a multimeter and a pressure gauge, are often overlooked but invaluable for troubleshooting during the update. A multimeter helps verify electrical connections and sensor functionality, while a pressure gauge ensures the pump is delivering fuel at the correct PSI. These tools provide real-time feedback, allowing you to identify and rectify issues before they escalate. For instance, a pressure gauge can reveal a clogged filter or a malfunctioning valve, saving time and preventing unnecessary disassembly.
Finally, a comprehensive set of hand tools—including wrenches, pliers, and screwdrivers—is indispensable for disassembling and reassembling the pump. Needle-nose pliers, for example, are perfect for handling small components like O-rings and clips, while a flathead screwdriver can assist in prying open tight spaces. Keep these tools organized in a tray or toolbox to avoid misplacement, as losing a critical component mid-update can halt progress entirely. With the right tools in hand, updating a Stanadyne fuel injection pump becomes a systematic, manageable task rather than a daunting challenge.
