The fuel injection pump is a critical component of a vehicle's engine, delivering fuel into the engine's combustion chamber with precise timing. When the timing is off, it can lead to performance issues such as difficulty starting the car, misfiring, noticeable power drops, and even exhaust smoke. To adjust the timing, one common method is to simply rotate the pump with a screwdriver and socket wrench, but this must be done carefully as small adjustments can result in large timing changes. It's also important to use the correct tools and refer to the specific timing specifications for your vehicle, as these can vary between models and years. In some cases, it may be necessary to consult a mechanic or a specialist to ensure the adjustments are done correctly and safely.
| Characteristics | Values |
|---|---|
| Symptoms of fuel pump injection timing issues | Difficulty starting the car, misfiring, noticeable performance drops, whitish smoke, reduced performance |
| Tools required | Screwdriver, socket wrench, special probe or timing meter, VE pump special service tool, dial gauge |
| Actions | Rotate the pump, adjust the camshaft, replace the injectors |
| Precautions | Do not make drastic adjustments, ensure you have the correct timing specs for your vehicle |
Explore related products
What You'll Learn
Diagnose performance issues
Diagnosing performance issues with a fuel injector pump is a critical aspect of maintaining the overall health of your vehicle's engine. Here are some detailed instructions to help you identify and address problems related to the fuel injector pump:
Common Symptoms of Fuel Injector Pump Issues:
- Difficulty Starting the Engine: If your engine struggles to start, it could indicate improper injection timing. This may be due to the fuel reaching the cylinders at the wrong time, resulting in incomplete or untimely combustion.
- Misfiring and Performance Drops: When the fuel injector pump is not synchronized with the engine's cycles, it can cause misfiring and noticeable performance losses.
- Rough Idling and Engine Stalling: Dirty fuel injectors can lead to rough idling, where the tachometer needle moves unpredictably. It can also cause engine stalling.
- Poor Gas Mileage: If you find yourself refuelling more frequently, it could be a sign of dirty or malfunctioning fuel injectors. Restricted fuel flow or an incorrect spray pattern can impact fuel efficiency.
- Engine Light Illuminated: Keep an eye on your dashboard. If the "Check Engine" light is flashing or stays on, it could indicate a dirty or faulty fuel injector supplying an incorrect amount of fuel to the engine.
Diagnosing and Addressing Fuel Injector Pump Issues:
- Check Fuel Pressure: One of the first steps in diagnosing fuel injector pump issues is to measure the fuel pressure. Use a gauge to check the pressure with the key on and the engine off, and then again with the engine running. Compare the readings to the specifications for your vehicle. If the pressure is outside the specified range, further diagnosis is required.
- Assess Fuel Volume: Ensure the fuel pump delivers adequate fuel volume to the injectors, especially at higher engine speeds. A weak pump may not be able to keep up with the engine's fuel requirements, leading to misfiring and power loss.
- Inspect for Fuel Leaks: If you suspect a problem with the fuel injector, check for any signs of fuel leaks. A crack in the rubber seals or the fuel injector itself can lead to fuel leakage.
- Clean or Replace Dirty Injectors: Dirty fuel injectors can cause performance issues. Consider investing in a fuel system cleaning or replacing the injectors if they are severely clogged with fuel varnish deposits.
- Adjust Injection Timing: If the issue is related to injection timing, you can adjust the fuel injection pump by carefully rotating it with a screwdriver and a socket wrench. Remember that even a small adjustment can significantly impact timing, so proceed cautiously.
Remember, it is essential to address performance issues with your fuel injector pump promptly to prevent further damage to your vehicle's engine. If you are unsure or uncomfortable performing these diagnostics and repairs, consult a qualified mechanic for assistance.
Effective Fuel Injector Cleaning for Your 420 Rancher
You may want to see also
Explore related products
Adjusting the timing
Step 1: Understanding the Issue
Before adjusting the timing, it is crucial to identify the signs of improper injection timing. Common symptoms include difficulty starting the car, noticeable performance drops, misfiring, and exhaust smoke. These issues indicate that the injection timing may be out of sync with the engine's cycles, leading to incomplete or untimely combustion.
Step 2: Gathering the Right Tools

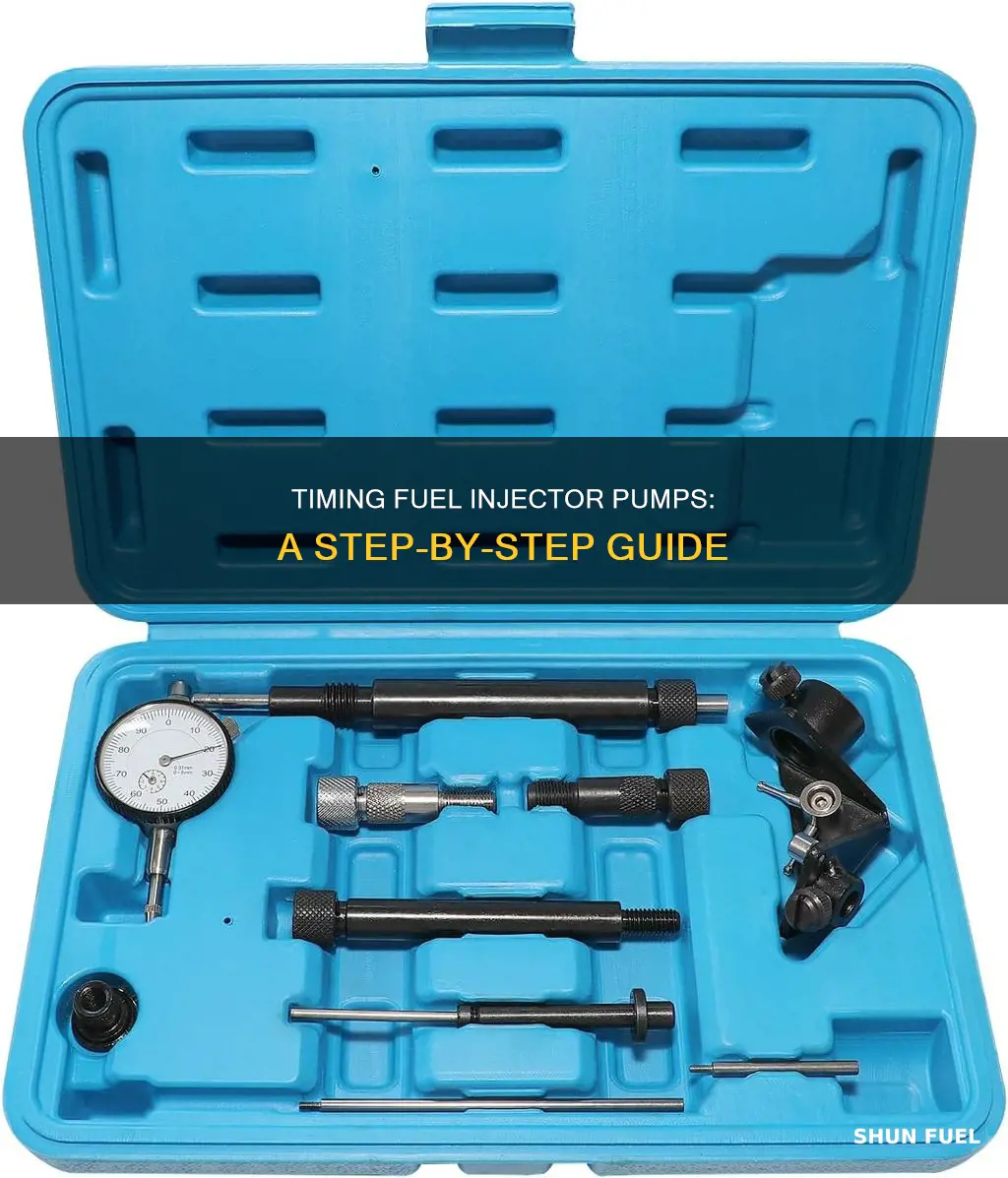

To adjust the timing of a fuel injector pump, you will need specific tools such as a VE pump special service tool and a dial gauge that matches your vehicle's requirements. Additionally, you will require a screwdriver and a socket wrench to rotate the pump.
Step 3: Referencing the Correct Timing Specs
Timing specifications can vary between different models and years of vehicles. Ensure that you have the correct timing specs for your specific vehicle make, model, and year. Refer to reliable sources or consult a mechanic to obtain the appropriate timing information for your vehicle.
Step 4: Rotating the Pump
With the necessary tools and timing specs, you can now adjust the timing by carefully rotating the pump. Even a small movement of the pump can result in a significant timing change, so it is crucial to make minor adjustments. You may refer to step-by-step guides or videos online for a more detailed explanation of this process.
Step 5: Measuring the Timing
To accurately measure the new timing, you will need a special probe or timing meter. This device will help you ensure that the adjustments you made were successful and that the timing is now precise.
Step 6: Advanced Adjustments
If further adjustments are required, you may consider replacing the camshaft with one that has differently shaped and sized lobes. This will allow you to fine-tune when the valves and injectors are triggered. However, this step may require the expertise of a specialist who can perform the necessary calculations.
Remember, adjusting the timing of a fuel injector pump can be intricate, and incorrect adjustments can lead to more problems. If you are unsure about any part of the process, it is always best to consult a qualified mechanic who can guide you through the process and ensure that your vehicle's fuel injection system is optimized for performance and fuel efficiency.
Rebuilding Diesel Fuel Injectors: A Comprehensive Guide
You may want to see also
Explore related products
Checking the timing
To check the timing of a fuel injector pump, start by consulting the user manual for your specific engine. If you have a newer diesel engine, the fuel injection system is likely electronically controlled, and you will need to take it to an approved dealer for diagnosis and repair. For older engines, you may be able to adjust the timing yourself, but it is important to know what you are doing or consult a mechanic to avoid further damage.
One way to adjust the timing is to rotate the pump in the engine. This can be done with a screwdriver and a socket wrench. However, it is important to remember that a small movement of the pump will result in a large timing change, so do not make any drastic adjustments. To accurately measure the timing, you will need a special probe or timing meter.
Another way to adjust the timing is to replace the camshaft with one that has differently shaped and sized lobes. This will allow you to adjust when the valves and injectors are triggered. However, this method may require the assistance of a specialist who can help you select the right camshaft for your desired timing.
Additionally, you can check for common symptoms of fuel pump injection timing issues. These include whitish smoke, high exhaust gas temperatures, or a strong diesel smell. If you notice any of these issues, it is important to address them promptly to prevent further damage.
Cleaning Fuel Injectors: What Actually Works?
You may want to see also
Explore related products
Calculating the flow rate
To calculate the flow rate, one can use a fuel injector calculator, which takes into account various factors such as the desired engine power, fuel pressure, and fuel type. By entering these values into the calculator, it will estimate the fuel pump flow rate required to meet your specific needs. It is important to note that these values are based on estimations and may not be guaranteed. Therefore, it is recommended to consult a tuner or engine builder for more accurate recommendations.
The duty cycle, expressed as a percentage, is another important factor that affects the flow rate. It indicates how long the fuel injector is open and supplying fuel during an engine cycle. For example, a duty cycle of 80% means the injector is open 80% of the time and closed 20% of the time. It is recommended that the duty cycle should not exceed 90% to avoid putting excessive stress on the injector due to continuous opening and closing.
Additionally, when modifying OEM engine components, such as bolt-ons, exhausts, or turbo kits, it is important to consider upgrading to higher flow rate fuel injectors. This is because modifications that increase the amount of air reaching the engine will require a corresponding increase in fuel to maintain the desired air/fuel ratio (AFR). Proper tuning and upgrades to components like the MAP/MAF can help achieve an optimal AFR.
Cleaning Fuel Injector Holes: DIY Guide and Tips
You may want to see also
Explore related products
Measuring the injector opening time
Locate the Timing Marks
Before beginning any measurements, it is essential to locate the timing marks on the relevant engine components. These marks serve as indicators to help synchronize the various parts of the injection system. Turning off the engine and disconnecting the battery are the preliminary steps before performing a pump timing check.
Understand the Basics
To measure the injector opening time, it is important to understand that the injector does not open instantaneously. When the injector signal is turned on, the coil in the injector applies a force to open the injection valve. The injector opening time refers to the minimum injection duration that consistently delivers fuel.
Actuate the Injector Consistently
To determine the injector opening time, actuate the injector multiple times at a consistent injection duration. For example, operate the injector at 1.5 milliseconds one thousand times. This can be achieved by connecting it to a controller and "faking" the speed signal to trigger injection. The controller should be set to deliver the desired injection duration, and this process should be repeated long enough to observe significant fuel accumulation.
Measure Fuel Delivery and Time
Power up the pump and open the injector for several seconds to measure the open-injector flow rate. Ensure that the injector does not overheat, especially for low impedance injectors, which can heat up quickly. Measure the amount of fuel delivered and the time the injector was held open. The fuel flow rate can then be calculated by dividing the weight of the fuel delivered by the time. For instance, if 25 grams of fuel was delivered in 10 seconds, the fuel flow rate would be 2.5 grams per second.
Plot the Data
Alternatively, a more detailed analysis can be performed by carefully measuring the delivered amount of fuel and calculating the amount delivered per injection. Plotting this data as a function of injection duration will reveal a linear trend. The slope of this line represents the injector flow rate, and the x-intercept corresponds to the injector opening time. For example, a Nippon Denso automotive injector operating at 3.5 bar may exhibit a flow rate of approximately 3 gm/sec and an injector opening time of about 1.0 ms.
Troubleshooting Fuel Injectors in Your 2004 Chevy Classic
You may want to see also
Frequently asked questions
If your engine is difficult to start, misfiring, or showing noticeable performance drops, your fuel injector pump timing may be off. Other signs include exhaust smoke and reduced performance.
First, ensure you have the right tools. You will need a screwdriver, a socket wrench, and a special probe or timing meter. Next, rotate the pump to adjust the timing. Remember, a small movement of the pump will result in a large timing change, so do not make any drastic adjustments.
It is important to know what your engine needs. You may be able to increase power by replacing injectors, or you may need to adjust the timing. If you are unsure, consult a mechanic.
