Fuel injectors are an essential component of a Harley motorcycle's engine, ensuring fuel is carefully injected for combustion. Testing fuel injectors is important because clogged injectors can cause reduced fuel efficiency and engine performance issues. Testing fuel injectors involves checking for issues such as broken wires, testing for ohms, and verifying that the test lamp illuminates between the ignition voltage circuit terminal and the ground. Regular testing and maintenance of fuel injectors can help avoid problems and keep the motorcycle running smoothly.

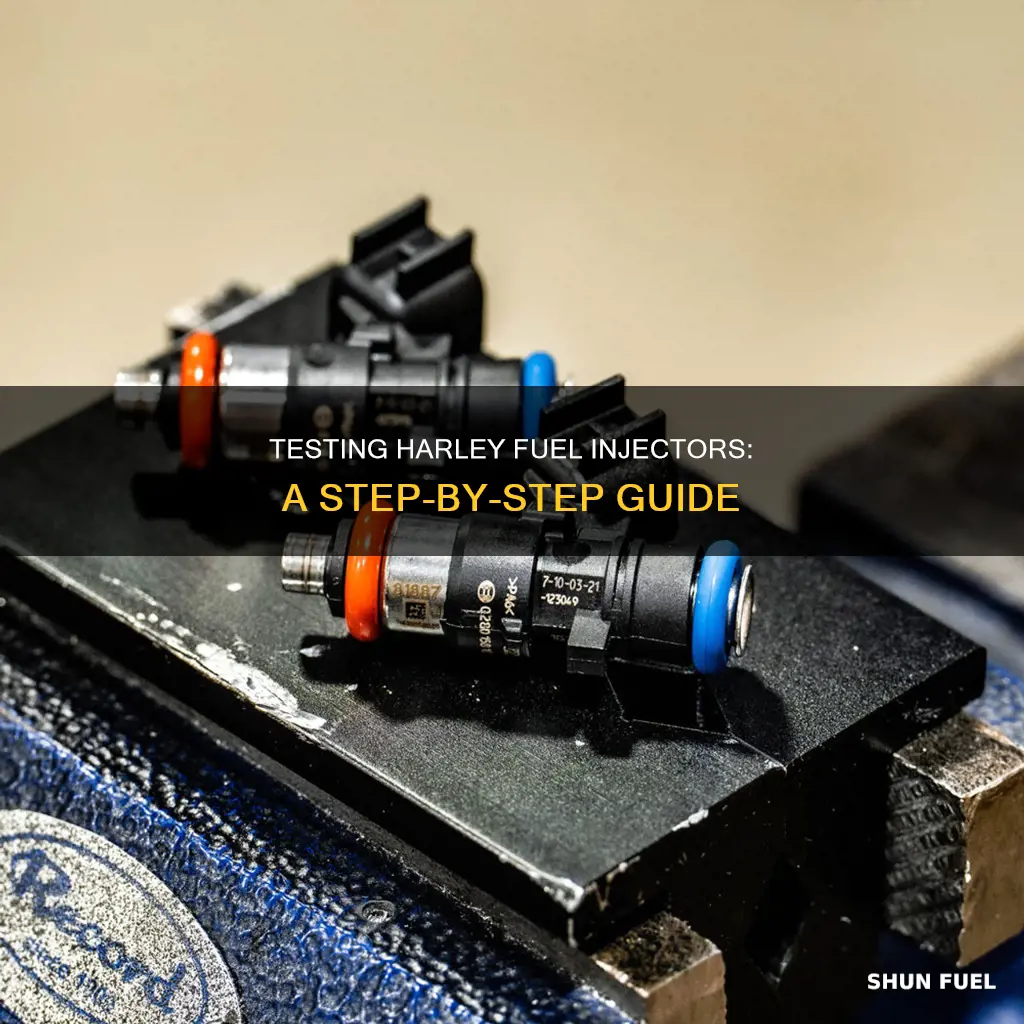

Testing Harley Fuel Injectors
| Characteristics | Values |
|---|---|
| Impact | Fuel injectors ensure that fuel is injected into the engine for combustion. |
| Performance | Fuel injectors impact the performance of the engine by providing a precise level of fuel efficiency. |
| Clogging | Clogged fuel injectors lead to reduced fuel economy and increased emissions. |
| Symptoms | Excessive vibrations, loud noises, and a dead engine may indicate clogged fuel injectors. |
| Testing | Disconnect the harness connector at the appropriate fuel injector with the ignition off. Verify that a test lamp illuminates between the ignition 1 voltage circuit terminal 1 and ground. |
| Replacement | If the test lamp does not illuminate, repair or replace the ignition 1 voltage circuit. |
| Temperature | The engine temperature sensor must be between 10°-32°C (50°-90°F) for an accurate measurement during testing. |
| Ohms Testing | Test for 11-14 ohms between the ignition 1 voltage terminal 1 and the control terminal 2. If not within the specified range, replace the fuel injector. |
| Fuel Efficiency | Fuel controllers can be installed to optimize fuel efficiency and performance. |
| Maintenance | Keeping fuel injectors clean helps avoid high emissions and reduces the environmental impact of the vehicle. |
Explore related products
What You'll Learn
Testing for clogged injectors
Initial Checks
Firstly, it is important to understand how fuel injectors impact your motorcycle's performance. Fuel injectors play a crucial role in providing precise fuel efficiency by delivering fuel to the engine, where it mixes with air and combusts, creating power. When injectors become clogged, they restrict the flow of fuel, leading to an imbalance in the air-fuel mixture and reduced engine power.
Visual Inspection
One of the initial steps in diagnosing clogged fuel injectors is to perform a visual inspection. This involves carefully examining the fuel injectors and related components for any signs of damage, leaks, or carbon deposits. While this may not always detect all issues, it can provide valuable initial information. For instance, a buildup of carbon deposits around the injectors may indicate clogging or poor combustion.
Fuel Pressure Test
Testing the fuel pressure is a key diagnostic step. Low fuel pressure can result in poor injector performance and difficulty starting the motorcycle. Connect a fuel pressure gauge to the fuel rail and compare the reading to the normal values specified in your motorcycle's manual (usually between 36 and 40 psi). If the pressure is outside the specified range, it may indicate a clogging issue or problems with the fuel pump or regulator.
Fuel Injector Balance Test
To further isolate injector-related faults, a fuel injector balance test can be performed. This test helps determine if one or more injectors are malfunctioning due to clogging. The test involves measuring the resistance or voltage at each injector to identify any deviations from the expected values, indicating a potential clog.
Cold Engine Test
Another method is to start the engine when it is cold and let it run at idle for 5-10 seconds. Touch each of the exhaust manifolds with your bare hands to find the one that is not warm. Remove the connector from the injector on the cold cylinder and inspect the terminals for corrosion. This can help identify if a cold engine is related to a clogged injector or other issues, such as a bad coil or spark plug.
Professional Cleaning and Testing
If you suspect clogged injectors, the most guaranteed way to unclog them is by removing them from the engine and sending them to a professional injector cleaning service. They will use advanced techniques like ultrasonic cleaning and flow testing to ensure the injectors are thoroughly cleaned and functioning correctly.
Remember, regular maintenance and prompt attention to problems can help prevent clogged fuel injectors and maintain the performance and fuel efficiency of your Harley motorcycle.
Cleaning Fuel Injectors in Your 09 WRX: A Step-by-Step Guide
You may want to see also
Explore related products
Circuit/system testing
Circuit or system testing for Harley fuel injectors can be done in several ways. One method is to use a test light, which resembles a screwdriver with a pointed end and a wire emerging from the handle. The wire from the handle and the pointed end must come into touch with a finished and energised circuit for this to function. The negative terminal of the vehicle's battery should be connected to the alligator clip on the wire's end. The negative terminal on the battery can be identified by the negative (-) symbol or the letters NEG. Make sure the clip has a solid metal-to-metal connection for the test light to function.
Each fuel injector will have a metal clip with two wires coming out of it. One of these wires should be a 12-volt constant that constantly receives power from the vehicle's electrical system. To test the fuel injectors, start by opening the hood of your car while the engine is running. Place a thin metal rod or screwdriver on one of the injectors and listen for a clicking sound, which indicates that the fuel injector is working. Repeat this process for each fuel injector in your vehicle. If you find one that isn't clicking, there may be an issue with the injector itself or the electronic component that controls it.
Another way to test the fuel injectors is to use a voltmeter. Connect the voltmeter leads to the terminals, but note that the polarity of the leads is not important. This test provides a baseline ohm reading for all injectors, and most injector readings should range between 11 and 14 ohms. Fuel injectors should be tested when they are cold unless otherwise specified, as temperature variations will affect the readings. If the test shows high resistance or an open circuit, the injector needs to be replaced.
Additionally, you can check the power to the injectors by using a test lamp or a voltmeter. With the key in the "on" position, connect the test light or voltmeter to the negative side of the battery. Probe both sides of the injector wiring connector gently. One of the wires should react by registering around 12 volts on the meter or illuminating the test light. If neither wire responds, test the fuel injector fuse in the PDC. If the fuse is intact, you will need a fuel injection wiring diagram to help trace the wire and repair the connection.
Motorcycle Fuel Injector: Can It Cause Engine Issues?
You may want to see also
Explore related products
Component testing
To test the fuel injectors on a Harley, start by turning off the ignition and disconnecting the harness connector at the fuel injector you want to test. It's important that the engine temperature sensor is between 10°C and 32°C (50°F and 90°F) for an accurate reading.
Next, test for resistance between the ignition 1 voltage terminal and the control terminal. Specifically, you are testing for 11-14 ohms of resistance. If the resistance is not within this range, the fuel injector needs to be replaced.
You can also test for power to the injectors with a test lamp. With the ignition on, place the test lamp between the ignition 1 voltage circuit terminal 1 and ground. If the lamp does not illuminate, repair the ignition 1 voltage circuit for a short to ground or an open/high resistance. Replace the fuse if necessary.
Another way to test the fuel injectors is to use a voltmeter to check for battery voltage at the injectors with the ignition on. The ignition voltage wire is yellow and green and should have battery voltage. The green/gray wire is the control wire from the ECM on the rear injector.
Finally, you can try cleaning the fuel injectors with a product like carb cleaner and then testing them with 12 volts to see if they spray. If they still don't work, you may need to replace them.
Fuel Injector Removal: Safe or Risky?
You may want to see also
Explore related products
Impact of fuel injectors on the environment
Fuel injectors are an essential component of any vehicle, delivering the correct amount of fuel to the combustion chamber, where it is mixed with air and burned to generate power. While they are crucial for the operation of a vehicle's engine, fuel injectors also have a significant impact on a vehicle's emissions and carbon footprint.
One of the primary ways fuel injectors influence emissions is through their effect on fuel efficiency. If fuel injectors are clogged or worn out, they can lead to poor fuel atomization. This results in incomplete combustion, which increases emissions of harmful gases such as carbon monoxide and hydrocarbons. In addition, malfunctioning fuel injectors can cause the engine to consume more fuel, leading to higher carbon dioxide emissions.
The air-fuel ratio is another critical factor in a vehicle's emissions. If the ratio is too rich, with an excess of fuel in the mixture, it can lead to increased carbon monoxide and hydrocarbon emissions. Conversely, a lean mixture with too much air can result in elevated levels of nitrogen oxide emissions. Properly functioning fuel injectors are vital for maintaining the optimal air-fuel ratio, and clogged or faulty injectors can disrupt this balance, leading to increased emissions.
Over time, advancements in fuel injection technology have played a crucial role in reducing emissions and improving fuel efficiency. The introduction of fuel injectors in the 1950s and their widespread adoption in the 1980s marked a significant step towards meeting stricter emissions requirements. The precision of fuel injectors in delivering the right amount of fuel at the right time has been instrumental in this regard.
Furthermore, the integration of fuel injectors with other vehicle systems, such as catalytic converters and oxygen sensors, has enabled real-time adjustments to the air-fuel ratio, optimizing combustion and minimizing emissions. As a result, fuel injectors have become increasingly sophisticated, incorporating electronic controls and state-of-the-art engineering to strike a balance between performance and environmental impact.
Fuel Injectors: RX8 CC Capacity Explored
You may want to see also
Explore related products
Troubleshooting a dead engine
A dead engine can be the result of an issue with the fuel injectors. Fuel injectors are responsible for injecting fuel into the engine for combustion. Over time, they can become clogged, leading to reduced performance and fuel efficiency.
There are several ways to troubleshoot a dead engine and identify if the issue is related to the fuel injectors. Firstly, check for any visible signs of damage or clogging on the fuel injectors themselves. If they appear to be physically damaged or excessively dirty, they may need to be cleaned or replaced.
You can also perform some circuit and component tests to diagnose the issue. Start by disconnecting the harness connector at the appropriate fuel injector with the ignition turned off. Ensure that the engine temperature sensor is within the accurate measurement range of 10-32°C (50-90°F). Then, test for 11-14 ohms between the ignition 1 voltage terminal 1 and the control terminal 2. If the readings are not within this specified range, it may indicate a problem with the fuel injector, and it should be replaced.
Additionally, you can perform a test lamp illumination check. With the ignition on, connect a test lamp between the ignition 1 voltage circuit terminal 1 and ground. If the test lamp does not illuminate, it suggests a problem with the ignition 1 voltage circuit, and you should repair it for a short to ground or an open/high resistance.
If your motorcycle has been experiencing rough idling, excessive vibrations, or loud noises, it could be a sign of clogged fuel injectors. Poor fuel injection can lead to reduced fuel economy and increased emissions, so it is important to address any issues promptly.
It is always recommended to refer to the Harley-Davidson shop manual or seek assistance from a qualified technician if you are unsure about any of the troubleshooting steps or if the issue persists.
Fuel Injector Warning Signs: How to Spot the Bad Ones
You may want to see also
Frequently asked questions
A clogged fuel injector will lead to reduced fuel economy and a negative impact on the motorcycle's performance. You may also notice excessive vibrations or loud noises.
With the ignition off, disconnect the harness connector at the appropriate fuel injector. Ensure the engine temperature sensor is between 10–32°C (50–90°F). Then, test for 11–14 ohms between the ignition 1 voltage terminal 1 and the control terminal 2. If it's not within the specified range, replace the fuel injector.
There could be a broken wire inside the injector, or the power commander could be causing issues.
If the test lamp does not illuminate, repair the ignition 1 voltage circuit for a short to ground or an open/high resistance. Replace the fuse if necessary.
If the test lamp is always on, test the control circuit for a short to ground. If the circuit tests normal, replace the ECM.
