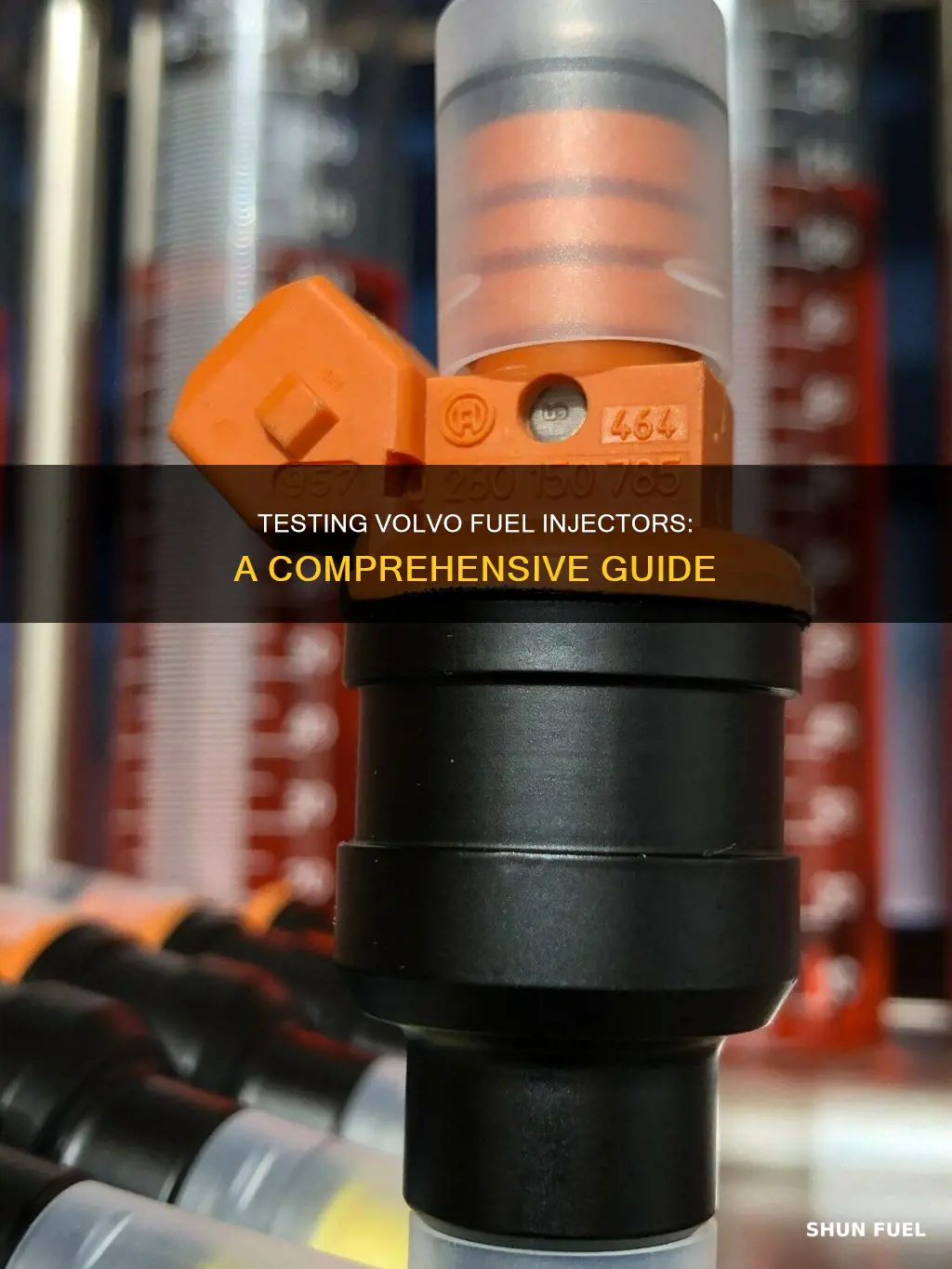

Fuel injectors are an essential part of a Volvo's engine system, ensuring the right amount of fuel is delivered to the engine at the right time. Over time, fuel injectors can become clogged, damaged, or fail, leading to reduced engine power, increased fuel consumption, and even engine damage. Testing fuel injectors can be done in several ways, including using an OBD-II scanner to read diagnostic trouble codes, listening for injector noise with a mechanic's stethoscope, performing a fuel pressure test, or checking electrical resistance with a multimeter. Other methods include the fuel injector spray test, balance test, and injector resistance test.
Testing Volvo Fuel Injectors
| Characteristics | Values |
|---|---|
| Tools | OBD-II Scanner, Mechanic's Stethoscope, Fuel Pressure Gauge, Multimeter, Digital Graphing Meter, Digital Storage Oscilloscope, Logic Probe, Test LED, Battery Voltage Maintainer, Ohmmeter |
| Symptoms | Poor engine performance, rough idling, increased fuel consumption, fuel leaks, engine misfires |
| Tests | Balance test, Fuel Pressure Test, Injector Resistance Test, Fuel Injector Spray Test, Injector Coding |
| Tips | Use silicone grease on the seals to make it easier to install the injectors, have a small fire extinguisher present during the spray test, use a battery voltage maintainer to ensure readings and testing aren't affected by low battery voltage |
Explore related products
What You'll Learn
Fuel injector spray test
The fuel injector spray test is one of the two tests that can be performed to diagnose issues with Volvo fuel injectors. The other test is the balance test.
The fuel injector spray test involves firing the injectors to observe the spray. Before performing the test, ensure you have a small fire extinguisher present as a safety precaution.
- Connect a starter switch to the positive terminal on the battery and to terminal 50 on the starter.
- Pull the fuel injectors and point them into a container or rags.
- Crank the engine and observe the spray patterns.
- The spray pattern should be a nice cone shape with little or no dripping.
Note: Do not stick anything into the fuel injectors. Also, be extremely cautious with the fuel as it is dangerous when atomized and can easily ignite.
