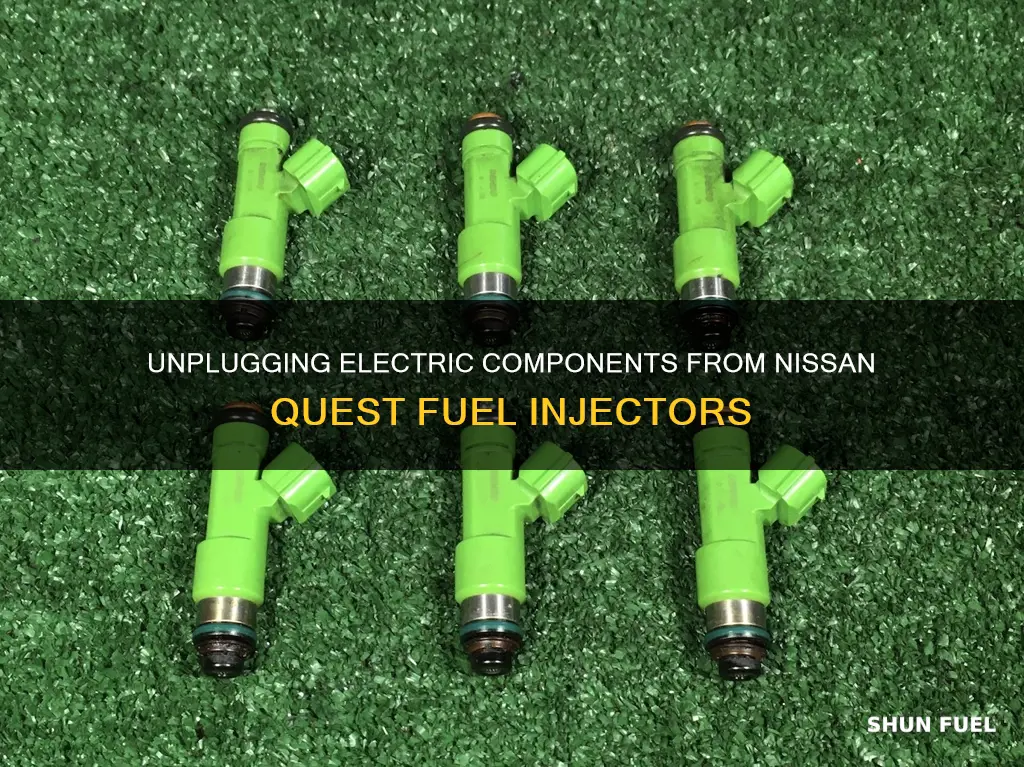

The fuel injector in Nissan Quest vehicles is an electronic device that replaces the carburetor, ensuring the correct amount of fuel is delivered to the engine at the right time. Over time, fuel injectors can become clogged with dirt and other materials, or the electronic components built into them may wear out. In either case, the injector must be replaced. This involves disconnecting the electrical harness from the injectors, unplugging the fuel injector connectors, and removing the injector cap screws and cap before pulling the injector from the fuel rail cup.
Explore related products
What You'll Learn
Disconnecting the electrical harness from the injectors
First, relieve the fuel pressure. This is an important safety step to prevent any accidental fuel spray or leakage during the process. You can do this by following the steps outlined in your Nissan Quest's manual. Once the fuel pressure is relieved, you can proceed to the next step.
Next, you will need to remove the air intake plenum (also known as the upper intake manifold) to access the fuel injectors. This will involve disconnecting various hoses and components, so it is important to refer to your vehicle's repair manual for specific instructions. Additionally, taking photos and labelling each hose with masking tape can help during the reassembly process.
Once you have accessed the fuel injectors, you will need to disconnect the electrical harness. There are typically six injectors in a Nissan Quest, and each injector has a plastic cap held in place by two Phillips screws. Loosen, but do not remove, these screws. Using a hexagonal socket wrench, undo the four bolts holding the fuel rail in place. The fuel rail is where the injectors are seated, and removing it will give you better access to the electrical connectors.
Now, you can remove the Phillips screws holding the plastic cover over each electrical connector. Lift the cover off and gently ease out each injector from its pocket in the fuel rail. You may need to wriggle the plastic body of the electrical connector to release the injector completely. With the injectors removed, you can now clean or replace them as needed.
Remember, it is important to keep track of all the parts you remove and their locations to make the reassembly process smoother. Additionally, always refer to your vehicle's repair manual for specific instructions and safety precautions before beginning any work on your fuel injectors.
Fuel Injector Harness: Signs of a Good One
You may want to see also
Explore related products
Removing the injector tube assembly
To remove the injector tube assembly, also known as the fuel rail, you will need to first relieve the fuel pressure. Disconnect the cable from the negative terminal of the battery. Then, remove the air intake plenum (upper intake manifold) from the lower intake manifold.
Next, you will need to disconnect the fuel injector connectors. Remove the injector cap screws and cap, and then pull the injectors from the fuel rail cup. You can now lift the fuel rail and the fuel injectors as an assembly from the lower intake manifold. Use a rocking, side-to-side motion to carefully lift the assembly.
When reinstalling the injector tube assembly, the process is mostly the reverse of removal. However, it is important to inspect the fuel rail insulators for any signs of deterioration and replace them if necessary. Lubricate the new insulators with a light coat of oil before installing the assembly back onto the lower intake manifold.
Additionally, when disconnecting the fuel injector connectors, you will need to use a small flat-head screwdriver to release the metal clip. Open the clip outwards and pull it back outside the groove on both sides. You can then wedge one side of the clip out of the groove and unplug the connector.
Vortec Engine Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
Checking for power at the terminals
The fuel injector in Nissan Quest vehicles is an electronic device that replaces the carburetor. It sprays fuel into the engine cylinders, which are regulated by the Engine Control Module. To unplug electric components from the fuel injectors, you will need to relieve the fuel pressure and then disconnect the cable from the negative terminal of the battery.
Before disconnecting the terminals, ensure that you are wearing the proper personal protective equipment, including gloves and safety glasses. The negative terminal is usually black and has a minus (-) sign, while the positive terminal usually has a plus (+) sign and is red. To check for power at the terminals, start by turning the key "on". With the injector unplugged, use a 12V test light (connected to ground) to confirm power at one of the terminals in the plug. If there is no power, the ECU might be faulty.
You can also use a voltmeter to check the 12V wire, and a 'noid' light to check for a pulse on the other wire. If there is no pulse, the ECU may be faulty. Check the harness connector at each injector for tightness and oxidation on the pins. Ensure that the injector caps are clean and free of contamination, and tighten the cap screws.
If you need to remove the fuel rail assembly, disconnect the fuel feed and return lines, then remove the fuel rail retaining bolts (two on each side). Using a rocking, side-to-side motion, carefully lift the fuel rail and the fuel injectors as an assembly from the lower intake manifold.
Fuel Injectors: Unclogging Naturally, Is It Possible?
You may want to see also
Explore related products
Disconnecting the fuel feed and return lines
Firstly, it is important to relieve the fuel pressure. This is a crucial safety step to avoid any potential hazards. Disconnect the negative battery cable, as this will prevent any electrical sparks that could ignite fuel vapors. Ensure you are working in a well-ventilated area to avoid inhaling any harmful fumes.
The next step is to remove the fuel tank protector and disconnect the fuel filler hose, recirculation hose, and EVAP canister hose at the fuel tank. You will need to refer to the repair guide for your specific Nissan Quest model, as the procedure may vary slightly. For example, for the 2001-2002 and 2004-2006 models, you will also need to remove the center exhaust tube with mufflers and disconnect the parking brake cables from the equalizer.
Once the hoses are disconnected, you can then carefully lift and remove the fuel tank. This will grant you access to the fuel injectors and the fuel feed and return lines. It is important to note that you should not remove the fuel rail if you are only servicing the fuel injectors.
Now, you can proceed to disconnect the fuel feed and return lines specifically from the fuel injectors. This step requires careful attention to detail. Ensure that the injector caps are clean and free of any contamination. Tighten the cap screws before attempting to remove the fuel injectors. The fuel injectors can be removed as an assembly from the lower intake manifold.
It is important to note that servicing the fuel injectors on the rear bank may require the removal of the upper intake manifold, as accessing the injectors can be more challenging. Additionally, always refer to a certified mechanic or a professional if you are unsure about any steps or procedures. Working on fuel injectors and fuel lines can be dangerous, so caution and expertise are essential.
Diagnosing Faulty Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Relieving the fuel pressure
To relieve the fuel pressure in a Nissan Quest, you must first remove the fuel rail and the injectors. To do this, open the fuel cap and disconnect and drain the fuel hose. This will relieve the line pressure.
It is important to relieve the fuel pressure before removing the injectors, as failure to do so can lead to fuel leaking into the cylinders. When the first injector is pulled without relieving the pressure, the entire rail drains into that one cylinder and eventually into the engine oil.
If you are not removing the rail but are instead replacing a single injector, you can drain the fuel using the gas cap/fuel line method. After completing the job and putting everything back together, crank the engine with the fuel pump fuse removed and power transistors unplugged so that the spark plugs don't fire. This will clear the fuel from the cylinder without detonation or hydrolock.
If your car doesn't start, you won't be able to pull the fuel pump relay and run the car. In this case, you can relieve the pressure with the Schrader valve on the fuel rail. However, be aware that the line is under 51 psi of pressure, so take the necessary precautions.
Diagnosing Fuel Injector Relay: A Step-by-Step Guide
You may want to see also
Frequently asked questions
First, relieve the fuel pressure. Disconnect the cable from the negative terminal of the battery. Remove the air intake plenum (upper intake manifold) from the lower intake manifold. Disconnect the fuel injector connectors. If you are servicing the fuel injector, remove the injector cap screws and cap, then pull the injector from the fuel rail cup.
Fuel injectors can easily become clogged with dirt and other materials. If the small nozzle of a fuel injector is stopped up, it can direct incoming fuel into the wrong areas, causing the vehicle to sputter and waste fuel. Another sign is if the engine misfires when the ambient temperature is above 20°C.
Turn the key "on" and, with the injector unplugged, use a 12v test light (connected to ground) to confirm power at one of the terminals in the plug. If you confirm power on one wire and not the other, you know the other wire is the ground circuit that goes to the ECU.
