Ameer Randolph
Fuel injectors are essential for the smooth running of a car's engine, so it's important to know how to tighten them properly. Injectors deliver fuel to the engine's combustion chamber, where it is ignited by the spark plug. Over time, injectors can become loose, leading to fuel leaks and other issues. Tightening fuel injectors requires a few tools, such as wrenches, screwdrivers, and a torque wrench to ensure the bolts are tightened correctly. Before beginning any work, it is important to relieve the fuel pressure in the lines, as working on a pressurized fuel line can be hazardous. This can be done by opening the fuse box and removing the fuel pump fuse or relay.

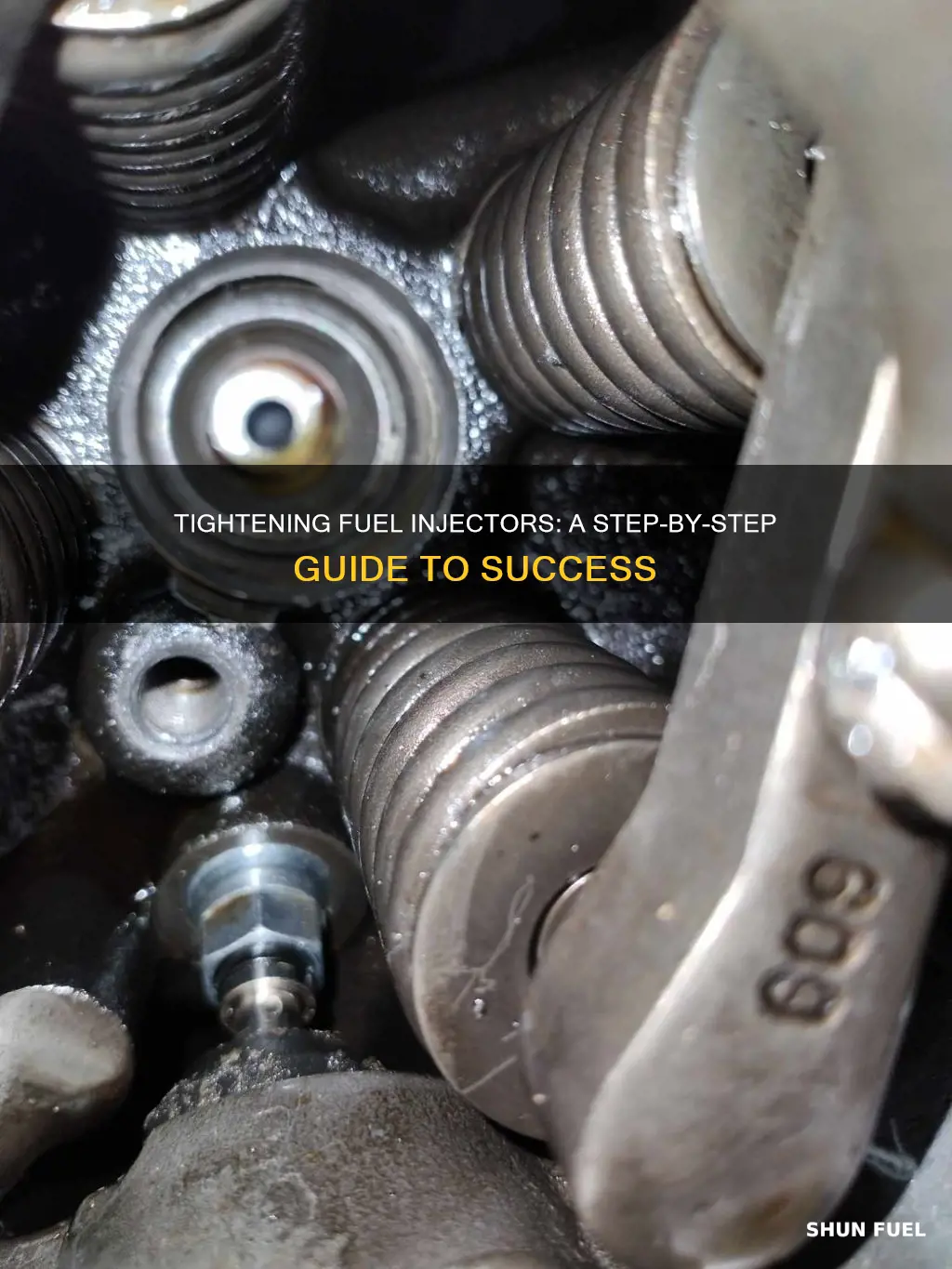

How to tighten fuel injectors
| Characteristics | Values |
|---|---|
| Tools required | Basic set of hand tools (wrenches, screwdrivers, pliers), socket set, torque wrench, safety equipment (gloves, safety glasses), fuel pressure gauge, replacement injectors, O-rings, seals, tray or container |
| Fuel injector location | Engine compartment near the intake manifold |
| Torque | 51 ft lbs (gasket washers), 11 ft-lbs (1KZ), 18 ft-lbs (3B), 27 ft-lbs (injector lines), 36 ft/lbs (nozzle leakage pipe), 22 ft lbs (cap union nuts) |
| Preload | Axial force applied to the bolt or injector and fuel line |
| Torque = Preload x coefficient of friction | Grease on threads reduces friction, so to get the same torque value, increase the preload |
| Fuel pressure | 40-60 PSI |
| Testing | Start the engine, run for a few minutes, inspect for leaks, check fuel pressure, take the vehicle for a test drive |
Explore related products
What You'll Learn
- The importance of using a torque wrench to tighten bolts to the manufacturer's specifications
- The need for safety equipment, such as gloves and glasses, to protect against fuel spills
- How to identify and locate a bad fuel injector?
- The process of removing old injectors and installing new ones
- The steps to reconnect the battery and test the new injectors
The importance of using a torque wrench to tighten bolts to the manufacturer's specifications
Fuel injectors are responsible for spraying fuel into the engine's combustion chambers. They ensure optimum combustion for the engine and are essential for the smooth running of a car. As injectors are crucial to the functioning of a car, it is important to replace them as soon as they fail.
When replacing fuel injectors, it is important to use a torque wrench to tighten bolts to the manufacturer's specifications. Torque is the amount of turning force applied to a fastener, such as a bolt or a nut. A torque wrench is a unique tool that can be adjusted to tighten nuts and bolts to a specific torque level. It is a very sensitive and
A torque wrench should be used in conjunction with other tools. It is recommended to first loosen the bolt with another tool, then tighten with the torque wrench to reach the correct torque. Torque wrenches should not be used to loosen bolts. They should also not be used when first attaching a nut or bolt, as they provide a lot of power and can destroy the threadings if the nut or bolt is not perfectly aligned.
Each vehicle type has different torque specifications, set by the manufacturer, which must be respected when servicing the vehicle. Therefore, it is important to use a torque wrench that is set to the correct torque for the specific vehicle and bolt being worked on.
Cleaning Ford Focus Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
The need for safety equipment, such as gloves and glasses, to protect against fuel spills
Fuel injectors are essential for the smooth running of a car's engine. They spray fuel into the engine's combustion chamber, ensuring optimum combustion. When they fail, the combustion can fail, fuel consumption rises, and the engine loses power. Therefore, it is vital to replace faulty injectors as soon as possible.
The process of replacing fuel injectors involves several steps, including locating the faulty injector, removing it, and installing a new one. It is important to have the right tools and safety equipment to ensure a smooth and safe process. Safety equipment is crucial to protect against fuel spills, which can pose a serious danger.
When working with fuel, it is essential to wear Personal Protective Equipment (PPE), including eye protection, gloves, and clothing that covers the body. Fuel spills can have harmful health effects, and the fumes produced can be dangerous. Eye protection, such as goggles or safety glasses, shields the eyes from splashes and fumes. Gloves made of chemical-resistant materials like neoprene or nitrile protect the hands from fuel exposure, while clothing covers the body and provides an additional layer of protection.
In addition to PPE, other safety precautions are necessary when dealing with fuel spills. It is crucial to avoid ignition sources, such as sparks or open flames, as fuel is highly flammable and can easily catch fire. Having spill response kits nearby and well-established protocols ensures a swift and effective response to any spills. Compliance with fuel safety regulations is also essential for legal reasons and to minimize environmental impact.
By following safety guidelines, wearing appropriate PPE, and having the necessary tools, individuals can effectively protect themselves and their surroundings when tightening fuel injectors and addressing any fuel spills that may occur during the process.
Removing Air from Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
How to identify and locate a bad fuel injector
Fuel injectors are crucial components in the fuel system that deliver fuel to the engine's combustion chambers to ensure smooth and optimal engine performance. When a fuel injector becomes bad or dirty, it can lead to several potential problems in the fuel system and even complete engine failure. Therefore, it is essential to identify and locate a bad fuel injector and replace it as soon as possible. Here is a comprehensive guide on how to identify and locate a bad fuel injector:
Identifying a Bad Fuel Injector:
There are several signs and symptoms that indicate a fuel injector is not functioning properly and needs attention:
- Rough Idling and Engine Stalling: Rough idling is characterised by varying RPMs even when your foot is off the gas pedal. Engine stalling is a sudden stop in RPMs and engine noise, feeling like the car is running out of gas.
- Poor Fuel Economy and Increased Fuel Consumption: If your vehicle consumes more fuel than usual and experiences a sudden decrease in MPG, it could mean that the fuel injector is delivering too much fuel to the combustion chamber, causing the engine to burn more fuel than necessary.
- Unusual Smell of Fuel: If you notice a strong smell of fuel inside the cabin or around the vehicle, it could indicate a fuel injector leakage. Leaks can happen due to worn-out O-ring seals and can lead to fire risks and severe damage to the fuel system.
- Engine Performance Issues: When a fuel injector malfunctions, the engine may not receive the correct amount of fuel, resulting in a lack of power, sluggish acceleration, and stalling.
- Illumination of the Check Engine Light: The check engine light on your dashboard can indicate a malfunctioning fuel injector. However, this light can also be triggered by various other issues, so a diagnostics scan with an OBD-II scanner tool is recommended to confirm the problem.
- Dirty Fuel Injectors: Dirty fuel injectors can cause the engine to misfire, sending vibrations through the car. It can disrupt the delicate balance between fuel and air entering the engine.
Locating a Bad Fuel Injector:
Once you have identified that you have a bad fuel injector, the next step is to locate it. In most vehicles, fuel injectors are located in the engine compartment near the intake manifold. They may be hidden by other components, so you may need to remove certain parts to gain access. Always refer to your vehicle's owner's manual or a repair manual for specific instructions on locating the fuel injectors. Ensure you have a well-lit workspace and enough room to work comfortably.
Replacing a Bad Fuel Injector:
After locating the bad fuel injector, it is essential to replace it with a new one. Here are the general steps for replacing a fuel injector:
- Gather the necessary tools and safety equipment, such as wrenches, screwdrivers, pliers, a socket set, a torque wrench, gloves, and safety glasses.
- Remove the old injector by disconnecting electrical connectors and carefully taking it out of the fuel rail.
- Install the new injector by inspecting for any damage and ensuring the O-rings are intact and properly lubricated.
- Insert the new injector into the fuel rail, secure it with retaining clips or brackets, and align it with the engine.
- Reinstall the bolts using a torque wrench and tighten them to the manufacturer's specifications.
- Reconnect the electrical connectors and double-check all connections and seals.
- Reconnect the battery by attaching the positive and negative cables to the corresponding terminals and tightening the nuts securely.
- Start the engine and test the new injector for leaks or unusual noises. Take the vehicle for a short test drive to ensure smooth engine performance.
Adjusting Idle with Fuel Injectors: The Complete Guide
You may want to see also
Explore related products
The process of removing old injectors and installing new ones
The process of removing old fuel injectors and installing new ones can be a challenging and potentially dangerous task, so it is important to be well-prepared and take appropriate safety precautions. Here is a detailed, step-by-step guide:
Removing Old Fuel Injectors:
- Prepare your vehicle: Park your vehicle on a level surface and ensure the engine is cold. Disconnect the battery to prevent any accidental startups, and remove the plastic engine covers to access the fuel injector rail.
- Locate the fuel injectors: Refer to your vehicle's repair manual to identify the location of the fuel injectors. They are typically found in the engine compartment near the intake manifold and may be hidden by other components.
- Access the fuel injectors: Remove any necessary parts or components that may obstruct access to the fuel injectors. Be cautious, as some residual fuel may spill during this process.
- Disconnect the fuel rail: Using appropriate tools such as a socket wrench or screwdriver, unlock and remove the fuel rail. This may involve removing bolts, brackets, or clips that secure the fuel rail in place.
- Remove the electrical connectors: Gently disconnect the electrical connectors from each injector. Some connectors may have tabs that you can press with pliers to unlock. Be careful not to damage any wires.
- Pull out the old fuel injectors: With the fuel rail and electrical connectors removed, carefully pull out each old fuel injector. They may require some force to remove, but be cautious not to damage the fuel rail or the engine's intake manifold.
Installing New Fuel Injectors:
- Prepare the new fuel injectors: Ensure that the new injectors are the correct specification for your vehicle. Inspect them for any damage and lubricate the O-rings by dipping the injector tips in a small amount of engine oil or gasoline. This helps create a good seal and prevents fuel leaks.
- Insert the new fuel injectors: Carefully insert each new injector into the fuel rail, ensuring they are properly seated and aligned. Reattach any retaining clips or brackets to secure the injectors in place.
- Reattach the fuel rail: Align the fuel rail with the engine and gently press it down to seat the injectors into their respective holes. Reinstall the bolts or brackets to secure the fuel rail, tightening them to the manufacturer's specifications using a torque wrench.
- Reconnect the electrical connectors: Reconnect the electrical connectors to each new injector, ensuring they are securely attached and clicked into place. Double-check all connections and seals to ensure everything is properly attached.
- Reconnect the battery: Reconnect the positive and negative battery cables to their respective terminals, tightening the nuts securely. Reconnecting the battery in the correct order helps prevent accidental short circuits.
- Test the new fuel injectors: Start the engine and run it for a few minutes. Inspect the injectors and surrounding areas for any leaks or unusual noises. If everything appears normal, take the vehicle for a short test drive to ensure the engine runs smoothly with the new injectors.
It is important to refer to your vehicle's repair manual or seek professional guidance if you are unsure about any steps in the process. Working with fuel injectors can be dangerous, so always prioritize your safety and the safety of those around you.
Fuel Injector Issues: Low Acceleration and Possible Solutions
You may want to see also
Explore related products
The steps to reconnect the battery and test the new injectors
To reconnect the battery and test your new fuel injectors, follow these steps:
Firstly, ensure you are wearing protective gear, such as gloves and safety glasses, to protect yourself from fuel spills and debris. It is also important to work in a well-ventilated area, outside if possible, to avoid inhaling gas fumes.
Now, you can begin the process of reconnecting the battery. Attach the positive cable to the positive terminal on the battery, which is identified by a plus sign (+) or a red cover. Tighten the nut with a wrench to ensure a secure connection. Next, connect the negative cable to the negative terminal, marked with a minus sign (-) or a black cover, and tighten this nut securely too. Ensure you reconnect the battery in this order to prevent accidental short circuits.
Once the battery is connected, double-check that all connections are tight and secure, with no loose wires or cables. With the battery reconnected, you can now start the engine to test the new injectors. Listen carefully for any unusual sounds and check for leaks around the injector area. If you notice any leaks, turn off the engine and tighten the fuel line or mounting hardware, before retesting.
If everything appears normal, take the vehicle for a short test drive to ensure the engine runs smoothly and efficiently with the new injectors installed. Pay close attention to the engine operation and listen for any unusual noises or problems. Finally, check the fuel pressure to make sure it is within the proper range, referring to your owner's manual for the correct fuel pressure range for your vehicle.
