Testing the fuel pump on a 2002 Suburban 1500 is essential for diagnosing issues related to fuel delivery, such as hard starting, stalling, or poor engine performance. The process typically involves checking for proper fuel pressure using a gauge, listening for the fuel pump's priming cycle when the ignition is turned on, and inspecting the fuel pump relay and fuse for functionality. Additionally, accessing the fuel pump, located inside the fuel tank, may require removing the tank or using specialized tools. Following a systematic approach ensures accurate diagnosis and helps determine whether the fuel pump needs repair or replacement.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Chevrolet Suburban 1500 |
| Fuel Pump Location | Inside the fuel tank (access through the rear seat or under the vehicle) |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, safety goggles, gloves |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Testing Method 1: Listen for Operation | Turn the ignition to "ON" (not start) and listen for the fuel pump hum (2-3 seconds) |
| Testing Method 2: Check Fuel Pressure | Use a fuel pressure gauge to measure pressure at the fuel rail (should be 55-61 PSI) |
| Testing Method 3: Multimeter Voltage Test | Check voltage at the fuel pump connector (should have 12V with ignition on) |
| Testing Method 4: Resistance Test | Measure fuel pump resistance (typically 10-20 ohms for a functioning pump) |
| Common Symptoms of Failure | Engine cranks but doesn’t start, stalling, loss of power, whining noise |
| Replacement Access | Fuel tank must be lowered or removed for pump replacement |
| Fuel Pump Relay Location | Under the hood in the fuse/relay box (check owner’s manual for exact location) |
| Fuel Filter Location | In-line with the fuel lines, typically near the driver’s side frame rail |
| Diagnostic Trouble Codes (DTCs) | P0087, P0088, P0190, P0191, P0192, P0193 (related to fuel pressure issues) |
| Estimated Repair Time | 2-4 hours (depending on access to fuel tank and mechanic skill) |
| Estimated Repair Cost | $300-$800 (parts and labor, varies by location and shop rates) |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump
- Pressure Testing: Use gauge to check fuel pressure at Schrader valve
- Electrical Testing: Test pump’s power and ground connections with multimeter
- Listening Test: Activate pump with relay and listen for operation
- Post-Test Analysis: Compare results to specs, diagnose issues, replace if necessary
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump
Before attempting to test the fuel pump on your 2002 Suburban 1500, it's crucial to gather the necessary tools and ensure a safe working environment. You'll need a few basic items: a digital multimeter, a fuel pressure gauge, and a set of wrenches or sockets to remove any components obstructing access to the fuel pump. Additionally, having a pair of safety gloves and safety goggles is essential to protect yourself from fuel spills and debris. These tools are not only practical but also ensure that you can perform the test accurately and safely.
Safety should always be your top priority when working on any vehicle, especially when dealing with the fuel system. Start by parking your Suburban on a level surface, engaging the parking brake, and allowing the engine to cool down if it has been running. Fuel systems operate under pressure, and a hot engine increases the risk of accidents. Ensure the area is well-ventilated to avoid inhaling fuel vapors, which can be harmful. If you’re working in a garage, open the doors or use a fan to maintain airflow. These precautions minimize risks and create a safer workspace.
With safety measures in place, the next critical step is to disconnect the battery. This prevents accidental starts and electrical shorts during the testing process. Locate the battery, typically found under the hood, and use a wrench to loosen the nut on the negative terminal. Carefully remove the cable and secure it away from the battery to ensure it doesn’t accidentally reconnect. This simple step protects both you and the vehicle’s electrical system, making it a non-negotiable part of pre-test preparation.
Finally, locate the fuel pump, which is situated inside the fuel tank. Accessing it requires removing the rear seat or a section of the trunk floor, depending on your Suburban’s configuration. Refer to your vehicle’s manual for specific instructions on accessing the fuel pump module. Once located, you’ll need to relieve the fuel system pressure before proceeding with the test. Attach the fuel pressure gauge to the Schrader valve on the fuel rail, depress the valve to release pressure, and observe the gauge to ensure it drops to zero. This step is vital to prevent fuel from spraying during the test, ensuring both safety and accuracy.
Does a 1997 GMC Sonoma Have a Fuse for Fuel Pump?
You may want to see also
Explore related products

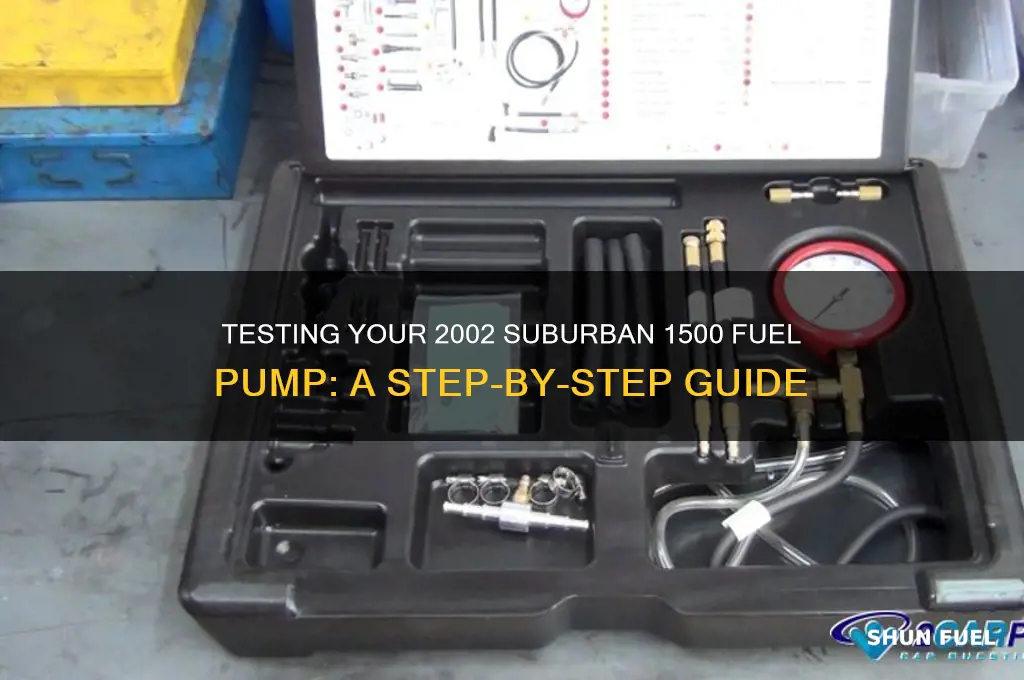

Pressure Testing: Use gauge to check fuel pressure at Schrader valve
Pressure testing the fuel pump on a 2002 Suburban 1500 is a critical diagnostic step when troubleshooting fuel system issues. The Schrader valve, located on the fuel rail, provides a direct access point to measure fuel pressure accurately. This valve, similar to those found on car tires, allows you to connect a fuel pressure gauge for a precise reading. Before proceeding, ensure the engine is off and the fuel system is depressurized to avoid accidents. This method not only verifies the fuel pump’s functionality but also helps identify issues like clogged fuel filters or faulty pressure regulators.
To perform the test, start by locating the Schrader valve on the fuel rail, typically near the engine’s intake manifold. Attach a fuel pressure gauge to the valve, ensuring a secure connection to prevent fuel leaks. With the gauge in place, turn the ignition to the "ON" position (without starting the engine) to activate the fuel pump. Observe the gauge reading; it should match the specifications for your vehicle, typically around 55–61 PSI for a 2002 Suburban 1500 with a Vortec V8 engine. If the pressure is low, check for leaks, clogged lines, or a failing fuel pump. If it’s high, suspect a faulty pressure regulator.
A comparative analysis of fuel pressure readings can provide deeper insights. For instance, if the pressure drops significantly when the engine is running, it may indicate a weak fuel pump unable to maintain pressure under load. Conversely, consistent pressure readings suggest the pump is functioning correctly, shifting suspicion to other components like injectors or the fuel filter. Always compare your findings to the manufacturer’s specifications, as deviations can pinpoint specific issues.
Practical tips can streamline the process. Use a high-quality fuel pressure gauge designed for gasoline systems to ensure accuracy. If the Schrader valve is difficult to access, consider using an extension hose for the gauge. After testing, release pressure from the gauge and disconnect it carefully to avoid fuel spills. Document your readings for future reference, as they can serve as a baseline for diagnosing intermittent issues.
In conclusion, pressure testing via the Schrader valve is a straightforward yet powerful method to assess fuel pump health on a 2002 Suburban 1500. By combining precise measurements with analytical observation, you can diagnose fuel system problems efficiently. This approach not only saves time but also prevents unnecessary part replacements, making it an essential skill for both DIY mechanics and professionals.
Understanding the Fuel Pump Operation on a Suzuki Marauder VZ800
You may want to see also
Explore related products
Electrical Testing: Test pump’s power and ground connections with multimeter
A faulty fuel pump can leave you stranded, but before replacing it, verify the electrical connections are intact. The fuel pump relies on a solid power supply and ground to function, making these connections critical to test. Using a multimeter, you can systematically check for voltage at the pump’s connector and ensure the ground path is complete. This diagnostic step eliminates guesswork and saves time and money by pinpointing whether the issue lies in the pump itself or its electrical circuit.
Begin by locating the fuel pump connector, typically found near the fuel tank. With the ignition in the "on" position (not cranking), set your multimeter to the DC voltage setting and probe the power wire at the connector. On a 2002 Suburban 1500, this wire is usually pink. If the multimeter reads battery voltage (around 12 volts), the power supply is good. If not, trace the wiring back to the fuse box or relay to identify the fault. Remember, safety first—always disconnect the battery before probing wires directly to avoid shorts.
Next, test the ground connection, which is just as crucial as power delivery. Switch your multimeter to the continuity setting (beep function) and disconnect the fuel pump connector. Place one probe on the ground wire (typically black) and the other on a known good ground, such as the engine block. A beep indicates a solid ground; no beep suggests a broken or corroded ground path. Clean or repair the ground connection if necessary, as poor grounding can mimic a failed pump.
While testing, consider environmental factors like corrosion or loose connections, which are common culprits in older vehicles. If the power and ground tests pass but the pump still doesn’t operate, the issue may lie within the pump itself or the fuel pump relay. Always double-check your multimeter settings and connections to avoid misdiagnosis. This methodical approach ensures you’re not replacing parts unnecessarily and builds confidence in your diagnostic skills.
In summary, electrical testing with a multimeter is a precise way to validate the fuel pump’s power and ground integrity. By confirming these connections, you narrow down potential causes and avoid unnecessary repairs. This step is indispensable in diagnosing a 2002 Suburban 1500’s fuel pump issues, blending practicality with technical insight for both DIYers and seasoned mechanics.
Bad Fuel Pump Relay: The Hidden Cause of No Spark?
You may want to see also
Explore related products
Listening Test: Activate pump with relay and listen for operation
The fuel pump in a 2002 Suburban 1500 is a critical component, and one of the simplest ways to diagnose potential issues is by performing a listening test. This method involves activating the pump using a relay and then carefully listening for its operation. It’s a straightforward, cost-effective approach that can quickly indicate whether the pump is functioning properly or if further investigation is needed.
To begin, locate the fuel pump relay in the underhood fuse/relay box. Consult your vehicle’s manual for the exact position, typically labeled as "FUEL PUMP" or "FP." With the ignition off, swap the fuel pump relay with a similar relay in the box (e.g., the horn relay) to ensure compatibility. Turn the ignition to the "ON" position (not start) and have an assistant listen near the fuel tank for a humming sound, which should last 2–3 seconds as the pump primes the system. If no sound is heard, the pump may be faulty, or there could be an issue with the relay, wiring, or fuel pump fuse.
A key caution here is safety: always work in a well-ventilated area and avoid any sources of ignition, as fuel vapors can be hazardous. Additionally, ensure the vehicle is on a level surface and the parking brake is engaged. If the pump operates but the engine still fails to start, the issue may lie elsewhere, such as a clogged fuel filter or faulty fuel pressure regulator. This test isolates the pump’s functionality, narrowing down potential causes.
Comparatively, while other tests like checking fuel pressure or using a multimeter provide quantitative data, the listening test offers immediate qualitative feedback. It’s particularly useful as an initial diagnostic step, saving time and effort before proceeding to more complex tests. For instance, if the pump is silent, you can focus on electrical issues rather than mechanical ones, streamlining troubleshooting.
In practice, this method is accessible even to those with limited mechanical experience. It requires no specialized tools beyond a basic understanding of relay location and function. Pairing this test with a visual inspection of the fuel pump fuse and wiring connections can further enhance accuracy. By combining simplicity with effectiveness, the listening test remains a valuable technique for diagnosing fuel pump issues in a 2002 Suburban 1500.
Testing Your 2010 Cadillac SRX Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Post-Test Analysis: Compare results to specs, diagnose issues, replace if necessary
After testing your 2002 Suburban 1500's fuel pump, the real work begins: deciphering the results. Your multimeter readings are like a diagnostic code, waiting to be interpreted.
Compare your voltage readings to the specifications outlined in your vehicle's service manual. A healthy fuel pump should deliver a consistent voltage within a specific range, typically around 12 volts. If your readings fall significantly below this range, it's a strong indicator of a weak or failing pump.
Don't just look at the numbers in isolation. Consider the context. Did the voltage fluctuate during the test? This could point to a faulty connection or a pump struggling under load. Did the pump fail to produce any voltage at all? This suggests a complete electrical failure, likely requiring replacement.
Diagnosis isn't always black and white. A borderline reading might indicate a pump nearing the end of its lifespan. In such cases, consider factors like mileage, driving habits, and any recent performance issues. A pump operating marginally might be acceptable for a low-mileage vehicle with minimal demands, but could be a ticking time bomb in a high-mileage workhorse.
If your analysis points towards a faulty fuel pump, replacement is often the most prudent course of action. While some minor issues can be addressed through cleaning or repairs, a failing pump is a safety hazard and can lead to further engine damage.
Remember, a thorough post-test analysis is crucial for making informed decisions about your Suburban's fuel system. By carefully comparing results to specifications, considering contextual clues, and weighing the risks, you can ensure your vehicle remains reliable and safe on the road.
Mastering Fuel Adjustment: A Step-by-Step Guide for CAV Pumps
You may want to see also
Frequently asked questions
You can test the fuel pump by listening for it to prime when you turn the ignition to the "ON" position (but don’t start the engine). Place your ear near the fuel tank or use a mechanic’s stethoscope to hear the pump run for 2-3 seconds. If you don’t hear it, check the fuel pump fuse and relay for faults.
Common symptoms include difficulty starting the engine, sputtering or stalling during acceleration, loss of power, and a whining noise from the fuel tank. If the pump fails completely, the engine may not start at all.
Use a fuel pressure gauge to test the pressure at the fuel rail. Disconnect the fuel pressure test port, attach the gauge, and turn the ignition to the "ON" position. Compare the reading to the manufacturer’s specifications (typically 55-61 PSI for this model). Low pressure indicates a potential fuel pump issue.
