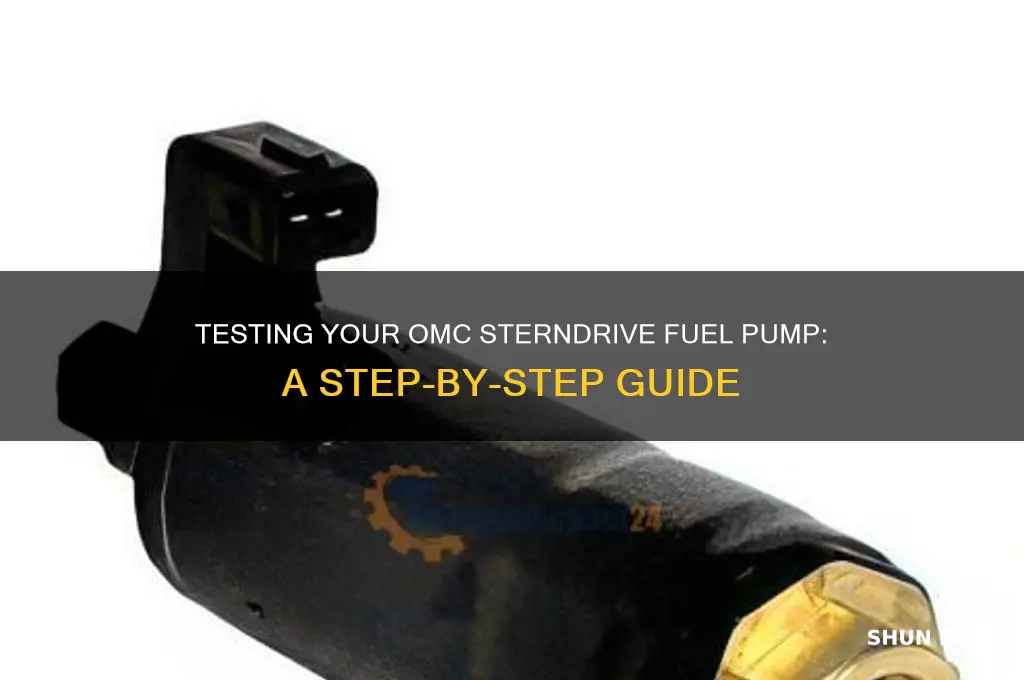

Testing the fuel pump on a sterndrive OMC (Outboard Marine Corporation) engine is a critical step in diagnosing fuel system issues, ensuring optimal performance, and preventing potential breakdowns on the water. The process involves verifying the pump’s ability to deliver fuel at the correct pressure and volume, which can be done using a fuel pressure gauge, a multimeter, and a basic understanding of the system’s components. By isolating the pump, checking for power supply, and monitoring fuel flow, boaters can accurately determine whether the fuel pump is functioning properly or needs replacement, saving time and money on unnecessary repairs.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, wrench, safety gloves |
| Safety Precautions | Ensure engine is off, disconnect battery, work in well-ventilated area |
| Fuel Pump Location | Typically near the engine or fuel tank on OMC sterndrive systems |
| Testing Method | Use a multimeter to check for voltage at the fuel pump connector |
| Voltage Range | 12V (check battery voltage before testing) |
| Fuel Pressure Test | Connect a fuel pressure gauge to the fuel rail to check pump output |
| Expected Pressure | Varies by model, typically 30-60 PSI (refer to OMC manual) |
| Pump Activation | Turn ignition to "ON" without starting the engine to activate the pump |
| Listening Test | Listen for a humming sound near the fuel tank when ignition is on |
| Common Issues | No voltage, low pressure, no humming sound, clogged fuel filter |
| Replacement Considerations | Replace pump if voltage is present but no pressure or humming sound |
| Fuel Line Inspection | Check for leaks, cracks, or clogs in fuel lines during testing |
| Compatibility | Ensure replacement pump matches OMC sterndrive model specifications |
| Professional Assistance | Consult a marine mechanic if unsure about testing or diagnosis |
Explore related products
What You'll Learn
- Pre-Test Safety Checks: Ensure engine is off, battery disconnected, and fuel lines are secure before testing
- Pressure Gauge Testing: Attach gauge to fuel line to verify pump delivers correct pressure
- Voltage Testing: Check power supply at pump connector using multimeter to confirm electrical functionality
- Listen for Pump Operation: Turn key to on and listen for humming sound indicating pump activation
- Fuel Flow Verification: Disconnect fuel line and crank engine to check for steady fuel flow
Pre-Test Safety Checks: Ensure engine is off, battery disconnected, and fuel lines are secure before testing
Before testing the fuel pump on a sterndrive OMC, prioritize safety to prevent accidents, fires, or damage. Start by confirming the engine is completely off. This eliminates the risk of accidental ignition during testing. Even a brief spark can ignite fuel vapors, so double-check the ignition key is removed and the kill switch is engaged. Treat every step as if the engine could start unexpectedly, especially in marine environments where vibrations and moisture increase electrical hazards.
Disconnecting the battery is the next critical step. Locate the negative terminal and use a wrench or pliers to loosen the nut, then remove the cable. This cuts power to the entire system, ensuring no electrical current reaches the fuel pump or other components. Wait at least 5 minutes after disconnection to allow capacitors in the system to discharge fully. Skipping this step could result in electrical shocks or short circuits, particularly in older sterndrive models with corroded wiring.
Securing fuel lines is equally vital to avoid spills or pressure buildup. Inspect all connections for cracks, leaks, or loose fittings. Clamp or plug exposed lines using fuel-resistant materials to contain any residual fuel. If testing involves pressurizing the system, use a gauge rated for marine fuel systems (typically up to 10 psi) to monitor levels safely. Failure to secure lines can lead to fuel contamination of bilge areas or environmental hazards, especially in confined boat spaces.
Finally, verify the workspace is clear of flammable materials and well-ventilated. Fuel vapors are heavier than air and can accumulate in low areas, so position yourself upwind if working outdoors. Keep a Class B fire extinguisher within arm’s reach as a precaution. These steps, though time-consuming, transform a potentially dangerous task into a controlled procedure, ensuring both personal safety and the integrity of the sterndrive system during fuel pump testing.
Understanding the Fuel Pump Operation in a 2002 Polaris Sportsman 500
You may want to see also
Explore related products
Pressure Gauge Testing: Attach gauge to fuel line to verify pump delivers correct pressure
One of the most reliable methods to assess the performance of a fuel pump on a sterndrive OMC is through pressure gauge testing. This technique involves attaching a gauge directly to the fuel line to measure the pressure delivered by the pump. By doing so, you can determine whether the pump is operating within the manufacturer’s specified range, typically between 3 to 7 psi for most sterndrive systems. If the pressure falls outside this range, it could indicate a failing pump, clogged fuel lines, or a faulty fuel filter, all of which can lead to engine performance issues.
To perform this test, start by locating the fuel line connection near the engine. Disconnect the line carefully, ensuring no fuel spills, and attach the pressure gauge using appropriate fittings. With the engine off, turn the ignition to the "on" position to activate the fuel pump. Observe the gauge reading; it should stabilize within a few seconds. If the pressure is too low, the pump may be weak or failing. Conversely, excessive pressure could signal a restriction in the fuel system. Always compare your findings to the specifications in your OMC manual for accuracy.
While this method is straightforward, it requires attention to detail. Ensure the gauge is compatible with the fuel type (gasoline or diesel) and rated for the expected pressure range. Use a clean cloth to wipe any fuel residue from connections to prevent contamination. If you’re unsure about the process, consult a professional or refer to a step-by-step guide specific to your OMC model. Misdiagnosis can lead to unnecessary repairs or further damage, so precision is key.
A practical tip is to perform this test after ruling out simpler issues, such as a clogged fuel filter or water in the fuel. If the pressure gauge test confirms a pump problem, consider whether the pump needs cleaning, repair, or replacement. For older sterndrives (over 10 years), wear and tear on the pump diaphragm or motor are common culprits. Regular testing, especially before the boating season, can prevent unexpected breakdowns and ensure reliable engine performance.
In summary, pressure gauge testing is a critical diagnostic tool for evaluating fuel pump functionality on a sterndrive OMC. By verifying the pump’s output pressure, you can pinpoint issues before they escalate, saving time and money. With the right tools and careful execution, this method empowers boat owners to maintain their engines with confidence, ensuring smooth operation on the water.
Does the ECM Control the Fuel Pump in TBI Systems?
You may want to see also
Explore related products
Voltage Testing: Check power supply at pump connector using multimeter to confirm electrical functionality
A faulty fuel pump can leave you stranded on the water, but before replacing it, confirm the issue isn't electrical. Voltage testing at the pump connector is a critical diagnostic step, isolating whether the problem lies with the pump itself or the power supply. This simple procedure requires a multimeter, a tool every boat owner should have in their arsenal.
Set your multimeter to the DC voltage setting, typically denoted by a "V" with a straight line above it. With the ignition in the "on" position but the engine not running, carefully connect the multimeter's red lead to the positive terminal of the fuel pump connector and the black lead to the negative terminal. A healthy fuel pump should receive 12 volts. Anything significantly lower indicates a problem with the wiring, fuse, or relay supplying power to the pump.
This test is particularly useful because it bypasses the fuel pump's internal workings, focusing solely on the electrical circuit. If voltage is present at the connector, the issue likely lies within the pump itself, such as a burnt-out motor or clogged inlet. Conversely, no voltage points to a break in the circuit, requiring further investigation of wiring harnesses, fuses, and the fuel pump relay.
Remember, safety is paramount. Always disconnect the battery before working on any electrical components. Additionally, consult your OMC sterndrive's manual for the exact location of the fuel pump connector and any specific voltage specifications.
Does Your Fuel Pump Control the Gas Gauge? Explained
You may want to see also
Explore related products
Listen for Pump Operation: Turn key to on and listen for humming sound indicating pump activation
One of the simplest yet most effective ways to test the fuel pump on a sterndrive OMC is to listen for its operation. When you turn the key to the "on" position, the fuel pump should activate, producing a distinct humming sound. This sound is a crucial indicator that the pump is functioning and pressurizing the fuel system. If you hear this hum, it’s a positive sign that the electrical circuit is intact and the pump is receiving power. However, the absence of this sound doesn’t always mean the pump is faulty—it could indicate a wiring issue, a blown fuse, or a malfunctioning relay. Always ensure the battery is fully charged and the ignition system is in good condition before concluding the pump is at fault.
To perform this test effectively, position yourself near the fuel pump, typically located near the engine or fuel tank. The humming sound should be audible within 2-3 seconds of turning the key. If the sound is faint or intermittent, it may suggest a weak pump or a clogged fuel filter, which restricts flow and forces the pump to work harder. In such cases, further inspection is necessary. For safety, avoid prolonged cranking of the engine without starting it, as this can overheat the pump and cause damage. This method is particularly useful as an initial diagnostic step, providing quick insight into the pump’s electrical and mechanical health.
Comparing this method to other diagnostic techniques highlights its simplicity and immediacy. Unlike pressure testing or voltage checks, which require specialized tools, listening for the pump’s operation relies solely on your ears and the ignition key. It’s a non-invasive approach that can save time and effort, especially when troubleshooting in a marine environment where access to tools may be limited. However, it’s not foolproof—a humming sound doesn’t confirm proper fuel delivery or pressure, only that the pump is attempting to operate. For a comprehensive diagnosis, combine this test with other methods, such as checking fuel pressure or inspecting the pump for leaks.
A practical tip to enhance this test is to use a mechanic’s stethoscope or a length of rubber hose to amplify the sound, making it easier to detect in noisy environments. Additionally, if the boat has been sitting idle for an extended period, turn the key to the "on" position for a few seconds before cranking the engine. This primes the fuel system, ensuring the pump has fuel to work with and providing a clearer indication of its operation. By mastering this technique, you’ll be better equipped to identify fuel pump issues early, preventing potential breakdowns on the water and ensuring a smoother boating experience.
Bypassing the Fuel Pump on Your Sportsman: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel Flow Verification: Disconnect fuel line and crank engine to check for steady fuel flow
A critical step in diagnosing fuel pump issues on a sterndrive OMC is verifying fuel flow. This process involves disconnecting the fuel line and cranking the engine to observe the flow, ensuring the pump is delivering fuel consistently. By isolating the fuel line, you eliminate variables like clogged filters or injector problems, focusing solely on the pump’s performance. This method is straightforward, requiring minimal tools, and provides immediate visual feedback on the pump’s functionality.
To perform this test, start by locating the fuel line connection near the engine. Use a wrench or pliers to loosen the clamp securing the line, then carefully disconnect it, directing the end into a clear container to catch fuel. With the line disconnected, have an assistant crank the engine while you observe the flow. A healthy fuel pump should deliver a steady, forceful stream of fuel, free from air bubbles or sputtering. If the flow is weak, intermittent, or absent, the pump may be failing or obstructed.
Comparing this method to other diagnostic techniques highlights its efficiency. Unlike pressure gauges or electrical tests, fuel flow verification offers a direct, visual assessment without specialized equipment. It’s particularly useful for older OMC sterndrives where electrical systems may be less reliable. However, caution is essential: always work in a well-ventilated area, avoid open flames, and ensure the engine is cool to prevent fuel ignition. This test is best performed with two people to ensure safety and accuracy.
A persuasive argument for this method lies in its ability to pinpoint issues quickly. If the flow is steady, the problem likely lies downstream of the pump, such as with injectors or filters. If not, the pump is the culprit. This clarity saves time and money by avoiding unnecessary part replacements. For DIY enthusiasts, this test is a practical, cost-effective way to troubleshoot before investing in professional diagnostics or repairs.
In conclusion, fuel flow verification is a simple yet powerful diagnostic tool for testing a sterndrive OMC’s fuel pump. By disconnecting the fuel line and cranking the engine, you gain immediate insight into the pump’s performance. This method’s ease of execution, combined with its ability to isolate the pump’s functionality, makes it an essential step in any troubleshooting process. Always prioritize safety and precision to ensure accurate results and maintain the longevity of your marine engine.
Bypassing Nissan Pickup Fuel Pump Relay: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You can test the fuel pump by checking for proper fuel pressure and volume. Use a fuel pressure gauge to measure the pressure at the fuel rail, and compare it to the manufacturer's specifications. Additionally, listen for the fuel pump's hum when the key is turned to the "on" position.
You will need a fuel pressure gauge, a multimeter to test for power and ground at the fuel pump connector, and possibly a fuel line disconnect tool to access the fuel lines.
Yes, you can perform preliminary tests without removing the fuel pump. Check for power and ground at the fuel pump connector using a multimeter, and listen for the pump's operation when the key is turned on. However, for a comprehensive test, you may need to remove the pump or use specialized tools.
Common symptoms include difficulty starting the engine, loss of power, stalling, and a lack of fuel pressure. You may also notice a whining noise from the fuel pump or inconsistent fuel delivery.
Use a multimeter to test the voltage at the fuel pump connector. With the key in the "on" position, there should be battery voltage (typically 12V) at the power wire and a good ground connection. If either is missing, check the wiring and fuses for issues.
