The BMW N54 engine is a popular platform with enthusiasts due to its potential power. However, the N54 fuel system can be troublesome, with fuel injectors being a common point of failure. The injectors are piezo-electric, using a quartz crystal stack to control fuel flow, and are more similar to diesel injection than regular gas injectors. This method allows for a higher volume of fuel to be moved, but the injectors are prone to clogging and carbon buildup, which can cause engine stuttering, knocking, and increased fuel consumption. Testing and replacing N54 fuel injectors is a complex process that requires specialised tools and knowledge, and proper testing requires an electrical and pressure stress test to replicate operating conditions.

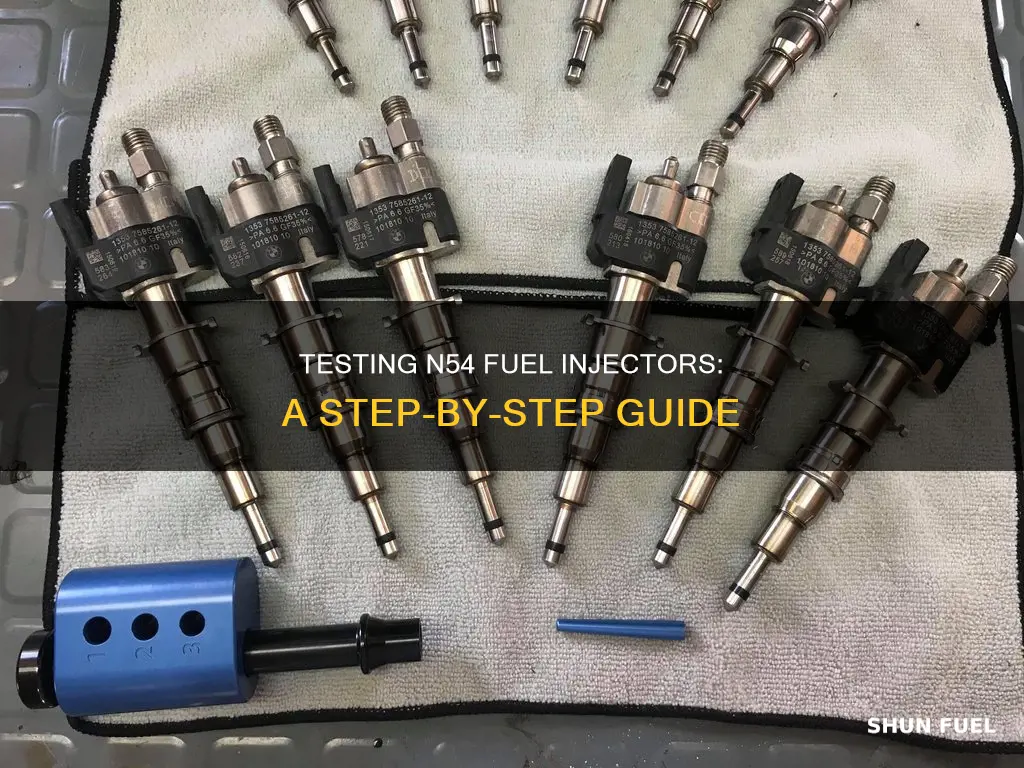

Testing Fuel Injectors in BMW N54 Engines
| Characteristics | Values |
|---|---|
| Injector Type | Piezoelectric |
| Testing Method | Analysis of waveform using a built-in oscilloscope on a flow bench |
| Turn-On Current | Up to 12 amps depending on fuel demands |
| GDI Open Event | 0.04 to 5 milliseconds |
| Standard PFI Injector Lag Time | 5 to 15+ milliseconds |
| Nominal PFI Injector Current Draw | 900 milli Amps |
| GDI Internal Resistance | 2.6 to 16.3 Ohms |
| First Stage Hold Current | Peak-and-Hold scheme |
| Second Stage Hold Current | 2.5 Amps |
| Fuel Leak Check | Visual inspection and DME calibration |
| Calibration Tools | INPA, ISTA, or scan tools capable of DME calibration |
| Cleaning and Testing Services | Available from specialist companies |
| Warning Signs | Engine stutter, knocking, increased fuel consumption, black tailpipe emissions |
Explore related products
$86.51
What You'll Learn
- The N54 engine is a popular platform with enthusiasts due to its potential power
- N54 fuel injectors are piezo-electric injectors, which have more in common with diesel injection than regular gas injectors
- The N54 fuel injector is responsible for atomising and injecting fuel into the cylinder
- A faulty N54 fuel injector can result in a multitude of problems arising from the engine receiving the incorrect volume or pressure of fuel
- The N54 fuel injector plays a crucial role in the normal functioning of your car
The N54 engine is a popular platform with enthusiasts due to its potential power
One of the key advantages of the N54 engine is its impressive performance and power delivery. Equipped with twin-scroll turbochargers, the N54 engine enhances power delivery, reduces turbo lag, and provides a seamless and exhilarating driving experience. The engine typically produces around 300 horsepower and 300 lb-ft of torque in its factory form. However, with modifications such as ECU remapping, upgraded intercoolers, high-performance exhaust systems, and upgraded turbochargers, the power output can soar well beyond 500 horsepower, making it a favourite among enthusiasts seeking more power.
The N54 engine also offers reliability and durability. Its design incorporates a cast-iron block and an aluminium DOHC cylinder head, ensuring a lightweight yet robust construction. Additionally, features like direct injection, variable valve timing, and an intercooler system contribute to improved fuel efficiency, engine responsiveness, and overall performance.
Despite some common issues such as high-pressure fuel pump (HPFP) failure, turbo wastegate rattle, and oil leaks, the N54 engine has proven to be reliable when properly maintained. The availability of aftermarket support and modifications further enhances its reliability and performance, making it a popular choice for enthusiasts seeking to extract more power and performance from their vehicles.
The N54 engine has made a significant impact in the automotive world, particularly among BMW enthusiasts. Its combination of power, precision, and performance has earned it a reputation as a contemporary legend, with enthusiasts dubbing it the "German 2JZ". The tuning possibilities and the ability to easily modify the vehicle for increased performance have solidified its popularity among car enthusiasts.
Fuel Injector Size: Can Bigger Be Better?
You may want to see also
Explore related products
N54 fuel injectors are piezo-electric injectors, which have more in common with diesel injection than regular gas injectors
The N54 engine is a very popular platform with enthusiasts due to the potential power that can be unlocked. The stock fuel system was designed by BMW to be overkill, and unlike other direct injection cars, you can still drive comfortably with a high-pressure fuel pump failure. While this is impressive, the N54 fuel system as a whole can be a troublesome area in aging cars. One of the most common failures of the N54 is the fuel injectors. The main failure on earlier injectors is clogging and foreign debris restricting flow. On early N54 injectors, there is a filter that is known to melt at high temperatures. Once the filter fails, the injector can no longer function properly.
BMW has redesigned these injectors numerous times to address these failures. While some vehicles are still under warranty to this date, many of these cars have received replacement injectors several times over the course of their service life. It is important to note that the updated injectors cannot be mixed with the original style injectors.
Testing a GDI injector properly is no easy task due to the fact that their operating conditions of current voltage and pressure are always changing. The only way to properly test the condition of the injector is to run it in its actual conditions. An electrical and pressure "stress test" is required to get the injector ready for testing. Injectors do not fail when initially tested, they fail under "heat", which cannot be replicated without running under the operating conditions.
When replacing the fuel injectors, the first step is to remove the cowl cover/air filter housing. This will give you access to the rearmost injector feed line and injectors. In most cases, this cowl will be in the way. On most BMWs, the cowl cover is held in with clips and expanding rivets. It is recommended to have tools on hand such as a flat-head screwdriver and expanding rivet pliers. With the cowl cover out of the way, it is time to start removing other components to get to the injectors. First, remove the ignition coil by pulling the lock tab up and the connector out. Then, pull the coil off the plug. It is recommended to remove all six at the same time. Also, go ahead and disconnect the electrical connector on the fuel injector.
Lucas Fuel Injector Cleaner: Frequency for Optimal Engine Performance
You may want to see also
Explore related products
The N54 fuel injector is responsible for atomising and injecting fuel into the cylinder
The main issue with earlier N54 injectors is clogging and foreign debris restricting flow. Over time, the injectors can become clogged, leading to reduced fuel flow and potential engine performance issues. Therefore, regular cleaning and maintenance of the N54 fuel injectors are essential to ensure optimal performance and prevent failures. Proper testing of the N54 fuel injectors can be challenging due to their unique operating conditions. Their current voltage and pressure are always changing, and the only way to accurately test their condition is to run them under these actual operating conditions.
To test the N54 fuel injectors, an electrical and pressure "stress test" is required. This involves simulating the electrical and pressure conditions that the injectors would experience during normal engine operation. By doing so, technicians can identify any potential issues with the injectors, such as leaks or blockages, and take appropriate action. It is important to note that standard port injection machines cannot replicate these operating conditions, and specialised equipment is necessary for accurate testing.
Additionally, the analysis of the waveform of the injectors is crucial. This can be done using a built-in oscilloscope on the flow bench to analyse the waveform. Each injector's waveform has specific points of interest, such as the "turn-on" point, which can go as high as 12 amps, depending on the fuel demands of the engine. The turn-on current value will change according to the engine's fuel requirements. N54 injectors also have a unique Peak-and-Hold Triggering scheme, with a fast ""open event" of about 0.04 to 5 milliseconds, which is significantly quicker than standard port injection.
Overall, the N54 fuel injector plays a critical role in the engine's performance by atomising and injecting fuel into the cylinder. While the N54 platform offers exciting potential for enthusiasts, it is important to be aware of the common issues with the fuel injectors and the specialised testing and maintenance requirements to ensure optimal performance and longevity.
Corolla Fuel Injector: DIY Rebuild Guide
You may want to see also
Explore related products
A faulty N54 fuel injector can result in a multitude of problems arising from the engine receiving the incorrect volume or pressure of fuel
The N54 engine is a popular platform with enthusiasts due to the potential power that can be unlocked. However, the N54 fuel system can be troublesome in ageing cars. One of the most common failures of the N54 is the fuel injectors. The N54 fuel injector plays a crucial role in the normal functioning of your car. An internal combustion engine requires a mixture of air and fuel within the combustion chamber. The fuel injector is responsible for atomizing and injecting the fuel into the cylinder, making it easier to combust and, thus, produce the energy that propels your car.
A faulty N54 fuel injector can also increase the fuel consumption of your engine as fuel may not be combusted effectively in the cylinder. When the fuel is not combusted correctly, it mixes with the exhaust gases, resulting in almost black tailpipe emissions. If you see a thick cloud of black smoke exit your exhaust pipe when you accelerate normally, you might be facing a fuel injector-related issue. Keep in mind that other issues could also cause inefficient combustion. Even so, check your injectors if you notice black smoke.
If the fuel injectors are not spraying adequate fuel into the cylinders, you might have a hard time starting your car. You’ll find that the engine cranks but doesn’t turn over. In addition, a clogged injector can cause internal leaks, which can lead to costly engine failure or even an engine fire.
Fuel Injector Cleaner: Worth the Cost?
You may want to see also
Explore related products
The N54 fuel injector plays a crucial role in the normal functioning of your car
As you can imagine, a faulty N54 fuel injector can result in a multitude of problems that arise from your engine receiving the incorrect volume or pressure of fuel. The most common reason for a fuel injector to fail is carbon buildup. As the fuel injector sprays fuel inside the combustion chamber, carbon deposits can build up around the spray nozzle on the injectors. In most cases, this carbon is burnt away along with the air-fuel mixture that is combusted within the engine, but in some cases, the carbon remains as a hard deposit that clogs the injector nozzles.
A clogged or faulty N54 fuel injector can disrupt the amount of fuel injected into the combustion chamber. This results in a sub-optimal air-fuel mixture and can cause multiple issues that hamper the regular running of your engine. A lean air-fuel mixture will cause the engine to stutter or knock at normal running speeds as there is insufficient fuel to burn. You will notice this symptom even if there’s something wrong with the fuel pump, and it may be more prominent when you try to accelerate. If left untreated, it can eventually result in your car stalling.
A faulty N54 fuel injector can also increase the fuel consumption of your engine as fuel may not be combusted effectively in the cylinder. When the fuel is not combusted correctly, it mixes with the exhaust gases, resulting in almost black tailpipe emissions. If you see a thick cloud of black smoke exit your exhaust pipe when you accelerate normally, you might be facing a fuel injector-related issue. Keep in mind that other issues could also cause an inefficient combustion. Even so, check your injectors if you notice black smoke in the rearview mirror.
Rebuilding Injector Dynamics Fuel Injectors: Is It Possible?
You may want to see also
Frequently asked questions
The N54 fuel injector is responsible for atomizing and injecting the fuel into the cylinder, making it easier to combust and, thus, produce the energy that propels your car.
A faulty N54 fuel injector can cause the engine to stutter or knock at normal running speeds as there is insufficient fuel to burn. This may be more prominent when you try to accelerate. It can also increase the fuel consumption of your engine as fuel may not be combusted effectively in the cylinder. When the fuel is not combusted correctly, it mixes with the exhaust gases, resulting in almost black tailpipe emissions.
The most common reason that a fuel injector fails is carbon buildup. As the fuel injector sprays fuel inside the combustion chamber, carbon deposits can build up around the spray nozzle on the injectors. Clogging and foreign debris restricting flow are also common issues.
Testing a GDI injector properly is no easy task due to the fact that their operating conditions of current voltage and pressure are always changing. By running an injector in its actual conditions is the only way to properly test the condition of the injector. An electrical and pressure “stress test” is required to get the injector ready for testing. Injectors do not fail when initially tested, they fail under “heat”, which cannot be replicated without running under the operating conditions.
