Regan Brown
Testing the fuel pump on a C4 Corvette is a critical diagnostic step to ensure the vehicle’s fuel system is functioning properly. The C4 Corvette, produced from 1984 to 1996, relies on a reliable fuel pump to deliver fuel from the tank to the engine. Symptoms of a failing fuel pump include difficulty starting, stalling, or poor performance, especially under load. To test the fuel pump, you’ll need to check for proper voltage at the pump’s electrical connector, verify fuel pressure using a gauge, and listen for the pump’s operation when the ignition is turned on. Proper testing ensures you can accurately diagnose whether the pump is faulty or if the issue lies elsewhere in the fuel system. Always refer to the vehicle’s manual or a trusted repair guide for specific steps tailored to your C4 Corvette’s model year.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel Pressure Gauge, Safety Gloves, Safety Goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Fuel Pump Location | Driver-side rear of the vehicle, near the fuel tank |
| Fuel Pump Relay Location | Under the hood, in the relay center (specific location varies by year) |
| Fuel Pump Fuse Location | Fuse box under the hood (check owner's manual for exact fuse number) |
| Fuel Pressure Specification | 38-44 PSI (pounds per square inch) for C4 Corvettes |
| Testing Method 1: Listen for Operation | Turn the key to the "ON" position and listen for the fuel pump hum (2-3 seconds) |
| Testing Method 2: Measure Voltage | Use a multimeter to check voltage at the fuel pump connector (should be 12V) |
| Testing Method 3: Fuel Pressure Test | Connect a fuel pressure gauge to the Schrader valve and check pressure |
| Common Issues | Faulty fuel pump relay, clogged fuel filter, failing fuel pump |
| Replacement Recommendation | Replace fuel pump if pressure is below spec or pump does not operate |
| Estimated Testing Time | 30-60 minutes |
| Difficulty Level | Intermediate |
| Additional Tips | Check for loose connections, inspect fuel lines for leaks |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
- Electrical Testing: Check pump relay, fuse, and wiring for continuity and power
- Pressure Testing: Use gauge to verify pump output meets factory specifications
- In-Tank Inspection: Drop tank, inspect pump condition, and check for debris
- Post-Test Diagnosis: Analyze results, replace faulty components, and confirm proper operation
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
Before testing a C4 Corvette fuel pump, meticulous pre-test preparation is critical to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a fuel pressure gauge, wrenches or sockets (typically 10mm and 13mm for fuel lines), safety gloves, safety goggles, and a flathead screwdriver. A flashlight and a clean rag are also handy for visibility and spill cleanup. Having everything within reach minimizes interruptions and reduces the risk of errors during the process.
Safety is paramount when working with fuel systems. Park the Corvette on a level surface, engage the parking brake, and allow the engine to cool for at least 30 minutes to prevent burns from residual heat. Fuel is highly flammable, so avoid open flames, sparks, or smoking in the vicinity. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from potential splashes. Ventilate the workspace if working indoors to disperse fuel vapors, which can be hazardous in confined areas.
Disconnecting the battery is a non-negotiable step to prevent accidental ignition or electrical shorts. Locate the battery in the Corvette’s passenger-side fender well, loosen the negative terminal nut with a wrench, and remove the cable. Wrap the cable end in a cloth or use electrical tape to insulate it and prevent contact with other components. This step not only protects the vehicle’s electrical system but also ensures your safety by eliminating the risk of sparks near fuel lines.
Relieving fuel pressure is essential to avoid fuel spraying or leaking during the test. Locate the fuel pump fuse or relay in the engine bay fuse box (consult the owner’s manual for exact placement) and remove it. Start the engine and let it run until it stalls, which indicates that pressure in the fuel system has been relieved. If the fuse or relay method is unavailable, use the Schrader valve on the fuel rail to depressurize the system by attaching a fuel pressure gauge and slowly releasing the pressure. Always double-check for residual pressure before proceeding to avoid accidents.
By systematically gathering tools, prioritizing safety, disconnecting the battery, and relieving fuel pressure, you create a controlled environment for testing the C4 Corvette’s fuel pump. These preparatory steps not only streamline the testing process but also mitigate risks associated with working on a fuel system. Attention to detail in this phase ensures a safe, efficient, and accurate diagnosis of the fuel pump’s condition.
Does the 2003 MBZ 320E Feature Dual Fuel Pumps?
You may want to see also
Explore related products
Electrical Testing: Check pump relay, fuse, and wiring for continuity and power
The fuel pump in a C4 Corvette relies on a healthy electrical system to function properly. Before condemning the pump itself, a systematic electrical check can save time and money. This involves verifying the integrity of the pump relay, fuse, and wiring harness, ensuring they deliver the necessary power and continuity for operation.
A multimeter becomes your diagnostic tool here. Set it to the ohms (resistance) setting to check continuity and the volts (DC) setting to verify power. Start with the fuse – a blown fuse is a common culprit. Locate the fuel pump fuse in the fuse box (consult your Corvette's manual for the exact location) and remove it. With the multimeter, check for continuity across the fuse. A reading of 0 ohms indicates a good fuse; anything significantly higher suggests a blown fuse requiring replacement.
Next, move to the relay. Relays act as switches, controlling power flow to the pump. With the key in the "ON" position, listen for a clicking sound near the relay – this indicates it's engaging. If no click is heard, use the multimeter to check for power at the relay's input and output terminals. Refer to a wiring diagram for your specific Corvette model to identify the correct terminals. Power should be present at the input terminal with the key on; if not, trace the wiring back to the fuse or ignition switch. Power should also be present at the output terminal when the relay is engaged.
Wiring issues can be trickier to diagnose. Visually inspect the wiring harness for any signs of damage, chafing, or corrosion. Pay close attention to areas where the harness bends or passes through tight spaces. Use the multimeter to check for continuity along the wiring from the fuse to the pump connector. A break in the wire will show infinite resistance.
Does a Ford Focus Have a Fuel Pump Relay?
You may want to see also
Explore related products
Pressure Testing: Use gauge to verify pump output meets factory specifications
Pressure testing a C4 Corvette's fuel pump is a critical step in diagnosing fuel system issues, ensuring the pump delivers the correct volume and pressure for optimal engine performance. This process involves using a fuel pressure gauge to verify that the pump's output aligns with factory specifications, typically ranging from 38 to 44 PSI (pounds per square inch) for most C4 models. Deviations from this range can indicate a failing pump, clogged fuel filter, or other system inefficiencies.
To begin, locate the fuel pressure test port, usually found on the fuel rail near the engine. Attach the gauge securely to this port, ensuring a tight seal to prevent fuel leaks. With the ignition in the "ON" position but the engine off, observe the gauge reading. A healthy fuel pump should immediately register within the specified PSI range and hold steady. If the pressure is low or fluctuates, this may suggest a weak pump, while excessively high pressure could point to a restricted return line or faulty regulator.
For a more comprehensive test, start the engine and monitor the gauge while idling and under load. Factory specifications dictate that pressure should drop slightly to around 35-40 PSI at idle and remain stable during acceleration. If the pressure drops significantly or fails to recover, this could indicate a pump that’s struggling to maintain output under demand. Always compare your findings to the specific PSI values for your Corvette’s year and model, as these can vary slightly.
Practical tips include using a high-quality gauge with a glycerin-filled casing to dampen needle fluctuations and ensure accurate readings. Additionally, perform the test with a full fuel tank to simulate real-world conditions, as low fuel levels can affect pump performance. If the pump fails the pressure test, consider inspecting the fuel filter and lines before replacing the pump, as these components often contribute to pressure issues.
In conclusion, pressure testing with a gauge is a straightforward yet essential diagnostic tool for assessing a C4 Corvette’s fuel pump health. By verifying output against factory specifications, you can pinpoint issues early, prevent engine damage, and ensure your Corvette runs smoothly. Always prioritize safety by relieving fuel system pressure before disconnecting lines and working in a well-ventilated area to avoid fire hazards.
Step-by-Step Guide: Safely Blocking Off Your VW Fuel Pump
You may want to see also
Explore related products

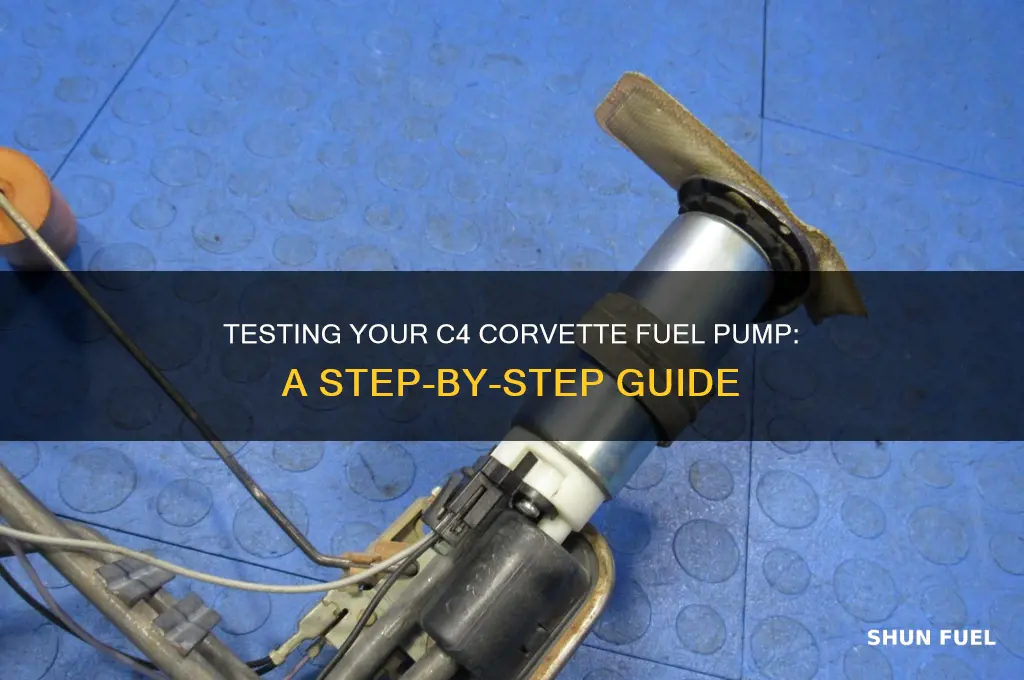

In-Tank Inspection: Drop tank, inspect pump condition, and check for debris
The in-tank fuel pump of a C4 Corvette is a critical component often overlooked until it fails. Unlike external pumps, its location demands a more invasive inspection process. Dropping the tank is the first step, a task requiring basic tools and a methodical approach. Start by relieving fuel system pressure, disconnecting the battery, and safely jacking the vehicle. Remove the fuel filler neck and supporting straps, then carefully lower the tank to access the pump assembly. This process, while straightforward, underscores the importance of safety and precision to avoid damage or injury.
Once the tank is down, inspect the pump for physical damage or wear. Look for cracks in the housing, frayed wiring, or signs of corrosion around the electrical connections. A visual assessment can reveal issues like a worn armature or damaged impeller, which compromise performance. Compare the pump’s condition to manufacturer specifications or a known-good unit if available. This step is diagnostic, helping determine whether the pump is salvageable or requires replacement.
Debris in the fuel tank is a silent killer of fuel pumps. Over time, rust, dirt, or sediment can accumulate, clogging the pump’s intake or internal filter. After removing the pump, inspect the tank’s interior for particulate matter. Use a bright light and, if necessary, a mirror to check hard-to-reach areas. Flushing the tank with a suitable solvent or cleaning agent can remove debris, but ensure compatibility with plastic or metal components. This preventive measure not only extends pump life but also safeguards the entire fuel system.
Reassembly demands equal attention to detail. Ensure all gaskets and seals are intact to prevent leaks. Reinstall the pump, securing it firmly but without overtightening, which can damage the housing. Refill the tank with clean fuel and perform a post-installation test to verify proper operation. This final step confirms the success of the inspection and any repairs, ensuring the C4 Corvette’s fuel system operates reliably.
Mastering Mechanical Fuel Pumps: A Guide to Advancing Timing
You may want to see also
Explore related products
Post-Test Diagnosis: Analyze results, replace faulty components, and confirm proper operation
After testing your C4 Corvette's fuel pump, the real work begins: deciphering the results and ensuring your car's heart is beating strong again. A fuel pump test isn't just about passing or failing; it's about understanding the nuances of your pump's performance and taking targeted action.
Analyzing Test Results Requires Context. A fuel pump's pressure and flow specifications vary by Corvette model year. For instance, a 1990 C4 Corvette with the L98 engine should deliver 9-13 psi at idle, while a 1996 LT4 model demands 40-60 psi. Cross-reference your readings with factory specs—deviations signal trouble. Low pressure? Suspect a clogged filter, weak pump, or faulty regulator. High pressure? The regulator or return line might be restricted. Don't just replace parts blindly; diagnose the root cause.
Replacement Isn’t Always the First Step. Before swapping components, inspect connections and grounds. A corroded fuel pump connector or a frayed wire can mimic pump failure. Use a multimeter to verify power and ground at the pump during cranking. If voltage drops below 10.5V, suspect a weak battery or high-resistance circuit. Also, check the fuel filter—a clogged filter starves the pump, leading to premature failure. Replace the filter first if it hasn’t been changed in over 30,000 miles.
Confirming Proper Operation Is Non-Negotiable. After replacing a faulty component, retest the fuel pump. Start with a pressure test at idle and under load. Use a fuel pressure gauge connected to the test port near the fuel rail. Rev the engine to 2,000 RPM—pressure should remain stable within spec. Next, perform a volume test by disconnecting the fuel line at the rail and measuring output over 10 seconds. A healthy pump should deliver 1-1.5 quarts in this time. Finally, drive the car under varying conditions—acceleration, cruising, and idling—to ensure no symptoms return.
Practical Tips for Longevity. Prevent future issues by maintaining your fuel system. Use high-quality gasoline with detergents to keep injectors clean. Add a fuel stabilizer if storing your Corvette for extended periods. Periodically inspect fuel lines for cracks or leaks, especially in older models. And remember: a failing fuel pump often gives warning signs—hard starts, sputtering, or loss of power under load. Address these symptoms promptly to avoid costly repairs.
By systematically analyzing test results, addressing underlying issues, and confirming repairs, you’ll ensure your C4 Corvette’s fuel pump operates reliably for miles to come. This post-test diagnosis isn’t just about fixing a problem—it’s about restoring your car’s performance and peace of mind.
Delphi Fuel Pumps Assembly: Are They Made in China?
You may want to see also
Frequently asked questions
Common signs of a failing fuel pump include difficulty starting the engine, loss of power during acceleration, sputtering or stalling, and unusual noises from the fuel tank area. Testing the fuel pump is recommended to confirm the issue.
You’ll need a fuel pressure gauge, a multimeter, and a wrench or socket set to access the fuel pump and its electrical connections. Safety gear, such as gloves and safety goggles, is also recommended.
Attach a fuel pressure gauge to the Schrader valve on the fuel rail. Turn the ignition to the "ON" position (without starting the engine) and check the pressure reading. Compare it to the manufacturer’s specifications for your specific Corvette model.
Yes, use a multimeter to check for voltage at the fuel pump connector. With the ignition on, there should be battery voltage at the pump’s power wire. If no voltage is present, inspect the fuse, relay, and wiring for issues.
