Blocking off a Volkswagen fuel pump is a task often undertaken during engine swaps or when converting to a mechanical fuel pump setup. This process involves disconnecting the electrical fuel pump and sealing off the fuel lines to prevent leaks, ensuring the system remains safe and functional. It’s crucial to use the correct tools and materials, such as a fuel pump block-off plate and new gaskets, to maintain the integrity of the fuel system. Properly blocking off the fuel pump also requires draining the fuel tank and relieving system pressure to avoid accidents. Always consult a repair manual or seek professional guidance to ensure the procedure is done correctly and safely.
| Characteristics | Values |
|---|---|
| Purpose | To disable the fuel pump in a Volkswagen vehicle, typically for diagnostic or repair purposes. |
| Tools Required | Basic hand tools (wrenches, screwdrivers), fuel line disconnect tool, safety equipment (gloves, safety goggles). |
| Safety Precautions | Work in a well-ventilated area, ensure the engine is cool, disconnect the battery, relieve fuel system pressure. |
| Steps | 1. Locate the fuel pump (usually in the fuel tank). 2. Disconnect the battery to prevent accidental ignition. 3. Relieve fuel system pressure by loosening the fuel rail Schrader valve. 4. Disconnect fuel lines from the pump using a fuel line disconnect tool. 5. Remove electrical connectors from the fuel pump. 6. Block off fuel lines using plugs or caps to prevent fuel leakage. 7. Secure all connections and ensure no fuel leaks. |
| Common VW Models Affected | Golf, Jetta, Passat, Beetle, and other models with in-tank fuel pumps. |
| Alternative Methods | Using a fuel pump relay bypass or installing a manual fuel pump shut-off switch. |
| Risks | Fuel leakage, fire hazard, or damage to the fuel system if not done properly. |
| Professional Recommendation | Consult a certified mechanic if unsure about the process or if dealing with complex fuel systems. |
| Legal Considerations | Ensure modifications comply with local vehicle regulations and safety standards. |
Explore related products
What You'll Learn
Disconnect Battery Terminals
Before attempting any work on your VW's fuel system, safety must come first. The fuel pump operates under pressure, and even a small spark can lead to disaster. Disconnecting the battery terminals is a critical step to eliminate the risk of accidental ignition. This simple action cuts power to the entire vehicle, ensuring no electrical current reaches the fuel pump or any other component. It’s a universal precaution, applicable to nearly all vehicles, and should never be skipped.
To disconnect the battery terminals, start by locating the battery, typically found in the engine bay or trunk of VW models. Using a wrench or socket, loosen the nut on the negative terminal (marked with a minus sign or "NEG") first. Gently wiggle the cable until it comes free. Repeat the process for the positive terminal (marked with a plus sign or "POS") if necessary, though disconnecting the negative terminal alone is often sufficient to break the circuit. Ensure both terminals are secure and cannot accidentally reconnect during your work.
While this step seems straightforward, there are nuances to consider. Modern VWs often have advanced electrical systems, and disconnecting the battery can reset certain settings, such as radio presets or clock time. Some models may also require a security code to reactivate certain features after reconnection. Additionally, if your VW has a start-stop system or other battery-dependent features, consult the owner’s manual for specific instructions. Always prioritize safety over convenience—a temporary reset is a small price to pay for avoiding a fuel-related accident.
A practical tip: use a battery terminal cover or wrap the disconnected cable in electrical tape to prevent accidental contact with the terminal. This extra precaution ensures the circuit remains broken while you work. Once the fuel pump is blocked off or serviced, reconnect the battery terminals in reverse order, tightening the nuts securely. Test the vehicle’s electrical systems afterward to confirm everything functions as expected. By treating this step with the attention it deserves, you’ll create a safer environment for tackling more complex tasks in your VW’s fuel system.
Accessing the Fuel Pump on a 2005 Dodge Grand Caravan
You may want to see also
Explore related products
Locate Fuel Pump Assembly
The fuel pump assembly in a Volkswagen is typically located within the fuel tank, a design choice that helps maintain fuel pressure and reduces the risk of vapor lock. This internal placement, while efficient, complicates access for maintenance or modifications like blocking off the pump. To locate the assembly, start by consulting your vehicle’s service manual for model-specific diagrams. For most VW models, the fuel tank is positioned beneath the rear seat or cargo area, requiring removal of interior panels to access the tank’s service hatch.
Once the tank is exposed, the fuel pump assembly is usually secured by a locking ring or bolts around the tank’s opening. Before proceeding, ensure the fuel system is depressurized by relieving residual pressure through the fuel rail valve. Disconnect the negative battery terminal to prevent accidental activation of the pump during work. These preliminary steps are critical for safety and should not be skipped, as fuel systems operate under high pressure and pose fire risks.
When planning to block off the fuel pump, consider why this modification is necessary. Common reasons include converting to an external pump for performance upgrades or troubleshooting fuel delivery issues. If blocking off the pump, you’ll need to cap or seal the fuel lines leading to the engine to prevent leaks. Use fuel-resistant materials like rubber or nylon plugs, ensuring a tight fit to avoid fuel vapor escape. Always test the system post-modification for leaks before operating the vehicle.
Blocking off the OEM fuel pump assembly is not a reversible process without significant effort, so weigh the long-term implications. For instance, if you’re converting to an external pump, ensure the new setup meets the engine’s flow and pressure requirements. Consult a professional if unsure, as improper modifications can lead to engine damage or safety hazards. This process demands precision and a clear understanding of your vehicle’s fuel system dynamics.
In summary, locating and blocking off a VW fuel pump assembly involves accessing the fuel tank, depressurizing the system, and sealing fuel lines post-removal. While the task is feasible with proper preparation, it requires careful planning and adherence to safety protocols. Always prioritize compatibility and functionality when modifying fuel systems to avoid costly mistakes or safety risks.
Testing a 1997 Dodge Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Remove Fuel Tank Access
Blocking off a VW fuel pump often begins with removing fuel tank access, a step that demands precision and safety. Start by locating the fuel tank access panel, typically found beneath the rear seat or trunk area, depending on your VW model. Use a screwdriver to carefully pry off the panel, ensuring not to damage the surrounding trim. Once removed, inspect the area for any signs of fuel leaks or corrosion, as these could complicate the process. Always work in a well-ventilated area and avoid open flames or sparks to minimize fire risks.
Next, disconnect the fuel pump wiring harness and fuel lines, but only after relieving the fuel system pressure. This is crucial to prevent fuel from spraying or causing an accident. To relieve pressure, locate the fuel pressure relief valve or use a specialized tool to depressurize the system. Once the pressure is released, carefully disconnect the electrical connector and fuel lines, using appropriate tools to avoid damaging the components. Label the connections if necessary to ensure correct reassembly later.
With the fuel pump exposed, assess whether complete removal or blocking is necessary. If blocking off the fuel pump, consider using a fuel pump block-off plate, commonly available for VW models. Secure the plate in place using the original mounting bolts, ensuring a tight seal to prevent leaks. Alternatively, if removing the fuel tank entirely, detach it from the vehicle by unscrewing the retaining straps and carefully lowering it onto a safe surface. This step requires an assistant to avoid strain or damage to the tank.
Finally, inspect the fuel tank access area for debris or residue before reinstalling the access panel. Clean the area thoroughly to prevent contamination of the fuel system. Reattach the panel securely, ensuring all clips or screws are tightened. Test the system by starting the vehicle (if applicable) or performing a pressure test to confirm no leaks are present. Properly disposing of any removed components, such as the fuel pump or tank, is essential to comply with environmental regulations. This methodical approach ensures safety and efficiency when removing fuel tank access to block off a VW fuel pump.
Optimal Fuel Pump PSI for 2006 Ford Taurus: A Comprehensive Guide
You may want to see also
Explore related products
$39.99
Clamp Fuel Lines Securely
Clamping fuel lines securely is a critical step when blocking off a VW fuel pump, as it prevents fuel leaks and ensures system integrity. Use stainless steel or aluminum clamps designed for fuel lines to avoid corrosion and maintain a tight seal. Avoid over-tightening, as this can damage the lines or cause them to crack under pressure. Always inspect the clamps for wear or deformation before installation, replacing them if necessary to guarantee reliability.
Consider the type of fuel line material when selecting clamps. For rubber or silicone lines, worm-drive hose clamps provide even pressure and flexibility, while stainless steel lines may require ear-style clamps for a more secure grip. Ensure the clamp size matches the line diameter—typically 8mm or 10mm for VW fuel systems—to avoid gaps or excessive force. If working on an older VW model, double-check compatibility, as aftermarket lines may differ in size or material from factory specifications.
When clamping, position the clamp at least 1-2 inches away from any fuel pump connections or fittings to prevent stress on the joints. Tighten the clamp with a torque wrench to the manufacturer’s recommended specifications, usually 10-15 Nm for fuel lines. Test the seal by applying light pressure to the line; it should remain firm without shifting or leaking. If using double clamps for added security, stagger their placement to distribute pressure evenly and reduce the risk of line damage.
In scenarios where the fuel pump is being permanently blocked off, such as in a carbureted conversion, consider adding a secondary clamp as a failsafe. This is especially important in high-vibration environments, like off-road or racing applications, where clamps can loosen over time. Periodically inspect the clamps during routine maintenance, re-tightening or replacing them as needed to maintain safety and performance. Proper clamping not only prevents leaks but also ensures the fuel system remains compliant with safety standards.
Finally, pair clamping with other safety measures, such as using a fuel line block-off plate or capping unused lines with double O-ring seals. Always work in a well-ventilated area, away from open flames or sparks, and wear protective gloves to avoid skin contact with fuel. By combining precision, the right tools, and proactive maintenance, securely clamped fuel lines become a cornerstone of a safe and functional VW fuel system modification.
Fuel Pump Amp Draw: Understanding 7-10 PSI Pump Power Consumption
You may want to see also
Explore related products

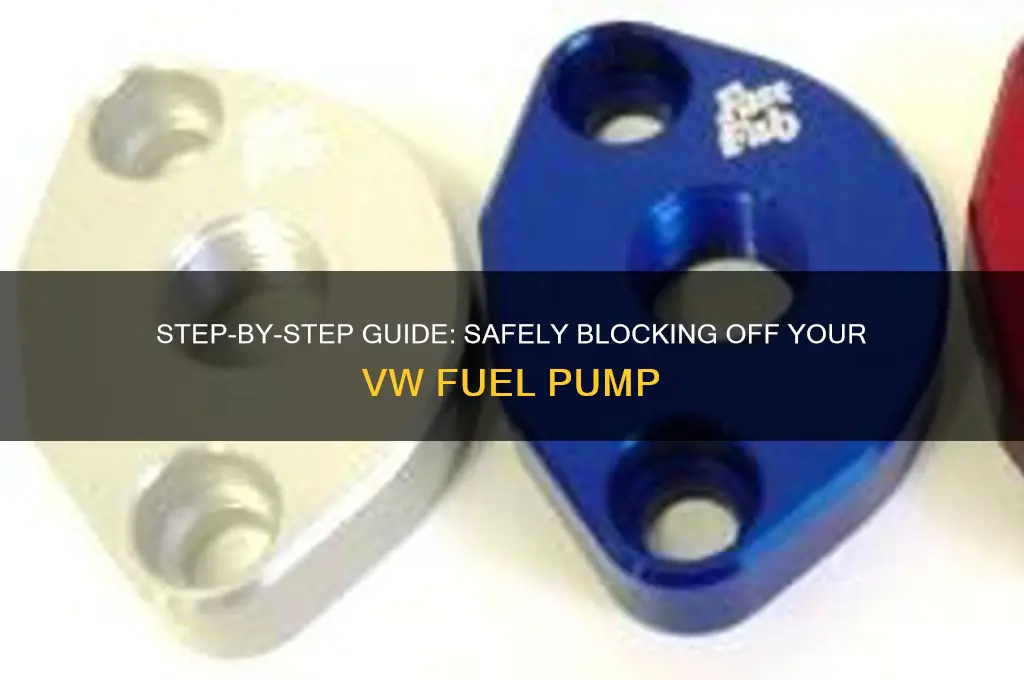

Use Fuel Pump Block Plate
A fuel pump block plate is a simple yet effective solution for those looking to disable their VW's fuel pump, often necessary during engine swaps or when converting to a mechanical fuel system. This method involves installing a plate over the fuel pump opening, sealing it off to prevent fuel flow. It's a popular choice for enthusiasts seeking a clean and reliable way to block the pump without compromising the integrity of the fuel system.
Installation Process: Begin by locating the fuel pump assembly, typically found in the fuel tank. After removing the pump, clean the surrounding area to ensure a secure fit for the block plate. Position the plate over the opening, aligning it precisely to create a tight seal. Secure the plate using the appropriate fasteners, often bolts or screws, ensuring they are tightened to the specified torque values to prevent leaks. This process requires attention to detail, as an improperly installed plate can lead to fuel leaks or system failures.
The beauty of this method lies in its simplicity and the availability of pre-made block plates designed specifically for VW models. These plates are typically crafted from durable materials like aluminum or steel, ensuring they can withstand the fuel system's demands. When selecting a block plate, consider the specific VW model and fuel system to ensure compatibility. Some plates may also include additional features, such as pre-drilled holes for easy installation or gaskets for enhanced sealing.
Benefits and Considerations: Using a fuel pump block plate offers several advantages. Firstly, it provides a clean and professional solution, maintaining the aesthetics of the engine bay. This method is also reversible, allowing for future modifications or a return to the original fuel system setup. However, it's crucial to exercise caution during installation. Always ensure the fuel system is depressurized before beginning work to avoid accidents. Additionally, consider the long-term implications; while blocking the fuel pump is effective, it may impact the vehicle's resale value or future modifications.
In summary, employing a fuel pump block plate is a straightforward and reliable technique for those aiming to disable their VW's fuel pump. With the right tools and attention to detail, this method ensures a secure seal, preventing fuel flow and allowing for various engine modifications. Whether for performance upgrades or restoration projects, this approach provides a practical solution, catering to the diverse needs of VW enthusiasts.
Dodge Challenger Fuel Pump Count: Understanding Your Muscle Car's System
You may want to see also
Frequently asked questions
The fuel pump in most VW models is located inside the fuel tank. Access it by removing the rear seat or trunk lining, depending on the vehicle.
You’ll need basic tools like a socket set, wrenches, and possibly a fuel line disconnect tool. Additionally, prepare a fuel pump block-off plate and gaskets if required.
No, blocking off the fuel pump typically requires removing the fuel tank to access the pump assembly safely and securely.
Blocking off the fuel pump is often done in racing or performance applications where an external fuel pump is used instead of the in-tank pump to improve fuel delivery.
Yes, ensure the fuel system is depressurized before starting work. Use safety goggles, work in a well-ventilated area, and avoid open flames or sparks near fuel vapors.
