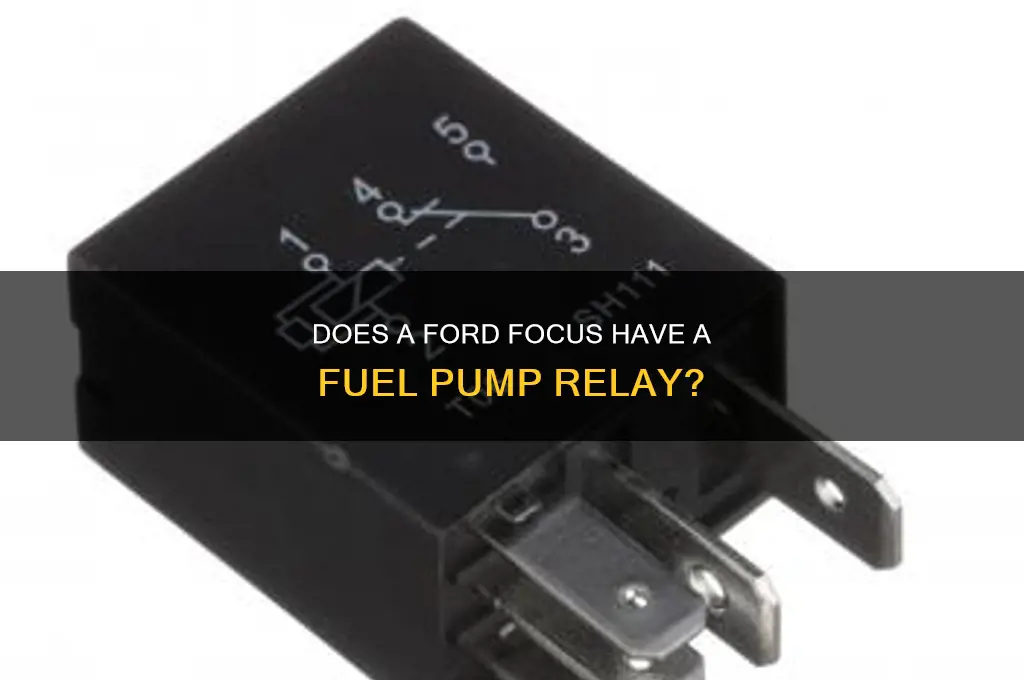

The Ford Focus, a popular compact car known for its reliability and efficiency, often raises questions among owners and mechanics regarding its electrical components. One such component is the fuel pump relay, a critical part of the vehicle's fuel system that ensures the fuel pump operates correctly. Understanding whether the Ford Focus is equipped with a fuel pump relay is essential for troubleshooting fuel delivery issues, as it plays a vital role in controlling the power supply to the fuel pump. This relay is typically located in the fuse box and can vary in position depending on the model year and engine type. Identifying and diagnosing problems with the fuel pump relay can help prevent engine stalling, starting difficulties, or poor performance, making it a key area of interest for Ford Focus owners and technicians alike.
| Characteristics | Values |
|---|---|
| Does Ford Focus have a fuel pump relay? | Yes, most Ford Focus models are equipped with a fuel pump relay. |
| Location of the fuel pump relay | Typically found in the fuse box under the hood or in the passenger compartment. |
| Function | Controls power to the fuel pump, ensuring it operates only when the engine is running or being started. |
| Symptoms of a faulty relay | Engine not starting, stalling, or difficulty starting; fuel pump not priming. |
| Models affected | Most Ford Focus generations (2000–2018) have a fuel pump relay. |
| Replacement part | Specific to the Ford Focus model year; consult the vehicle manual or a mechanic. |
| Diagnostic method | Use a multimeter to test for continuity or swap with a known good relay. |
| Cost of replacement | Typically $10–$50 for the part, depending on the model and brand. |
| DIY difficulty | Moderate; requires locating the relay and basic electrical knowledge. |
Explore related products
What You'll Learn
Location of the fuel pump relay in a Ford Focus
The Ford Focus, a popular compact car, indeed features a fuel pump relay, a critical component in its fuel system. This relay acts as a switch, controlling the power supply to the fuel pump, ensuring it operates only when needed, such as during engine start-up and operation. Locating this relay is essential for troubleshooting fuel-related issues or performing maintenance.
Identifying the Relay's Position: In most Ford Focus models, particularly those from the early 2000s to the mid-2010s, the fuel pump relay is situated in the engine bay fuse box. This fuse box is typically located near the battery, making it relatively accessible. The relay itself is often labeled, simplifying the identification process. For instance, in the 2005 Ford Focus, the fuel pump relay is labeled as 'FPR' in the fuse box diagram, which can be found in the vehicle's manual or on the fuse box cover.
Accessing the Relay: To access the fuel pump relay, start by opening the hood and locating the fuse box. This may require removing a plastic cover or panel, depending on the model year. Once the fuse box is exposed, refer to the diagram to pinpoint the exact location of the fuel pump relay. It is crucial to ensure the vehicle is turned off and the keys are removed from the ignition before attempting any work in the engine bay to prevent accidental startup.
Practical Tips for Replacement or Inspection: When dealing with the fuel pump relay, it's essential to handle it with care. Relays can be sensitive to static electricity, so grounding yourself by touching a metal part of the car before handling the relay is advisable. If you're replacing the relay, ensure the new one is compatible with your Ford Focus model. Symptoms of a faulty fuel pump relay include difficulty starting the engine, stalling, or a complete failure to start. These issues may also be indicative of other fuel system problems, so a systematic approach to diagnosis is recommended.
In summary, the fuel pump relay in a Ford Focus is a vital component, and its location in the engine bay fuse box makes it accessible for inspection and replacement. Understanding its position and function empowers car owners to address fuel system issues effectively, ensuring their vehicle's reliability and performance. This knowledge is particularly valuable for DIY enthusiasts and mechanics alike, streamlining the troubleshooting process for this common automotive concern.
Do All Fuel Pumps Make Noise? Understanding Common Sounds
You may want to see also
Explore related products
Symptoms of a faulty fuel pump relay
A faulty fuel pump relay in a Ford Focus can manifest in several distinct ways, each signaling a potential issue with the vehicle's fuel delivery system. One of the most common symptoms is difficulty starting the engine, especially after the car has been sitting for a while. This occurs because the relay fails to send the necessary electrical signal to activate the fuel pump, leaving the engine starved for fuel during the initial ignition process. If the engine cranks but doesn't start, or if it starts only after multiple attempts, the fuel pump relay may be to blame.
Another telltale sign is a sudden stall while driving, often accompanied by a sputtering sound or a loss of power. This happens when the relay intermittently fails, cutting off power to the fuel pump and halting fuel delivery to the engine. Such stalls can be dangerous, particularly at high speeds or in heavy traffic, making it crucial to address the issue promptly. Drivers may also notice that the vehicle struggles to accelerate or maintain consistent power, as the fuel pump isn't supplying enough fuel to meet the engine's demands.
In some cases, a faulty fuel pump relay triggers the "Check Engine" light on the dashboard. While this light can indicate numerous issues, it often points to problems within the fuel system when combined with other symptoms. Using an OBD-II scanner to read the diagnostic trouble codes (DTCs) can help pinpoint the issue, with codes like P0627 or P0628 commonly associated with fuel pump relay failures. However, relying solely on the "Check Engine" light can be misleading, as the relay may fail without triggering any warning lights.
A less obvious but equally important symptom is an unusual noise coming from the fuel tank area. A healthy fuel pump operates quietly, but a failing relay can cause the pump to run continuously or intermittently, producing a whirring or buzzing sound. This noise is often more noticeable when the ignition is turned on but before the engine starts. If you hear such sounds, it’s a strong indicator that the relay or pump itself may be malfunctioning.
To diagnose a faulty fuel pump relay, start by checking the fuse box for any blown fuses related to the fuel pump circuit. If the fuses are intact, use a multimeter to test the relay for continuity. A lack of continuity indicates a failed relay that needs replacement. Additionally, swapping the fuel pump relay with another relay of the same type (e.g., the horn relay) can help confirm the diagnosis. If the issue persists with the new relay in place, the problem likely lies elsewhere in the fuel system. Addressing these symptoms promptly not only ensures reliable vehicle performance but also prevents potential safety hazards on the road.
Understanding Holley Electric Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
How to test the fuel pump relay
The Ford Focus, like many modern vehicles, is equipped with a fuel pump relay, a critical component in the fuel delivery system. This relay acts as a switch, controlling the flow of power to the fuel pump, ensuring it operates only when necessary. Testing this relay is a crucial diagnostic step if you suspect fuel delivery issues, such as a no-start condition or erratic engine performance. Here’s how to approach it methodically.
Step-by-Step Testing Procedure: Begin by locating the fuel pump relay, typically found in the fuse box under the hood or inside the cabin. Consult your Ford Focus manual for the exact location. Once identified, use a multimeter to test the relay’s terminals. With the ignition off, check for continuity between the power supply terminal (usually pin 30) and the fuel pump terminal (pin 87). If there’s no continuity, the relay may be faulty. Next, activate the ignition to the "on" position (without starting the engine) and listen for a clicking sound from the relay, indicating it’s engaging. If silent, test the control circuit by applying 12 volts to the relay’s coil terminals (pins 85 and 86). If the relay clicks, the issue may lie in the control circuit; if not, replace the relay.
Cautions and Practical Tips: Always disconnect the battery before handling electrical components to prevent short circuits. When testing, ensure the multimeter is set to the correct range to avoid damage. If the relay appears functional but the fuel pump isn’t operating, check the fuel pump fuse and wiring for faults. Additionally, some Ford Focus models may have a dedicated fuel pump driver module, which complicates diagnostics—refer to a repair manual for specifics.
Analyzing Results: If the relay fails the continuity or activation test, replacement is the most straightforward solution. However, if the relay tests fine but the fuel pump still doesn’t operate, the issue could be a faulty pump, clogged fuel filter, or wiring problem. In such cases, further testing, such as checking fuel pressure or inspecting the pump’s ground connection, is necessary. Understanding these distinctions ensures you address the root cause rather than replacing parts unnecessarily.
Comparative Insight: Testing a fuel pump relay on a Ford Focus is similar to other vehicles but requires familiarity with its specific layout. Unlike older models with mechanical fuel pumps, modern systems rely on relays and modules, making diagnostics more complex. By systematically testing the relay and its associated circuits, you can isolate the problem efficiently, saving time and money compared to trial-and-error part replacements. This approach underscores the importance of understanding your vehicle’s electrical system.
Understanding the Fuel Pump Mechanism in a 2006 Dodge Magnum
You may want to see also
Explore related products
Replacement process for a Ford Focus fuel pump relay
The Ford Focus, like many modern vehicles, is equipped with a fuel pump relay, a critical component in the fuel delivery system. This relay acts as a switch, controlling the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. Over time, this relay can fail due to electrical issues, wear, or environmental factors, leading to symptoms like difficulty starting the engine or stalling. Recognizing these signs early can prevent more severe problems down the line.
Identifying the Relay Location
Before beginning the replacement process, locate the fuel pump relay in your Ford Focus. Typically, it resides in the fuse box under the hood or inside the cabin, depending on the model year. Consult your vehicle’s manual or online resources specific to your Focus’s year and trim to pinpoint its exact location. For instance, in many 2000–2007 models, the relay is found in the under-hood fuse box, often labeled as “FP Relay.” Identifying the correct relay saves time and prevents unnecessary disassembly.
Steps for Replacement
Replacing the fuel pump relay is a straightforward task that requires minimal tools. Start by ensuring the vehicle is turned off and the ignition is in the “Off” position to avoid electrical hazards. Open the hood and locate the fuse box. Remove the fuse box cover to access the relays. Identify the fuel pump relay by comparing it to the diagram on the fuse box lid or using a multimeter to test for continuity. Once identified, grasp the relay firmly and pull it straight out of its socket. Insert the new relay, ensuring it clicks into place securely. Reattach the fuse box cover and start the vehicle to confirm the issue is resolved.
Cautions and Tips
While the process is simple, there are a few precautions to keep in mind. Always handle relays with clean hands to avoid contamination from oils or dirt, which can cause electrical issues. If the relay is difficult to remove, use a relay puller tool to prevent damage to the socket. Additionally, if the new relay doesn’t resolve the issue, consider testing the fuel pump itself or checking for wiring faults, as the problem may lie elsewhere in the system. Regularly inspecting the fuse box for corrosion or loose connections can also prevent future relay failures.
Replacing a faulty fuel pump relay in a Ford Focus is a cost-effective and manageable task for most DIY enthusiasts. By understanding the relay’s function, locating it accurately, and following a systematic replacement process, you can restore your vehicle’s fuel delivery system efficiently. This not only saves on potential repair costs but also ensures your Focus remains reliable and safe to drive. Always prioritize safety and accuracy when working on your vehicle’s electrical system.
Can a Faulty Fuel Pump Cause a Blown Fuse?
You may want to see also
Explore related products
Common issues with Ford Focus fuel pump relays
Ford Focus owners often encounter fuel pump relay issues, which can manifest as sudden stalls, difficulty starting, or a complete loss of power. These symptoms typically arise from a relay that fails to send power to the fuel pump, disrupting the engine's fuel supply. The fuel pump relay in a Ford Focus is usually located in the engine bay fuse box, and its failure is a common problem across various model years, particularly in the 2000–2007 generations. Identifying the relay’s location and understanding its function is the first step in diagnosing and resolving these issues.
One of the most frequent causes of fuel pump relay failure in Ford Focus vehicles is overheating due to prolonged use or exposure to high temperatures. The relay’s internal components can degrade over time, leading to intermittent or complete failure. Another common issue is corrosion or loose connections in the relay socket, which can prevent proper electrical contact. To inspect for these problems, start by checking the relay for visible burn marks or a melted housing. If the relay appears damaged, replace it with a new one, ensuring it matches the original specifications. Additionally, clean the relay socket with electrical contact cleaner to remove any corrosion and ensure a secure fit.
A less obvious but equally problematic issue is a faulty fuel pump driver module, which works in conjunction with the relay to control fuel pump operation. In some Ford Focus models, this module can fail, causing the relay to malfunction. If replacing the relay does not resolve the issue, test the driver module using a multimeter to check for proper voltage output. If the module is defective, it will need to be replaced, often requiring professional assistance due to its complexity. This dual-component failure highlights the importance of a systematic diagnostic approach when dealing with fuel pump relay issues.
Preventive maintenance can significantly reduce the likelihood of fuel pump relay problems in a Ford Focus. Regularly inspect the relay and its connections during routine engine checks, especially if the vehicle is frequently driven in hot climates or high-mileage conditions. Keep the engine bay clean to minimize dust and debris accumulation, which can accelerate component wear. For older models, consider carrying a spare relay in the vehicle as a temporary fix in case of sudden failure. By staying proactive, owners can avoid the inconvenience and safety risks associated with a malfunctioning fuel pump relay.
How Much Does It Cost to Change a Fuel Pump?
You may want to see also
Frequently asked questions
Yes, most Ford Focus models are equipped with a fuel pump relay, which is part of the vehicle's electrical system and controls power to the fuel pump.
The fuel pump relay in a Ford Focus is typically located in the fuse box, either under the hood or inside the cabin, depending on the model year.
Symptoms of a faulty fuel pump relay include difficulty starting the engine, stalling, or a complete failure to start, as the relay fails to deliver power to the fuel pump.
Yes, replacing the fuel pump relay in a Ford Focus is a relatively simple DIY task. It involves locating the relay in the fuse box, removing the old one, and installing a new one, ensuring it matches the correct specifications.
