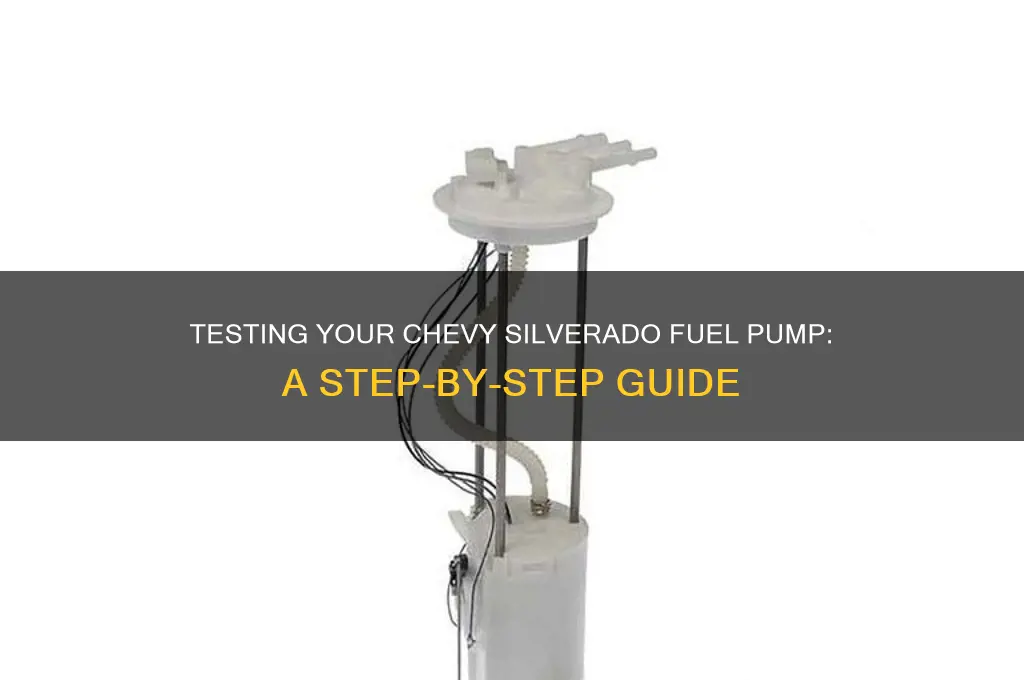

Testing the fuel pump on a Chevy Silverado is a critical diagnostic step to ensure the vehicle’s fuel system is functioning properly. Symptoms of a failing fuel pump include difficulty starting the engine, stalling, or reduced power, making it essential to verify its operation. The process typically involves checking for fuel pressure using a gauge, listening for the pump’s hum during the ignition’s on position, and inspecting the fuel pump relay and fuse for faults. Proper testing ensures accurate diagnosis, preventing unnecessary part replacements and maintaining the truck’s reliability.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, safety gloves, safety goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Fuel Pump Location | Inside the fuel tank (access through the rear of the vehicle) |
| Testing Method 1: Listen for Operation | Turn the ignition to "ON" (do not start) and listen for the fuel pump hum |
| Testing Method 2: Fuel Pressure Test | Connect a fuel pressure gauge to the Schrader valve and check pressure |
| Normal Fuel Pressure Range | 55–61 PSI (varies by model and year) |
| Testing Method 3: Multimeter Test | Measure voltage at the fuel pump connector (should be 12V with ignition on) |
| Fuel Pump Relay Location | Under the hood in the fuse/relay box (consult manual for exact location) |
| Symptoms of a Failing Fuel Pump | Engine sputtering, difficulty starting, loss of power, no start condition |
| Replacement Recommendation | Replace the fuel pump if pressure is low or voltage is not within range |
| Estimated Testing Time | 30–60 minutes depending on method and accessibility |
| Applicable Models | Chevy Silverado 1500, 2500, 3500 (1999–2023 models) |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, and locate the fuel pump for testing
- Pressure Testing: Use a gauge to check fuel pressure against manufacturer specifications
- Electrical Check: Test power and ground connections at the pump’s wiring harness
- Fuel Pump Relay: Inspect and test the relay for proper operation
- Post-Test Diagnosis: Analyze results, identify issues, and determine necessary repairs or replacements
Pre-Test Preparation: Gather tools, ensure safety, and locate the fuel pump for testing
Before testing your Chevy Silverado's fuel pump, proper preparation is crucial to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a multimeter, a fuel pressure gauge, safety gloves, safety goggles, and a jack or jack stands if you need to access the fuel pump from underneath the vehicle. These tools will allow you to measure electrical current, assess fuel pressure, and protect yourself during the process. Having everything within reach minimizes interruptions and reduces the risk of errors.
Safety should never be an afterthought when working on a vehicle’s fuel system. Gasoline is highly flammable, and fuel pumps operate under pressure, posing potential hazards. Always work in a well-ventilated area, away from open flames or sparks. Disconnect the battery to prevent accidental ignition, and ensure the engine is cool before starting. Wear gloves and goggles to protect against fuel spills or debris. If you’re unsure about any step, consult a professional—safety is paramount.
Locating the fuel pump is the next critical step. In most Chevy Silverado models, the fuel pump is housed inside the fuel tank, which is typically located beneath the rear seat or under the truck bed. Accessing it may require removing the rear seat or using a jack to lift the vehicle for undercarriage access. Refer to your vehicle’s manual for specific instructions, as the exact location can vary by model year. Once located, inspect the area for any signs of damage or leaks before proceeding with testing.
Preparation also involves understanding the fuel pump’s role in the vehicle’s system. The fuel pump delivers fuel from the tank to the engine under the correct pressure, ensuring optimal performance. If the pump fails, symptoms like engine sputtering, difficulty starting, or stalling may occur. By familiarizing yourself with these basics, you’ll better interpret test results and diagnose issues accurately.
In summary, pre-test preparation is a blend of practical steps and safety-conscious practices. Gather your tools, prioritize safety measures, and accurately locate the fuel pump to set the stage for a successful test. This groundwork not only streamlines the process but also safeguards you and your vehicle, ensuring a reliable diagnosis.
Choosing the Right GPH Fuel Pump for 550 HP Engines
You may want to see also
Explore related products
Pressure Testing: Use a gauge to check fuel pressure against manufacturer specifications
Fuel pressure is a critical indicator of your Chevy Silverado’s fuel pump health. A gauge test compares the system’s pressure to the manufacturer’s specifications, revealing whether the pump is delivering fuel at the required rate. For most Silverado models, the fuel pressure should fall within a specific PSI range, typically between 55 and 61 PSI for gasoline engines. Deviations from this range signal potential issues, such as a weak pump, clogged filter, or faulty regulator. This test is straightforward but requires precision to avoid misdiagnosis.
To perform a pressure test, start by locating the fuel test port, often found on the fuel rail near the engine. Attach a fuel pressure gauge to the port, ensuring a secure connection to prevent leaks. With the ignition in the "ON" position but the engine off, note the initial pressure reading. Then, start the engine and observe the pressure drop, which should stabilize within the specified range. If the pressure is too low, the pump may be failing; if it’s too high, the regulator could be at fault. Always refer to your Silverado’s service manual for exact specifications and procedures.
While pressure testing is reliable, it’s not without pitfalls. Common mistakes include using a gauge incompatible with high-pressure systems or failing to relieve fuel system pressure before disconnecting lines. Safety is paramount—work in a well-ventilated area, avoid open flames, and wear protective gear to guard against fuel spills. Additionally, a single test may not tell the full story; repeat the process under different conditions, such as idling versus acceleration, to confirm consistent performance.
Comparing pressure testing to other diagnostic methods highlights its efficiency. Unlike electrical tests, which focus on the pump’s power supply, pressure testing directly assesses its output. It’s also more conclusive than visual inspections, which may miss internal wear. However, combining pressure testing with other methods, such as checking for voltage at the pump connector, provides a comprehensive diagnosis. For Silverado owners, mastering this technique ensures you can pinpoint fuel system issues before they escalate into costly repairs.
Are Trugrade Fuel Pumps Reliable? A Comprehensive Performance Review
You may want to see also
Explore related products
![[2-Pack] Reusable Ethanol Testing Kit - Wide Mouth Fuel Test Bottle for E85 and Ethanol Levels - Fewer Spills and Clear Results in Minutes - Test Hundreds of Times - Two Ethanol Test Bottles Included](https://m.media-amazon.com/images/I/71sU-J0V11L._AC_UL320_.jpg)
Electrical Check: Test power and ground connections at the pump’s wiring harness
A faulty fuel pump can leave you stranded, but before condemning the pump itself, it's crucial to verify the electrical supply reaching it. The wiring harness acts as the lifeline, delivering power and ground connections essential for the pump's operation. Testing these connections is a fundamental step in diagnosing fuel pump issues in your Chevy Silverado.
Understanding the Circuit:
Imagine the fuel pump circuit as a simple loop. Power flows from the battery, through a fuse, relay, and wiring harness, to the pump. The pump then completes the circuit by returning the current to ground. Any break in this loop disrupts the flow, rendering the pump inoperative.
Testing Procedure:
- Locate the Harness: Consult your Silverado's service manual to pinpoint the fuel pump wiring harness. It's typically located near the fuel tank, often accessible from underneath the vehicle.
- Disconnect the Harness: Carefully disconnect the wiring harness connector. This will allow you to test the individual wires for power and ground.
- Set Your Multimeter: Set your multimeter to the DC voltage setting.
- Test for Power: With the ignition switched on, touch the red multimeter lead to the wire that should carry power (usually identified by color coding in the manual). Touch the black lead to a good ground point, such as the vehicle chassis. You should see a reading close to battery voltage (around 12 volts). If no voltage is present, trace the circuit back towards the fuse and relay to identify the fault.
- Test for Ground: Switch your multimeter to the continuity setting (beep function). Touch one lead to the wire that should be grounded and the other lead to a known good ground point. If the multimeter beeps, the ground connection is intact. No beep indicates a broken ground wire.
Interpreting Results:
If both power and ground tests pass, the issue likely lies within the fuel pump itself. If either test fails, focus your diagnosis on the corresponding circuit element (fuse, relay, wiring). Remember, safety is paramount. Always disconnect the battery before working on electrical systems and exercise caution when working under the vehicle.
Weak Fuel Pump: A Hidden Culprit Behind Lean Engine Conditions?
You may want to see also
Explore related products
Fuel Pump Relay: Inspect and test the relay for proper operation
The fuel pump relay is a critical component in your Chevy Silverado's fuel system, acting as a switch that controls power to the fuel pump. A faulty relay can lead to poor engine performance, stalling, or even a no-start condition. Testing the relay ensures it’s functioning correctly, saving you time and money by pinpointing the issue before replacing other parts.
Steps to Inspect and Test the Fuel Pump Relay:
- Locate the Relay: Consult your Silverado’s manual to find the fuel pump relay in the under-hood fuse/relay box. It’s often labeled as "FUEL PUMP" or "FP."
- Visual Inspection: Remove the relay and check for corrosion, burnt pins, or physical damage. Clean the relay and its socket with electrical contact cleaner if necessary.
- Swap Relays (Temporary Test): If your Silverado has multiple relays of the same type (e.g., A/C or horn relay), swap one with the fuel pump relay. If the fuel pump activates, the original relay is likely faulty.
- Multimeter Test: Use a multimeter to test the relay’s continuity. Apply power to the relay’s coil terminals (typically pins 85 and 86) and check for continuity between the common (pin 30) and normally open (pin 87) contacts. A functioning relay will show continuity when energized.
Cautions: Avoid testing the relay while the engine is running, as this can damage the component or pose a safety risk. Always disconnect the battery before handling electrical components to prevent short circuits.
Testing Your Ford Fuel Pump: Pre-Installation Checklist and Steps
You may want to see also
Explore related products
Post-Test Diagnosis: Analyze results, identify issues, and determine necessary repairs or replacements
After testing your Chevy Silverado's fuel pump, the real work begins: deciphering the results and pinpointing the problem. A fuel pump test isn't just about pass or fail; it's about understanding the nuances of the readings. For instance, if the pressure gauge shows a reading significantly below the manufacturer's specifications (typically 55-60 PSI for most Silverado models), it could indicate a weak pump, clogged fuel filter, or a leak in the fuel lines. Conversely, a pressure reading that spikes erratically might suggest a faulty pressure regulator or a pump that's on the verge of failure.
Analyzing the results requires a systematic approach. Start by comparing the test data to the vehicle's service manual. Look for discrepancies in pressure, flow rate, and electrical current draw. For example, a current draw that exceeds 10-12 amps during operation could signal an overworked pump or internal resistance. Cross-reference these findings with symptoms like hard starting, stalling, or reduced engine performance to narrow down the root cause. Remember, a fuel pump issue often mimics other problems, such as a faulty mass airflow sensor or clogged injectors, so context is key.
Once you've identified the issue, determining the necessary repairs or replacements becomes clearer. If the pump is delivering insufficient pressure, inspect the fuel filter first; a clogged filter is a common culprit and a cheaper fix than replacing the pump. If the filter is clean, check the fuel lines for leaks or kinks. For electrical issues, test the pump's wiring harness and relay for continuity and corrosion. If the pump itself is faulty, replacement is usually the only option, but ensure the new pump matches the vehicle's specifications and includes a new strainer to prevent future contamination.
Practical tips can streamline this process. Always test the fuel pump with a full tank to ensure accurate pressure readings, as low fuel levels can skew results. Use a multimeter to verify the pump's electrical connections before assuming mechanical failure. If you're unsure about the diagnosis, consult a professional mechanic or use a diagnostic scanner to pull error codes that might provide additional insights. Finally, keep a log of your findings—this documentation can be invaluable for future troubleshooting or warranty claims.
In conclusion, post-test diagnosis is a blend of technical analysis and practical problem-solving. By carefully interpreting the results, cross-referencing symptoms, and methodically inspecting related components, you can avoid unnecessary repairs and ensure your Silverado's fuel system operates reliably. Whether it's a simple filter replacement or a full pump overhaul, a thorough diagnosis saves time, money, and frustration.
Signs Your Car Needs a Fuel Pump Replacement: A Quick Guide
You may want to see also
Frequently asked questions
Common signs of a failing fuel pump include difficulty starting the engine, sputtering at high speeds, loss of power, or a whining noise from the fuel tank. Testing the fuel pressure or checking for voltage at the pump connector can confirm the issue.
You’ll need a fuel pressure gauge, a multimeter to check voltage, and a basic set of hand tools to access the fuel pump or its wiring harness.
Yes, you can test the fuel pump’s electrical connection by checking for voltage at the pump’s wiring harness or using a fuel pressure gauge at the Schrader valve on the fuel rail.
The fuel pressure should match the specifications in your vehicle’s manual, typically ranging from 40 to 60 PSI for most Silverado models. Low pressure indicates a potential pump issue.
