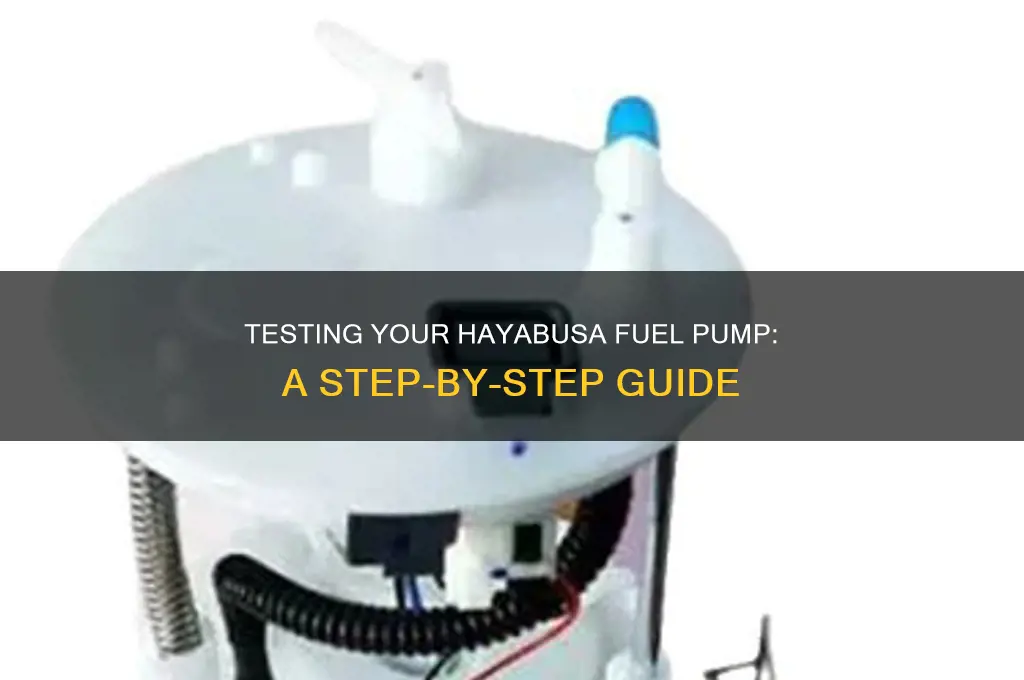

Testing a Hayabusa fuel pump is a critical step in ensuring the proper functioning of your motorcycle's fuel system. The process involves several key steps, including preparing the necessary tools, disconnecting the fuel lines, and using a multimeter to check for continuity and proper voltage. Begin by ensuring the motorcycle is turned off and the fuel system is depressurized to avoid any accidents. Next, locate the fuel pump, typically found near the fuel tank or within the fuel tank itself, depending on the model. Disconnect the electrical connector and fuel lines, taking care to relieve any residual pressure. Using a multimeter, test the fuel pump's terminals for continuity and apply 12 volts to verify it operates correctly. If the pump fails to produce a humming sound or show signs of operation, it may need to be replaced. Always refer to the manufacturer's manual for specific instructions tailored to your Hayabusa model.
Explore related products
What You'll Learn
- Pre-test Preparation: Gather tools, disconnect battery, relieve fuel pressure, and locate the pump
- Electrical Testing: Check power and ground connections using a multimeter for proper voltage
- Flow Rate Check: Measure fuel output with a gauge to ensure it meets specifications
- Pressure Testing: Verify pump pressure using a gauge to confirm it’s within range
- In-Tank Inspection: Remove the pump to inspect for damage or debris
Pre-test Preparation: Gather tools, disconnect battery, relieve fuel pressure, and locate the pump
Before testing a Hayabusa fuel pump, meticulous pre-test preparation is crucial to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a multimeter, wrenches or sockets (typically 10mm and 12mm), a fuel pressure gauge, safety gloves, and safety goggles. These tools are essential for diagnosing electrical issues, removing components, and measuring fuel pressure. Ensure your workspace is well-lit and free of debris to minimize risks.
Once equipped, disconnect the motorcycle’s battery to prevent accidental electrical shorts or fuel pump activation during testing. Locate the negative terminal and use the appropriate wrench or socket to loosen the nut, then carefully remove the cable. This step is non-negotiable, as live electrical systems can pose serious hazards when working with fuel systems. Always double-check that the battery is fully disconnected before proceeding.
Next, relieve the fuel system pressure to avoid fuel spray or spills. Start by locating the fuel pressure relief valve, typically found on the fuel rail or near the fuel injectors. Depress the valve using a small screwdriver or appropriate tool to release pressure. If your Hayabusa lacks a relief valve, carefully remove the fuel pump fuse or relay and start the engine to drain residual pressure. Allow the engine to stall naturally before proceeding.
Finally, locate the fuel pump, which is housed within the fuel tank. Accessing it requires removing the tank, a task that varies slightly depending on the Hayabusa model year. Generally, disconnect the fuel lines and electrical connectors, then unscrew the tank mounting bolts. Lift the tank carefully, ensuring no debris enters the fuel system. The fuel pump is typically mounted at the bottom of the tank, secured by a locking ring or bolts. Familiarize yourself with its location and mounting mechanism to streamline the testing process.
By systematically gathering tools, disconnecting the battery, relieving fuel pressure, and locating the pump, you create a safe and efficient foundation for testing. These preparatory steps not only protect you and the motorcycle but also ensure the diagnostic process is accurate and hassle-free. Skipping any of these steps could lead to unsafe conditions or inconclusive test results, underscoring their importance in the overall procedure.
BMW Fuel Pump Lifespan: Durability, Maintenance, and Replacement Guide
You may want to see also
Explore related products
Electrical Testing: Check power and ground connections using a multimeter for proper voltage
A faulty fuel pump can leave your Hayabusa sputtering or stranded. Before condemning the pump itself, a crucial first step is verifying the electrical supply it relies on. This is where your multimeter becomes your diagnostic ally.
Think of it as a doctor's stethoscope, listening to the electrical heartbeat of your fuel pump system.
Diagnosing the Flow: Power and Ground
Imagine electricity as the lifeblood of your fuel pump. It needs a strong, uninterrupted flow to function. Your multimeter acts as a detective, tracing the path of this electrical current. Start by locating the fuel pump's power and ground connections. Consult your Hayabusa's service manual for their exact locations – they're typically found near the pump itself or in the engine bay fuse box.
Set your multimeter to the voltage setting (usually marked with a "V" symbol). With the ignition on, touch the red probe to the power wire and the black probe to a good ground (like the engine block). A healthy fuel pump should show a voltage reading close to your battery voltage (typically around 12 volts). If the reading is significantly lower or non-existent, you've likely found a break in the power supply chain.
Grounding Issues: The Silent Culprit Don't underestimate the importance of a solid ground connection. A corroded or loose ground wire can strangle your fuel pump's power, leading to erratic performance or complete failure. Use your multimeter to check the resistance between the fuel pump's ground wire and a known good ground point. A reading close to zero indicates a good connection. Anything higher suggests a problem – clean the connections thoroughly or replace the ground wire if necessary.
Remember, a multimeter is a powerful tool, but it's only as good as the user. Always double-check your connections and settings before taking readings.
Beyond the Basics: Advanced Troubleshooting If your power and ground connections check out, the issue might lie within the fuel pump itself. More advanced testing, such as checking for pump motor resistance or current draw, may be required. These tests often necessitate specialized knowledge and tools, so consulting a qualified mechanic is recommended.
Bypassing Fuel Pump Relay in a 2003 Dodge Ram: A Guide
You may want to see also
Explore related products
Flow Rate Check: Measure fuel output with a gauge to ensure it meets specifications
A fuel pump's flow rate is a critical performance metric, directly impacting engine efficiency and power delivery. To assess this, you'll need a fuel pressure gauge and a container to collect the fuel. Start by disconnecting the fuel line from the pump and attaching the gauge to the fuel pump outlet. With the pump running, measure the fuel output over a specific time interval, typically 30 seconds to one minute. This simple test provides valuable insights into the pump's health.
The Process Unveiled: Begin by ensuring the fuel pump is primed and ready for operation. Activate the pump and simultaneously start your timer. Collect the fuel in a graduated container, allowing for precise measurement. After the designated time, record the volume of fuel dispensed. Compare this value against the manufacturer's specifications for your Hayabusa model. A healthy pump should deliver fuel within the specified range, typically measured in liters or gallons per minute.
For instance, a Suzuki Hayabusa's fuel pump might be expected to deliver approximately 50-60 liters per hour (l/h) at a certain pressure. If your test reveals a significantly lower flow rate, it could indicate a clogged pump, a failing motor, or a problem with the fuel filter. On the other hand, an excessively high flow rate may suggest a faulty pressure regulator or a pump operating beyond its design parameters.
Practical Tips: When conducting this test, ensure you work in a well-ventilated area, as fuel vapors can be hazardous. Use a container that allows for easy measurement, and consider marking the desired volume range for quick reference. If you're testing an in-tank fuel pump, you may need to remove the pump assembly for accurate measurements. Always refer to your Hayabusa's service manual for specific flow rate values and testing procedures, as these can vary across different model years and engine configurations.
In summary, the flow rate check is a straightforward yet powerful diagnostic tool. By measuring fuel output, you can quickly identify potential issues with your Hayabusa's fuel pump, ensuring optimal engine performance and preventing more severe problems down the road. This test is a crucial step in any comprehensive fuel system inspection, providing tangible data to support your maintenance decisions.
Signs Your Car Needs a New Fuel Pump: What to Look For
You may want to see also
Explore related products
Pressure Testing: Verify pump pressure using a gauge to confirm it’s within range
Pressure testing a Hayabusa fuel pump is a critical step in diagnosing its health, ensuring it delivers the precise fuel volume required for optimal engine performance. This process involves connecting a fuel pressure gauge to the fuel rail and measuring the pressure while the engine is running. The Hayabusa’s fuel pump is designed to maintain a specific pressure range, typically between 49 and 54 psi (pounds per square inch) at idle and under load. Deviations from this range can indicate a weak pump, clogged fuel filter, or faulty pressure regulator. Always refer to the manufacturer’s specifications for your specific model year, as tolerances may vary slightly.
To perform this test, start by locating the Schrader valve on the fuel rail, often found near the fuel injectors. Attach a fuel pressure gauge to this valve, ensuring a secure connection to prevent leaks. With the engine off, relieve fuel system pressure by depressing the Schrader valve or disconnecting the fuel pump relay. Once the system is depressurized, start the engine and observe the gauge reading. At idle, the pressure should stabilize within the specified range. Rev the engine to simulate load and verify that the pressure remains consistent. If the pressure drops below or exceeds the recommended range, further investigation is necessary.
A common mistake during pressure testing is neglecting to check for leaks in the fuel lines or connections. Even a small leak can skew readings and lead to inaccurate diagnoses. Use a spray bottle with soapy water to inspect all fittings and hoses while the system is pressurized. Bubbles forming at any point indicate a leak that must be addressed before proceeding. Additionally, ensure the fuel tank is at least half full to maintain consistent fuel supply during testing, as low fuel levels can cause fluctuations in pressure.
Comparing pressure test results to known benchmarks can provide deeper insights into the fuel pump’s condition. For instance, a pressure reading significantly below the minimum threshold often points to a failing pump or a clogged fuel filter. Conversely, excessive pressure may suggest a faulty pressure regulator or a restriction in the return line. If the pump fails the pressure test, consider testing it out of the vehicle by connecting it to a power source and measuring its output directly. This isolates the pump from other system variables, confirming whether it’s the root cause of the issue.
In conclusion, pressure testing is a straightforward yet powerful method to assess a Hayabusa fuel pump’s functionality. By verifying that the pump maintains the correct pressure range, you can pinpoint issues before they escalate into costly repairs. Always prioritize safety by working in a well-ventilated area, avoiding open flames, and using appropriate tools. With accurate pressure readings, you’ll have the data needed to make informed decisions about repairs or replacements, ensuring your Hayabusa runs smoothly and reliably.
Mastering Double Pump Fuel Testing for LS1 Engines: A Comprehensive Guide
You may want to see also
Explore related products
In-Tank Inspection: Remove the pump to inspect for damage or debris
The fuel pump is the heart of your Hayabusa's fuel system, and its in-tank location makes it susceptible to damage from debris or wear over time. Removing the pump for inspection is a critical step in diagnosing fuel delivery issues, as it allows you to identify problems that aren't always apparent from external testing. This process requires careful disassembly and a methodical approach to avoid causing further damage.
Steps for In-Tank Inspection:
- Prepare the Motorcycle: Ensure the fuel tank is as empty as possible to minimize spillage. Disconnect the battery to prevent accidental ignition. Remove the seat and fuel tank, following your Hayabusa's service manual for specific instructions.
- Access the Fuel Pump: With the tank removed, locate the fuel pump assembly. Disconnect the electrical connector and fuel lines, taking note of their positions for reassembly.
- Extract the Pump: Carefully remove the pump from the tank, being mindful of any O-rings or seals that may need replacement. Inspect the pump inlet and outlet for clogs or debris, as even small particles can restrict fuel flow.
- Examine for Damage: Check the pump housing for cracks or signs of impact. Inspect the impeller or turbine for wear, corrosion, or damage. A damaged impeller can reduce pump efficiency, leading to poor engine performance or stalling.
Cautions: Avoid using sharp tools that could puncture the fuel tank or damage internal components. If the pump shows significant wear or damage, replacement is often more cost-effective than repair. Always work in a well-ventilated area and avoid open flames or sparks when handling fuel.
Practical Tips: Use a bright light source to thoroughly inspect the pump and tank interior. If debris is found, flush the tank with a suitable cleaning agent and reinstall a new pump or thoroughly cleaned components. Regular inspection, especially on older Hayabusas, can prevent sudden fuel system failures and ensure reliable performance.
By removing and inspecting the fuel pump, you gain a clear understanding of its condition and can address issues before they escalate. This hands-on approach is essential for maintaining the high-performance standards of your Hayabusa.
Checking Fuel Pump Pressure: A Step-by-Step Guide for Vehicle Owners
You may want to see also
Frequently asked questions
To test a Hayabusa fuel pump, disconnect the fuel line, place the outlet into a container, and run the pump for a few seconds while monitoring the fuel flow. Ensure it delivers a steady stream of fuel at the correct pressure, typically around 3-5 psi.
You’ll need a multimeter to check electrical continuity, a fuel pressure gauge to measure output pressure, and a power source (such as a battery or jumper cables) to activate the pump during testing.
Use a multimeter to test the pump’s connector for voltage while the ignition is on. If there’s no voltage, check the fuse, relay, and wiring for faults. If voltage is present but the pump doesn’t run, the pump itself may be faulty.
