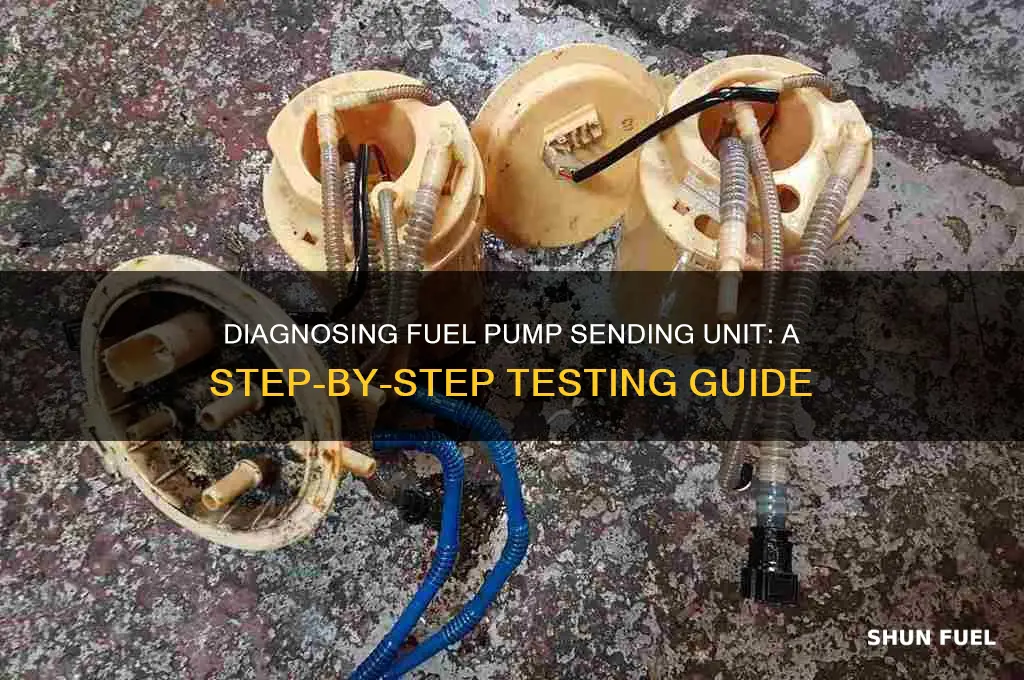

Testing a fuel pump sending unit is essential for diagnosing issues related to fuel gauge accuracy or fuel system performance. The sending unit, typically integrated into the fuel pump module, measures the fuel level in the tank and sends this information to the fuel gauge. To test it, start by ensuring the vehicle is on a level surface and the fuel tank is at least half full. Disconnect the sending unit’s electrical connector and use a multimeter to measure the resistance across its terminals while manually moving the float arm through its full range. Compare the resistance values to the manufacturer’s specifications; inconsistent readings indicate a faulty sending unit. Additionally, check for continuity and proper voltage supply to ensure the unit is functioning correctly. If discrepancies are found, the sending unit may need replacement to restore accurate fuel level readings.
| Characteristics | Values |
|---|---|
| Purpose of Test | Diagnose issues with fuel pump sending unit (e.g., inaccurate fuel gauge readings, pump failure) |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, safety gloves, safety goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel system pressure |
| Test 1: Electrical Resistance Check | Measure resistance across sending unit terminals; compare with manufacturer specs |
| Test 2: Voltage Output Test | Connect multimeter to sending unit wires; check voltage output while moving float |
| Test 3: Fuel Pressure Test | Attach fuel pressure gauge to fuel rail; compare readings with manufacturer specs |
| Test 4: Visual Inspection | Check for physical damage, corrosion, or loose connections on the sending unit |
| Symptoms of Failure | Inaccurate fuel gauge, engine stalling, difficulty starting, fuel leaks |
| Replacement Needed If | Sending unit fails resistance/voltage tests or shows physical damage |
| Cost of Replacement | $50-$200 (depending on vehicle make/model and labor costs) |
| DIY Difficulty Level | Intermediate (requires basic electrical knowledge and tools) |
| Professional Diagnosis Recommended | If unsure about testing procedures or results |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate unit, relieve fuel pressure
- Resistance Check: Measure sender resistance range across float arm terminals using multimeter
- Voltage Test: Verify power and ground connections at the unit’s electrical connector
- Tank Removal: Drain fuel, disconnect lines, lower tank to access sending unit
- Functional Test: Simulate fuel level changes, check sender output accuracy with multimeter
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate unit, relieve fuel pressure
Before testing a fuel pump sending unit, meticulous preparation is critical to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a fuel pressure gauge, wrenches or sockets, safety goggles, gloves, and a container for fuel spillage. These items are not optional—they are essential for both the task and your well-being. A missing tool can halt progress, while inadequate safety gear risks injury from fuel exposure or electrical mishaps.
Safety must be the cornerstone of your preparation. Fuel systems operate under pressure and contain flammable liquids, making them inherently dangerous. Work in a well-ventilated area, away from open flames or sparks. Equip yourself with gloves and goggles to protect against fuel contact, which can irritate skin and eyes. Ground yourself by touching a metal surface before handling components to dissipate static electricity, a potential ignition source.
With safety measures in place, disconnect the battery to eliminate the risk of electrical shorts or accidental fuel pump activation. Locate the negative terminal, loosen the nut with a wrench, and remove the cable. This step is non-negotiable—ignoring it could lead to a hazardous situation. Once the battery is disconnected, allow the system to depressurize for at least 10 minutes to minimize fuel spray during the test.
Next, locate the fuel pump sending unit, typically housed within the fuel tank. Accessing it often requires removing the rear seat or a dedicated service panel, depending on your vehicle’s design. Consult your vehicle’s manual for precise instructions, as misidentification can lead to unnecessary disassembly or damage. Once located, relieve residual fuel pressure by loosening the Schrader valve on the fuel rail (if accessible) or using a pressure gauge to verify depressurization.
In summary, pre-test preparation is a systematic process that demands attention to detail. By gathering tools, prioritizing safety, disconnecting the battery, locating the unit, and relieving fuel pressure, you create a controlled environment for accurate testing. Each step builds upon the last, ensuring you’re equipped, protected, and ready to diagnose the fuel pump sending unit effectively.
