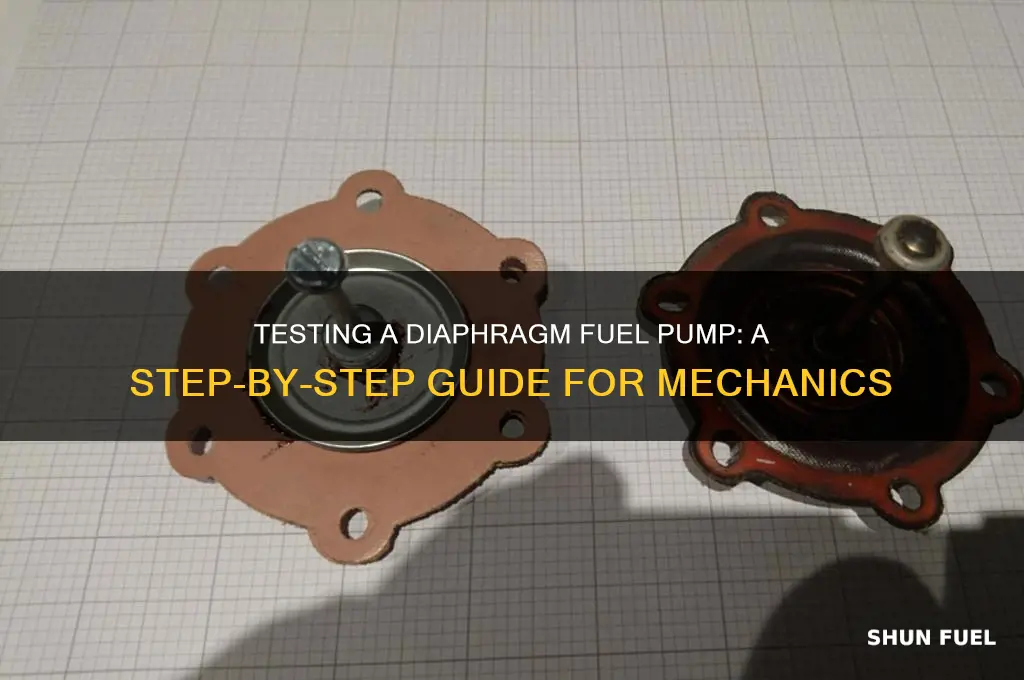

Testing a diaphragm fuel pump is essential to ensure it operates efficiently and reliably, as it plays a critical role in delivering fuel from the tank to the engine. The process typically begins with a visual inspection to check for leaks, cracks, or damage to the pump body and diaphragm. Next, verify the pump’s functionality by manually operating the diaphragm to ensure it moves freely and seals properly. Connect the pump to a fuel line and pressurize it to check for leaks and confirm consistent fuel flow. Use a pressure gauge to measure the pump’s output, comparing it to the manufacturer’s specifications. Additionally, test the pump’s priming capability by filling it with fuel and observing if it builds pressure effectively. If the pump fails any of these tests, inspect internal components like valves and diaphragms for wear or debris, and replace them if necessary. Regular testing ensures the pump maintains optimal performance, preventing fuel delivery issues and potential engine failures.
| Characteristics | Values |
|---|---|
| Purpose of Testing | To ensure the diaphragm fuel pump is functioning correctly and delivering fuel efficiently. |
| Tools Required | Multimeter, pressure gauge, fuel line disconnect tool, gloves, safety goggles. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel system pressure. |
| Visual Inspection | Check for cracks, leaks, or damage to the pump housing, diaphragm, and fuel lines. |
| Electrical Test | Use a multimeter to test the pump's terminals for continuity and proper voltage. |
| Pressure Test | Connect a pressure gauge to the pump outlet and check for correct fuel pressure (typically 3-6 PSI). |
| Manual Operation Test | Manually operate the diaphragm by hand to ensure it moves freely and seals properly. |
| Fuel Flow Test | Disconnect the fuel line and crank the engine to check for consistent fuel flow. |
| Noise Test | Listen for unusual noises (e.g., grinding or whining) during operation. |
| Leak Test | Inspect for fuel leaks at connections, hoses, and the pump body. |
| Performance Under Load | Test the pump while the engine is running to ensure it maintains pressure and flow. |
| Replacement Criteria | Replace the pump if it fails any of the above tests or shows signs of wear/damage. |
| Frequency of Testing | Test annually or if symptoms like hard starting, stalling, or poor performance occur. |
| Common Symptoms of Failure | Engine misfires, difficulty starting, fuel leaks, unusual noises, or no fuel delivery. |
| Compatibility Check | Ensure the pump is compatible with the fuel type (e.g., gasoline, diesel) and system requirements. |
Explore related products
What You'll Learn
- Pre-Test Inspection: Check for leaks, cracks, and damage before testing the diaphragm fuel pump
- Pressure Testing: Use a gauge to verify the pump maintains correct fuel pressure under load
- Flow Rate Check: Measure fuel delivery volume to ensure it meets the engine’s requirements
- Leakage Test: Inspect for fuel leaks at connections and diaphragm seals during operation
- Performance Under Load: Test pump efficiency at varying engine speeds and conditions
Pre-Test Inspection: Check for leaks, cracks, and damage before testing the diaphragm fuel pump
A diaphragm fuel pump's integrity is paramount to its functionality, and a pre-test inspection is the first line of defense against potential failures. Before subjecting the pump to any performance tests, a meticulous visual and tactile examination can reveal issues that might otherwise go unnoticed. Start by disconnecting the pump from the fuel system to ensure safe handling. Inspect the diaphragm itself for any signs of wear, such as thinning material or small punctures, which could lead to fuel leaks or inefficient operation. Even a minor crack can compromise the pump's ability to maintain pressure, so use a magnifying glass if necessary to detect hairline fractures.
Next, examine the pump housing for cracks or damage, particularly around the mounting points and fuel inlet/outlet ports. These areas are prone to stress and can develop fissures over time, especially in older pumps or those exposed to harsh environments. Run your fingers along the surfaces to detect any irregularities that might not be immediately visible. Pay close attention to the seals and gaskets, as these components are critical for preventing leaks. If they appear brittle, cracked, or misshapen, replace them before proceeding with further testing.
A systematic approach to this inspection can save time and prevent unnecessary troubleshooting later. Begin by cleaning the pump's exterior to remove dirt and debris that could obscure defects. Use a soft brush or compressed air to avoid damaging sensitive components. Once clean, apply a thin layer of soapy water to the diaphragm and housing, then pressurize the pump manually or with a low-pressure air source. Watch for bubbles, which indicate leaks. This simple yet effective method can pinpoint even the smallest breaches in the pump's structure.
While conducting the inspection, consider the pump's operational history and environmental factors. Pumps used in marine applications, for instance, are more susceptible to corrosion and damage from saltwater exposure. Similarly, pumps in agricultural equipment may suffer from debris infiltration or chemical damage. Tailoring your inspection to these specific risks can enhance its effectiveness. For example, if corrosion is a concern, inspect metal components for rust and treat or replace them as needed.
In conclusion, a thorough pre-test inspection is not just a preliminary step but a critical diagnostic tool. By systematically checking for leaks, cracks, and damage, you can identify and address potential issues before they escalate. This proactive approach ensures that subsequent performance tests provide accurate results and that the pump operates reliably in its intended application. Skipping this step could lead to false diagnostics or, worse, catastrophic failure during operation. Treat this inspection as an investment in the pump's longevity and your peace of mind.
Electric Fuel Pumps: The Solution to Vapor Lock Issues?
You may want to see also
Explore related products
Pressure Testing: Use a gauge to verify the pump maintains correct fuel pressure under load
A diaphragm fuel pump's ability to maintain consistent pressure under load is critical for engine performance. Pressure testing with a gauge is the most direct way to verify this. Connect the gauge inline between the pump and fuel filter, ensuring all fittings are tight to prevent leaks. Start the engine and observe the pressure reading at idle. It should match the manufacturer's specified range, typically between 3-6 psi for carbureted engines and 40-60 psi for fuel-injected systems. Any deviation indicates a potential issue with the pump's diaphragm, valves, or check valves.
The next step is to simulate load conditions. For vehicles, this can be done by driving at varying speeds or using a dynamometer. For stationary engines, increase the throttle gradually while monitoring the gauge. The pressure should remain stable within the specified range. Fluctuations or drops suggest the pump is struggling to keep up with demand, possibly due to wear or contamination. Note that pressure drops under heavy load are more concerning than those at idle, as they directly impact fuel delivery during high-performance scenarios.
When conducting this test, ensure the fuel tank is at least half full to avoid air pockets that can skew readings. Use a high-quality gauge with a range that exceeds the pump's maximum pressure rating by at least 20%. For example, a 0-100 psi gauge is suitable for most fuel-injected systems. If the pump is part of a marine or industrial setup, consider environmental factors like temperature and vibration, which can affect accuracy. Always compare results against the pump's specifications, as tolerances vary by design and application.
One common mistake is neglecting to check for leaks during the test. Even a small leak at a fitting or hose can cause pressure loss, leading to false diagnostics. Apply soapy water to connections and look for bubbles while the pump is running. Additionally, if the pump is electric, verify the power supply is stable, as voltage drops can affect performance. For mechanical pumps, inspect the drive mechanism for proper engagement and wear. These precautions ensure the test isolates the pump's functionality from external variables.
In conclusion, pressure testing under load is a definitive method to assess a diaphragm fuel pump's health. It requires attention to detail, from gauge selection to load simulation, but provides clear, actionable data. If the pump fails this test, inspect internal components for damage or debris. Replacement diaphragms and check valves are often available for repair, but severe wear may necessitate a full pump replacement. Regular testing, especially in high-demand applications, can prevent unexpected failures and ensure reliable fuel delivery.
Running Fuel Pump via DC Generator Connection: A Practical Guide
You may want to see also
Explore related products
Flow Rate Check: Measure fuel delivery volume to ensure it meets the engine’s requirements
A critical aspect of testing a diaphragm fuel pump is verifying its flow rate, which directly impacts engine performance. Insufficient fuel delivery can lead to rough idling, hesitation, or even stalling, while excessive flow may cause flooding or inefficient combustion. To assess this, you’ll need a graduated container, a stopwatch, and the engine’s specified fuel consumption rate, typically found in the vehicle’s manual or service documentation. For instance, a small engine might require 0.5 to 1.5 gallons per hour (GPH) at idle, while larger engines could demand 5 to 10 GPH under load.
Begin by disconnecting the fuel line from the carburetor or fuel rail and directing it into the container. Start the engine and let it run at a steady RPM, noting the time with your stopwatch. Collect fuel for a precise interval—say, one minute—then shut off the engine and measure the volume delivered. Compare this to the manufacturer’s specifications; a deviation of more than 10% could indicate a failing pump. For example, if your pump delivers 0.4 GPH instead of the required 0.5 GPH, it’s time to inspect or replace the diaphragm.
Practical tips can streamline this process. Ensure the fuel tank is at least half full to maintain consistent pressure, and use a clean, dry container to avoid contamination. If testing under load, simulate operating conditions by engaging the throttle or using a load tester. Be cautious of fuel spills and fumes, working in a well-ventilated area and keeping ignition sources away.
Comparatively, this method is more accurate than visual inspections or pressure tests, as it directly measures the pump’s output. While pressure tests confirm the pump’s ability to overcome resistance, flow rate checks ensure it delivers the right amount of fuel. Combining both tests provides a comprehensive diagnosis, but flow rate is often the more telling metric for diaphragm pump health.
In conclusion, a flow rate check is a straightforward yet essential test for diaphragm fuel pumps. By measuring fuel delivery against engine requirements, you can pinpoint inefficiencies before they escalate into costly repairs. This method not only saves time but also ensures your engine operates at peak performance, whether in a lawnmower, generator, or marine application.
Upgrade Your Kohler Engine: Step-by-Step Fuel Pump Installation Guide
You may want to see also
Explore related products
$18.77
Leakage Test: Inspect for fuel leaks at connections and diaphragm seals during operation
Fuel leaks are a silent menace, compromising performance, safety, and efficiency. The leakage test is a critical diagnostic step in assessing a diaphragm fuel pump’s integrity, focusing on connections and seals under operational stress. Unlike static inspections, this test reveals vulnerabilities exposed only when the pump is active, mimicking real-world conditions.
Steps to Execute the Test:
- Prepare the System: Ensure the fuel pump is securely mounted and all connections are tightened to manufacturer specifications. Use a torque wrench for precision, as overtightening can damage seals.
- Initiate Operation: Start the engine or activate the pump to simulate normal working conditions. Allow it to run for 2–3 minutes to stabilize pressure and temperature.
- Inspect Visually and Tactically: Using a bright flashlight, examine all connection points, hoses, and diaphragm seals for visible fuel seepage. Simultaneously, run a gloved hand or a piece of cardboard along these areas to detect moisture or residue.
- Enhance Detection: For stubborn leaks, apply a soapy water solution to suspected areas. Bubbles forming under pressure indicate a leak. Avoid this method near open flames or hot surfaces.
Cautions and Considerations:
- Safety First: Conduct the test in a well-ventilated area, away from ignition sources. Wear nitrile gloves and safety goggles to protect against fuel exposure.
- Pressure Sensitivity: Diaphragm pumps operate at varying pressures, typically 3–7 psi for small engines. Exceeding this range during testing can artificially induce leaks or damage components.
- Environmental Impact: Contain any spilled fuel immediately using absorbent pads or kitty litter to prevent contamination and slip hazards.
Analyzing Results:
A leak at a connection often stems from loose fittings, degraded O-rings, or damaged hoses. Diaphragm seal leaks, however, signal wear, fatigue, or improper installation. Minor seepage may warrant monitoring, but significant leaks require immediate replacement of the faulty component.
Practical Tips:
- Preventive Maintenance: Inspect seals and connections every 50 hours of operation or annually, whichever comes first, to catch issues early.
- Upgrade Materials: Replace rubber seals with ethanol-resistant materials if using modern fuel blends to enhance longevity.
- Documentation: Record findings and repairs in a maintenance log to track recurring issues and assess pump lifespan.
By systematically performing the leakage test, you not only ensure the pump’s reliability but also safeguard against hazards that could escalate into costly repairs or accidents. It’s a small investment of time with a substantial return in safety and performance.
Mastering Woodward Fuel Injection Pumps: Advance and Retard Techniques Explained
You may want to see also
Explore related products
Performance Under Load: Test pump efficiency at varying engine speeds and conditions
A diaphragm fuel pump's true mettle is revealed under pressure, both literally and metaphorically. Testing its performance under varying engine speeds and load conditions is crucial to understanding its efficiency and identifying potential weaknesses. This test simulates real-world scenarios, from idling at a stoplight to accelerating onto a highway, providing a comprehensive picture of the pump's capabilities.
The Test Setup: Imagine a controlled environment where the pump is connected to a test bench, mimicking the fuel system of a vehicle. A dynamometer, a device that measures torque and power, is attached to simulate different engine speeds and loads. The pump is then subjected to a series of tests, starting from idle (around 600-800 RPM) and gradually increasing to higher speeds, say 2000 RPM, 3500 RPM, and finally, wide-open throttle (WOT) at 5000-6000 RPM. At each speed, the load is adjusted to represent various driving conditions, such as cruising, acceleration, and climbing steep grades.
Analyzing the Results: As the test progresses, key parameters are monitored: fuel pressure, flow rate, and pump current draw. A healthy diaphragm pump should maintain consistent pressure and flow across the RPM range, with a slight increase in current draw as the load increases. For instance, at idle, a typical pump might deliver 3-5 PSI (pounds per square inch) of pressure and draw 2-3 amps of current. As the engine speed climbs to 3500 RPM under load, the pressure should rise to 4-6 PSI, with a corresponding increase in current draw to 4-5 amps. Any significant deviation from these expected values could indicate a problem, such as a worn diaphragm, clogged fuel filter, or inadequate pump capacity.
Practical Tips for Testing: To ensure accurate results, it's essential to use a high-quality fuel pressure gauge and a reliable ammeter. Before testing, verify that the fuel system is free of air bubbles and that the pump is securely mounted to prevent vibrations from affecting the readings. For a more comprehensive evaluation, consider testing the pump at different fuel temperatures, as viscosity changes can impact performance. For example, at -20°C (-4°F), fuel becomes more viscous, requiring the pump to work harder, which may be reflected in increased current draw and reduced flow rates.
Real-World Applications: This test is particularly valuable for high-performance engines, where fuel delivery is critical to achieving optimal power and efficiency. In racing applications, for instance, a diaphragm pump must supply fuel at a consistent rate, even under extreme G-forces and rapid throttle changes. By testing the pump's performance under load, engineers can fine-tune the fuel system, ensuring that the engine receives the precise amount of fuel needed to perform at its best. Whether you're a professional mechanic or an enthusiast, understanding how to test a diaphragm fuel pump under varying conditions is a vital skill that can help diagnose problems, optimize performance, and ensure the longevity of your vehicle's fuel system.
