Testing a fuel pump on a motorcycle is a critical step in diagnosing fuel delivery issues, ensuring optimal engine performance, and preventing breakdowns. The process typically involves checking for proper operation, fuel pressure, and flow, using tools like a multimeter, fuel pressure gauge, or a simple manual test. Start by verifying the pump’s electrical connections and fuses, then activate the pump to listen for its characteristic humming sound. If the pump fails to engage, inspect the relay and wiring for faults. For a more precise assessment, connect a fuel pressure gauge to the fuel line and compare the readings to the manufacturer’s specifications. Additionally, a visual inspection for leaks or clogs in the fuel lines can help identify related issues. Proper testing ensures the fuel pump is functioning correctly, maintaining the motorcycle’s reliability and performance.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel pressure gauge, Screwdriver, Wrench, Safety gloves, Safety goggles |
| Safety Precautions | Work in a well-ventilated area, Disconnect battery, Avoid sparks near fuel |
| Testing Method 1: Visual/Audible Check | Listen for fuel pump humming sound when ignition is turned on (key on, engine off) |
| Testing Method 2: Voltage Test | Measure voltage at fuel pump connector (typically 12V) using a multimeter |
| Testing Method 3: Pressure Test | Use a fuel pressure gauge to check pump output against manufacturer specifications |
| Testing Method 4: Resistance Test | Measure fuel pump resistance (ohms) and compare to service manual values |
| Testing Method 5: Fuel Flow Test | Disconnect fuel line and crank engine to check for fuel flow (ensure proper safety) |
| Common Symptoms of Failure | No start, engine sputtering, loss of power, whining noise from fuel tank |
| Replacement Cost | $100-$500 (varies by motorcycle make/model and labor costs) |
| Frequency of Testing | Test annually or when symptoms of fuel pump failure are noticed |
| Professional Assistance | Recommended for complex diagnostics or replacement, especially on high-performance bikes |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, and prepare the motorcycle for fuel pump testing
- Visual Inspection: Check fuel pump for leaks, damage, or loose connections before testing
- Electrical Testing: Use a multimeter to verify power and ground at the fuel pump connector
- Pressure Testing: Measure fuel pressure with a gauge to ensure it meets specifications
- Operational Check: Listen for pump activation and confirm fuel delivery to the engine
Pre-Test Preparation: Gather tools, ensure safety, and prepare the motorcycle for fuel pump testing
Before testing a motorcycle's fuel pump, proper preparation is crucial to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a multimeter, a fuel pressure gauge (if applicable), a pair of safety gloves, safety goggles, and a clean container for fuel. These tools will allow you to measure electrical continuity, assess fuel pressure, and handle fuel safely. Additionally, ensure your motorcycle’s battery is fully charged, as a weak battery can mimic fuel pump issues. Having everything organized before you begin prevents mid-test interruptions and reduces the risk of errors.
Safety should never be an afterthought when working with fuel systems. Always conduct the test in a well-ventilated area, away from open flames or sparks, to minimize the risk of fire. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from accidental splashes. If your motorcycle has a fuel injection system, relieve the fuel pressure by locating the Schrader valve on the fuel rail and pressing it with the engine off. This step is critical to prevent fuel from spraying during disconnection. Treat fuel with respect—it’s highly flammable and can cause severe injuries if mishandled.
Preparing the motorcycle itself is equally important. Start by stabilizing the bike on a center stand or paddock stand to ensure it remains upright during testing. Disconnect the negative battery terminal to prevent accidental shorts or system interference. If your motorcycle has a fuel pump relay, locate it and familiarize yourself with its position for later testing. For carbureted bikes, ensure the petcock is turned on to allow fuel flow. For fuel-injected models, inspect the fuel lines for cracks or leaks before proceeding. A thorough pre-test inspection can save time and identify potential issues unrelated to the fuel pump.
Finally, consider the environmental conditions and your approach to testing. Avoid testing in extreme temperatures, as cold weather can thicken fuel, while heat can cause evaporation in the lines. If you’re testing for electrical continuity, clean the fuel pump connector terminals with a wire brush to ensure accurate readings. For pressure tests, follow the manufacturer’s guidelines for acceptable PSI ranges, typically between 30–60 PSI for most motorcycles. By methodically preparing your tools, prioritizing safety, and inspecting the motorcycle, you set the stage for a reliable and conclusive fuel pump test.
LS3 PCM and Electric Fuel Pump Activation: How It Works
You may want to see also
Explore related products
Visual Inspection: Check fuel pump for leaks, damage, or loose connections before testing
Before diving into complex diagnostics, a simple visual inspection can reveal critical issues with your motorcycle's fuel pump. Start by locating the pump, typically near the fuel tank or within the tank itself, depending on your bike’s design. Use a flashlight to illuminate hard-to-see areas, ensuring no detail is overlooked. Look for fuel stains, wet spots, or pooling around the pump, which indicate leaks. Even a small leak can compromise performance and safety, so address it immediately.
Next, examine the pump’s exterior for physical damage, such as cracks, corrosion, or warping. These issues can result from vibration, heat, or age, and they often lead to internal failures. Pay attention to the wiring harness and connectors. Loose or frayed wires, corroded terminals, or disconnected plugs can disrupt electrical flow, causing the pump to malfunction. Gently wiggle the connections to ensure they’re secure, but avoid forcing anything to prevent further damage.
A comparative approach can be helpful here: compare the pump’s condition to manufacturer guidelines or reference images if available. For instance, a fuel pump on a 5-year-old motorcycle should show minimal wear if maintained properly. If you notice excessive corrosion or damage, it may be time for a replacement rather than further testing. This step-by-step inspection saves time and prevents unnecessary diagnostics on a pump that’s visibly compromised.
Finally, consider the environment in which your motorcycle operates. Exposure to harsh weather, off-road debris, or poor-quality fuel can accelerate wear and tear. If your bike frequently encounters such conditions, more frequent inspections are advisable. By treating this visual check as a routine practice, you’ll catch potential issues early, ensuring your fuel pump operates reliably and prolonging the life of your motorcycle’s fuel system.
How Long Does It Take to Replace a Fuel Pump?
You may want to see also
Explore related products
Electrical Testing: Use a multimeter to verify power and ground at the fuel pump connector
A faulty fuel pump can leave you stranded, but before condemning it, verify the electrical supply. A multimeter becomes your diagnostic ally, allowing you to pinpoint whether the issue lies within the pump itself or the wiring feeding it. This test isolates the electrical circuit, ensuring the pump is receiving the necessary power and ground to operate.
Forget guesswork; this methodical approach saves time and money by identifying the root cause.
To begin, locate the fuel pump connector, typically found near the fuel tank or along the fuel line. Consult your motorcycle's service manual for the exact location. With the ignition off, disconnect the connector. Your multimeter, set to the voltage setting (DC volts), will be your tool for this investigation. Touch the red probe to the power wire terminal within the connector and the black probe to the ground wire terminal. Turn the ignition to the "on" position (without starting the engine). A healthy reading should display the battery voltage, typically around 12 volts. If the reading is significantly lower or non-existent, suspect a faulty power supply, potentially due to a blown fuse, damaged wiring, or a malfunctioning relay.
Remember, safety first: always disconnect the battery before working on any electrical components.
Grounding issues can be equally problematic. With the multimeter still connected to the power and ground terminals, switch it to the continuity setting (usually represented by a diode symbol or a beep sound). A continuous beep or a low resistance reading (close to 0 ohms) indicates a good ground. No beep or a high resistance reading suggests a poor ground connection, possibly due to corrosion, loose connections, or damaged wiring.
This electrical testing procedure is a crucial step in diagnosing fuel pump issues. By systematically checking for power and ground, you can narrow down the problem area, saving time and frustration. Remember, a multimeter is an invaluable tool for any motorcycle enthusiast, allowing you to troubleshoot electrical problems with confidence.
Step-by-Step Guide to Safely Disconnecting an In-Tank Fuel Pump
You may want to see also
Explore related products

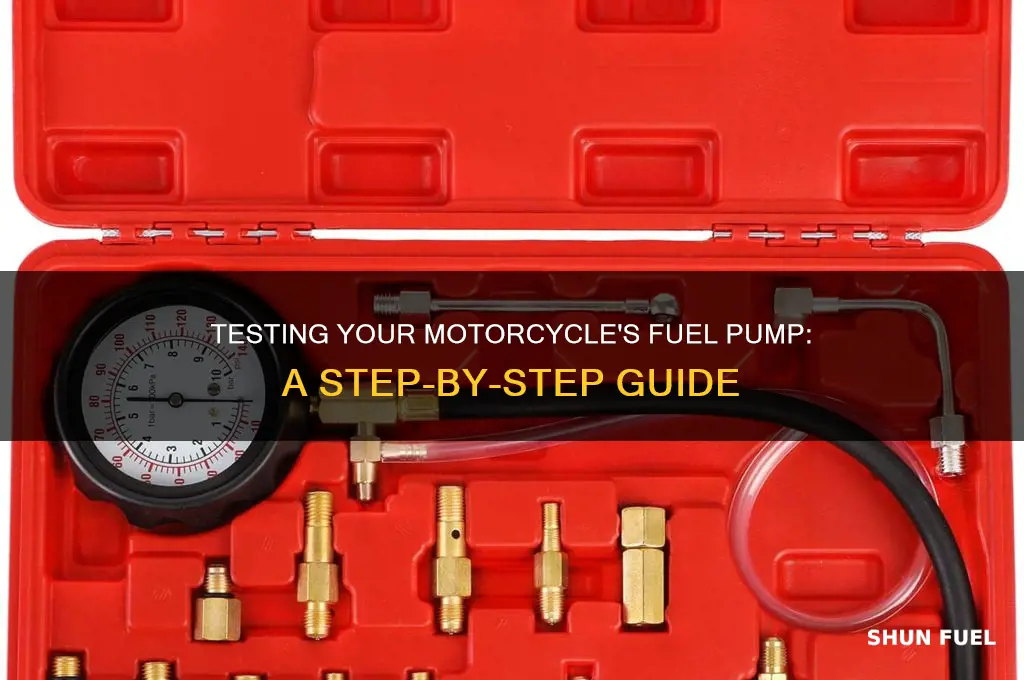

Pressure Testing: Measure fuel pressure with a gauge to ensure it meets specifications
Fuel pressure is a critical metric for diagnosing a motorcycle's fuel pump performance. A fuel pressure gauge becomes your diagnostic ally, offering a precise measurement to compare against manufacturer specifications. This comparison reveals whether the pump is delivering the required fuel volume at the correct pressure for optimal engine operation.
Deviations from specifications can indicate a weak pump, clogged fuel filter, or issues with the fuel pressure regulator.
To conduct a pressure test, you'll need a fuel pressure gauge compatible with your motorcycle's fuel system. Connect the gauge to the fuel line, typically at the fuel rail or Schrader valve, following the manufacturer's instructions for your specific gauge. With the engine off, relieve fuel system pressure by disconnecting the fuel pump fuse or relay. Then, start the engine and allow it to idle. Observe the gauge reading, comparing it to the specified pressure range for your motorcycle model, usually found in the service manual.
Record the reading at idle and under load (e.g., revving the engine slightly) to assess pressure stability.
While a pressure test provides valuable data, it's crucial to interpret results within context. A slightly lower pressure reading might be acceptable if the bike runs smoothly, while a significantly low reading could indicate a failing pump. Conversely, excessively high pressure can damage injectors and other components. If the pressure falls outside the specified range, further investigation is warranted. Check for leaks in the fuel lines, a clogged fuel filter, or a faulty pressure regulator.
Remember, a pressure test is a diagnostic tool, not a definitive answer. It provides a starting point for pinpointing the root cause of fuel delivery issues.
Resetting Your Ford Taurus Fuel Pump Shut Off Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Operational Check: Listen for pump activation and confirm fuel delivery to the engine
The fuel pump is the heart of your motorcycle's fuel system, and its operation is critical for engine performance. One of the simplest yet most effective ways to assess its functionality is through an operational check, focusing on both auditory cues and fuel delivery confirmation. This method not only helps diagnose potential issues but also ensures that the pump is working efficiently to supply the engine with the necessary fuel.
Listening for Pump Activation: Start by turning the ignition key to the "on" position without starting the engine. In many motorcycles, this activates the fuel pump, which should produce a distinct humming or whirring sound for a few seconds. This sound indicates that the pump is priming the fuel system, pushing fuel from the tank to the injectors or carburetor. If you don’t hear this noise, it could signal a dead pump, a faulty relay, or an issue with the power supply to the pump. Use a mechanic’s stethoscope or place your ear close to the fuel tank to amplify the sound, ensuring you don’t miss subtle cues.
Confirming Fuel Delivery: While listening is a good initial step, it’s equally important to confirm that fuel is actually reaching the engine. Begin by locating the fuel line near the engine or carburetor. With the bike still in the "on" position, carefully disconnect the fuel line into a container, ensuring you’re in a well-ventilated area and away from open flames. Activate the starter button briefly (without starting the engine) to check for fuel flow. A healthy pump should deliver a steady stream of fuel, indicating proper operation. If the flow is weak, intermittent, or non-existent, this could point to a clogged filter, a failing pump, or a blocked fuel line.
Practical Tips and Cautions: Always work with safety in mind when dealing with fuel systems. Wear gloves and safety goggles to protect against spills, and ensure the motorcycle is on a stable surface. If you’re unsure about disconnecting fuel lines, consult your bike’s manual or seek professional assistance. Additionally, note that some modern motorcycles have returnless fuel systems, where fuel pressure is maintained constantly, making the priming sound less pronounced. In such cases, rely more on the fuel delivery test for accurate diagnosis.
Analyzing Results and Next Steps: If both the activation sound and fuel delivery are confirmed, your pump is likely functioning correctly. However, if either test fails, further investigation is needed. Check the fuel pump fuse, relay, and wiring for continuity and damage. A multimeter can be a valuable tool for testing electrical components. If the issue persists, consider testing the pump’s pressure and volume using specialized tools, or consult a mechanic for a comprehensive diagnosis. This operational check serves as a quick, cost-effective first step in troubleshooting fuel pump issues, saving time and potential repair costs.
Timing a DD15 Fuel Pump: Essential Steps and Tips
You may want to see also
Frequently asked questions
Look for symptoms like difficulty starting, engine stalling, poor acceleration, or a lack of fuel delivery. If the bike runs erratically or doesn't start despite a full tank, testing the fuel pump is recommended.
You'll need a multimeter to check voltage and resistance, a fuel pressure gauge (if applicable), and a service manual for your specific motorcycle model to locate the pump and understand its specifications.
Yes, you can perform basic tests by checking for power and ground at the pump's connector using a multimeter. If the pump isn't priming or running, you may need to remove it for further inspection.
Connect a fuel pressure gauge to the fuel line (if accessible) and turn on the ignition. Compare the reading to the manufacturer's specifications. Low or no pressure indicates a faulty pump.
Verify power and ground at the pump's connector. If both are present, the pump may be faulty and need replacement. If not, check the fuse, relay, and wiring for issues. Consult the service manual for troubleshooting steps.
