Testing a 3-port mechanical fuel pump is essential to ensure it delivers the correct fuel pressure and volume to the engine. The process involves checking the pump's functionality, pressure output, and flow rate, typically using a fuel pressure gauge and a clear fuel line to observe any leaks or irregularities. Begin by disconnecting the fuel lines and installing the gauge to measure pressure at idle and under load. Inspect the pump's diaphragm and valves for wear or damage, as these components directly affect performance. Additionally, verify the pump's ability to maintain consistent pressure across all three ports, ensuring proper fuel distribution to the carburetor or fuel injection system. Regular testing helps identify issues early, preventing engine performance problems and potential failures.
| Characteristics | Values |
|---|---|
| Pump Type | 3-Port Mechanical Fuel Pump |
| Testing Purpose | Ensure proper fuel delivery, pressure, and vacuum operation |
| Required Tools | Pressure gauge, vacuum gauge, fuel line disconnect tool, wrenches, fuel pressure tester kit |
| Safety Precautions | Work in a well-ventilated area, relieve fuel system pressure, disconnect battery, wear safety goggles |
| Test 1: Pressure Test | Connect pressure gauge to pump outlet, crank engine, check for specified pressure (typically 3-6 PSI) |
| Test 2: Vacuum Test | Connect vacuum gauge to pump inlet, crank engine, check for proper vacuum (typically 5-10 inHg) |
| Test 3: Flow Test | Disconnect fuel line, crank engine, measure fuel flow rate (typically 0.5-1.5 gallons per minute) |
| Test 4: Leak Test | Inspect pump and fuel lines for leaks, use soapy water to detect bubbles |
| Expected Results | Consistent pressure, vacuum, and flow within specifications; no leaks |
| Common Issues | Weak or no pressure/vacuum, low flow rate, leaks, worn diaphragms or valves |
| Replacement Threshold | Replace pump if pressure, vacuum, or flow is below specifications or leaks are detected |
| Maintenance Tips | Regularly inspect fuel lines, filters, and pump for wear; replace every 50,000-100,000 miles or as needed |
| Compatibility | Check pump specifications for compatibility with vehicle make, model, and engine type |
| Environmental Impact | Properly dispose of old fuel and pump components to prevent contamination |
Explore related products
What You'll Learn
- Pre-Test Inspection: Check pump for damage, leaks, and proper mounting before testing
- Pressure Testing: Use gauge to verify pump output meets manufacturer’s specified pressure levels
- Flow Rate Check: Measure fuel delivery volume to ensure it matches required flow rate
- Leakage Detection: Inspect connections and seals for leaks under operating pressure
- Performance Under Load: Test pump efficiency at varying RPMs and engine loads
Pre-Test Inspection: Check pump for damage, leaks, and proper mounting before testing
Before testing a 3-port mechanical fuel pump, a thorough pre-test inspection is critical to ensure accurate results and prevent further damage. Begin by examining the pump’s exterior for visible cracks, corrosion, or deformities that could compromise its integrity. Pay close attention to areas around the ports and mounting flanges, as these are common failure points under stress. Even minor damage can lead to inefficiencies or catastrophic failure during operation.
Leaks are another red flag that must be addressed before testing. Inspect all connections, seals, and gaskets for signs of fuel seepage. Use a clean rag to wipe down the pump and surrounding areas, then observe for wet spots or residue. If leaks are detected, disassemble the pump to replace worn components or tighten loose fittings. Ignoring leaks not only skews test results but also poses a fire hazard, especially in high-temperature environments.
Proper mounting is equally essential for reliable pump performance. Verify that the pump is securely fastened to the engine block or mounting bracket, using the correct torque specifications for the bolts. Misalignment or inadequate mounting can cause excessive vibration, leading to premature wear or failure. Double-check that the pump’s drive mechanism (e.g., eccentric cam or pushrod) is correctly engaged and free of debris, ensuring smooth operation during testing.
A systematic approach to this inspection saves time and resources. Start with a visual assessment, followed by a tactile check for leaks, and conclude with a mounting verification. Tools like a torque wrench, flashlight, and magnifying glass can enhance accuracy. By addressing these three areas—damage, leaks, and mounting—you establish a baseline for testing and avoid compounding issues that could invalidate your results.
Finally, document your findings in a pre-test checklist. Note any abnormalities, repairs made, and the pump’s condition before proceeding. This not only ensures consistency across tests but also provides a reference for troubleshooting if issues arise later. A meticulous pre-test inspection is the foundation of a successful fuel pump evaluation, transforming guesswork into a data-driven process.
2001 Sea-Doo GTI Fuel Pump: Does It Have One?
You may want to see also
Explore related products
Pressure Testing: Use gauge to verify pump output meets manufacturer’s specified pressure levels

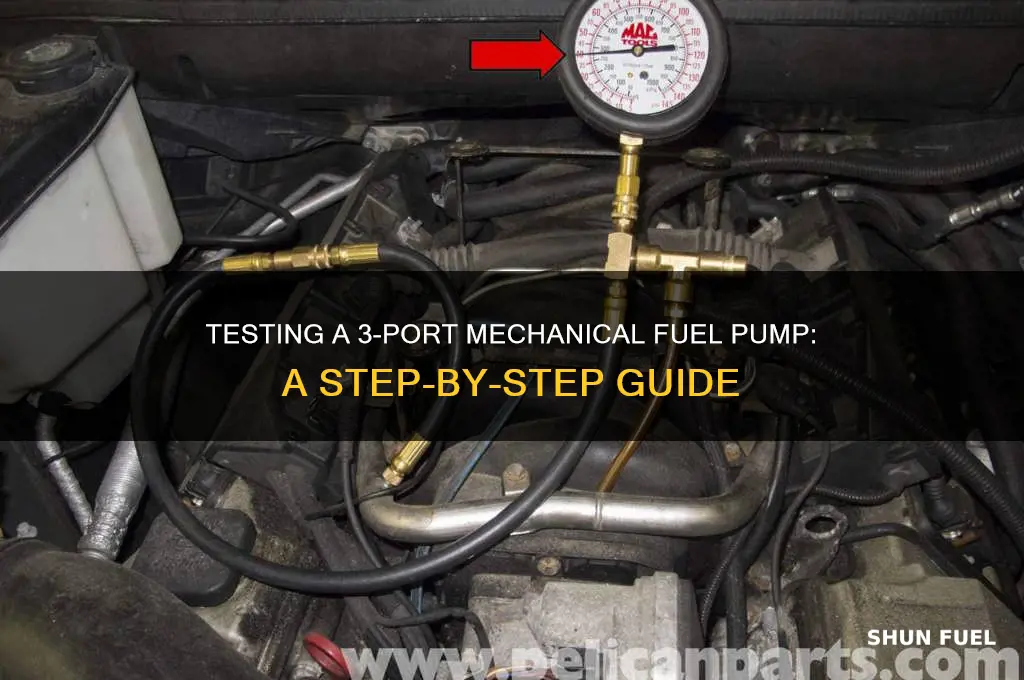

Pressure testing is a critical step in verifying the functionality of a 3-port mechanical fuel pump, ensuring it delivers fuel at the manufacturer’s specified pressure levels. This process requires a fuel pressure gauge, a tool that directly measures the pump’s output under operating conditions. Begin by disconnecting the fuel line at the carburetor or fuel rail and attaching the gauge inline. Start the engine and observe the reading, comparing it to the manufacturer’s specifications, typically found in the vehicle’s service manual. For example, a small-block Chevrolet V8 might require a pressure range of 5–7 PSI, while a high-performance engine could demand up to 10 PSI. Discrepancies between the measured and specified pressure indicate potential issues, such as a worn diaphragm or clogged fuel lines, necessitating further inspection or replacement.
Analyzing the results of a pressure test provides insight into the pump’s mechanical health and its ability to support engine performance. Low pressure readings often suggest insufficient fuel delivery, leading to poor acceleration, hesitation, or stalling. Conversely, excessively high pressure can strain the fuel system, risking leaks or component failure. For instance, a pump delivering 3 PSI below the specified range may struggle to supply fuel during high-demand conditions, such as towing or rapid acceleration. In contrast, a pump exceeding the upper limit by 2–3 PSI could prematurely wear out injectors or seals. Understanding these deviations allows for targeted troubleshooting, whether adjusting the pump’s regulator or replacing internal components.
To perform a pressure test effectively, follow a systematic approach. First, ensure the fuel tank is at least half full to maintain consistent fuel supply during testing. Next, relieve fuel system pressure by loosening the Schrader valve on the fuel rail (if equipped) before disconnecting lines. Securely attach the gauge to the fuel line using appropriate fittings to prevent leaks, which could introduce air into the system and skew results. Run the engine at idle and under load, noting pressure fluctuations. For carbureted engines, observe pressure stability during throttle blips; for fuel-injected systems, monitor readings during wide-open throttle. Document all findings for comparison against specifications and future reference.
Practical tips can enhance the accuracy and safety of pressure testing. Always work in a well-ventilated area and avoid open flames or sparks due to the flammable nature of fuel. Use a gauge with a glycerin-filled casing to dampen needle oscillations, providing a clearer reading. If testing an older pump, consider cleaning the fuel tank and lines beforehand to remove debris that could interfere with results. For pumps with adjustable pressure regulators, verify the setting before testing and adjust if necessary. Finally, if the pump fails the pressure test, inspect related components such as the fuel filter, lines, and tank for obstructions or damage before condemning the pump itself.
In conclusion, pressure testing a 3-port mechanical fuel pump using a gauge is a straightforward yet essential diagnostic procedure. It not only confirms the pump’s ability to meet performance demands but also identifies underlying issues before they escalate. By adhering to manufacturer specifications and employing precise techniques, enthusiasts and mechanics alike can ensure reliable fuel delivery, prolonging the life of the pump and optimizing engine efficiency. Whether maintaining a classic car or troubleshooting a modern vehicle, this method remains a cornerstone of fuel system diagnostics.
