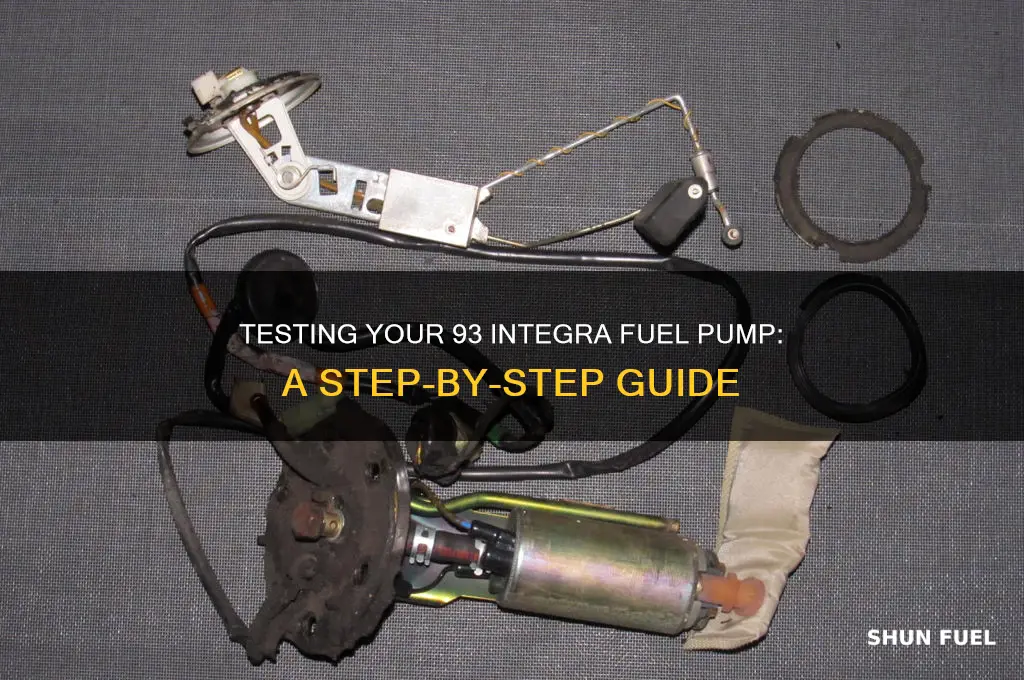

Testing the fuel pump on a 1993 Honda Integra is a critical step in diagnosing fuel system issues, such as poor engine performance or a no-start condition. To begin, ensure the vehicle is in a safe, well-ventilated area and disconnect the battery to prevent accidental starts. Locate the fuel pump, typically found in the fuel tank, and access it by removing the rear seat or trunk panel. Use a fuel pressure gauge to test the pump’s output by connecting it to the fuel rail’s Schrader valve and cycling the ignition. A healthy fuel pump should maintain pressure within the manufacturer’s specifications, usually around 30-40 psi. If pressure is insufficient or nonexistent, check for power and ground at the pump’s electrical connector; if both are present, the pump may be faulty and require replacement. Always refer to the vehicle’s service manual for specific details and safety precautions.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Under the rear seat, inside the fuel tank. |
| Tools Required | Multimeter, screwdriver, safety goggles, gloves, and a helper (optional). |
| Safety Precautions | Disconnect the battery, relieve fuel pressure, and work in a ventilated area. |
| Testing Method 1: Listen for Operation | Turn the ignition to ON (do not start); listen for a humming sound for 2-3 seconds. |
| Testing Method 2: Check Voltage | Measure voltage at the fuel pump connector (pins 1 and 3); should read 12V with ignition ON. |
| Testing Method 3: Check Resistance | Measure resistance across fuel pump terminals; typical range is 1.0–2.0 ohms. |
| Testing Method 4: In-Line Pressure Test | Use a fuel pressure gauge to check pressure; should be 38–44 psi (260–300 kPa). |
| Common Issues | Faulty relay, clogged fuel filter, or damaged wiring harness. |
| Replacement Recommendation | Replace the fuel pump if it fails any of the above tests. |
| Compatibility | Applies to 1993 Honda Integra models with the original fuel pump system. |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
- Electrical Testing: Check pump relay, fuse, and wiring for continuity and power
- Fuel Pressure Check: Use gauge to verify pump output meets OEM specifications
- In-Tank Inspection: Drop tank, inspect pump condition, and test for leaks
- Post-Test Diagnosis: Analyze results, replace faulty components, and confirm proper operation
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
Before testing the fuel pump on a 1993 Honda Integra, proper pre-test preparation is critical to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a fuel pressure gauge, a wrench or socket set, safety gloves, safety goggles, and a container for fuel spillage. These items are essential for both the testing process and your protection. Skipping this step could lead to incomplete diagnostics or unnecessary risks, such as fuel spills or electrical hazards.
Safety should never be an afterthought when working with fuel systems. Fuel is highly flammable, and its vapors can ignite easily. Ensure the vehicle is parked in a well-ventilated area, away from open flames, sparks, or hot surfaces. Wear gloves and goggles to protect against fuel exposure, which can irritate skin and eyes. Additionally, avoid smoking or using any ignition sources nearby. These precautions are not optional—they are fundamental to preventing accidents during the testing process.
Disconnecting the battery is a crucial step often overlooked by novice mechanics. The electrical system in a 1993 Integra is not as advanced as modern vehicles, but it still poses a risk of short circuits or accidental activation of components. Use a wrench or socket to remove the negative battery terminal, typically marked with a "-" symbol. This step isolates the fuel pump from the electrical system, preventing it from activating unexpectedly during testing. It also protects sensitive electronics from voltage spikes.
Relieving fuel pressure is the final preparatory step before testing the fuel pump. Start by locating the Schrader valve on the fuel rail, usually near the engine bay. Attach the fuel pressure gauge to this valve and depress it to release any residual pressure in the system. This step is vital because pressurized fuel can spray forcefully, posing a safety hazard and complicating the testing process. Allow the pressure to dissipate completely before proceeding. If done correctly, this step ensures a controlled environment for accurate diagnostics.
By meticulously following these pre-test preparation steps—gathering tools, ensuring safety, disconnecting the battery, and relieving fuel pressure—you set the stage for a successful fuel pump test. Each step serves a specific purpose, from safeguarding your well-being to creating optimal conditions for accurate diagnostics. Neglecting any of these measures could lead to inefficiency, errors, or even danger. Approach this process with care and precision, treating each step as indispensable to the overall task.
Straight Wire Your Fuel Pump: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Electrical Testing: Check pump relay, fuse, and wiring for continuity and power
A faulty fuel pump can leave your 93 Integra stranded, but before condemning the pump itself, delve into the electrical system. The relay, fuse, and wiring are the lifelines delivering power to the pump, and their integrity is crucial.
Diagnosing the Circuit:
Begin by locating the fuel pump relay, typically found in the under-hood fuse box. With the key in the "ON" position, listen for a faint clicking sound from the relay, indicating activation. If absent, use a multimeter to test for power at the relay’s input terminal (pin 86) and ground (pin 85). A lack of power here suggests a faulty ignition switch or wiring issue. Next, check the output terminal (pin 87) for power when the relay engages. If power reaches pin 87 but not the pump, suspect a broken wire between the relay and pump connector.
Fuse Inspection:
The fuel pump fuse, often rated at 15-20 amps, is your next checkpoint. A blown fuse is a common culprit, but don’t just replace it—investigate the cause. Use the multimeter’s continuity setting to test the fuse; a reading of infinity indicates a break. If the fuse is intact, ensure power flows through it by testing voltage at both ends with the key on. No voltage post-fuse points to a wiring fault or corroded fuse contacts.
Wiring Continuity and Resistance:
Wiring faults can be elusive. Start by disconnecting the fuel pump connector and testing continuity between the connector’s power wire and the relay’s output terminal. A reading of 0 ohms confirms a complete circuit; anything higher suggests resistance or a break. For ground integrity, check continuity between the pump’s ground wire and the vehicle chassis. High resistance here can starve the pump of power, mimicking a faulty pump.
Practical Tips:
Always test components with the ignition off to avoid short circuits. Use a wiring diagram for your 93 Integra to identify wire colors and relay pinouts accurately. If wiring issues persist, inspect for chafed or damaged wires near the fuel tank or along the chassis.
By systematically verifying the relay, fuse, and wiring, you’ll either isolate the electrical fault or confirm the fuel pump itself is the problem, saving time and unnecessary part replacements.
Volvo V70 Electric Fuel Pump: Fact or Fiction?
You may want to see also
Explore related products
Fuel Pressure Check: Use gauge to verify pump output meets OEM specifications
A fuel pressure check is a critical diagnostic step when testing a 1993 Integra's fuel pump, as it directly assesses the pump's ability to deliver fuel at the correct pressure. The OEM specification for this vehicle typically ranges between 30 and 40 psi (pounds per square inch), depending on the engine load and RPM. To perform this test, you’ll need a fuel pressure gauge compatible with the Schrader valve on the fuel rail. Begin by relieving the fuel system pressure, then disconnect the fuel line at the rail and attach the gauge. With the engine running, observe the pressure reading and compare it to the manufacturer’s specifications. If the pressure is outside the acceptable range, the fuel pump may be failing or there could be an issue with the fuel pressure regulator.
Analyzing the results of a fuel pressure check requires attention to detail. Low pressure readings often indicate a weak fuel pump, clogged fuel filter, or a leak in the fuel lines. Conversely, high pressure can point to a faulty regulator or a restriction in the return line. It’s essential to test the pressure at idle and under load (e.g., revving the engine to 2,000 RPM) to ensure the pump performs consistently across different conditions. For the 93 Integra, a drop in pressure under load could signal a pump that’s struggling to maintain output, especially if the vehicle has high mileage or the pump hasn’t been replaced recently.
From a practical standpoint, here’s how to execute the test effectively: Park the car on a level surface, engage the parking brake, and ensure the engine is cool. Locate the Schrader valve on the fuel rail (usually near the engine bay’s firewall) and attach the gauge securely. Start the engine and let it idle for a minute before recording the pressure. For a more comprehensive assessment, have an assistant rev the engine while you monitor the gauge for fluctuations. If the pressure drops significantly or fails to meet OEM specs, further investigation into the fuel system is warranted.
Persuasively, investing in a quality fuel pressure gauge and understanding this test can save time and money in diagnosing fuel system issues. Many auto parts stores rent or loan gauges, making this an accessible DIY task. However, if you’re unsure about interpreting the results, consulting a professional mechanic is advisable. Ignoring fuel pressure problems can lead to poor engine performance, reduced fuel efficiency, or even engine damage. For a 25-year-old vehicle like the 93 Integra, proactive maintenance is key to preserving its reliability.
In comparison to other fuel pump tests, such as listening for pump operation or checking for voltage at the pump connector, a fuel pressure check provides the most definitive data on pump performance. While other methods can indicate whether the pump is functioning, only a pressure test confirms it’s delivering fuel at the required rate. This makes it an indispensable tool in your diagnostic arsenal, especially for older vehicles where wear and tear are common. By mastering this technique, you’ll be better equipped to address fuel system issues before they escalate.
Do Kohler Engines Have Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
In-Tank Inspection: Drop tank, inspect pump condition, and test for leaks
The in-tank fuel pump of a 1993 Honda Integra is a critical component that requires periodic inspection to ensure optimal performance and prevent unexpected failures. Over time, debris, corrosion, or wear can compromise the pump’s efficiency, leading to symptoms like hard starts, stalling, or reduced power. An in-tank inspection involves dropping the fuel tank, visually assessing the pump’s condition, and testing for leaks—a process that, while labor-intensive, provides definitive insights into the pump’s health. This method is particularly useful when external diagnostics (e.g., pressure tests) yield inconclusive results.
Steps for In-Tank Inspection: Begin by relieving the fuel system pressure and disconnecting the battery to prevent accidents. Drain the tank completely using a siphon pump, ensuring no fuel remains inside. Safely lower the tank after removing the retaining straps and fuel lines, taking care to avoid damaging the lines or surrounding components. Once the tank is accessible, detach the pump assembly, which typically includes the pump, sender unit, and filter sock. Clean the exterior of the tank and pump to facilitate a clear inspection.
Inspecting the Pump Condition: Examine the pump for physical damage, such as cracks in the housing or frayed wiring. Check the filter sock for excessive debris or clogging, as this can restrict fuel flow and strain the pump. Test the pump’s electrical connections for corrosion or loose terminals, using a multimeter to verify continuity. If the pump shows signs of wear—such as a burnt odor, unusual noise during operation, or visible damage—replacement may be necessary. Compare the pump’s condition to manufacturer specifications or a known-good unit for reference.
Testing for Leaks: Reinstall the pump assembly temporarily (without securing it) and fill the tank with a small amount of fuel (1–2 gallons). Start the engine and observe the pump and lines for leaks. Pay close attention to the seals and connections, as leaks here are common in aging systems. If leaks are detected, replace the faulty seals or gaskets before reassembling the system. For a more thorough test, use a smoke machine to pressurize the tank and identify leaks not visible during operation.
Cautions and Practical Tips: Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Use jack stands to support the vehicle securely while accessing the tank. If the tank is rusted or difficult to remove, apply penetrating oil to the retaining bolts beforehand. Keep a drip pan handy to catch any residual fuel during the process. For vehicles over 30 years old, like the 1993 Integra, consider replacing the pump proactively if it shows moderate wear, as preventative maintenance is often more cost-effective than emergency repairs.
Understanding the Functionality of a John Deere Fuel Pump
You may want to see also
Explore related products
$27.04
Post-Test Diagnosis: Analyze results, replace faulty components, and confirm proper operation
After testing your 93 Integra's fuel pump, the real work begins: deciphering the results and taking decisive action. A humming pump doesn't always mean it's delivering sufficient fuel. Analyze the pressure readings from your gauge against the manufacturer's specifications (typically around 30-60 psi for this model). Low pressure could indicate a clogged fuel filter, weak pump, or faulty pressure regulator. Conversely, excessively high pressure points towards a malfunctioning regulator or a restricted return line.
Don't jump to conclusions based on sound alone. A quiet pump might simply be a well-insulated one, while a noisy pump could be nearing the end of its life.
Replacing components blindly is a costly mistake. Before ordering parts, inspect fuel lines for cracks or leaks, check the fuel filter for clogging, and verify the integrity of the wiring harness leading to the pump. Remember, the fuel pump relies on a network of components working in harmony. A faulty sensor or relay can mimic pump failure. Consult your Integra's service manual for specific diagnostic procedures and component locations.
Utilizing a multimeter to test for continuity in the pump circuit and checking for power at the pump connector can further pinpoint the issue.
Once you've identified the culprit, replacement is straightforward. Disconnect the battery, relieve fuel system pressure, and carefully remove the faulty component. When installing the new part, ensure proper sealing and secure all connections. Use a torque wrench to tighten bolts to the specified values, preventing leaks and damage.
Confirmation is key. After replacement, reconnect the battery and turn the ignition to the "on" position (without starting the engine). Listen for the fuel pump's priming hum, which should last for a few seconds. Then, start the engine and monitor for smooth operation and consistent fuel pressure. A test drive will further confirm the repair's success, allowing you to assess performance under various driving conditions.
Quadmaster 500 Fuel Pump: Does It Come Equipped?
You may want to see also
Frequently asked questions
To test the fuel pump, first locate the fuel pump relay in the under-hood fuse box. Swap the fuel pump relay with a similar relay (e.g., the horn relay). Turn the ignition to the "ON" position and listen for the fuel pump to hum for 2-3 seconds. If it doesn’t hum, the pump may be faulty.
With the ignition on, you should measure approximately 12 volts at the fuel pump connector. Use a multimeter to check for power at the connector. If there’s no voltage, inspect the fuse, relay, and wiring for issues.
Attach a fuel pressure gauge to the Schrader valve on the fuel rail. Turn the ignition to the "ON" position and note the pressure. It should be around 38-44 PSI. If the pressure is low or nonexistent, the fuel pump may be failing.
Common signs include difficulty starting, sputtering or stalling, loss of power, and a whining noise from the fuel tank. If these symptoms occur, test the fuel pump relay, voltage, and pressure as described above.
