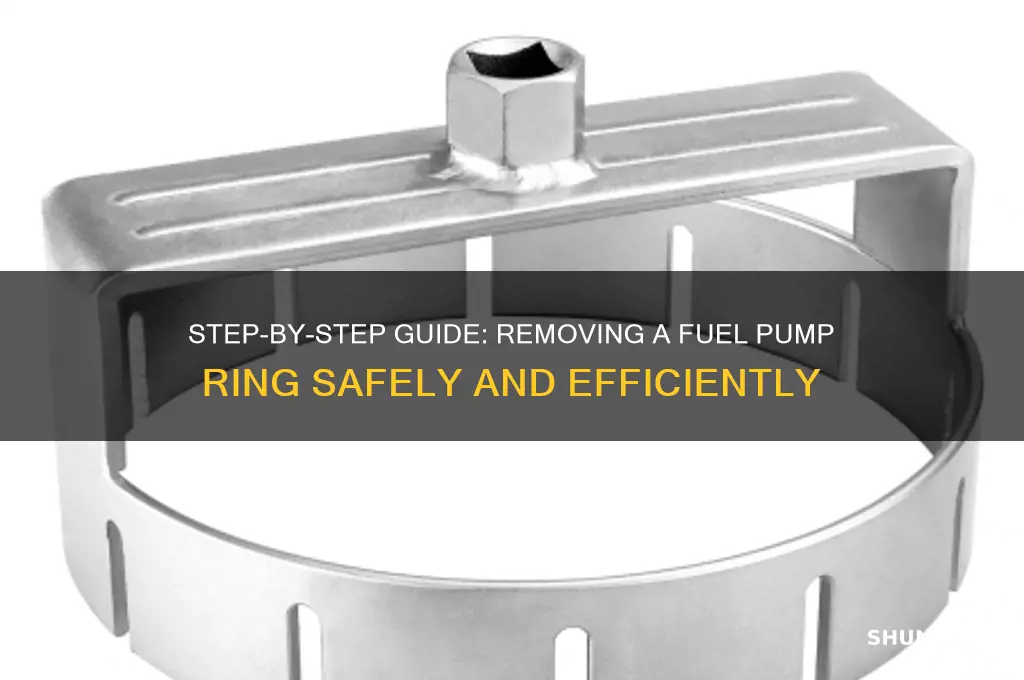

Taking off a fuel pump ring requires careful attention to detail and the right tools to avoid damaging the component or compromising the fuel system's integrity. Typically, the process begins by relieving fuel system pressure and disconnecting the battery to ensure safety. Next, locate the fuel pump module, often found in the fuel tank, and remove any protective covers or access panels. Using a specialized fuel pump ring removal tool or a flathead screwdriver, gently pry the retaining ring away from the fuel pump assembly, being cautious not to bend or distort the ring. Once the ring is loosened, carefully lift it off and set it aside, taking note of its orientation for reassembly. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Tools Required | Pliers, screwdriver, fuel pump ring removal tool, safety gloves, goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Vehicle Compatibility | Varies by make and model; check vehicle manual for specifics |
| Difficulty Level | Moderate to difficult, depending on vehicle design |
| Steps Involved | 1. Relieve fuel pressure 2. Disconnect fuel lines 3. Access the fuel pump 4. Use a removal tool or pliers to grip and twist the ring 5. Remove the ring carefully |
| Common Issues | Stuck or corroded rings, difficulty accessing the fuel pump |
| Time Required | 30 minutes to 2 hours, depending on experience and vehicle |
| Cost of Tools | $10 to $50 for specialized tools (if needed) |
| Alternative Methods | Using a flathead screwdriver or a DIY tool made from a metal strap |
| Post-Removal Steps | Inspect the ring and fuel pump for damage, clean the area, reinstall or replace components |
| Environmental Considerations | Dispose of fuel and old parts according to local regulations |
Explore related products
What You'll Learn
Gather Tools and Safety Gear
Before attempting to remove a fuel pump ring, it’s critical to assemble the right tools and safety gear to ensure efficiency and protect yourself from hazards. Start with a fuel line disconnect tool, specifically designed to release the fuel lines without damaging them. Pair this with a flathead screwdriver for prying and a ratchet set with appropriate socket sizes to access the fuel pump module. A drain pan is essential to catch any residual fuel, while nitrile gloves and safety goggles shield your skin and eyes from fuel exposure. Lastly, keep a fire extinguisher nearby as a precaution, as fuel is highly flammable.
Analyzing the necessity of these tools reveals their dual purpose: precision and safety. For instance, using the wrong tool to disconnect fuel lines can cause leaks, increasing fire risk. Nitrile gloves, unlike latex, resist fuel degradation, ensuring prolonged protection. The drain pan not only prevents environmental contamination but also minimizes slip hazards in the workspace. Each item serves a specific function, and omitting any could compromise the task’s success or your well-being.
From a practical standpoint, organizing your tools before starting is a game-changer. Lay out everything within arm’s reach to avoid mid-task interruptions. If working in a garage, ensure proper ventilation by opening windows or using a fan. For those in tighter spaces, a respirator mask can filter fumes, though it’s no substitute for fresh air. Pro tip: test your tools beforehand—a faulty ratchet or cracked goggles can turn a routine task into a disaster.
Comparing this preparation to other automotive tasks highlights its unique demands. Unlike changing oil, where spills are messy but relatively harmless, fuel pump work involves a volatile substance requiring heightened caution. Similarly, while a basic wrench set suffices for many repairs, specialized tools like the fuel line disconnect are non-negotiable here. This underscores the importance of tailoring your gear to the task’s specific risks.
In conclusion, gathering the right tools and safety gear isn’t just a preliminary step—it’s the foundation of a successful fuel pump ring removal. By investing time in preparation, you mitigate risks, streamline the process, and ensure a safer outcome. Treat this phase as seriously as the repair itself, and you’ll navigate the task with confidence and precision.
Chrysler 300 Fuel System: Dual Pumps Explained and Verified
You may want to see also
Explore related products
Locate Fuel Pump Assembly
Before attempting to remove the fuel pump ring, it's crucial to accurately locate the fuel pump assembly, as this component is often nestled deep within the fuel tank. Start by consulting your vehicle’s service manual to identify the exact location of the fuel pump module, which typically includes the pump, sending unit, and the ring in question. Most modern vehicles house the fuel pump assembly inside the fuel tank, accessible through a service panel or by removing the tank itself. For example, in many Ford models, the assembly is located beneath a circular access panel on the top of the tank, while some Toyota vehicles require tank removal for access. Understanding this layout is essential to avoid unnecessary disassembly or damage to surrounding components.
Once you’ve identified the general location, prepare your workspace by relieving fuel system pressure and disconnecting the battery to prevent accidental ignition. For vehicles with an access panel, remove the panel’s retaining screws or clips, taking care not to strip them. If your vehicle lacks an access panel, you’ll need to drain the fuel tank and safely lower it from the vehicle using a jack or support stand. In either case, inspect the area around the fuel pump assembly for wiring harnesses, hoses, or locking mechanisms that may need to be disconnected before proceeding. For instance, some GM vehicles feature a locking tab on the fuel pump module that must be released before removal.
A comparative analysis of fuel pump assembly designs reveals that while the core components are similar across vehicles, their accessibility varies significantly. European models often integrate the pump directly into the tank with limited clearance, requiring specialized tools for removal. In contrast, many Asian and domestic vehicles prioritize ease of access, with modular designs that allow for quicker disassembly. For example, Honda typically uses a quick-disconnect electrical connector and a locking ring that can be removed with a standard strap wrench, whereas BMW models may require a proprietary tool to release the fuel pump module. Recognizing these differences can streamline your approach and prevent frustration.
Finally, when locating the fuel pump assembly, consider safety and efficiency as top priorities. Always work in a well-ventilated area and use non-sparking tools to minimize fire risks. If removing the fuel tank, ensure it’s securely supported to avoid spills or injuries. For vehicles with complex fuel systems, such as those with in-tank turbines or dual pumps, consult a professional if you’re unsure about any step. By combining precise location knowledge with practical precautions, you’ll be better equipped to tackle the fuel pump ring removal process confidently and safely.
How to Reset Your Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Relieve Fuel System Pressure
Before attempting to remove a fuel pump ring, it's crucial to relieve the fuel system pressure to ensure safety and prevent accidents. Fuel systems operate under high pressure, and failure to relieve this pressure can result in fuel spray, leaks, or even fires. This process varies depending on the vehicle make and model, but the general principle remains the same: to release the pressure built up in the fuel lines and tank.
Understanding the Fuel System Pressure
Modern vehicles are equipped with fuel injection systems that maintain a specific pressure range, typically between 30 and 60 psi (pounds per square inch). This pressure is essential for efficient fuel delivery to the engine. However, when working on the fuel pump or related components, this pressure becomes a potential hazard. Relieving the fuel system pressure is a critical step that should not be overlooked, as it minimizes the risk of fuel-related incidents during maintenance or repairs.
Steps to Relieve Fuel System Pressure
To relieve fuel system pressure, start by locating the fuel pump fuse or relay in the vehicle's fuse box. Consult the owner's manual or a repair guide specific to your vehicle to identify the correct fuse or relay. With the engine off, remove the fuse or relay to disable the fuel pump. Next, locate the fuel pressure relief valve or Schrader valve, typically found on the fuel rail or near the fuel injectors. Attach a fuel pressure gauge to the valve and slowly depress the valve to release the pressure. Alternatively, some vehicles may require running the engine until it stalls, effectively relieving the pressure.
Cautions and Best Practices
When relieving fuel system pressure, always work in a well-ventilated area, away from open flames or sparks. Wear safety goggles and gloves to protect against fuel spills or splashes. Be cautious not to overtighten the fuel pressure gauge or damage the Schrader valve. If your vehicle has a return-less fuel system, ensure you relieve pressure from both the supply and return lines. Additionally, always refer to the vehicle's manual or consult a professional mechanic if you're unsure about the process, as incorrect pressure relief can lead to costly repairs or safety hazards.
Practical Tips and Takeaways
In practice, relieving fuel system pressure is a straightforward process that requires attention to detail and adherence to safety guidelines. For instance, on a typical GM vehicle, you would remove the fuel pump fuse, start the engine, and let it stall to relieve pressure. On a Ford vehicle, you might need to remove the fuel pump relay and depress the Schrader valve. By understanding the specific requirements of your vehicle and following the recommended steps, you can safely relieve fuel system pressure and proceed with fuel pump ring removal or other maintenance tasks. Remember, taking the time to properly relieve fuel system pressure is a small investment that can prevent significant accidents and ensure a successful repair.
Are Motorcraft Fuel Pumps Made in China? Uncovering the Truth
You may want to see also
Explore related products
Remove Retaining Clip Carefully
The retaining clip is a small but critical component in the fuel pump assembly, often securing the fuel pump ring in place. Its removal requires precision and care to avoid damage to the clip, the fuel pump, or surrounding components. Before attempting this step, ensure you have the right tools, such as needle-nose pliers or a specialized retaining clip removal tool, and familiarize yourself with the clip’s orientation and tension. Mishandling can lead to bent or broken clips, complicating reassembly or causing leaks.
Analyzing the retaining clip’s design reveals its purpose: to provide a secure yet removable connection. Unlike permanent fasteners, retaining clips are designed for accessibility, but their spring-like tension demands respect. For instance, plastic retaining clips are more prone to breakage when pried with excessive force, while metal clips may deform if not gripped evenly. Understanding this balance between force and finesse is key to successful removal. Always inspect the clip for wear or corrosion beforehand, as compromised clips may require replacement rather than reuse.
To remove the retaining clip carefully, follow these steps: Position your tool at the clip’s widest point, where it engages with the fuel pump module. Apply gentle, steady pressure to disengage the clip from its groove, avoiding sudden movements that could snap the clip. If the clip resists, reassess its orientation and ensure you’re pulling in the correct direction. For stubborn clips, a light application of penetrating oil can help, but avoid excessive lubrication that might contaminate the fuel system. Once disengaged, set the clip aside safely, noting its position for reassembly.
A comparative approach highlights the difference between removing retaining clips in fuel pump assemblies versus other automotive systems. Fuel pump clips often operate in tighter spaces and are exposed to fuel vapors, making precision and cleanliness paramount. In contrast, clips in brake systems or engine compartments may tolerate rougher handling but still require care. This distinction underscores the need for a tailored approach when working on fuel pump rings, emphasizing patience and attention to detail.
Finally, a practical tip: if you’re unsure about the clip’s removal process, consult the vehicle’s service manual or watch a model-specific tutorial. Visual aids can clarify the clip’s exact location and removal technique, reducing the risk of error. Additionally, keep a replacement clip on hand, especially for older vehicles, as age and exposure to fuel can degrade the clip’s integrity. By treating the retaining clip removal with the care it deserves, you ensure a smooth and safe fuel pump ring replacement process.
Does the ECM Control the Fuel Pump? Understanding the Connection
You may want to see also
Explore related products
Lift Off the Ring Gently
Removing a fuel pump ring requires precision and care to avoid damage to the component or surrounding parts. The phrase "lift off the ring gently" underscores the delicate nature of this step, as brute force can lead to warping, cracking, or misalignment. Unlike other automotive tasks that tolerate rugged handling, this process demands finesse. The ring is often seated tightly due to years of exposure to fuel and temperature fluctuations, creating a bond that resists casual removal. Understanding this context is crucial before attempting the task.
Analyzing the mechanics of the ring’s design reveals why gentleness is paramount. Fuel pump rings are typically made of materials like plastic or composite alloys, chosen for their resistance to fuel degradation but susceptible to physical stress. Applying excessive force can compromise the ring’s integrity, rendering it unusable or causing it to shatter into pieces that contaminate the fuel system. Even metal rings, though sturdier, can deform under improper pressure, leading to leaks or improper sealing. This vulnerability highlights the need for a measured approach.
To execute this step effectively, follow a systematic process. Begin by ensuring the fuel system is depressurized to eliminate residual pressure that could resist removal or pose a safety hazard. Use a flat-edged tool, such as a pry bar or specialized fuel pump ring removal tool, to gently wedge between the ring and its housing. Apply upward pressure gradually, distributing force evenly around the circumference to prevent uneven stress. If resistance is encountered, pause and reassess—forcing the issue risks damage. Instead, consider applying heat (e.g., with a hairdryer or heat gun) to expand the metal housing slightly, easing the ring’s release.
Comparing this method to alternative approaches underscores its practicality. Some enthusiasts advocate for tapping the ring with a mallet, but this risks shock damage to the ring or adjacent components. Others suggest chemical solvents to loosen the bond, but these can introduce contaminants into the fuel system. The gentle lifting method, while time-consuming, minimizes risk and preserves the integrity of both the ring and the fuel pump assembly. It’s a testament to the adage that patience yields better results than force.
In conclusion, lifting off the fuel pump ring gently is a task that marries technical skill with restraint. By understanding the material properties, employing the right tools, and avoiding shortcuts, you ensure a successful removal without collateral damage. This approach not only safeguards the component but also streamlines the reassembly process, as a well-preserved ring can often be reused. Mastery of this technique exemplifies the balance between strength and subtlety required in automotive repair.
Dodge Charger Fuel Pump Fires: Investigating the Burning Issue
You may want to see also
Frequently asked questions
Typically, you’ll need a flathead screwdriver, a pry bar, or a specialized fuel pump ring removal tool, depending on the vehicle’s design.
Yes, always relieve fuel pressure by running the engine until it stalls or using a pressure relief tool to avoid fuel spray or accidents.
Insert the tool or screwdriver between the ring and the fuel tank, gently pry upward, and work your way around the ring evenly to avoid bending or cracking it.
Inspect the ring for damage or wear. If it’s in good condition and seals properly, it can be reused; otherwise, replace it to ensure a secure fit.
