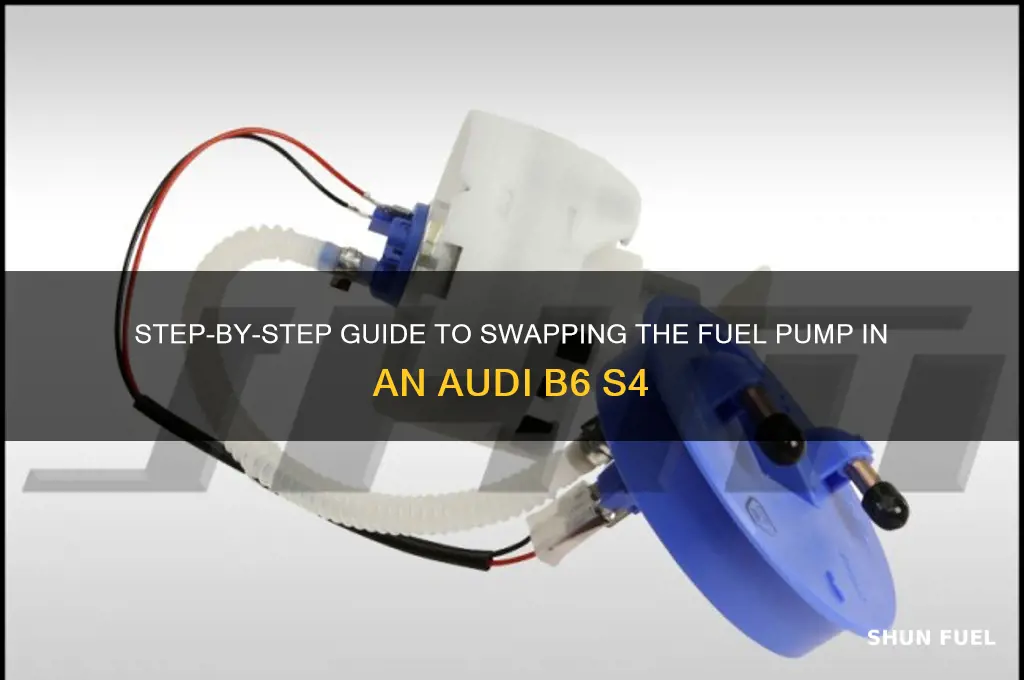

Swapping the fuel pump on an Audi B6 S4 is a critical maintenance task that ensures optimal engine performance and reliability. The fuel pump plays a vital role in delivering fuel from the tank to the engine, and over time, it can wear out or fail, leading to issues such as poor acceleration, stalling, or even engine failure. To replace the fuel pump, you’ll need to access the fuel tank, which typically involves lowering the tank and removing the pump assembly. This process requires careful attention to safety, as working with fuel systems poses risks of fire or fuel spills. Using the correct tools, such as a fuel line disconnect tool and a new pump gasket, is essential to avoid damage and ensure a proper seal. Following a step-by-step guide or consulting the vehicle’s service manual can help streamline the process and ensure the new fuel pump is installed correctly, restoring your Audi B6 S4’s fuel delivery system to peak functionality.
| Characteristics | Values |
|---|---|
| Vehicle Model | Audi B6 S4 |
| Fuel Pump Type | In-Tank High-Pressure Fuel Pump (Walbro or OEM equivalent) |
| Tools Required | Socket set, wrenches, screwdrivers, fuel line disconnect tool, jack stands |
| Difficulty Level | Intermediate to Advanced |
| Estimated Time | 3-5 hours (depending on experience) |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps Involved | 1. Relieve fuel pressure 2. Remove rear seat and fuel pump access panel 3. Disconnect electrical and fuel lines 4. Remove old fuel pump 5. Install new fuel pump 6. Reconnect lines and test for leaks 7. Reassemble interior components |
| Common Issues | Fuel line leaks, electrical connector damage, pump locking ring stuck |
| Recommended Parts | OEM fuel pump assembly, fuel filter, new seals/gaskets |
| Diagnostic Codes | P0087 (Low Fuel Pressure), P0190 (Fuel Rail Pressure Sensor Circuit) |
| Compatibility | Ensure new pump is compatible with Audi B6 S4 (2.7T or 4.2L V8) |
| Cost Estimate | $200-$500 (parts and labor, if DIY) |
| Additional Tips | Use a fuel pump locking ring tool for easier removal, check for recalls |
Explore related products
What You'll Learn
Tools Required for Fuel Pump Swap
Swapping the fuel pump on an Audi B6 S4 is a task that demands precision and the right tools. Without them, you risk damaging components or compromising safety. Let’s break down the essentials.
Core Tools: At the heart of this job are a 10mm and 13mm socket wrench, a torque wrench, and a flathead screwdriver. The 10mm socket is for removing the fuel pump module’s electrical connector, while the 13mm socket tackles the fuel lines. A torque wrench ensures you tighten the retaining bolts to the factory-specified 25 Nm, preventing leaks or over-tightening. The flathead screwdriver is handy for prying clips or gently maneuvering components.
Specialized Equipment: A fuel line disconnect tool is critical for safely releasing the quick-connect fittings without damaging them. This tool typically costs $15–$30 and is a worthwhile investment to avoid costly repairs. Additionally, a drain pan and hand pump are essential for transferring fuel from the tank, minimizing spillage and fire hazards.
Optional but Recommended: A trim removal tool set can protect your interior panels from scratches during access. A battery-powered LED light improves visibility in the fuel tank area, which is often cramped and poorly lit. For those replacing the entire module, a strap wrench helps grip and remove the fuel pump assembly without slipping.
Safety Gear: Never overlook safety. Nitrile gloves protect your skin from fuel exposure, while safety goggles shield your eyes from accidental splashes. Work in a well-ventilated area, and keep a fire extinguisher nearby as a precaution.
In summary, the right tools not only streamline the fuel pump swap but also ensure it’s done safely and correctly. Skimping on equipment can turn a straightforward task into a costly mistake. Invest in quality tools, follow safety protocols, and approach the job methodically for a successful outcome.
Nissan 300ZX Fuel Pump Check Valve: Function and Troubleshooting Tips
You may want to see also
Explore related products
Removing Rear Seat and Fuel Pump Access
Accessing the fuel pump in an Audi B6 S4 requires removing the rear seat, a task that, while straightforward, demands precision and care. Begin by locating the two retaining bolts at the front of the seat, typically concealed by plastic caps that can be pried off with a flathead screwdriver. Once exposed, use a 10mm socket wrench to remove these bolts, ensuring not to strip the threads. Lift the seat slightly to disengage the locking mechanisms, then tilt it backward and unplug the wiring harness connected to the seatbelt pretensioner. This step is crucial, as failure to disconnect the harness can damage the wiring or impede seat removal.
With the rear seat removed, the fuel pump access panel becomes visible, secured by a series of T25 Torx screws. These screws are often tight due to factory torque settings, so apply steady pressure with a Torx bit to avoid rounding the screw heads. Once removed, the access panel lifts out, revealing the fuel pump assembly. Note the orientation of the panel for reassembly, as improper installation can lead to fuel leaks or system malfunctions. This stage is where patience pays off, as rushing can result in costly errors.
Before proceeding to the fuel pump itself, inspect the fuel lines and electrical connectors for signs of wear or damage. The fuel pump is held in place by a locking ring that requires a specialized tool for removal, such as a fuel pump lock ring tool. Position the tool over the ring and rotate counterclockwise to release it. Be cautious not to spill fuel during this process; having a drain pan or absorbent cloth ready is advisable. Once the ring is removed, the pump can be carefully lifted out of the tank, taking care not to damage the float or sender unit.
Reinstallation follows the reverse order, but with added attention to detail. Ensure the new fuel pump is seated correctly and the locking ring is tightened securely but not over-torqued, as this can warp the plastic components. Reattach the fuel lines and electrical connectors, double-checking their alignment to prevent leaks or electrical faults. When replacing the access panel, apply a thin bead of fuel-resistant sealant around the edges for added protection. Finally, reinstall the rear seat, ensuring the wiring harness is reconnected and the retaining bolts are tightened to factory specifications. This meticulous approach ensures a successful fuel pump swap while maintaining the integrity of the vehicle’s fuel system.
Delphi Fuel Pumps: Performance, Reliability, and User Ratings Explained
You may want to see also
Explore related products
Disconnecting Electrical and Fuel Lines Safely
Before tackling the fuel pump swap on your Audi B6 S4, prioritize safety by mastering the art of disconnecting electrical and fuel lines. Mishandling these components can lead to electrical shorts, fuel leaks, or even fires. Start by ensuring your vehicle is on a level surface, the engine is cool, and the ignition is off. Always wear safety gloves and goggles to protect against fuel spills and electrical hazards.
Begin with the electrical connections. Locate the fuel pump relay and fuse in the engine bay or interior fuse box, depending on your model. Remove the fuse to cut power to the pump, preventing accidental activation during the swap. Next, trace the wiring harness to the fuel tank. Most B6 S4 models use a multi-pin connector secured with a locking tab. Depress the tab gently and pull the connector apart, ensuring no wires are damaged. Label the connectors if unsure of their orientation for reassembly.
Fuel lines require a more delicate approach. Relieve the fuel system pressure by locating the Schrader valve on the fuel rail (typically near the engine bay). Attach a pressure gauge and release the pressure by pressing the valve stem. Once depressurized, disconnect the fuel lines at the quick-connect fittings. Use a fuel line disconnect tool to avoid damaging the plastic clips. Have a catch pan ready, as residual fuel will drain from the lines.
Compare the old and new fuel pump assemblies to ensure compatibility. Some aftermarket pumps may require adapter harnesses or additional modifications. If reusing the original harness, inspect it for wear or corrosion. Clean the electrical contacts with isopropyl alcohol and a lint-free cloth to ensure a reliable connection. For fuel lines, inspect the O-rings and replace them if they show signs of degradation.
In conclusion, disconnecting electrical and fuel lines safely is a critical step in swapping the fuel pump on an Audi B6 S4. By following these steps—deactivating power, using proper tools, and inspecting components—you minimize risks and ensure a successful installation. Always double-check connections before reassembly to avoid post-installation issues. With patience and precision, this task becomes manageable even for DIY enthusiasts.
Yamaha Wave Runner 94: Fuel Pump Presence Explained
You may want to see also
Explore related products
$62.99
Installing New Fuel Pump and Lock Ring
The fuel pump and lock ring are critical components in your Audi B6 S4’s fuel system, ensuring consistent fuel delivery to the engine. Over time, wear and tear can compromise their efficiency, necessitating replacement. Installing a new fuel pump and lock ring requires precision and attention to detail to avoid leaks or system malfunctions. This process involves accessing the fuel tank, removing the old components, and securely installing the new ones.
Steps for Installation: Begin by safely relieving the fuel system pressure and disconnecting the battery to prevent accidents. Drain the fuel tank to minimize spillage during the process. Access the fuel pump by lowering the tank, which typically involves removing retaining straps and disconnecting fuel lines. Once the tank is accessible, detach the electrical connector and fuel lines from the old pump. Carefully remove the lock ring using a specialized tool to avoid damaging the tank. Install the new fuel pump, ensuring it seats correctly, and secure it with the new lock ring, tightening it evenly to the manufacturer’s torque specifications.
Cautions and Tips: Always work in a well-ventilated area and avoid open flames or sparks due to the flammable nature of fuel. Use a torque wrench to avoid over-tightening the lock ring, which can warp the tank flange. Double-check all connections and seals before reinstalling the tank to prevent leaks. If the tank is difficult to lower, inspect for hidden retaining bolts or obstructions. Consider replacing the fuel filter simultaneously for optimal system performance.
How Long Does It Take to Replace a Fuel Pump in a Suburban?
You may want to see also
Explore related products
Reassembly and Testing the Fuel System
Once the fuel pump assembly is securely installed and all connections are properly seated, the reassembly phase transitions into a critical testing stage to ensure the system’s integrity and functionality. Begin by reconnecting the battery and turning the ignition to the "on" position without starting the engine. Listen for the fuel pump’s priming cycle, a brief whirring sound that confirms the pump is operational. If this sound is absent, double-check all electrical connections and fuses, particularly the fuel pump relay, which is a common failure point in Audi B6 S4 models. Use a multimeter to verify power delivery to the pump if necessary.
Next, inspect the fuel lines for leaks by pressurizing the system. With the ignition still on, carefully examine all connections, including the fuel filter, hoses, and pump assembly, for any signs of seepage. Even a small leak can escalate into a safety hazard, so address any issues immediately. Tighten fittings as needed, but avoid over-torquing to prevent damage. For added safety, apply a soapy water solution to connections and look for bubbles, a reliable method to detect leaks under pressure.
With the system confirmed leak-free, proceed to start the engine. Monitor the fuel pressure gauge, if available, to ensure it stabilizes within the manufacturer’s specified range (typically 50–60 PSI for the B6 S4). If the gauge fluctuates or reads inconsistently, inspect the fuel pressure regulator and fuel pump for faults. Allow the engine to idle for several minutes, checking for unusual noises or vibrations that could indicate improper installation or a failing component.
Finally, take the vehicle for a test drive under varying conditions—idle, acceleration, and deceleration—to evaluate the fuel system’s performance. Pay attention to hesitation, surging, or loss of power, which may signal issues like a clogged fuel filter or inadequate pump output. Post-drive, recheck for leaks and ensure all components remain secure. This meticulous testing process not only validates the reassembly but also safeguards against potential failures down the road, ensuring the Audi B6 S4’s fuel system operates reliably under all driving scenarios.
Launching a Gas Station Fuel Pump Service Business: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need a jack and jack stands, a fuel line disconnect tool, a socket set, a torque wrench, a new fuel pump assembly, and safety equipment like gloves and safety goggles.
Locate the fuel pump relay in the fuse box and remove it. Start the engine and let it run until it stalls to relieve the pressure. Alternatively, use the fuel pressure relief valve if your vehicle is equipped with one.
The fuel pump is located inside the fuel tank. To access it, remove the rear seat cushion, disconnect the battery, and then remove the fuel pump access panel. Afterward, lower the fuel tank to access and replace the pump.
