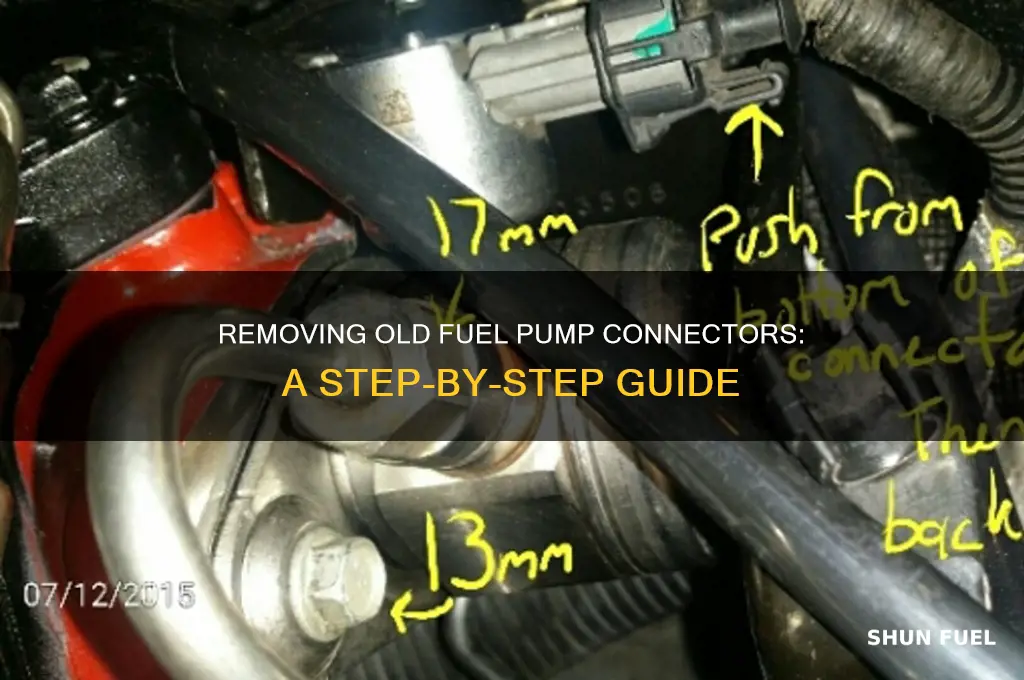

Removing a connector from an old fuel pump requires careful attention to avoid damaging the components or causing fuel leaks. Start by locating the connector, typically found near the top of the fuel pump module. Before proceeding, ensure the vehicle is turned off and the fuel system is depressurized to minimize safety risks. Gently inspect the connector for any locking mechanisms, such as clips or tabs, which must be released first. Use a small tool like a flathead screwdriver or a dedicated connector release tool to carefully disengage the lock, then pull the connector straight out with steady, even pressure. Avoid twisting or forcing it, as this can damage the wiring or connector housing. Once removed, inspect the connector and terminals for corrosion or wear, addressing any issues before reinstalling or replacing the fuel pump.
| Characteristics | Values |
|---|---|
| Tools Required | Pliers, screwdriver, flathead tool, or connector release tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in ventilated area |
| Connector Type | Typically a clip-on or snap-fit connector |
| Release Mechanism | Squeeze tabs, push release clip, or pry with a tool |
| Location | Fuel pump module, usually inside the fuel tank or near the pump |
| Difficulty Level | Moderate (varies by vehicle model) |
| Common Issues | Stuck connectors, rust, or corrosion |
| Tips | Use a connector release tool for precision, avoid excessive force |
| Post-Removal Steps | Inspect connector and wires for damage, clean if necessary |
| Compatibility | Specific to vehicle make and model |
| Time Required | 10–30 minutes (depending on accessibility and experience) |
Explore related products
What You'll Learn
- Locate and Identify Connector: Find the fuel pump connector, usually near the pump module
- Release Safety Clips: Use a tool to disengage the connector’s locking clips
- Pull Connector Apart: Gently separate the connector halves without forcing them
- Inspect Wiring Harness: Check for damage or corrosion in the wiring before removal
- Secure Disconnected Parts: Tape or tie the connector to prevent fuel leaks or damage
Locate and Identify Connector: Find the fuel pump connector, usually near the pump module
The fuel pump connector is a critical component in the fuel delivery system, and its location is the first step in any removal process. Typically, this connector resides in close proximity to the fuel pump module, a strategic placement that ensures efficient fuel transfer. This positioning is not arbitrary; it minimizes the length of the fuel line, reducing the risk of leaks and improving overall system performance. Understanding this layout is essential, as it guides the technician's initial search and sets the stage for the subsequent steps in the connector removal process.
In most vehicles, the fuel pump module is situated within the fuel tank, often requiring the tank's removal or partial lowering to access the pump and its connector. This design choice is a safety feature, as it protects the electrical components from external elements and potential damage. When locating the connector, it's crucial to refer to the vehicle's service manual or online resources specific to your car's make and model. These resources provide detailed diagrams and descriptions, ensuring you identify the correct connector, as some vehicles may have multiple fuel-related connectors in the vicinity.
A practical approach to finding the fuel pump connector involves a systematic visual inspection. Start by locating the fuel tank and identifying the pump module's position within it. This may require removing the rear seat or accessing the tank from underneath the vehicle, depending on the car's design. Once the module is visible, trace the wiring harness connected to it, which will lead you directly to the fuel pump connector. This connector is often a multi-pin plug, designed to withstand the harsh conditions within the fuel tank, and is usually secured with a locking mechanism to prevent accidental disconnection.
It's worth noting that some vehicles employ a quick-connect fitting for the fuel pump connector, allowing for easier removal and installation. These fittings often have a release mechanism, such as a tab or collar, that needs to be depressed or rotated to disengage the connector. Familiarizing yourself with the specific type of connector in your vehicle is crucial, as it dictates the tools and techniques required for removal. For instance, a quick-connect fitting may only need a simple release tool, while other connectors might require more specialized equipment to avoid damage during disconnection.
In summary, locating and identifying the fuel pump connector is a precise task that demands attention to detail. By understanding the connector's typical location near the pump module and utilizing vehicle-specific resources, technicians can efficiently initiate the removal process. This initial step is fundamental, as it ensures the correct component is targeted, setting the foundation for a successful and safe fuel pump connector removal.
Step-by-Step Guide to Setting Fuel Pump on Perkins Engines
You may want to see also
Explore related products
Release Safety Clips: Use a tool to disengage the connector’s locking clips
Safety clips on fuel pump connectors are designed to prevent accidental disconnection, but they can be stubborn to release. A flathead screwdriver or a dedicated terminal removal tool is often the most effective instrument for this task. Insert the tool into the small gap between the clip and the connector body, applying gentle but firm pressure to pry the clip away from its locked position. This action should disengage the locking mechanism, allowing the connector to be pulled free. Precision is key; avoid excessive force to prevent damaging the clip or the connector housing.
The design of these clips varies across vehicle makes and models, so familiarity with your specific fuel pump connector is crucial. Some clips release with a sideways motion, while others require a vertical lift. Observing the clip’s orientation before attempting removal can save time and reduce frustration. For example, GM fuel pump connectors often feature a tab that needs to be pressed downward, whereas Ford models may require a sideways release. Consulting the vehicle’s service manual or online resources can provide model-specific guidance.
While a flathead screwdriver is commonly used, specialized tools like a terminal removal key offer a safer and more controlled approach. These tools are designed to fit the contours of the clip, minimizing the risk of slipping and causing damage. If using a screwdriver, wrap the tip with electrical tape to protect the connector from scratches. Always work methodically, testing the clip’s movement incrementally to ensure it’s fully disengaged before pulling the connector apart.
One common mistake is attempting to pull the connector without fully releasing the clip, which can damage the wiring harness or break the clip entirely. To avoid this, confirm the clip is completely disengaged by gently tugging the connector after prying. If resistance is felt, reapply pressure to the clip until it moves freely. Once the clip is released, the connector should separate with minimal effort, often accompanied by a soft click or release sound.
In summary, releasing safety clips on fuel pump connectors requires the right tool, careful observation, and controlled force. Whether using a screwdriver or a specialized tool, the goal is to disengage the locking mechanism without causing damage. Understanding the clip’s design and working methodically ensures a successful removal, preserving the integrity of the fuel pump system for future maintenance or replacement.
Accessing the Fuel Pump in Your 2003 Honda Civic: A Step-by-Step Guide
You may want to see also
Explore related products
Pull Connector Apart: Gently separate the connector halves without forcing them
Fuel pump connectors are designed to withstand harsh conditions, but age and exposure can make them stubborn. When faced with a connector that resists separation, the instinct to force it apart can be strong. However, this approach often leads to broken tabs, damaged wires, or a connector that’s impossible to reuse. The key lies in understanding the mechanism: most fuel pump connectors use a locking tab or clip that secures the halves together. Applying brute force ignores this design, risking permanent damage. Instead, a gentle, deliberate approach is essential to preserve both the connector and the wiring harness.
Begin by inspecting the connector for visible locking mechanisms. Many fuel pump connectors feature a small tab or clip on one side, often near the wire entry point. This tab is typically depressed or lifted to release the connector halves. Use a small, flat-head screwdriver or a trim removal tool to carefully pry the tab. Apply minimal pressure, just enough to disengage the lock. If the tab is recessed or difficult to access, a pick tool or needle-nose pliers can provide better leverage. Always work slowly, testing the connector for movement after each attempt to avoid over-prying.
In some cases, the connector may lack a visible locking tab, relying instead on friction or a snap-fit design. For these, gently rock the connector halves back and forth while pulling them apart. This motion reduces the surface tension and encourages separation without damaging the internal components. If resistance persists, apply a small amount of penetrating oil or dielectric grease around the seam to loosen any corrosion or debris. Allow it to sit for a few minutes before attempting again. Patience is critical; rushing increases the risk of breakage.
Once the connector begins to separate, maintain a steady, even pull. Avoid twisting or jerking, as this can strain the wires or misalign the connector pins. If the halves still refuse to part, re-examine the connector for hidden locks or secondary retention features. Some designs include a secondary clip or a twist-lock mechanism that must be disengaged first. Refer to the vehicle’s service manual or online resources for model-specific guidance if needed.
Successfully separating the connector halves without forcing them ensures the integrity of the fuel pump system and simplifies future repairs or replacements. By prioritizing gentleness and precision, you avoid costly mistakes and maintain the functionality of the connector. This method not only preserves the part but also demonstrates a deeper understanding of automotive systems, fostering confidence in tackling similar tasks. Remember, the goal is not just to remove the connector but to do so in a way that respects the engineering behind it.
Resetting Your Fuel Pump Control Module: A Step-by-Step Guide
You may want to see also
Explore related products
Inspect Wiring Harness: Check for damage or corrosion in the wiring before removal
Before attempting to remove the connector from an old fuel pump, it's crucial to inspect the wiring harness for any signs of damage or corrosion. This step is often overlooked, but it can prevent potential issues down the line, such as electrical shorts or fuel system malfunctions. Start by visually examining the wiring for frayed or exposed wires, cracked insulation, or discoloration, which may indicate heat damage. Use a bright LED flashlight to illuminate hard-to-see areas, and gently run your fingers along the harness to detect any abnormalities that aren't immediately visible.
Corrosion is another common issue, especially in older vehicles or those exposed to harsh environmental conditions. Look for greenish deposits, white powdery residue, or darkened areas around the connector terminals. These are telltale signs of oxidation, which can impede electrical conductivity. To assess the extent of corrosion, carefully disconnect the wiring harness and inspect the pins or terminals. If corrosion is present, use a specialized electronic contact cleaner and a plastic-bristled brush to gently remove the buildup. Avoid using metal tools or abrasive materials, as these can cause further damage.
In some cases, damage may not be immediately apparent, particularly if the wiring harness has been compromised internally. Perform a continuity test using a multimeter to ensure the electrical pathways are intact. Set the multimeter to the continuity or resistance setting, and touch one probe to each end of the wire. A consistent reading indicates a healthy connection, while fluctuations or no reading suggest a break or short. If issues are detected, consider replacing the affected section of the harness rather than risking further complications.
Preventative measures can also be taken to minimize future damage. After inspection and cleaning, apply a thin layer of dielectric grease to the connector terminals. This non-conductive lubricant protects against moisture and corrosion, ensuring a reliable connection. Additionally, route the wiring harness away from heat sources, sharp edges, or moving components to reduce wear and tear. By thoroughly inspecting and maintaining the wiring harness, you not only ensure a safe removal process but also contribute to the longevity and reliability of the fuel system.
Electric Fuel Pump Mechanics: Understanding Push vs. Pull Functions
You may want to see also
Explore related products
Secure Disconnected Parts: Tape or tie the connector to prevent fuel leaks or damage
Once the fuel pump connector is disconnected, securing it becomes paramount to prevent hazardous leaks and potential damage. Fuel is highly flammable and can corrode surrounding components if left exposed. A simple yet effective solution is to use electrical tape or a zip tie to secure the connector. Wrap the tape tightly around the connector’s base, ensuring no gaps allow fuel to seep out. Alternatively, loop a zip tie through the connector’s mounting hole and tighten it securely, keeping the connector in place without obstructing other components. This step, though minor, is critical for safety and maintaining the integrity of the fuel system during the repair process.
Consider the environment in which the repair is taking place. In a garage or workshop, securing the connector minimizes the risk of fuel spills, which can ignite if exposed to sparks or open flames. Outdoors, wind or accidental knocks could dislodge an unsecured connector, leading to leaks. For added protection, place a clean rag or absorbent pad beneath the connector to catch any drips. This dual approach—securing the connector and preparing for potential leaks—ensures a safer workspace and reduces the likelihood of costly or dangerous accidents.
The choice of securing method depends on the connector’s design and the tools available. Electrical tape is versatile and easy to apply, but it may degrade over time if exposed to fuel. Zip ties offer a more durable solution, especially in long-term storage or if the vehicle won’t be repaired immediately. For older vehicles with brittle connectors, handle with care to avoid cracking the plastic. If the connector has a locking mechanism, ensure it’s disengaged before attempting to secure it, as forcing it could cause damage. Always inspect the connector for wear or cracks before securing it, as compromised parts may require replacement.
Securing the disconnected fuel pump connector is not just a precautionary step—it’s a necessity. Fuel leaks pose immediate fire hazards and long-term environmental risks, such as soil contamination or damage to other vehicle systems. By taking a few moments to tape or tie the connector, you safeguard both the vehicle and yourself. This small action aligns with best practices in automotive repair, emphasizing safety and attention to detail. Whether you’re a seasoned mechanic or a DIY enthusiast, treating this step with the importance it deserves ensures a smoother, safer repair process.
Understanding Common Causes of Electric Fuel Pump Failures in Vehicles
You may want to see also
Frequently asked questions
First, relieve the fuel system pressure and disconnect the battery. Then, locate the connector on the fuel pump, press the release tab (if present), and gently pull the connector straight off.
Typically, no special tools are required. However, you may need a flathead screwdriver to pry the connector off if it’s stuck or to release a locking mechanism.
It depends on the condition of the connector. If it’s in good shape and not damaged, it can be reused. Otherwise, replace it to ensure a secure connection.
Apply gentle wiggling motion while pulling to loosen the connector. Avoid excessive force to prevent damage. If it’s still stuck, inspect for a locking clip or tab that may need to be released.
Yes, always work in a well-ventilated area, relieve fuel system pressure, and disconnect the battery to avoid sparks. Wear safety goggles and gloves to protect against fuel spills.
